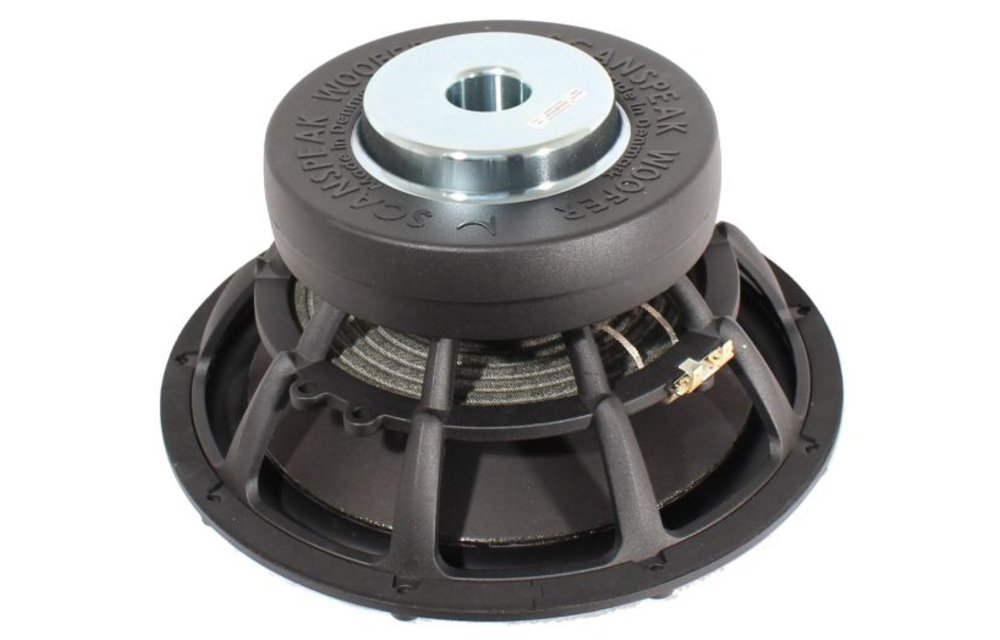

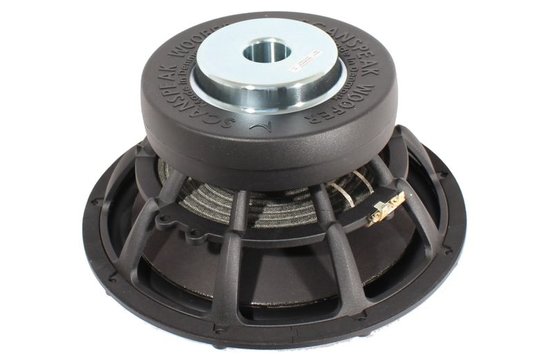

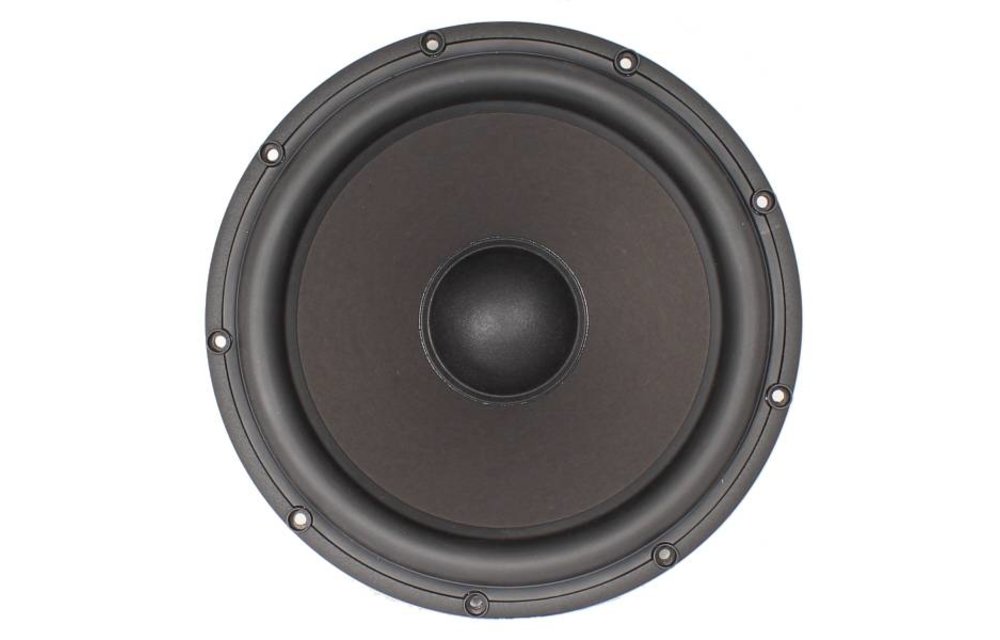

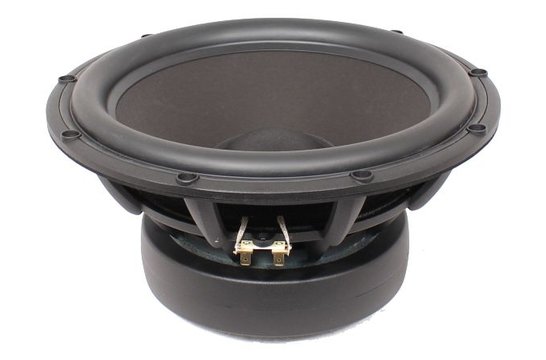

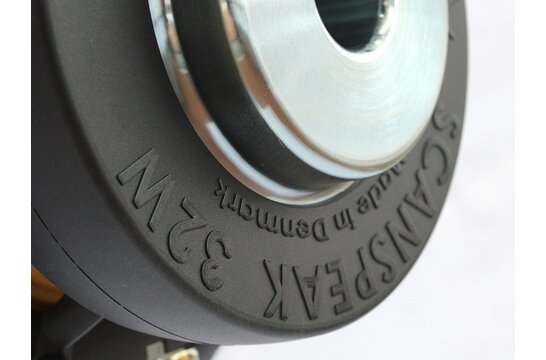

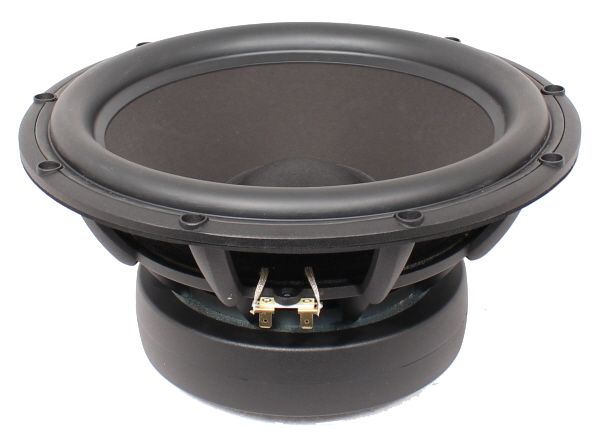

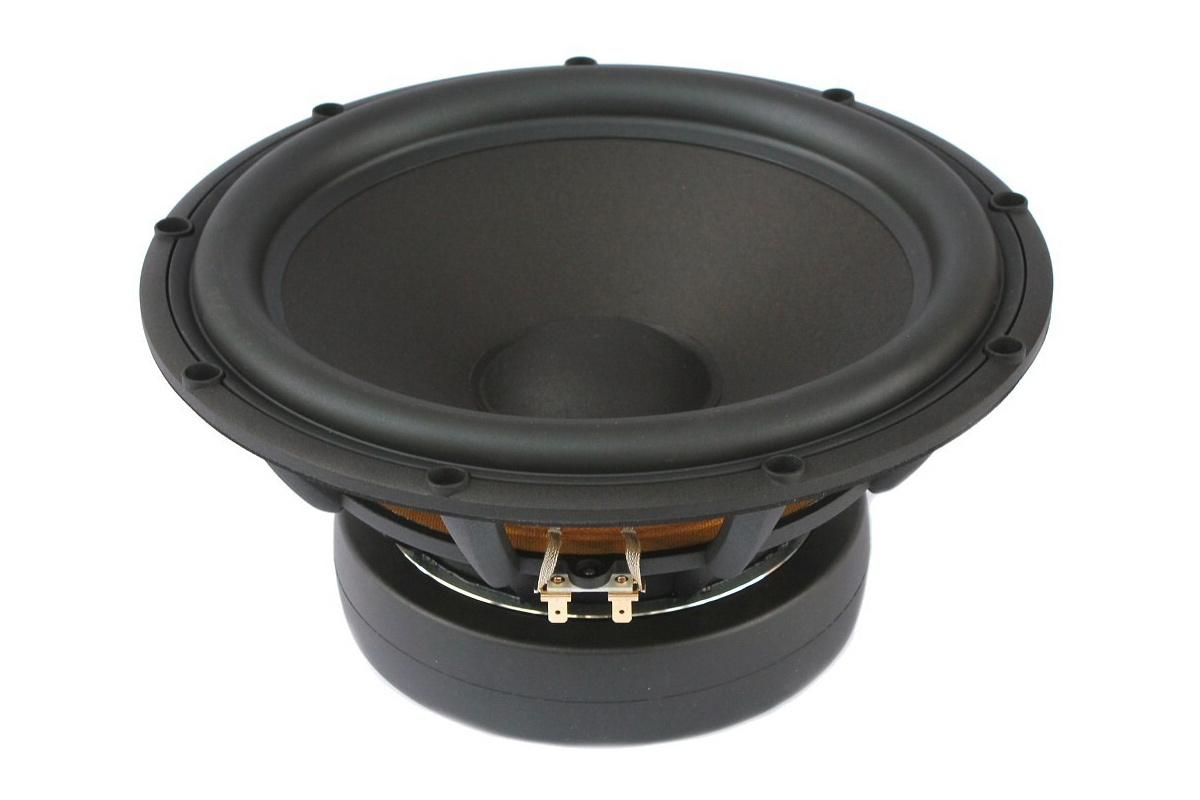

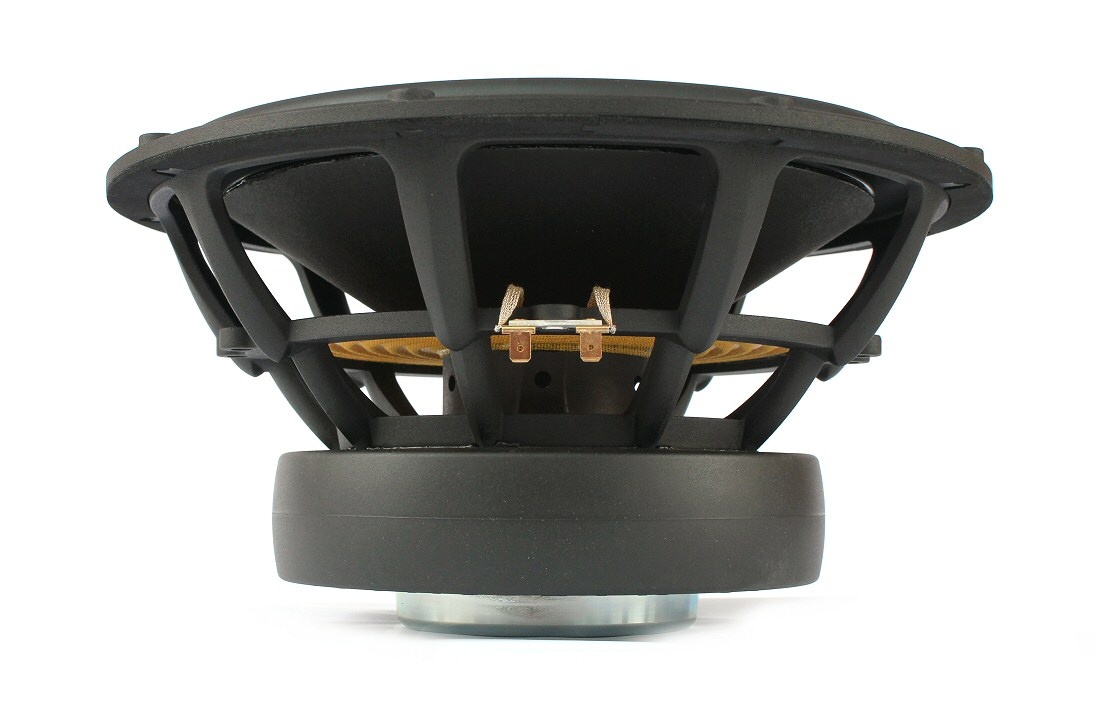

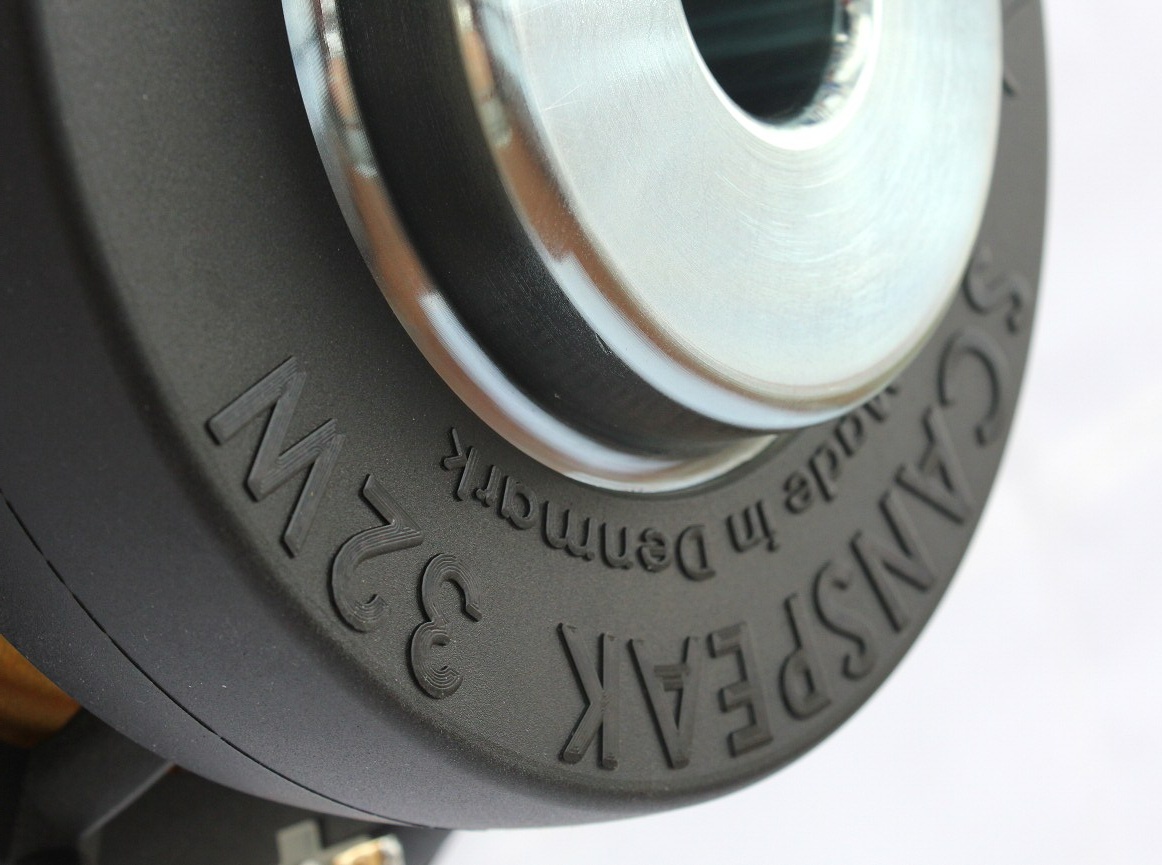

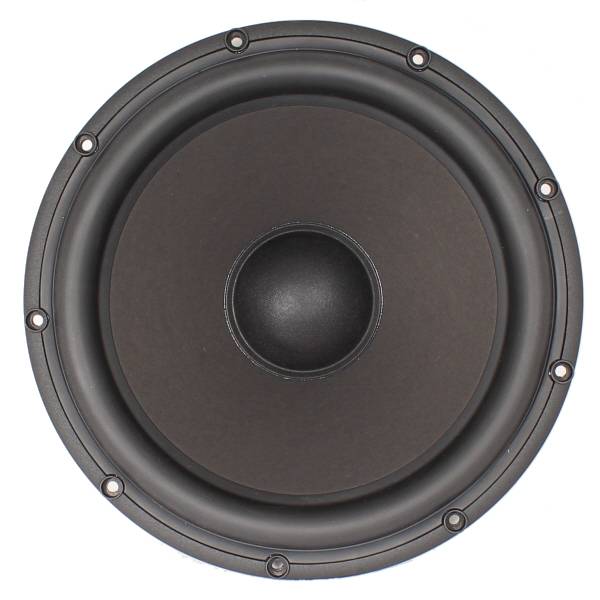

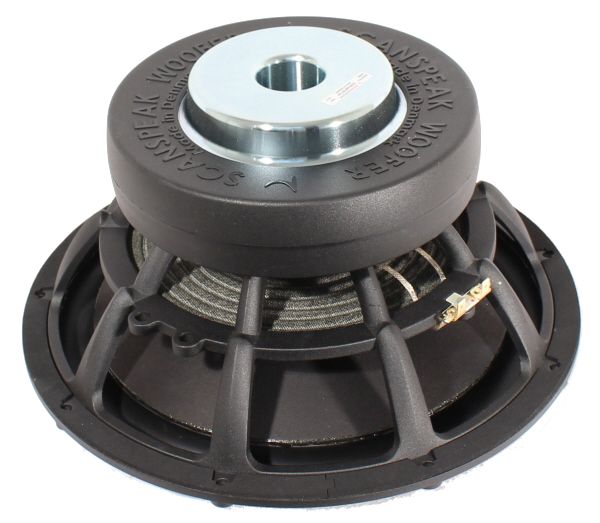

        Revelator 32W/4878T00 13" Subwoofer audio components

        Revelator 32W/4878T00 13" Subwoofer audio components

        €699,95

        Scan-Speak Revelator 32W/4878T00 13" Subwoofer audio components

        2 reviews
        5 from 5
        2 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Scan-Speak
        € 578,47€ 699,95 6 In stock
        • -5% Purchase 4 for only € 664,95 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped tomorrow
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        The Scan-Speak Revelator 32W/4878T00 subwoofer delivers deep, powerful bass that will make your movies and music come alive. It is also well-balanced and does not overpower the other frequencies. The subwoofer is made with high-quality materials and construction, so you can be confident that it will last for years to come.



        Highlights

        • Paper sandwich cone with Patented foam filling
        • Patented Symmetrical Drive motor
        • Spider with balanced woven in tinsel leads
        • Extreme linear excursion (+/-14 mm)
        • 3” Voice coil, Titanium former and paper reinforced
        • Stiff and strong die cast aluminium chassis



        Product details

        Scan-Speak Revelator 32W/4878T00 Subwoofer



        The 32W/4878T00 is the most powerful subwoofer designed by Scan-speak to this date, with its large 3” voice coil, extreme linear excursion and low resonance frequency, it is perfect to reproduce the deepest frequencies. It features a brand new type of paper-sandwich cone with a special foam filling technology (patented) that gives the cone very high stiffness and relative low weight. The motor system has heavy duty copper sleeves for optimizing eddy currents and minimizing self-induction.



        Get inspired!

        This article has been used in the following instruction/blog/project:

        Show more

        Specifications

        Article number
        32W/4878T00
        Woofer Series
        Revelator Series
        Woofer Type
        Subwoofer
        Nominal Diameter
        13"
        Power Handling (RMS)
        350 Watts
        Power Handling (max)
        550 Watts
        Impedance (Z)
        4 ohms
        Sensitivity (SPL at 1m / 2.83V)
        90 dB
        Frequency Response
        20 to 150 Hz
        Voice Coil Diameter
        3"
        DC Resistance (Re)
        3.1 ohms
        Resonant Frequency (Fs)
        18 Hz
        Mechanical Q (Qms)
        7
        Electromagnetic Q (Qes)
        0.33
        Total Q (Qts)
        0.32
        Diaphragm Mass Inc. Airload (Mms)
        150 g
        Mechanical Compliance of Suspension (Cms)
        0.52 mm/N
        Surface Area of Cone (Sd)
        531 cm²
        BL Product (BL)
        12.5 Tm
        Compliance Equivalent Volume (Vas)
        207.5 L
        Maximum Linear Excursion (Xmax)
        14 mm
        Cone / Diaphragm Material
        Paper
        Basket / Frame Material
        Die cast aluminum
        Magnet Material
        Ferrite
        Overall Outside Diameter
        12.6"
        Overall Depth
        5.97"
        Baffle Cutout Diameter
        11.42"
        # Mounting Holes
        4
        Sealed Volume
        1.5 ft.³
        Sealed F3
        45 Hz
        Vented Volume
        3.5 ft.³
        Vented F3
        26 Hz
