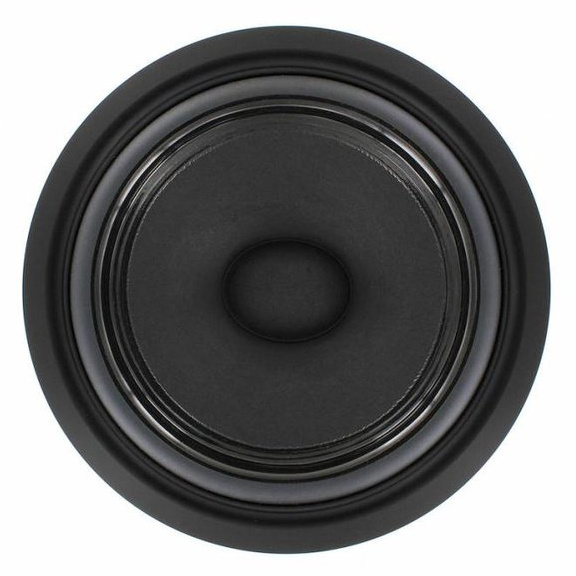

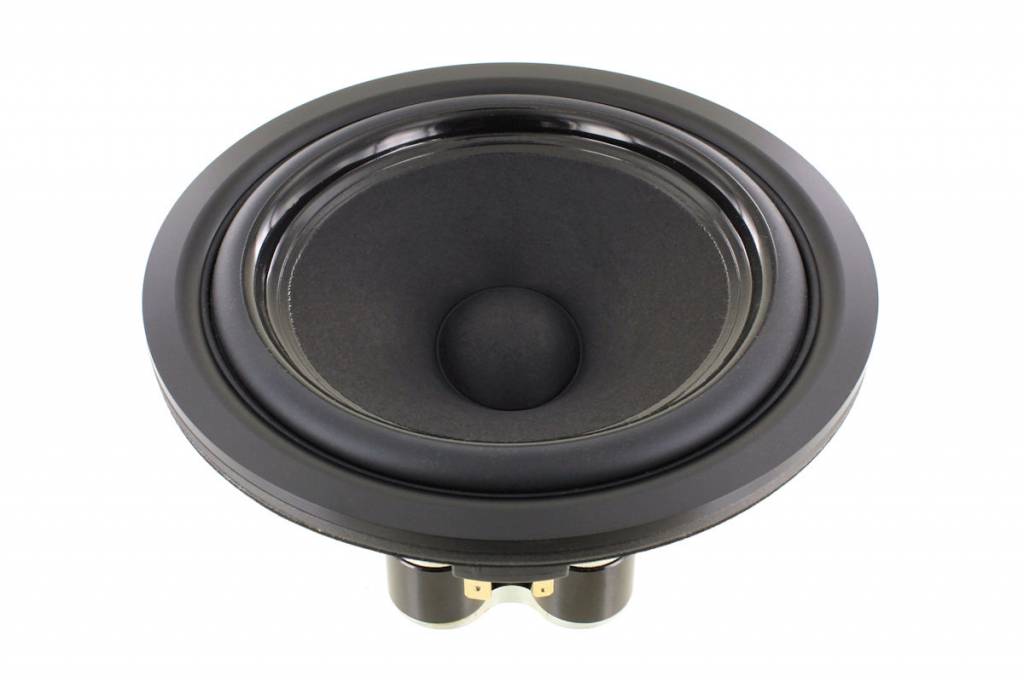

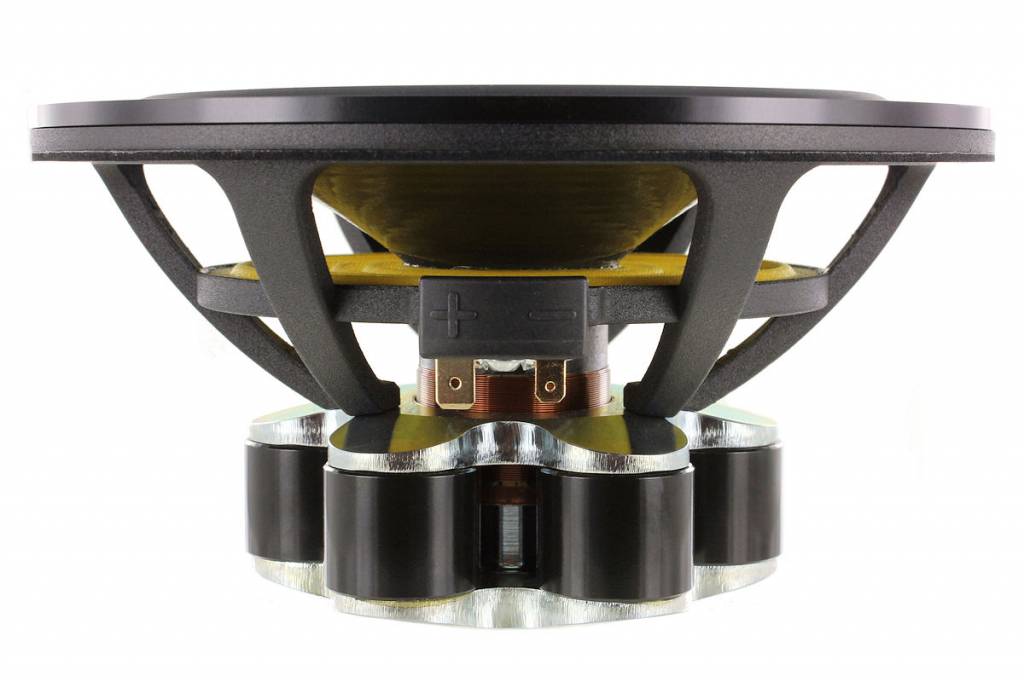

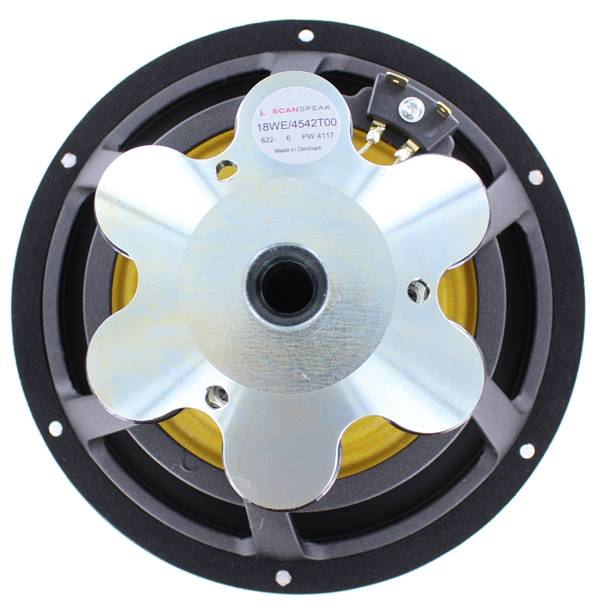

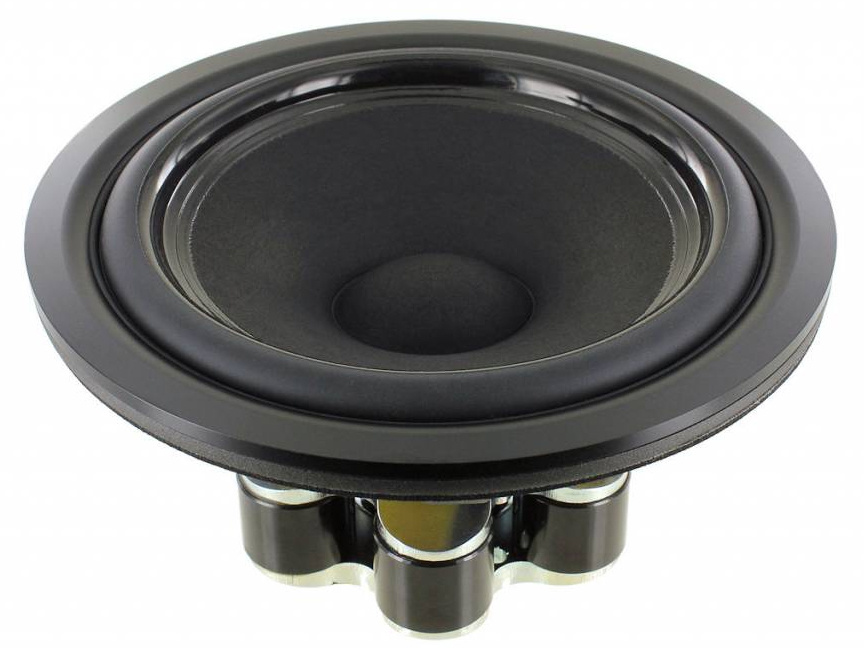

Scan-Speak Ellipticor 18WE/4542T00 7" Woofer

Brand: Scan-Speak

Show all Audio components

Compare

7" | 4 Ω

Ellipticor 18WE/4542T00 7" Woofer

Ellipticor 18WE/4542T00 7" Woofer

Ellipticor 18WE/4542T00 7" Woofer

Ellipticor 18WE/4542T00 7" Woofer

Ellipticor 18WE/4542T00 7" Woofer

Ellipticor 18WE/4542T00 7" Woofer

Ellipticor 18WE/4542T00 7" Woofer

Ellipticor 18WE/4542T00 7" Woofer

Ellipticor 18WE/4542T00 7" Woofer

Ellipticor 18WE/4542T00 7" Woofer

Ellipticor 18WE/4542T00 7" Woofer

Ellipticor 18WE/4542T00 7" Woofer

€ 799,95 Out of stock: delivery time is 1 week

Backorder

With the Ellipticor family and introduction of an elliptical voice coil and magnet gap, a long tradition of circular motor structures and their inherent breakup behavior has been broken. In combination with the powerful SD AirCirc magnet system, the 18WE... Show more

Low international shipping rates
Same day shipping*
Pay with PayPal, Creditcard, and more
In-house technical support

Product description

Highlights

Elliptic voice coil
Very low mechanical losses
High sensitivity (SPL)
AirCirc optimized magnet system
Unusually low distortion
Flexible appearance with replaceable decor ring

Product details

Scan-Speak Ellipticor 18WE/4542T00 7" Woofer

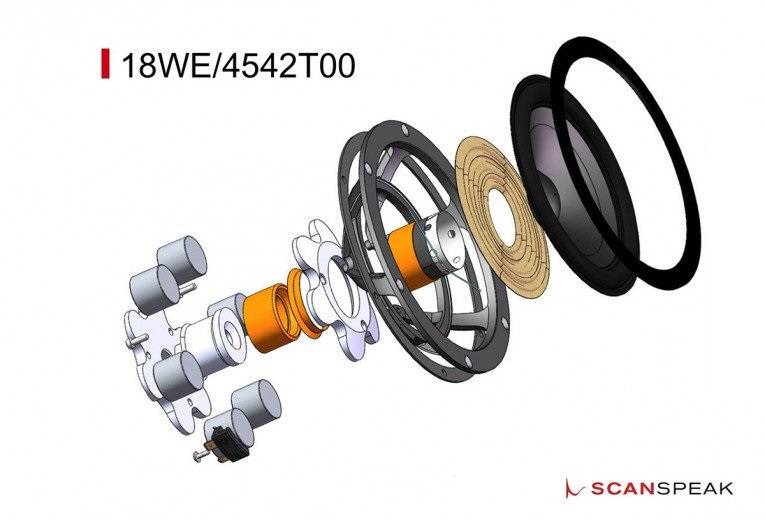

With the Ellipticor family and introduction of an elliptical voice coil and magnet gap, a long tradition of circular motor structures and their inherent breakup behavior has been broken. In combination with the powerful SD AirCirc magnet system, the 18WE has high sensitivity, very low distortion, and an extremely fast response to transients.

Above all, the TRUE TO LIVE sound makes the 18WE/4542T00 one of the very best and most advanced midwoofers on the market!

Specifications

Article number: 18WE/4542T00
Woofer Series: Ellipticor Series
Woofer Type: Midwoofer
Nominal Diameter: 7"
Power Handling (RMS): 50 Watts
Power Handling (max): 100 Watts
Impedance: 4 ohms
Sensitivity: 92.5 dB 2.83V/1m
Voice Coil Diameter: 1.57"
DC Resistance (Re): 3.4 ohms
Voice Coil Inductance (Le): 0.1 mH
Resonant Frequency (Fs): 46 Hz
Mechanical Q (Qms): 5.62
Electromagnetic Q (Qes): 0.26
Total Q (Qts): 0.25
Diaphragm Mass Inc. Airload (Mms): 17.5g
Mechanical Compliance of Suspension (Cms): 0.68 mm/N
Surface Area of Cone (Sd): 133 cm2
BL Product (BL): 8.1 Tm
Compliance Equivalent Volume (Vas): 0.60 ft.³
Maximum Linear Excursion (Xmax): 7.2mm

Data sheet
