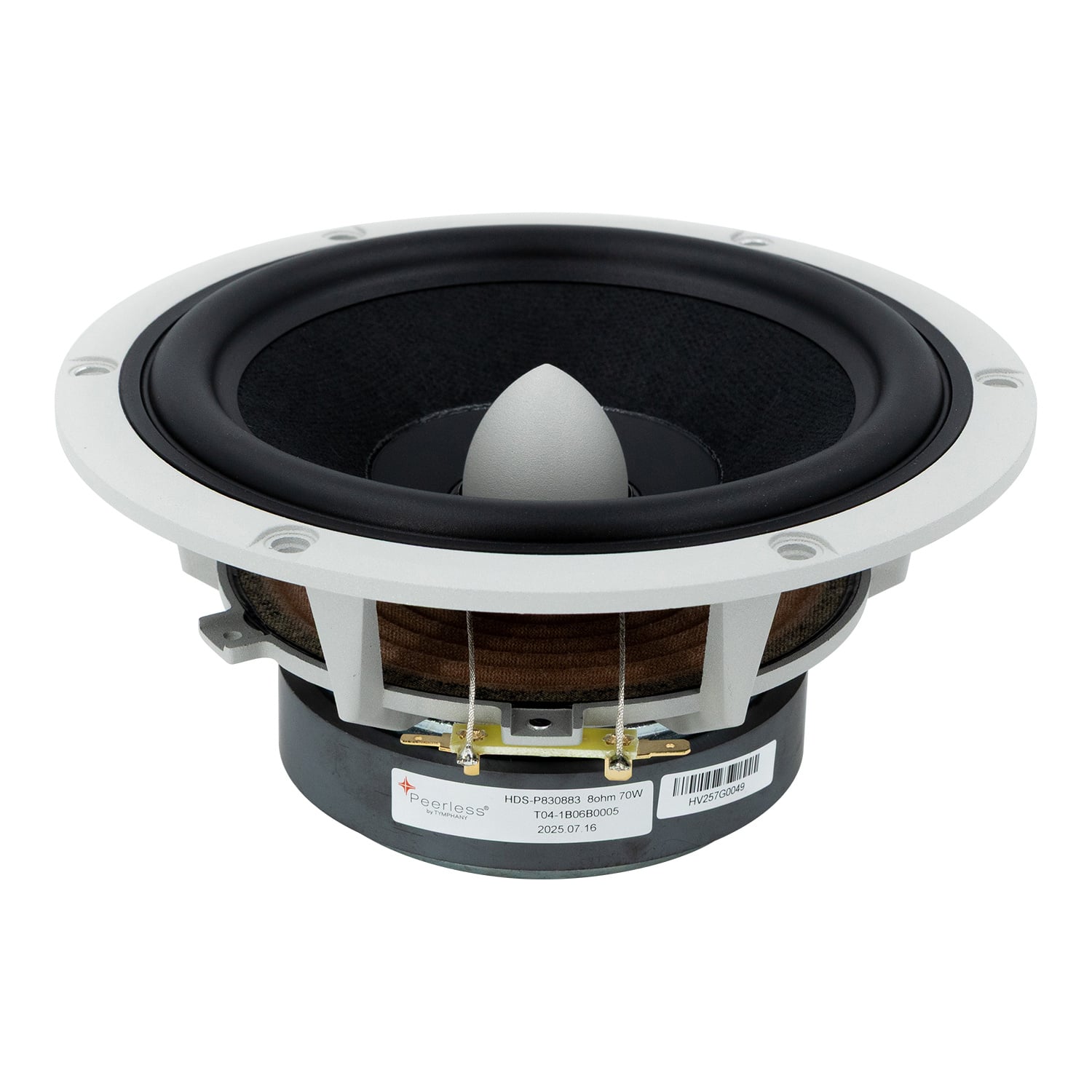

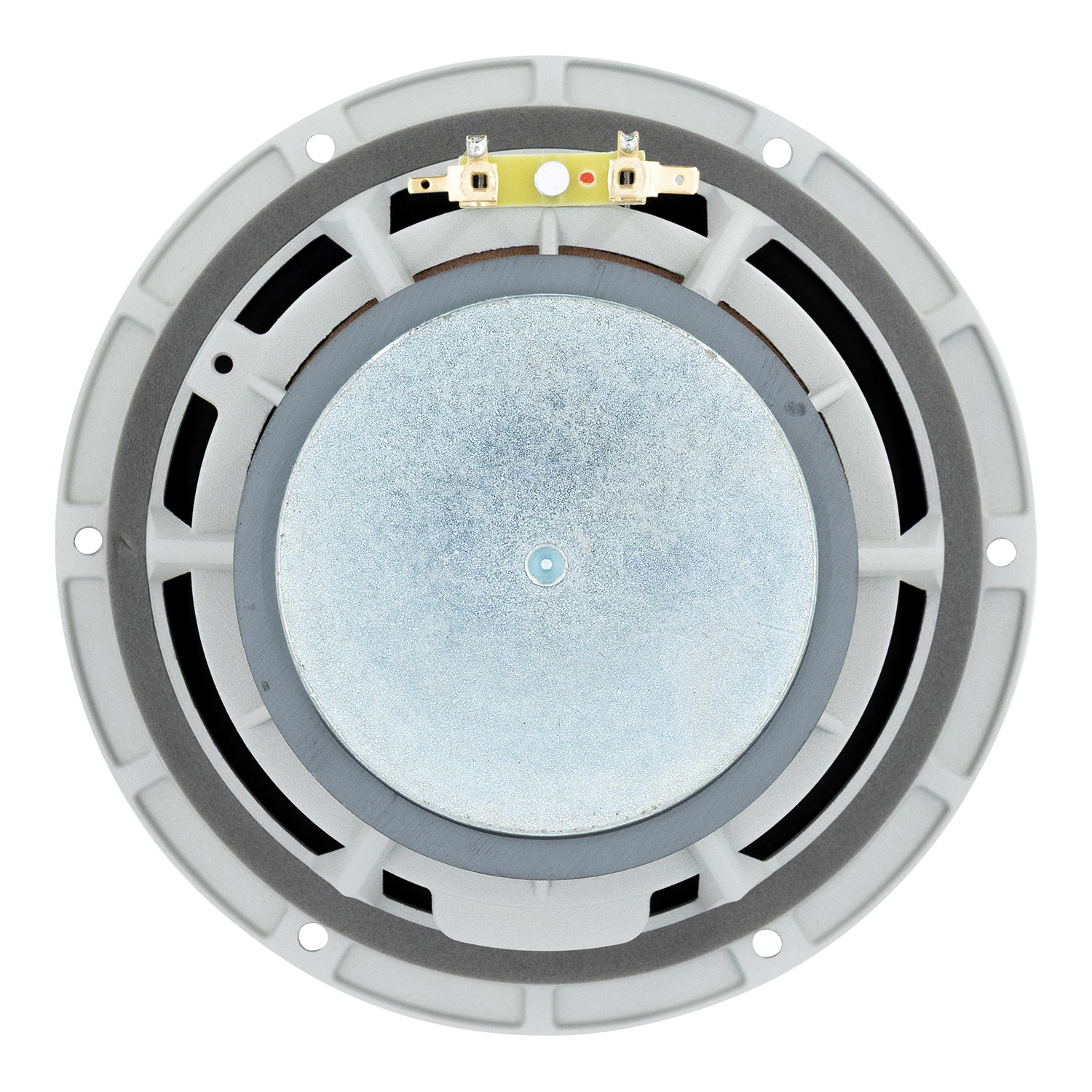

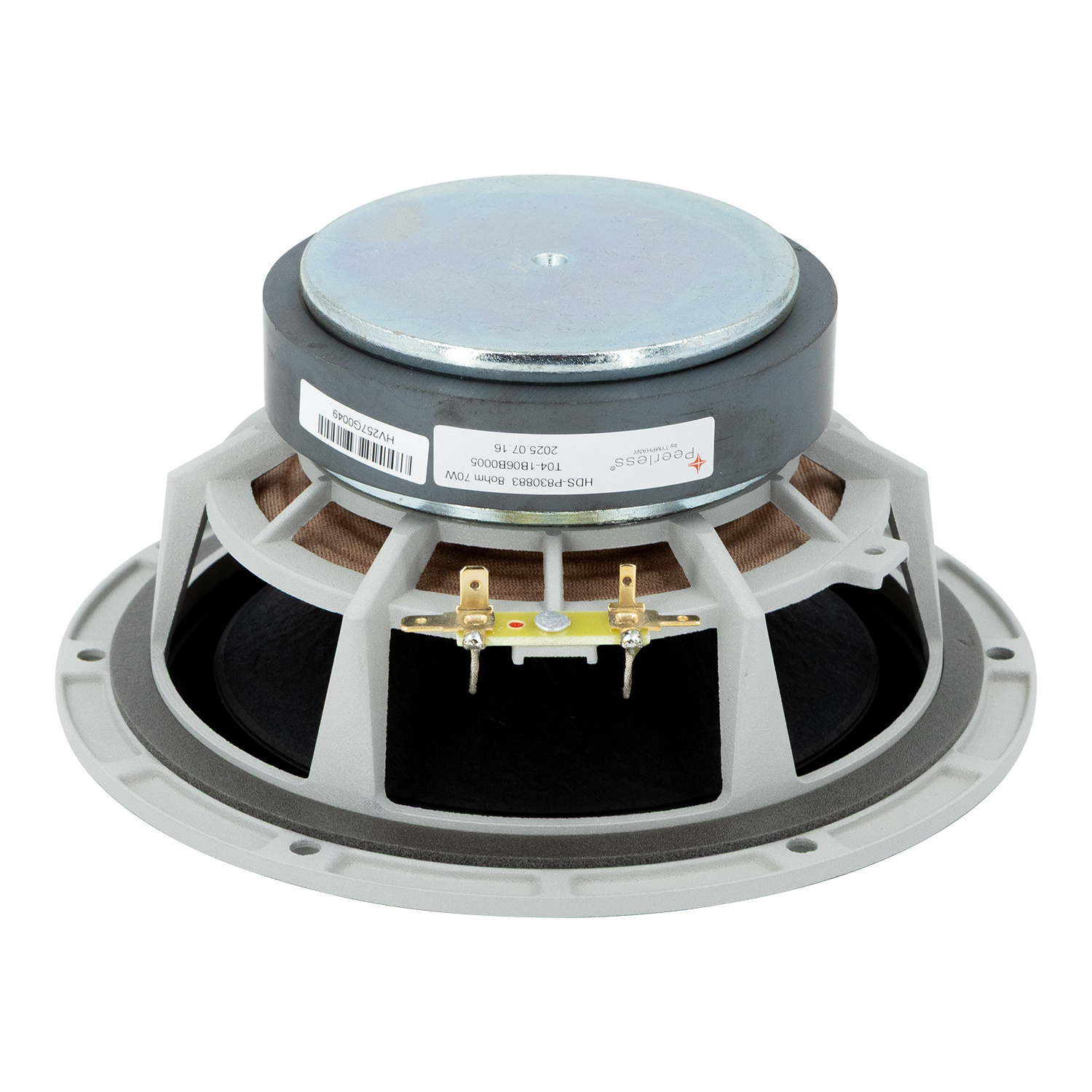

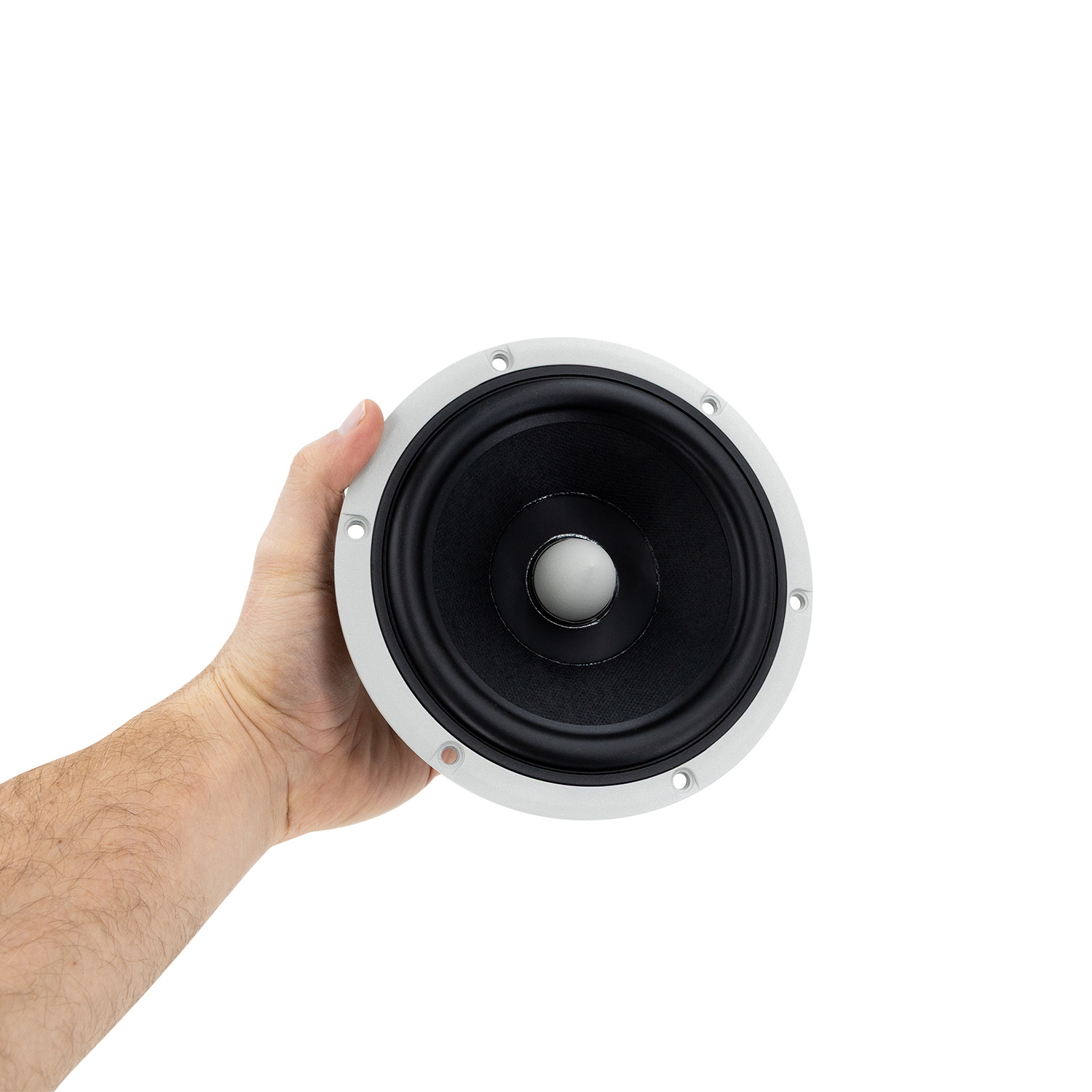

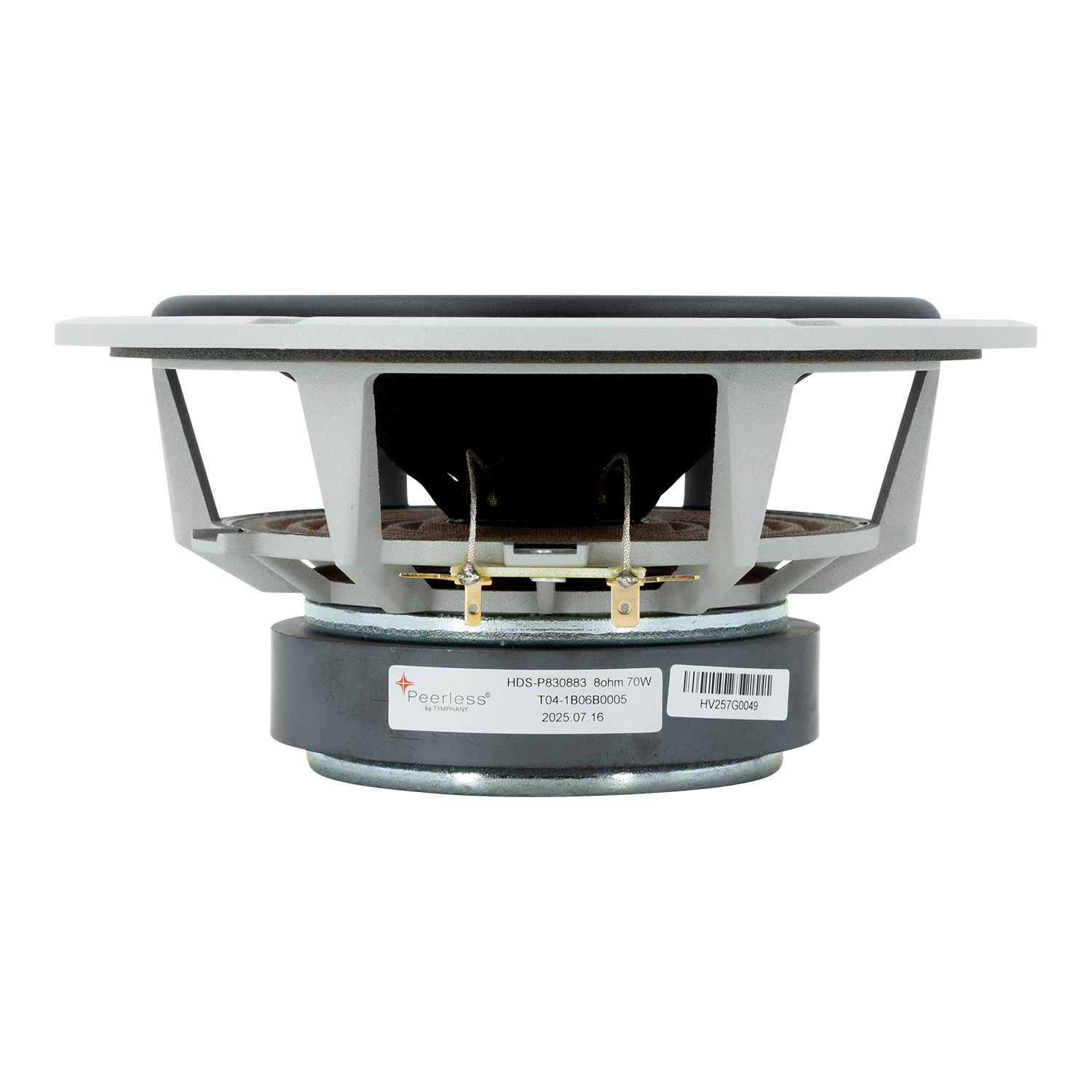

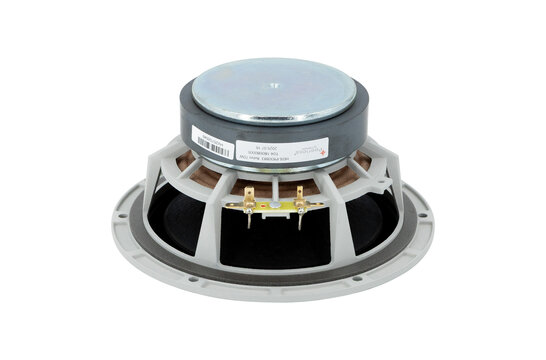

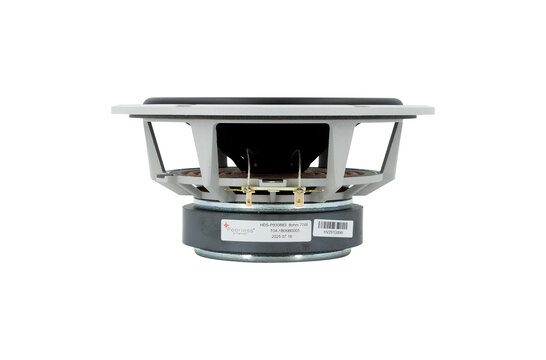

        HDS-P830883 6-1/2" Nomex Cone HDS Woofer

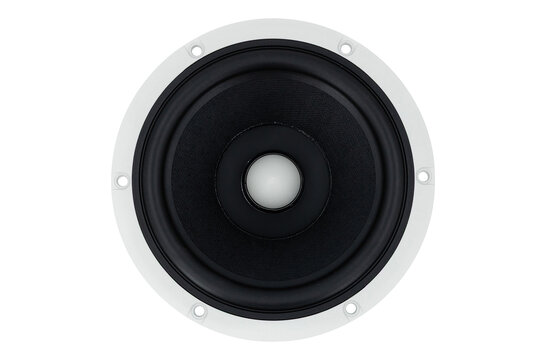

        Peerless by Tymphany HDS-P830883 6-1/2" Nomex Cone HDS Woofer

        €79,95

        10+ In stock

        Add to cart

        Peerless by Tymphany HDS-P830883 6-1/2" Nomex Cone HDS Woofer

        2 reviews
        5 from 5
        2 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Peerless by Tymphany
        Show all Peerless by Tymphany woofers
        6.5" | 8 Ω
        HDS-P830883 6-1/2" Nomex Cone HDS Woofer
        HDS-P830883 6-1/2" Nomex Cone HDS Woofer
        HDS-P830883 6-1/2" Nomex Cone HDS Woofer
        HDS-P830883 6-1/2" Nomex Cone HDS Woofer
        HDS-P830883 6-1/2" Nomex Cone HDS Woofer
        HDS-P830883 6-1/2" Nomex Cone HDS Woofer
        € 66,07€ 79,95 10+ In stock
        • -5% Purchase 4 for only € 75,95 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        HDS-P830883 6-1/2" Nomex Cone HDS Woofer
        HDS-P830883 6-1/2" Nomex Cone HDS Woofer
        HDS-P830883 6-1/2" Nomex Cone HDS Woofer
        HDS-P830883 6-1/2" Nomex Cone HDS Woofer
        HDS-P830883 6-1/2" Nomex Cone HDS Woofer
        HDS-P830883 6-1/2" Nomex Cone HDS Woofer

        Product description Peerless by Tymphany HDS-P830883 Bass-midwoofer

        The Peerless High Definition Sound (HDS) Series offers high-quality solutions for multi-way speaker systems employing vented box alignments.



        Highlights

        • Peerless HDS Exclusive Series
        • Cast aluminum frame
        • Nomex cone with half-roll rubber surround
        • Long-throw voice coil
        • Shorting rings for reduced distortion
        • Under-spider and voice coil ventilation
        • Aluminum phase plug improves off-axis linearity



        Product details

        Peerless by Tymphany HDS-P830883 6-1/2" Nomex Cone HDS Woofer

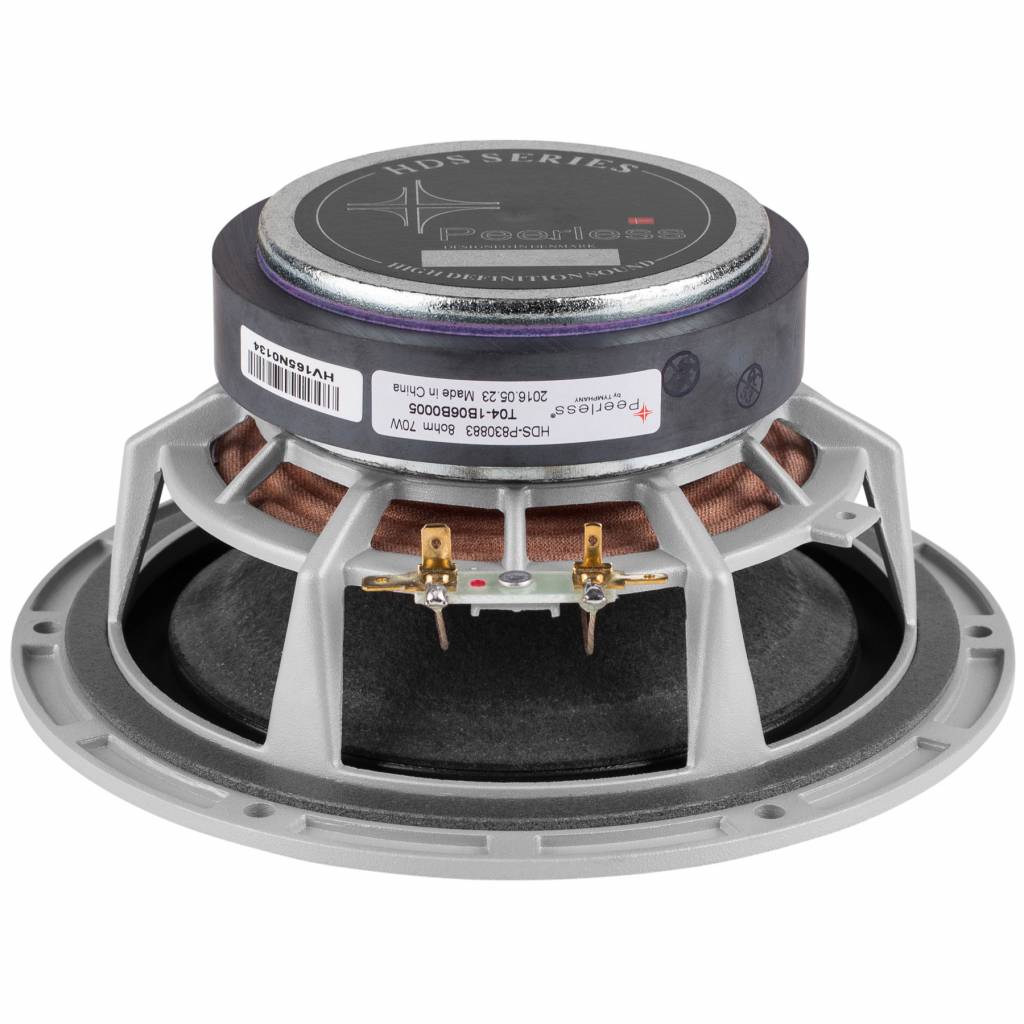

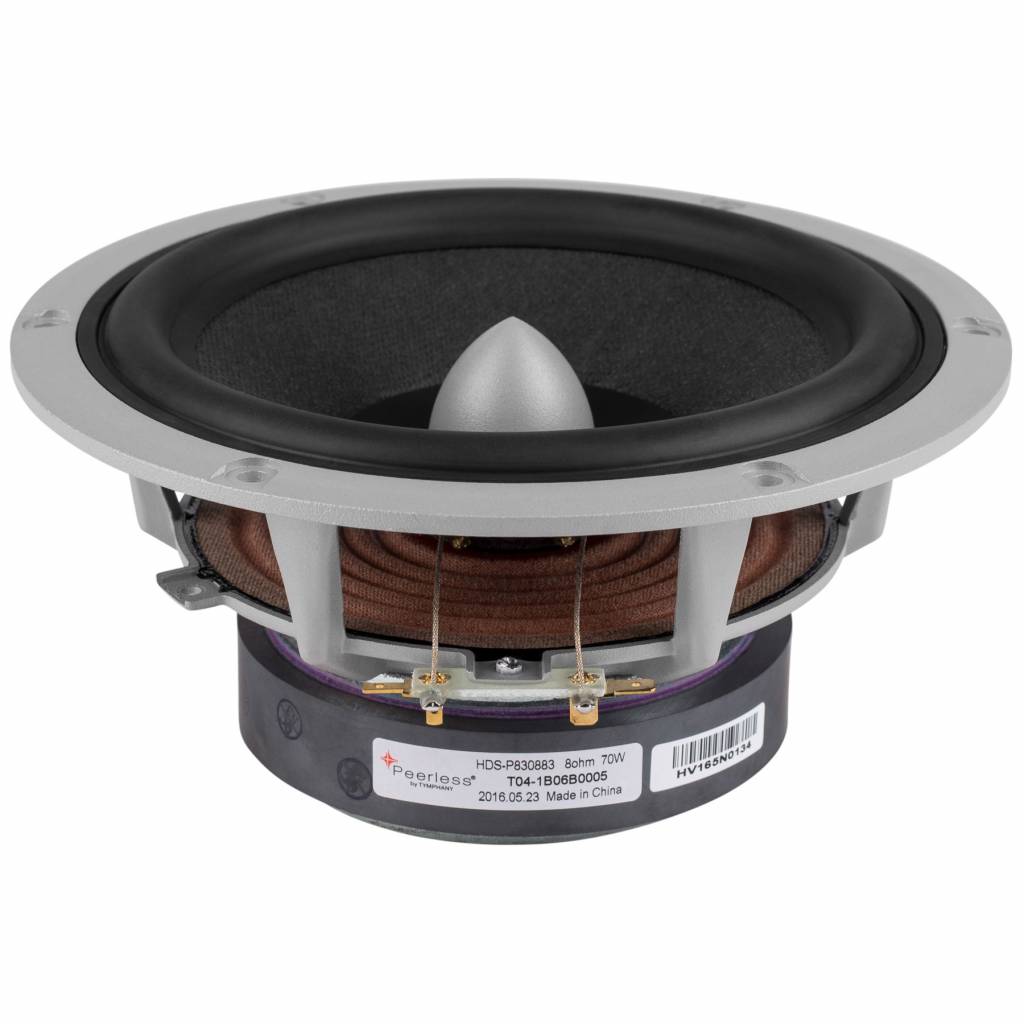

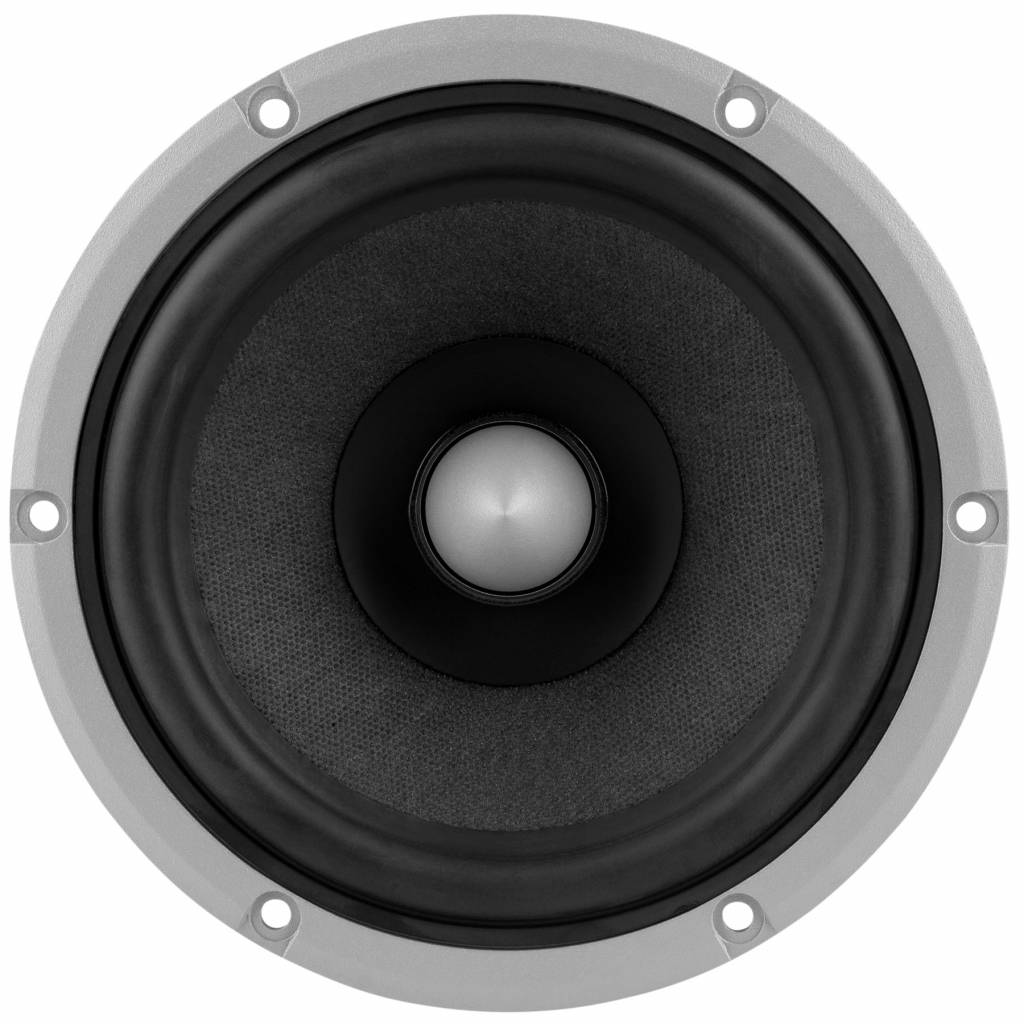

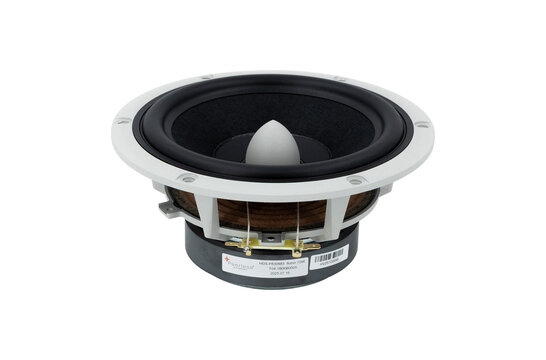

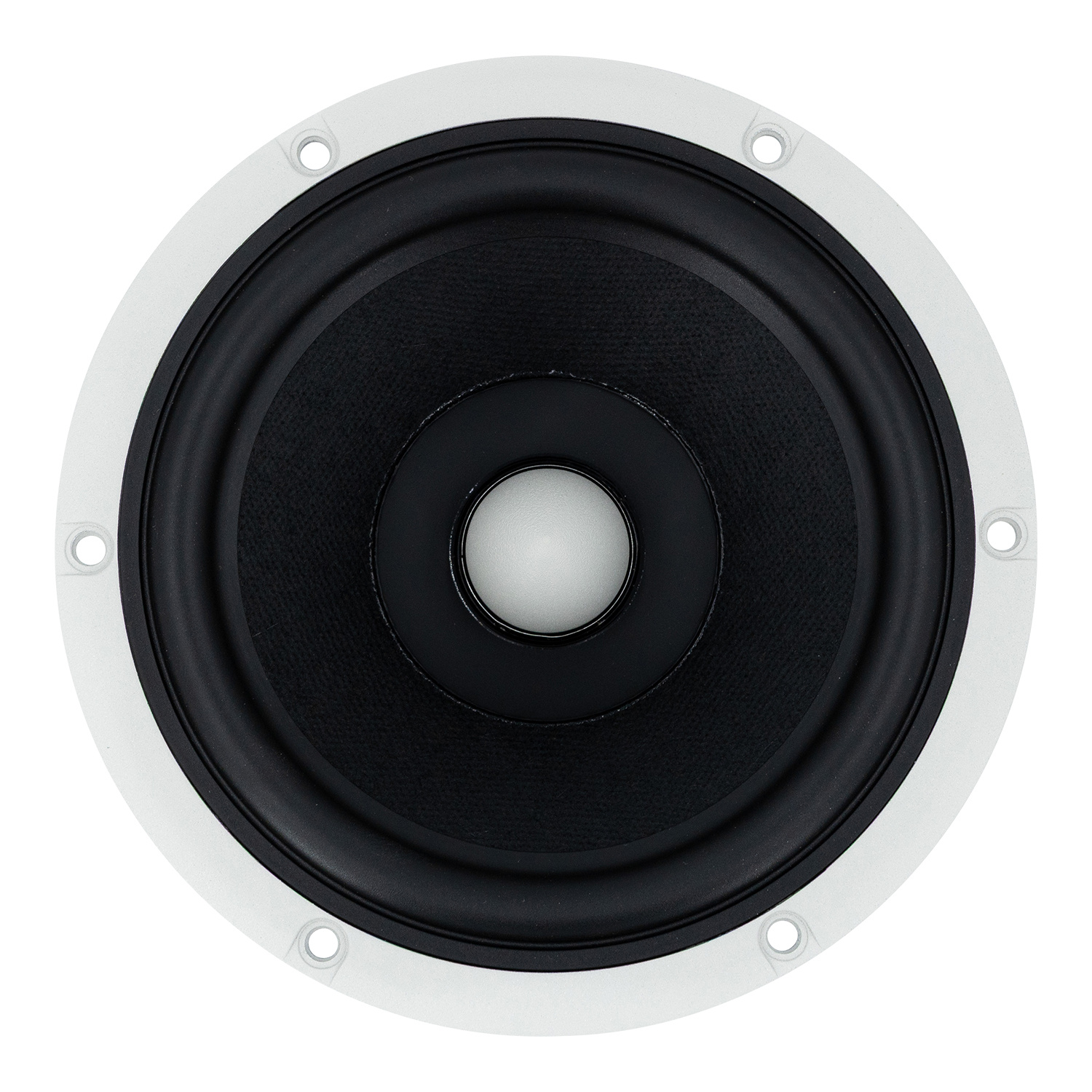

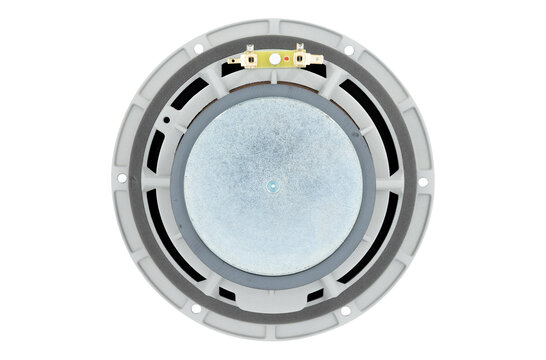

        This 6.5 inch 8 ohm driver is a member of the high performance HDS family. A powerful ferrite magnet system is coupled to a finite element analysis designed suspension system, containing both a linear spider design and a rubber surround. The motor contains an aluminium shorting ring, which reduces coil inductance, thus providing both extended frequency response performance and reduced distortion. The long-throw voice coil ensures linear high excursion performance, needed for signal clarity. The driver employs a phase plug for low compression and frequency response shaping without the use of a dust cap. The cast aluminium basket offers structural rigidity, heat sinking capacity for the motor, and additional air venting under the spider so as to again reduce air compression effects. The cone in this model is nomex based, offering a unique visual and acoustic experience.

        Show more

        Specifications

        Article number
        HDS-P830883
        EAN
        0844632084089
        Woofer Series
        Peerless by Tymphany HDS series
        Woofer Type
        Midwoofer
        Nominal Diameter
        6.5 "
        Power Handling (RMS)
        30 Watts
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        87.2 dB
        Frequency Response
        80 - 3000 Hz
        Voice Coil Diameter
        32.4 mm
        DC Resistance (Re)
        5.9 Ω
        Voice Coil Inductance (Le)
        0.215 mH
        Resonant Frequency (Fs)
        68 Hz
        Mechanical Q (Qms)
        2.18
        Electromagnetic Q (Qes)
        0.971
        Total Q (Qts)
        0.67
        Diaphragm Mass Inc. Airload (Mms)
        23.7 g
        Mechanical Compliance of Suspension (Cms)
        240 μm/N
        Surface Area of Cone (Sd)
        143 cm2
        BL Product (BL)
        7.8 Tm
        Compliance Equivalent Volume (Vas)
        6.81 L
        Maximum Linear Excursion (Xmax)
        10 mm
        Cone / Diaphragm Material
        Nomex
        Surround Material
        Rubber
        Basket / Frame Material
        Cast Aluminum
        Magnet Material
        Ferrite
        Overall Outside Diameter
        180 mm
        Overall Depth
        88 mm
        Baffle Cutout Diameter
        148 mm
        Bolt Circle Diameter
        167.3 mm
        # Mounting Holes
        6
        Mounting Hole Diameter
        5 mm
