        250ASX2 2 x 250 W Amplifier Module with Integrated Power Supply

        ICEpower 250ASX2 2 x 250 W Amplifier Module with Integrated Power Supply

        €329,95

        1 In stock10+ expected on 17-01-2025

        ICEpower 250ASX2 2 x 250 W Amplifier Module with Integrated Power Supply

        3 reviews
        5 from 5
        3 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: ICEpower
        € 272,69€ 329,95 1 In stock10+ expected on 17-01-2025
        • -5% Purchase 4 for only € 313,45 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description ICEpower 250ASX2 Amplifier module

        Highlights

        • Fully self-contained audio amplifier solution
        • Configurable for stereo or mono output
        • Rugged construction
        • Thermal protection
        • Over-current protection
        • Sound optimized soft clipping
        • Suitable for CE approved designs



        Product details

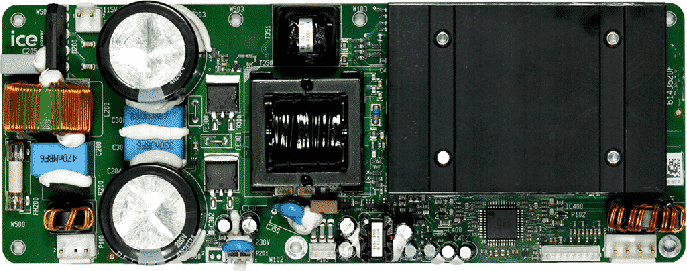

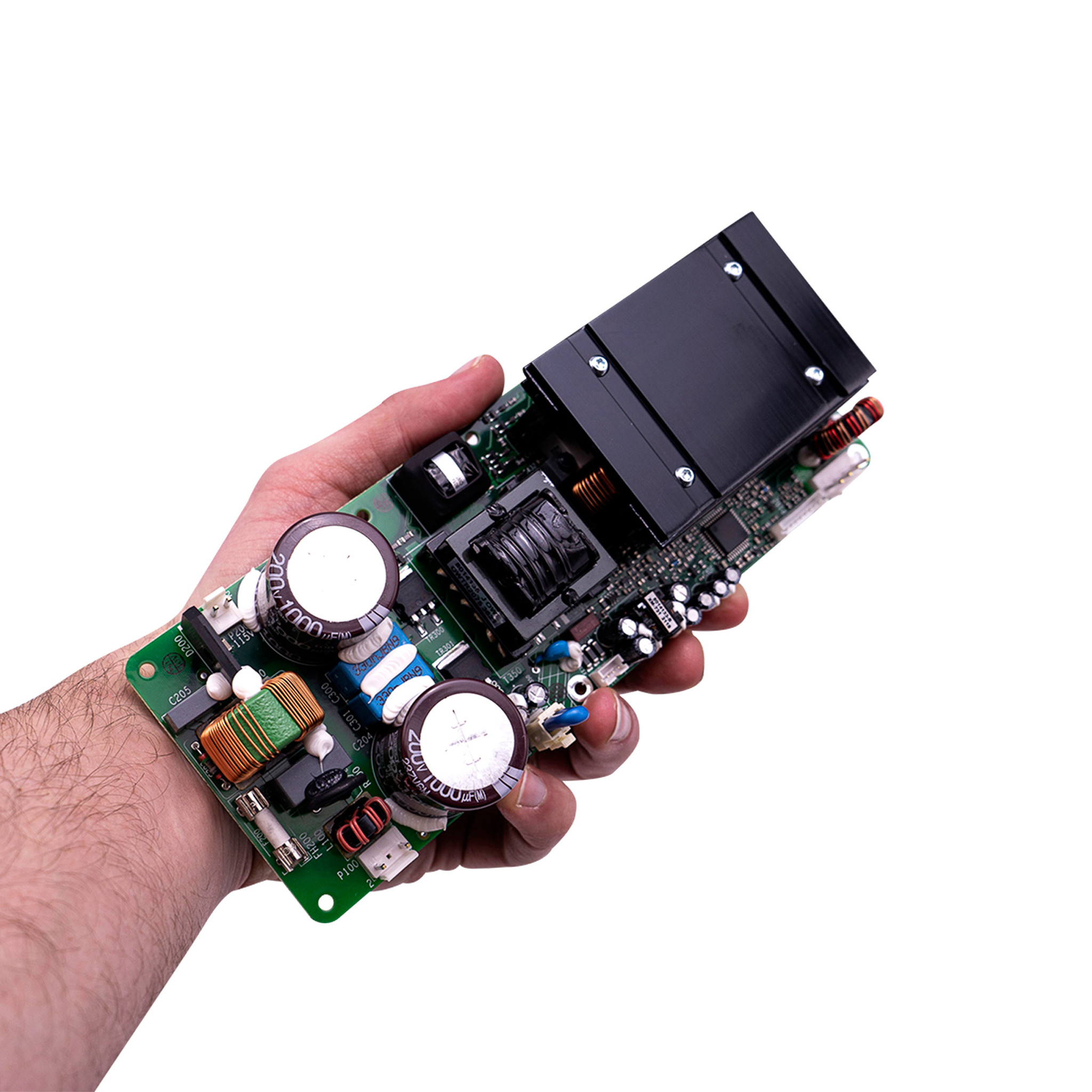

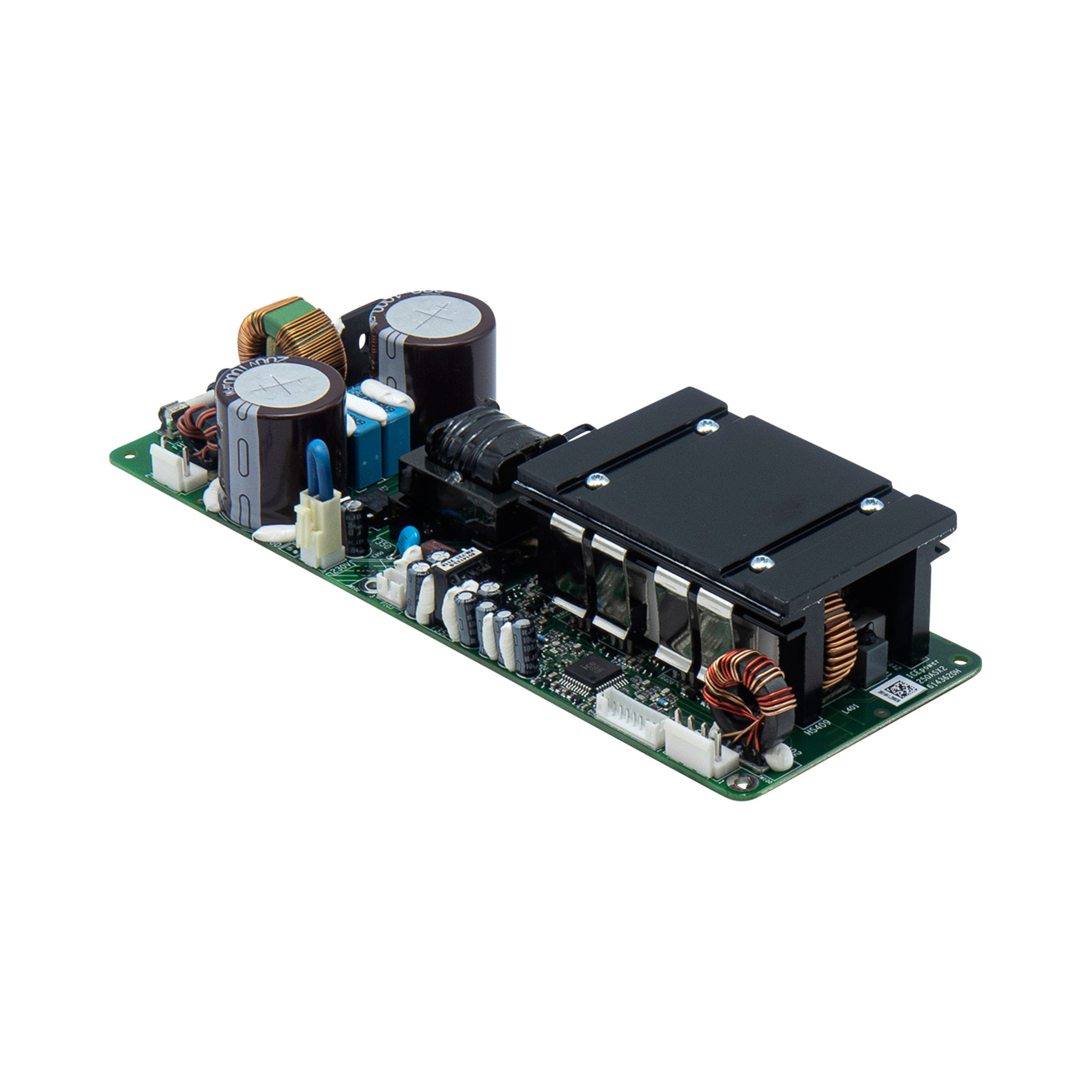

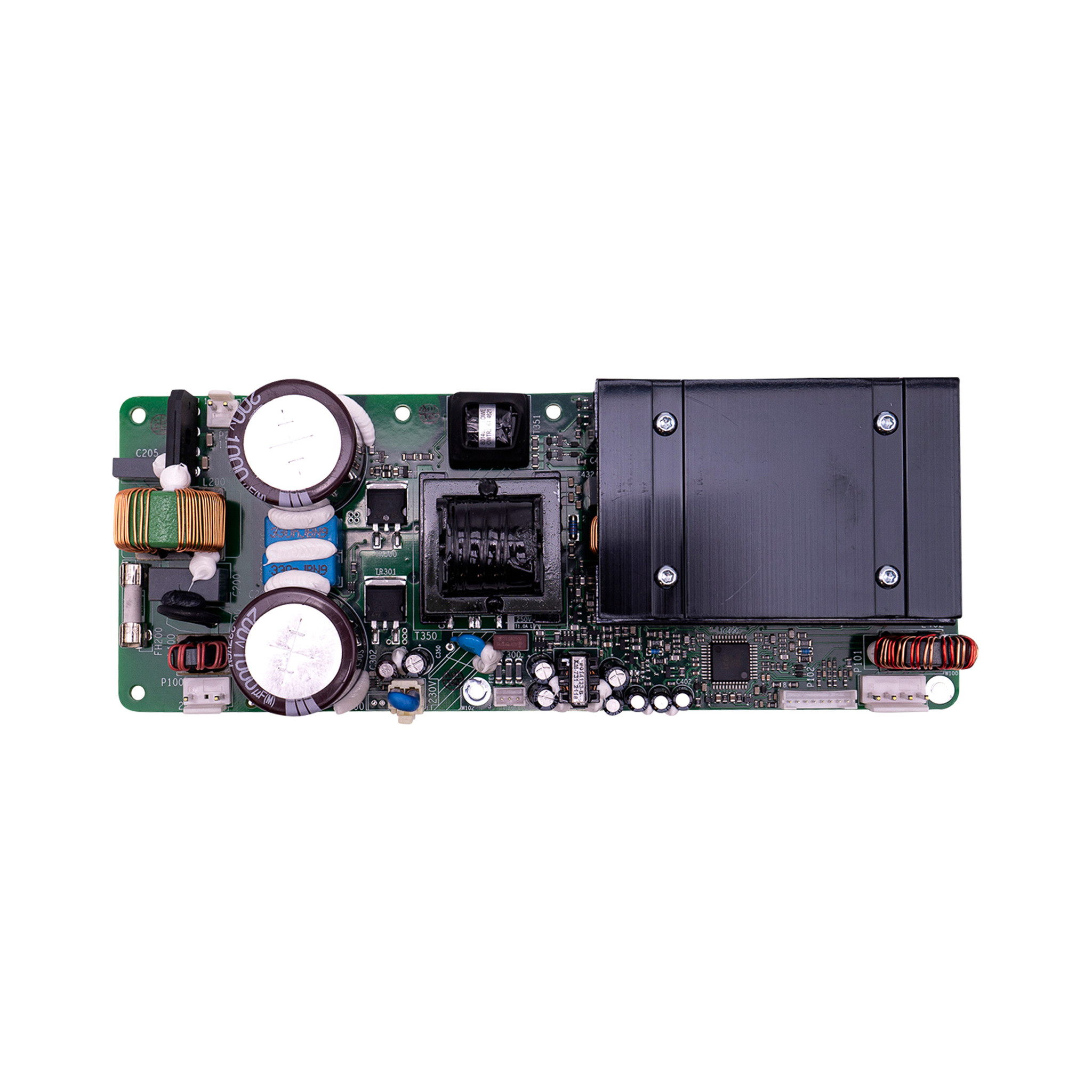

        ICEpower 250ASX2 2 x 250 W Amplifier Module with Integrated Power Supply



        The 250ASX2 is a fully integrated, intelligent amplifier module designed particularly for consumer and professional audio applications. This amplifier module has an integrated high efficient resonant power supply. It is an excellent choice from the amplifier modules category as it offers audiophile quality, is very powerful but also compact and has a nice feature set.



        The 250ASX2 can be configured to either stereo or mono output. With both channels driven it is up to providing 230 watts into 4Ω on both channels. In the bridged configuration, it outputs up to 500 watts into 8Ω! The ±24 VDC auxiliary supply for powering external circuitry, elimination of heat sinks and EMI shields allow for easy implementation in your project. This module is EMC and safety approved. It is protected against short-circuit, overload and over-heating and includes onboard fuses and EMI filtering to provide a CE and FCC pre-approved design.



        Do you like the 250ASX2, but looking for something smaller? Check out the 125ASX2 for the 2x 125-watt version. The even smaller 50ASX2 is available in two variants. The 50ASX2(SE) is the stereo single-ended version. For the single-channel BTL version, check out the 50ASX2(BTL). Did you know this is the very module that is used in combination with a DSP front-end in the miniDSP PWR-ICE250 plate amplifier?

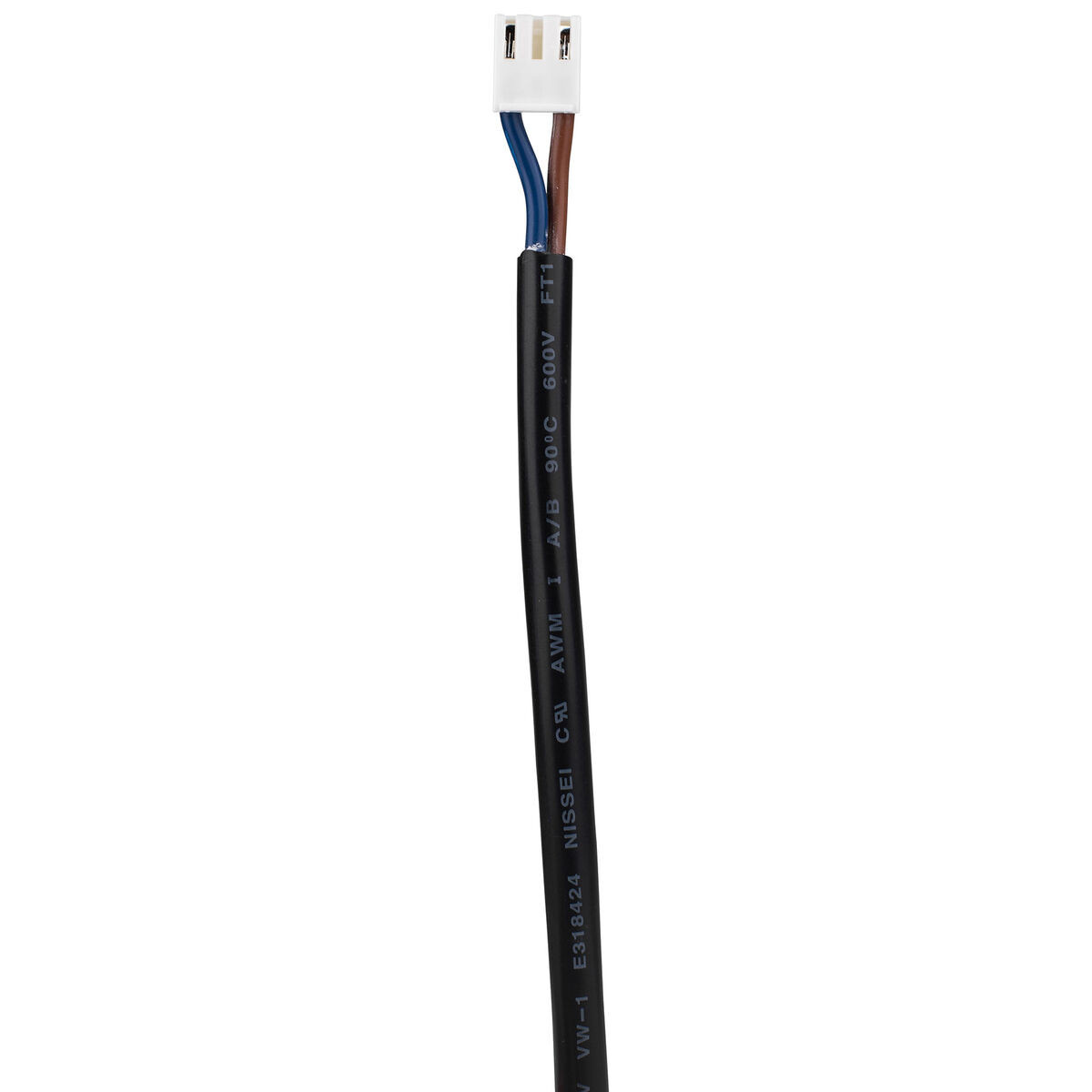

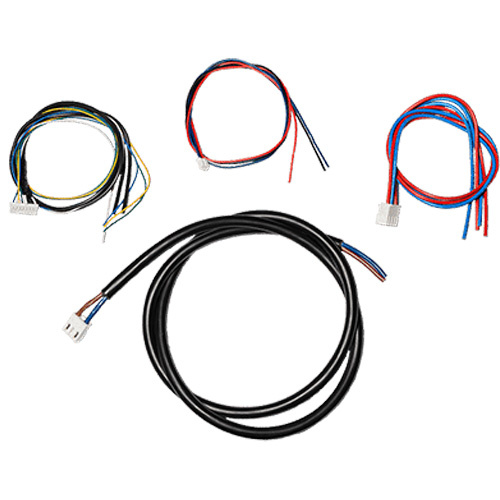

        Cable Set

        The included cable set allows access to all features of the 250ASX2. The kit contains cables with all the right connectors on one end. The other ends are left unterminated so you can terminate the wires with the connections of your choice.



        What’s In The Box?

        • 1 x 250ASX2 Amplifier Module with Integrated Power Supply
        • Cable set:
          • 1 x (K) Mains without Earth
          • 1 x (R) Supply ASX2series AUX
          • 1 x (A) Signal
          • 1 x (T) Speaker

        Show more

        Specifications

        Article number
        250ASX2
        EAN
        8785256844128
        Rated power output
        2x 250 watts at 4 ohms
        1 x 500 watts at 8 ohms
        Minimum load
        3 Ohm
        Efficiency
        81%
        Distortion
        0.002 % THD+N
        Gain
        27.8 dB
        Input impedance
        8 kOhm
        Amplifier Classification
        Class D
        Speaker output channels
        2
        Power Requirements
        85-264 VAC
        Current limit
        20 A
        Under/over voltage protection
        Dimensions (L x W x H)
        210 x 80 x 35
        Mounting hole diameter
        3.5 mm

        Show more

        5 of 5
        -
        By John on 23 June 2024
        5 of 5
        Excellent sound and much lower outputimpedance at 10kHz and above than many other class D amplifiers.
        By Johan Akerblad on 21 March 2024
