        PWR-ICE250 ICEpower Plate Amplifier

        PWR-ICE250 ICEpower Plate Amplifier

        €629,95

        miniDSP PWR-ICE250 ICEpower Plate Amplifier

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: miniDSP
        € 520,62€ 629,95 4 In stock7 expected on 05-04-2024

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        2x250W @ 4Ω or 1 x 500W @ 8Ω DSP plate amplifier, Powered by ICEpower® 250ASX2 module, Ethernet control, FIR + IIR filter



        Highlights

        • DSP Powered plate amplifier with FIR + IIR filters
        • Powered by ICEpower® technology for 2x250W @ 4Ω or 1 x 500W @ 8Ω
        • Windows & Mac compatible, IP control over Ethernet/Wifi
        • Analog & Digital input
        • Multi-unit control via Ethernet
        • Perfect fit for 2way active speakers or Subwoofer plate amplifier



        Product details

        PWR-ICE250 2 x 250 Watt DSP ICEpower Plate Amplifier

        Note: This product comes with a coupon (€9,50) for one free miniDSP plugin download.

        Introducing the PWR-ICE250, a DSP powered plate amplifier module for active 2 way loudspeakers or mono subwoofers. Result of the collaborative effort of two innovative technology companies, the PWR-ICE250 core features include:

        • On the processing side is miniDSP's innovative software & firmware allowing a Plug & Play real time control of the onboard DSP over Ethernet/Wifi networks. Using our Zero Conf technology, multiple modules are automatically discovered and controlled from a single User interface in real time. The platform is supported under Mac and Windows environment.The onboard Digital Signal Processors (DSP) provide real time all the processing a speaker designers will expect to excel at his crossover design task. These include FIR + IIR filters, Parametric Equalizers (PEQ), Level, crossovers, comp/limiter, delay and more. The Graphical User Interface (GUI) platform is supported on both Mac and Windows environment.
        • On the power amplifier side, the ICEpower® 250ASX2 modules are complete AC plug-to-speaker amplification audio solutions offering flexible two-channel or bridgeable speaker drive. Their compact size, audiophile audio quality and high power output make them perfect for high-performing audio products. The amplifier is rated for up to 2x250W @ 4Ω or 1 x 500W @ 8Ω

        As for audio connectivity, the PWR-ICE250 is fitted with both analog balanced (XLR) & unbalanced inputs (RCA) to provide maximum compatibility. A digital input (AES-EBU/SPDIF) saves on the A-D conversion for maximum performance while a Digital output (AES-EBU/SPDIF) allows multiple plate amplifiers to be linked to each other.

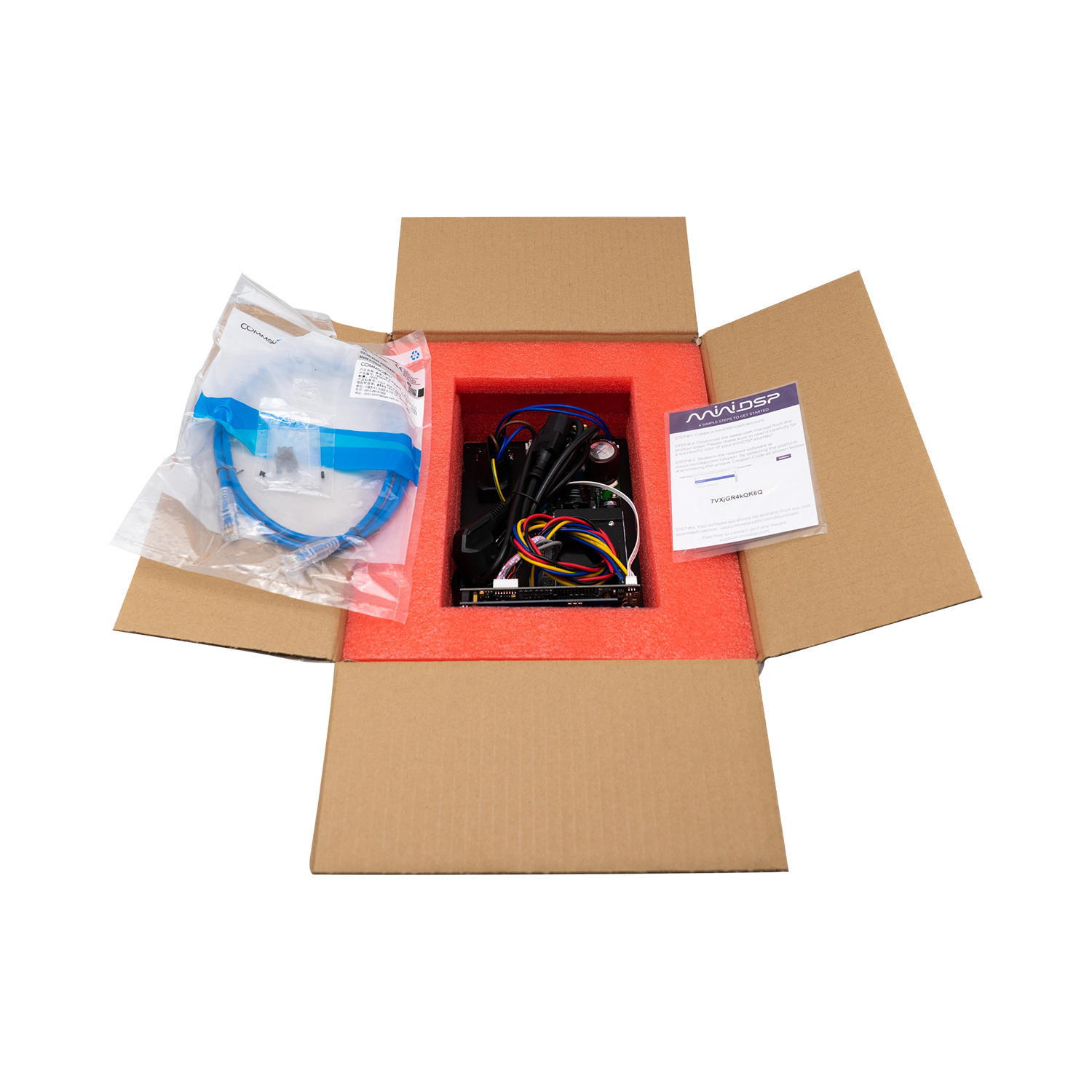

        What's in the box?

        • 1 x PWR-ICE250 amplifier module
        • 1 x CAT5 patch cable
        • 1 x IEC power cord
        • 4 x black wood screws for mounting
        • 1 x Speaker wire harness to connect amplifier to speaker (60cm long)
        • 1 x Coupon code for miniDSP plugin download



        System Diagram

         width=



        Mechanical Specifications

          width=

        Show more

        Specifications

        Article number
        PWR-ICE250
        Rated power output
        2 x 230 watts at 4 ohms
        Rated power output bridged
        1 x 500 watts at 8 ohms
        Minimum load
        3 ohms
        Signal-to-noise ratio (SNR)
        -
        Distortion
        0.008 % THD+N (100 Hz at 1 watt)
        Distortion bridged
        0.004 % THD+N (100 Hz at 1 watt)
        Amplifier classification
        Class D
        Circuit topology
        ICEpower
        Efficiency
        76.3 % at full power
        Frequency response
        20 - 20,000 Hz
        Input impedance

        10k ohms (unbalanced)
        47k ohms (balanced)

        Input sensitivity

        1/2 Vrms (unbalanced)
        2/8 Vrms (unbalanced)

        Auto turn-on sensitivity
        -
        DSP
        DAC
        Maximum sampling rate
        96 kHz
        Speaker output channels
        2
        Analog in/out
        1/-
        S/PDIF in/out
        -/-
        AES/EBU in/out
        1/1
        Coaxial in/out
        -/-
        XLR in/out
        2/1
        Jack in/out
        -/-
        USB connection
        -
        Network connection
        Bluetooth
        -
        Subwoofer pre-out
        -
        Auto on/off
        -
        Remote control
        -
        App control
        Equalizer (EQ) adjustment
        Equalizer (EQ) profiles
        Phase control
        Crossover frequency adjustment
        Presets
        Control software
        miniDSP plugin
        Windows/Mac compatible
        /
        Power requirements
        110 / 240 VAC
        Power inlet connector
        IEC C14
        Standby power consumption
        -
        Current limit
        30 A
        Under/over voltage protection
        -
        Dimensions (H x W x D)
        267.5 x 153 x 77 mm
        Cutout dimensions
        253 x 139 mm

        Show more

        5 of 5
        Great tool, easy to integrate, with comprehensive features. Possibility of full stereo 2CH operation or bridged mono mode, which is not common to similar competitor's modules (e.g. limitation to low/high 2way by design etc.)
