        100AS1 Amplifier Module with Integrated Universal Mains Power Supply

        100AS1 Amplifier Module with Integrated Universal Mains Power Supply

        €139,95

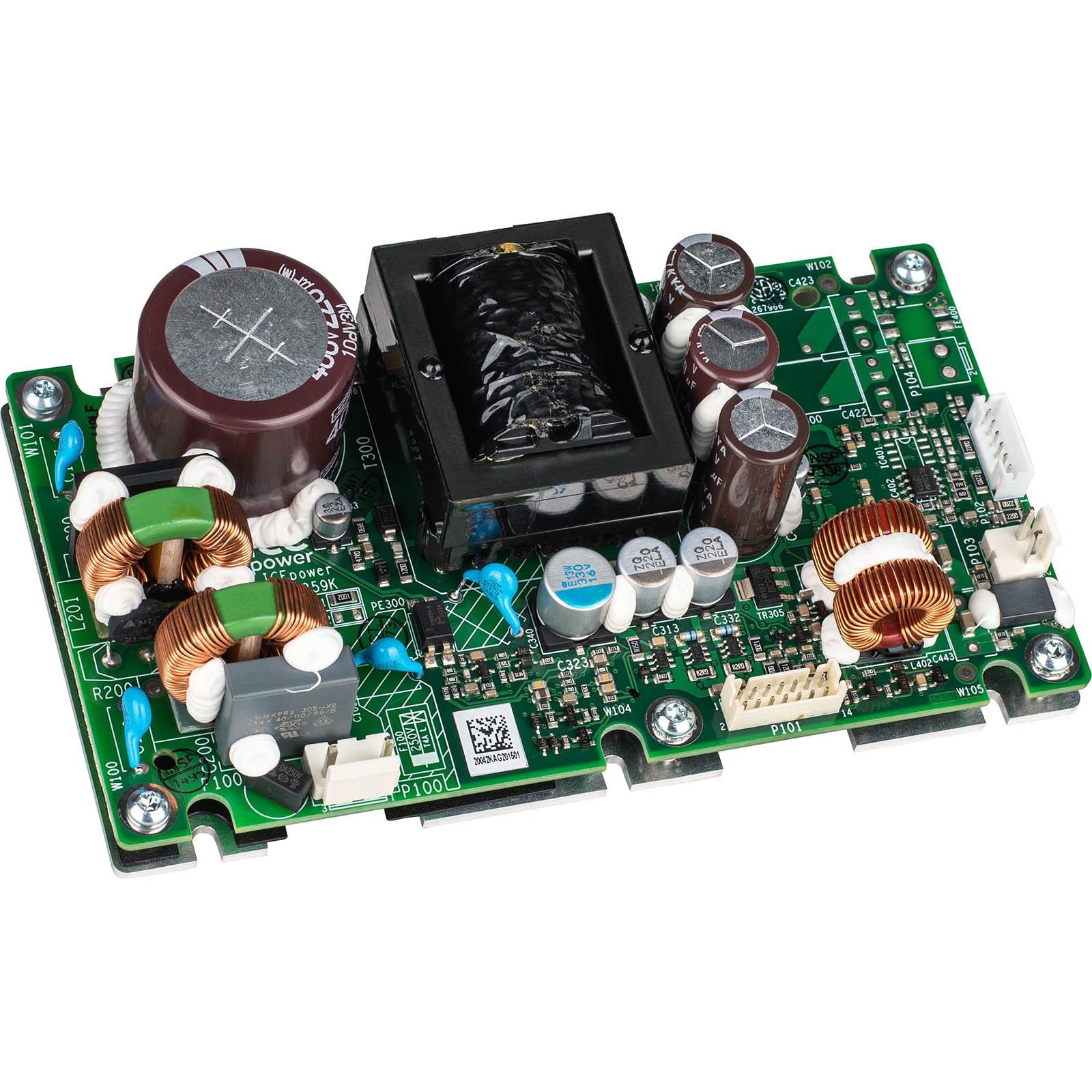

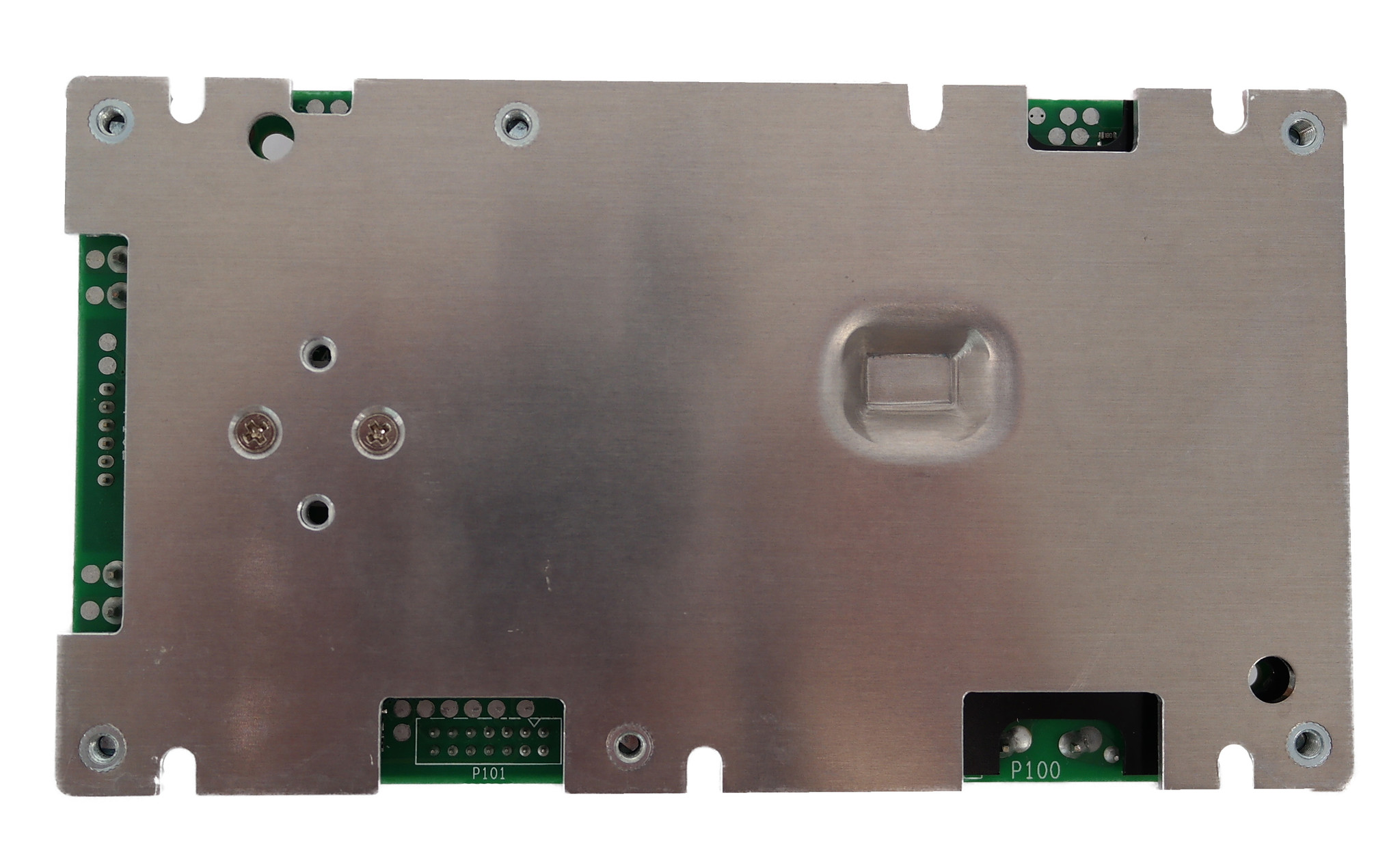

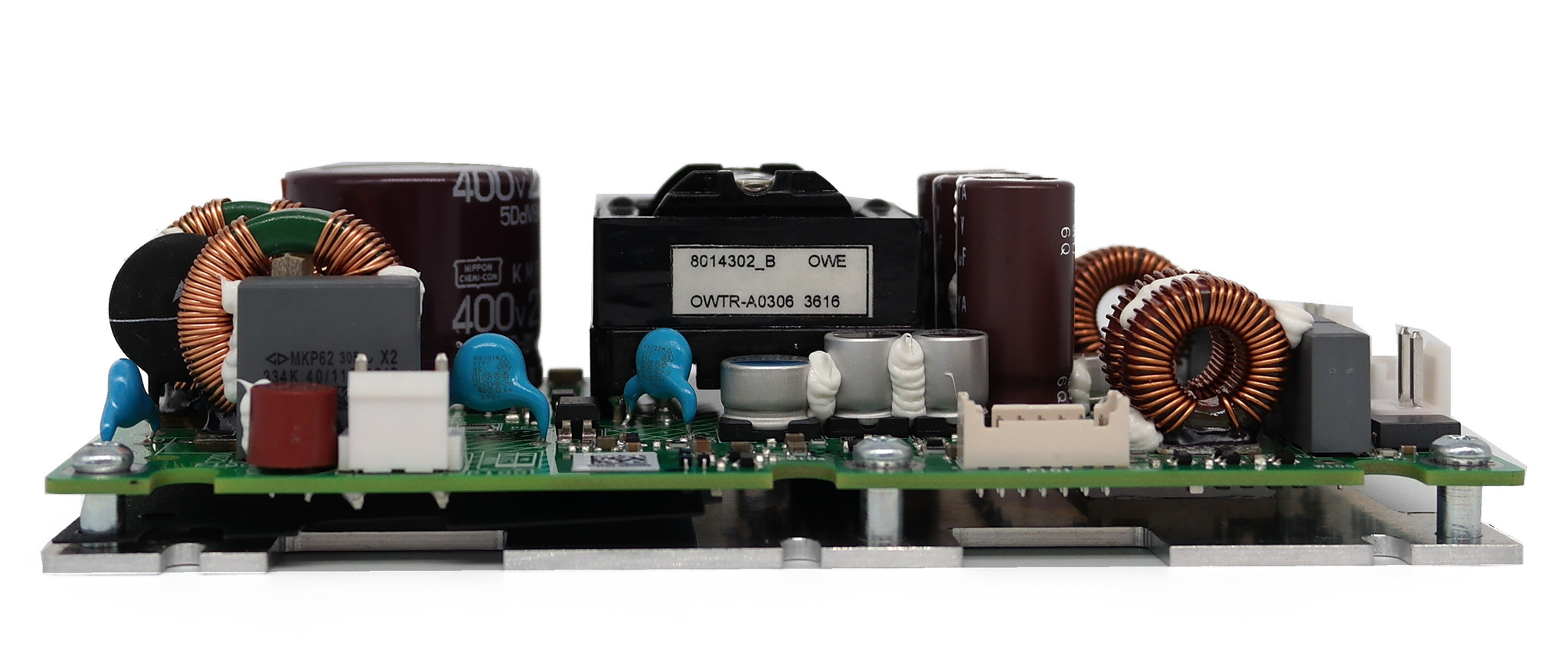

        ICEpower 100AS1 Amplifier Module with Integrated Universal Mains Power Supply

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: ICEpower
        € 115,66€ 139,95 10+ In stock
        • -5% Purchase 4 for only € 132,95 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped tomorrow
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        The 100AS1 is a single-channel, Class D amplifier with a fully integrated switch-mode power supply. Although designed for guitar, bass guitar and subwoofer amplification, this amplifier is suitable for many more applications.



        Highlights

        • Self-contained module, no need for additional circuits
        • Minimum load of 3 Ω
        • Extended but user-friendly control interface
        • 8 +Vdc and 17 ±Vdc auxiliary outputs



        Product details

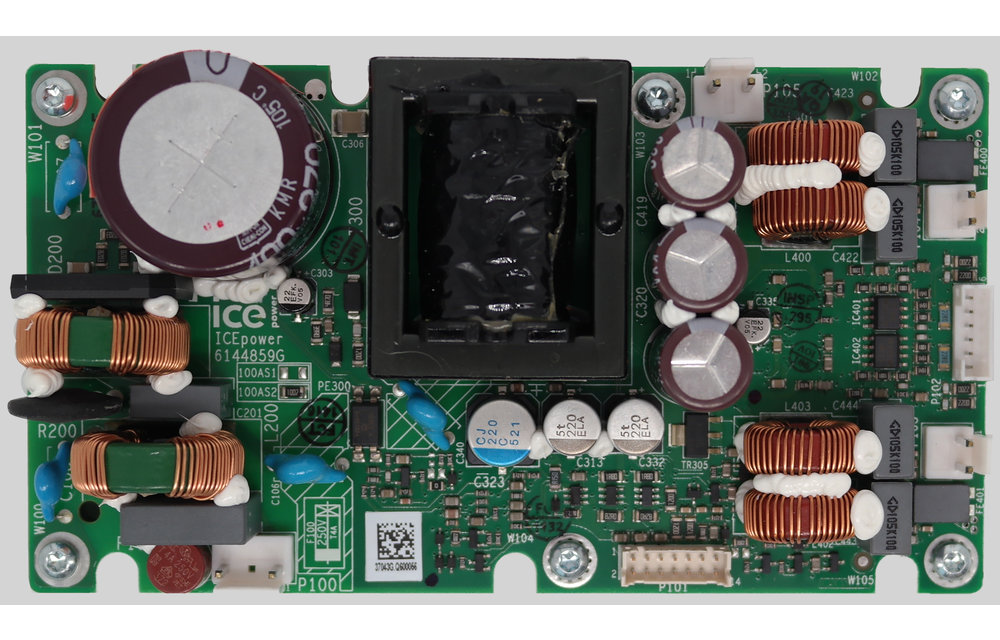

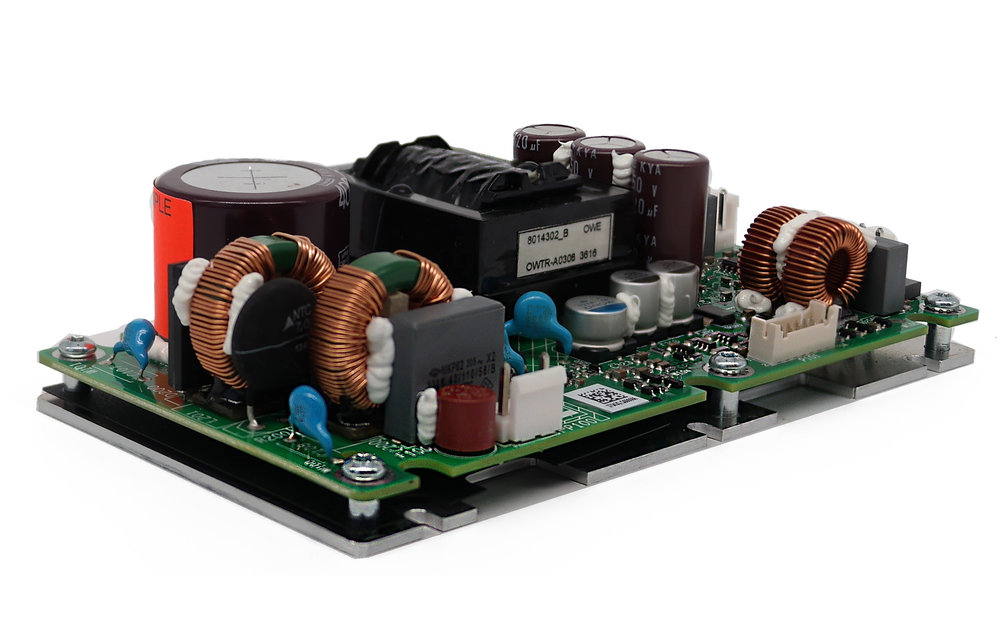

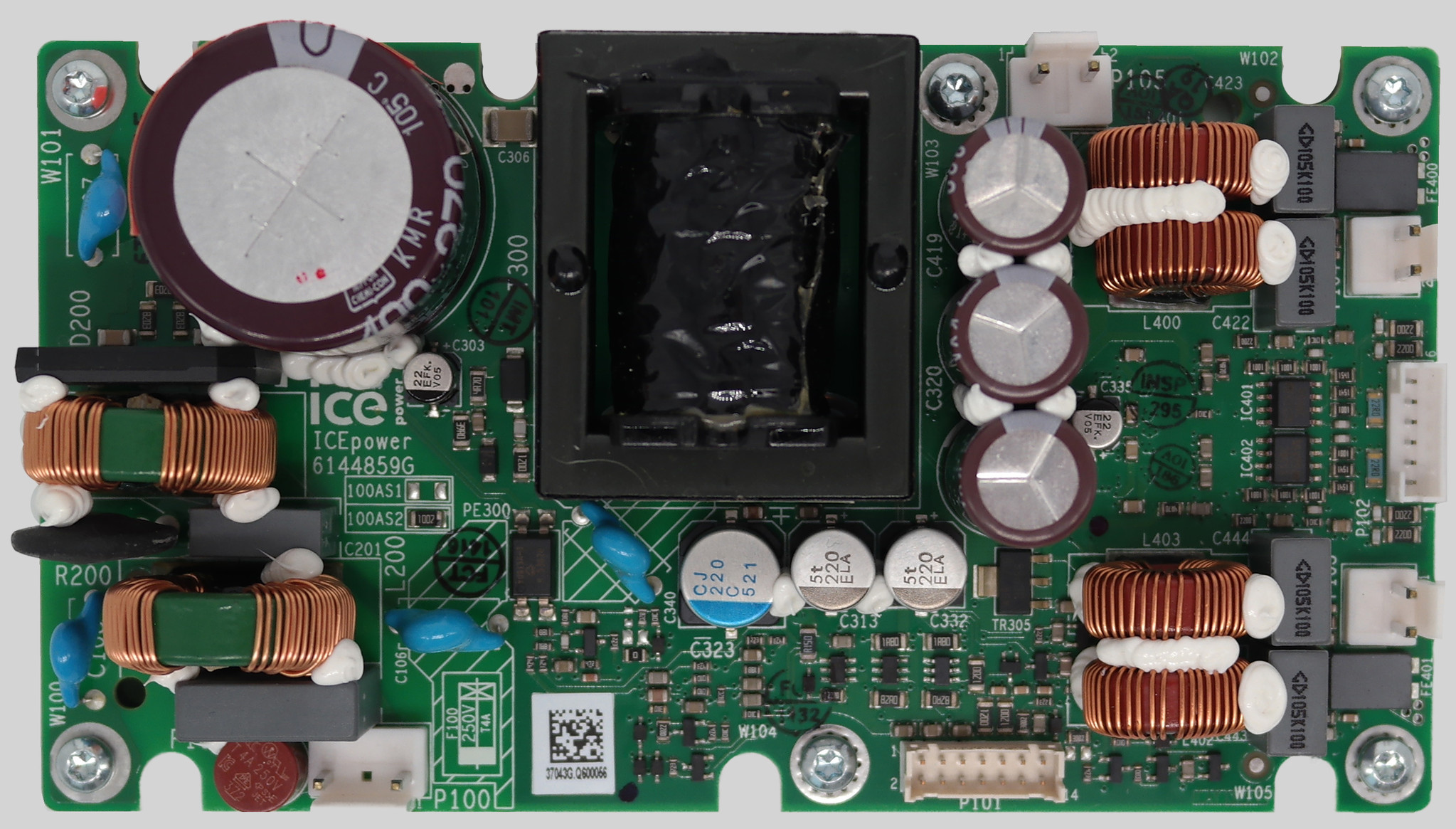

        ICEpower 100AS1 Amplifier Module with Integrated Universal Mains Power Supply



        This 100-watt high-performance, reliable and self-contained amplifier module is the smallest member of the AS-series from ICEpower. The integrated power supply, ruggedness and easy-to-use control features make it an excellent choice from the amplifier module category for a wide range of applications.



        The AS-series offers excellent audio performance thanks to the patented ICEpower modulation and control techniques. The integrated power supply is very capable and can supply up to 300-watts of continuous output. The capable supply, together with the protection circuits make even this smallest member not afraid of high continuous power demands. ICEpower strengthens the reliability further by using brand-name components and careful testing during production.



        There is a user-friendly control interface, that features stand-by control, auxiliary power outputs and a wide range of monitoring in- and outputs. Although none of this is required if you are looking for a simple operation; just connect the mains, signal and speakers and you are ready to play some music!



        Check out the 100AS2 for a stereo version or the 1200AS1 for the most powerful member of the AS series. Looking for similar features, but a smaller footprint, check out the super-compact ICEpower 50ASX2(BTL).

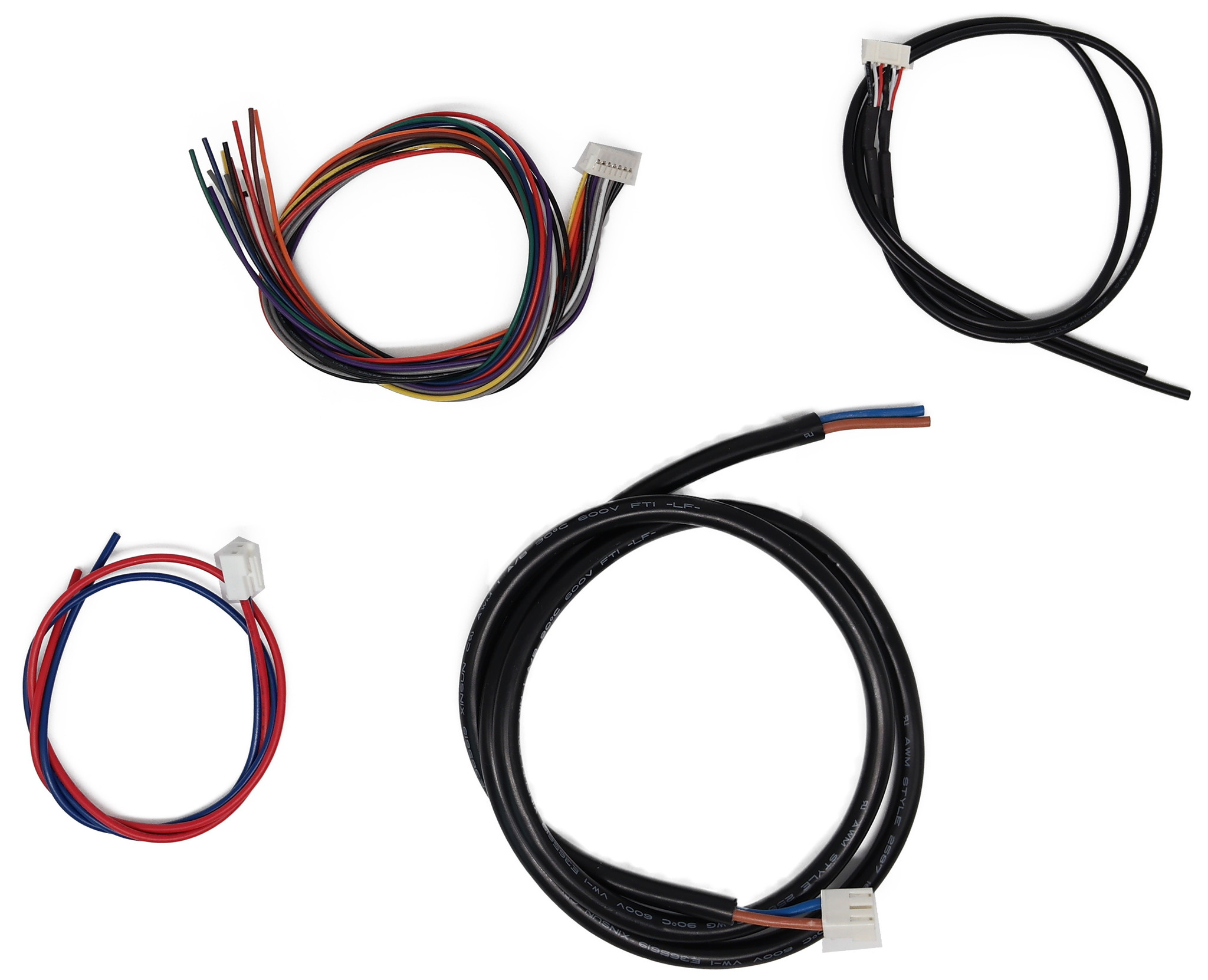

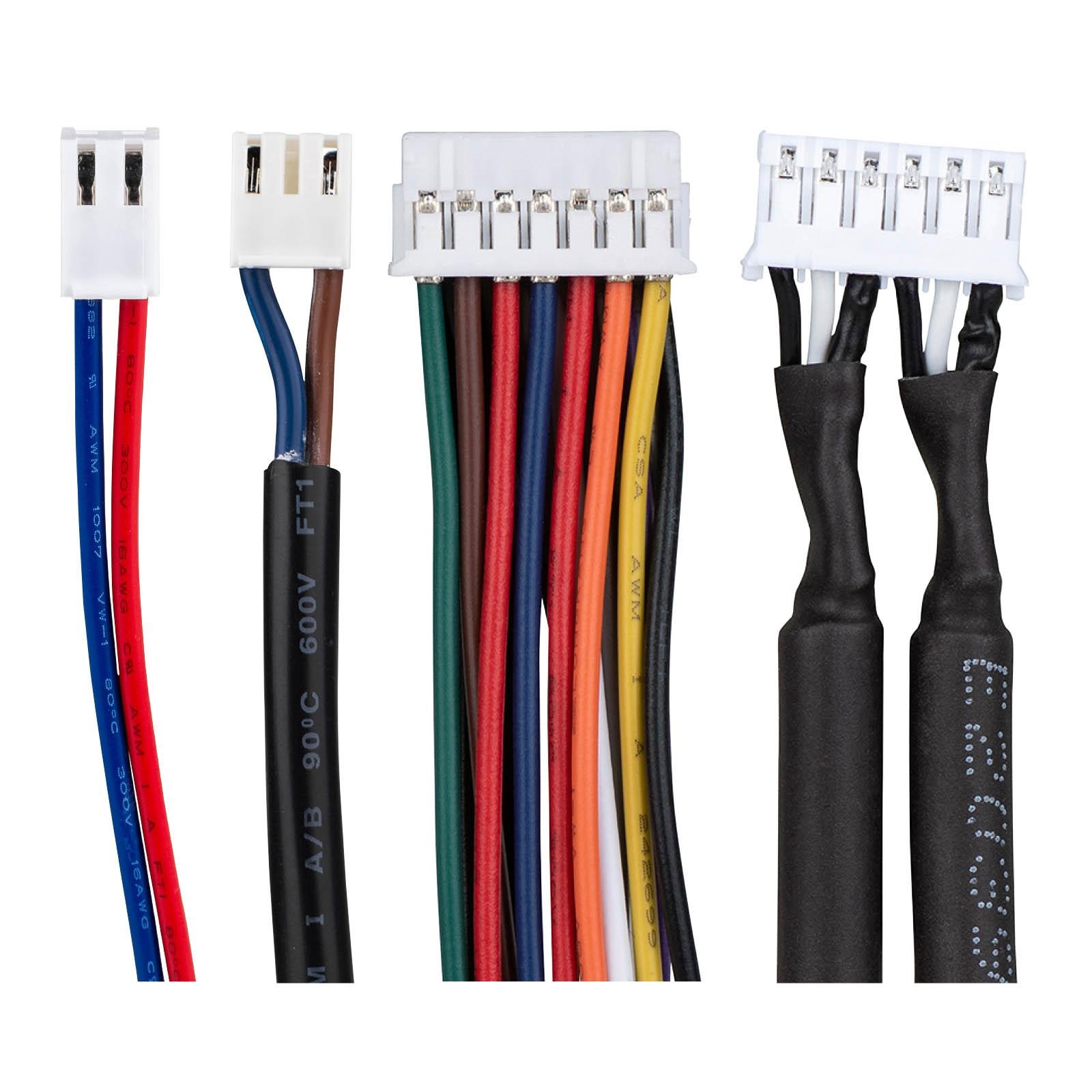

        Cable set

        The included cable set gives access to all the functions of the 100AS1 module. The leads are left unterminated so that it is possible to terminate the wires with the connections of your choice.

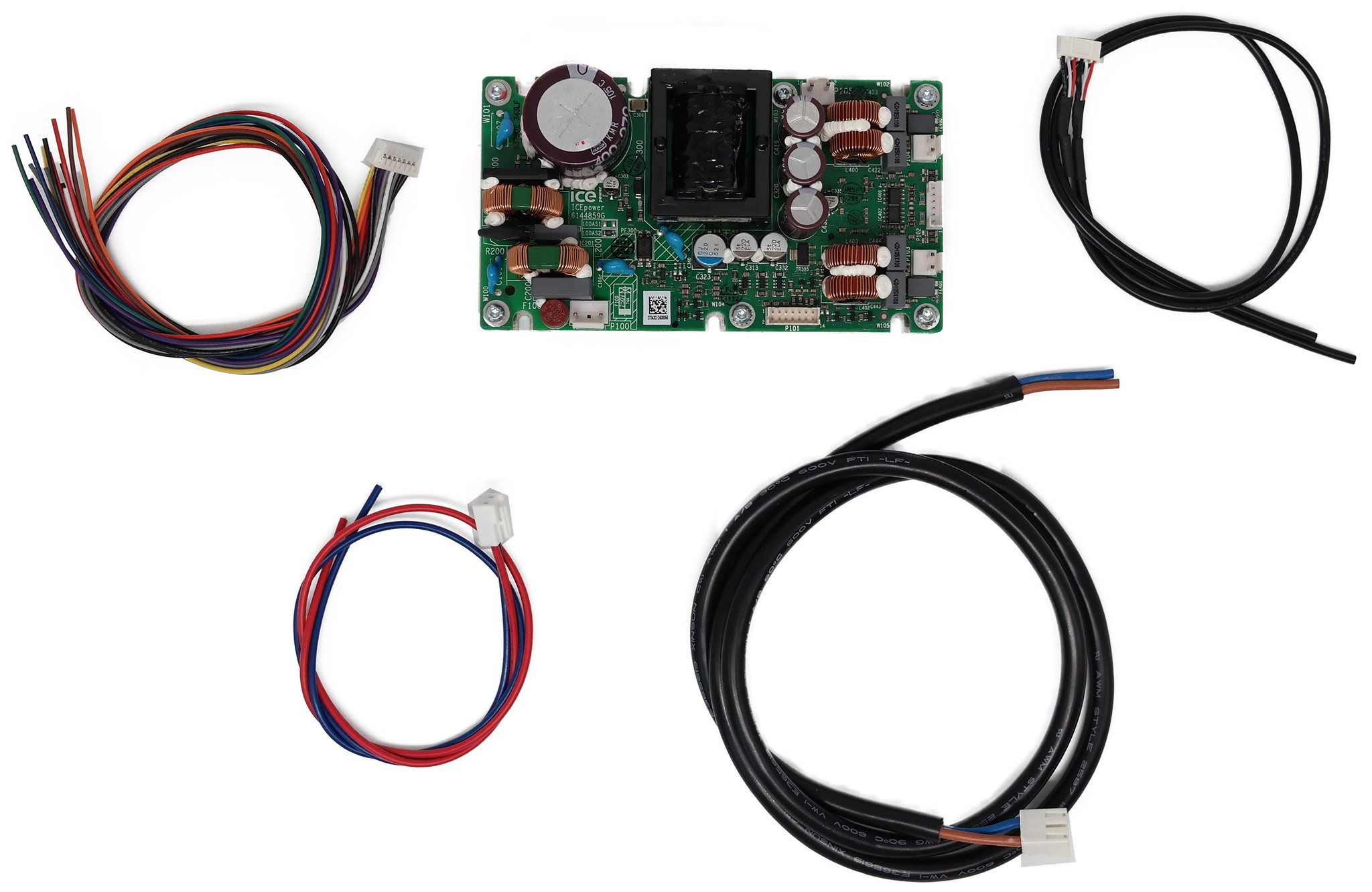

        What’s In The Box?

        • 1 x 100AS1 amplifier module with integrated SMPS
        • Cable set:
          • 1 x (NA) Audio input 2 channel
          • 1 x (K) Mains without Earth
          • 1 x (F) 2pole Universal Speaker
          • 1 x (NC) Signal Sense & Trigger

        Show more

        Specifications

        Article number
        100AS1
        Rated power output
        100 watts at 4 ohms
        50 watts at 8 ohms
        Minimum load
        3 Ohm
        Efficiency
        72%
        Distortion
        0.006 % THD+N (1000 Hz at 100 watts)
        Frequency response
        3 - 50,000 Hz
        Gain
        21 dB
        Input sensitivity
        2.7 Vp
        Input impedance
        2.8 kOhm
        Amplifier Classification
        Class D
        Speaker output channels
        1
        Power Requirements
        100 � 240 VAC
        Current limit
        12.5 A

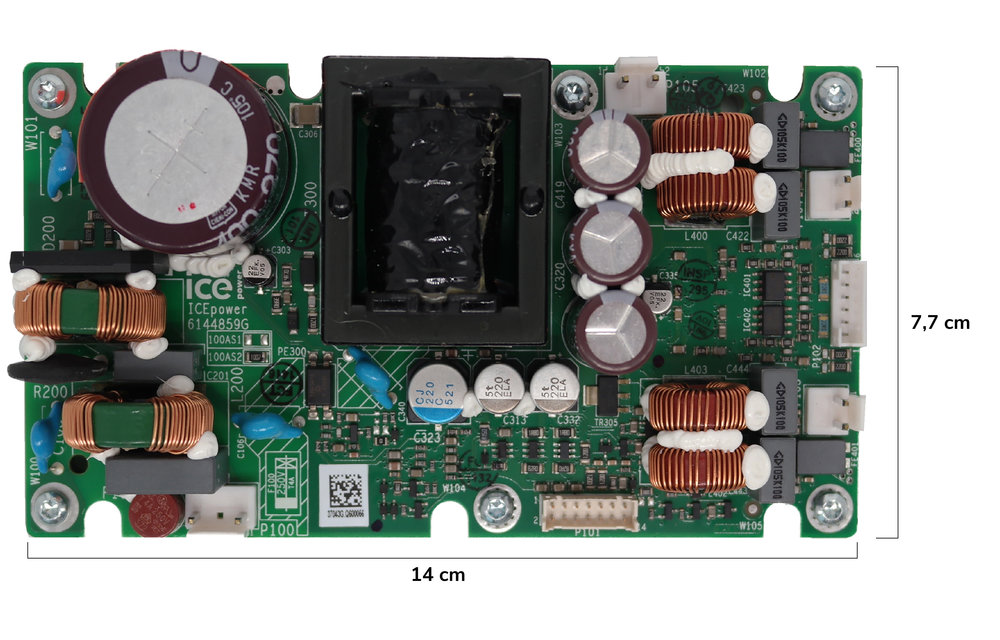

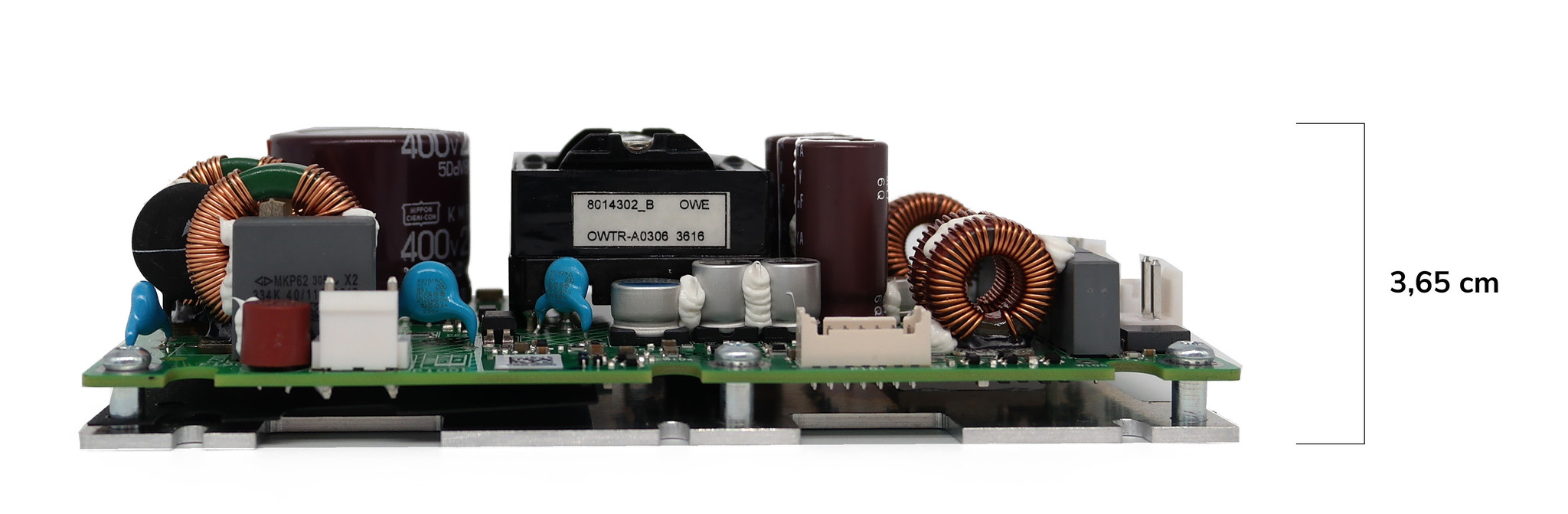

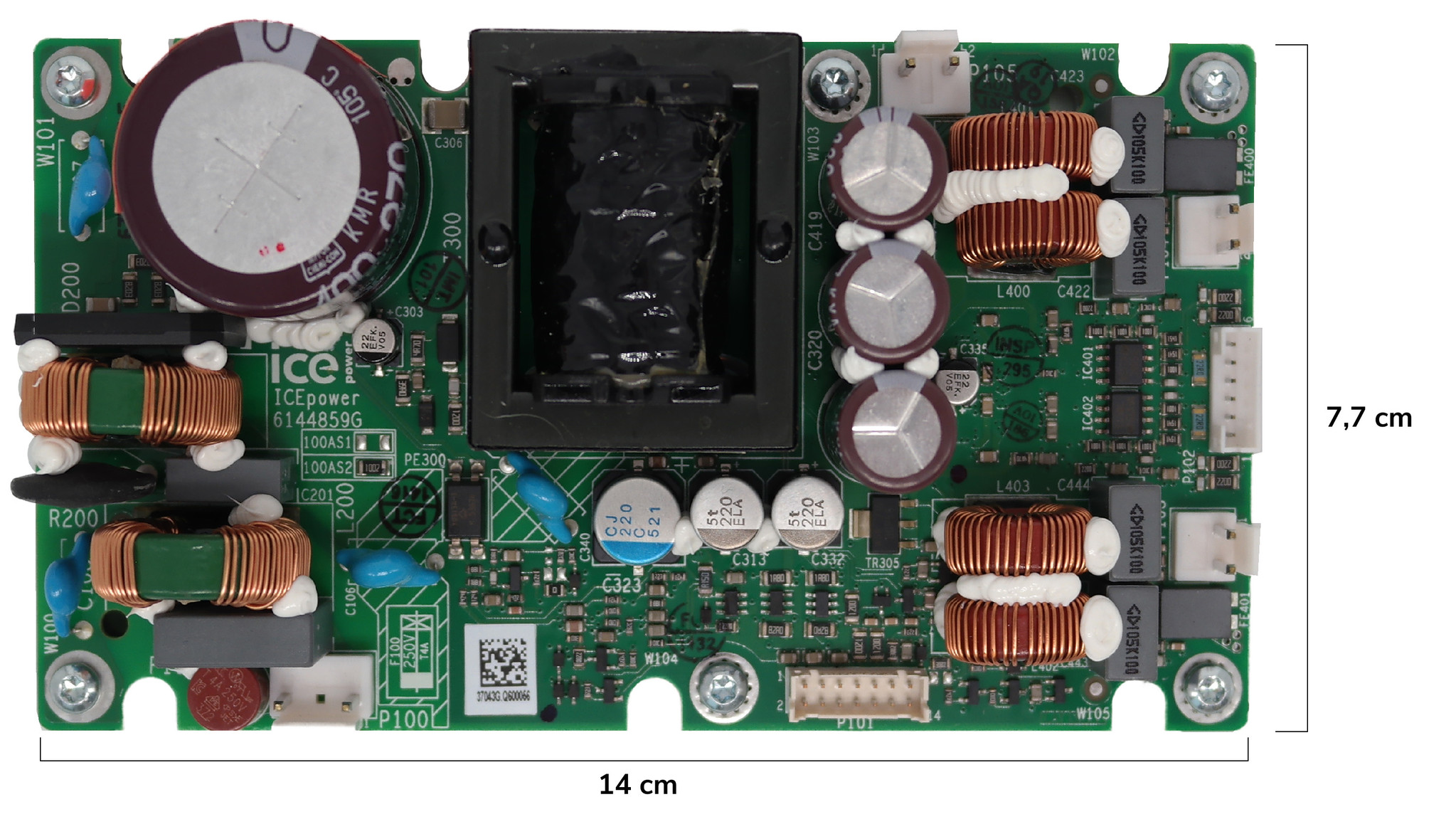

        Dimensions (L x W x H)
        140 x 77 x 36.5 mm
        Mounting hole spacing
        130 x 67
        Mounting hole diameter
        3.5 mm

        Show more

        5 of 5
        Fast delivery working perfectly
        By Ian campbell on 24 July 2022
