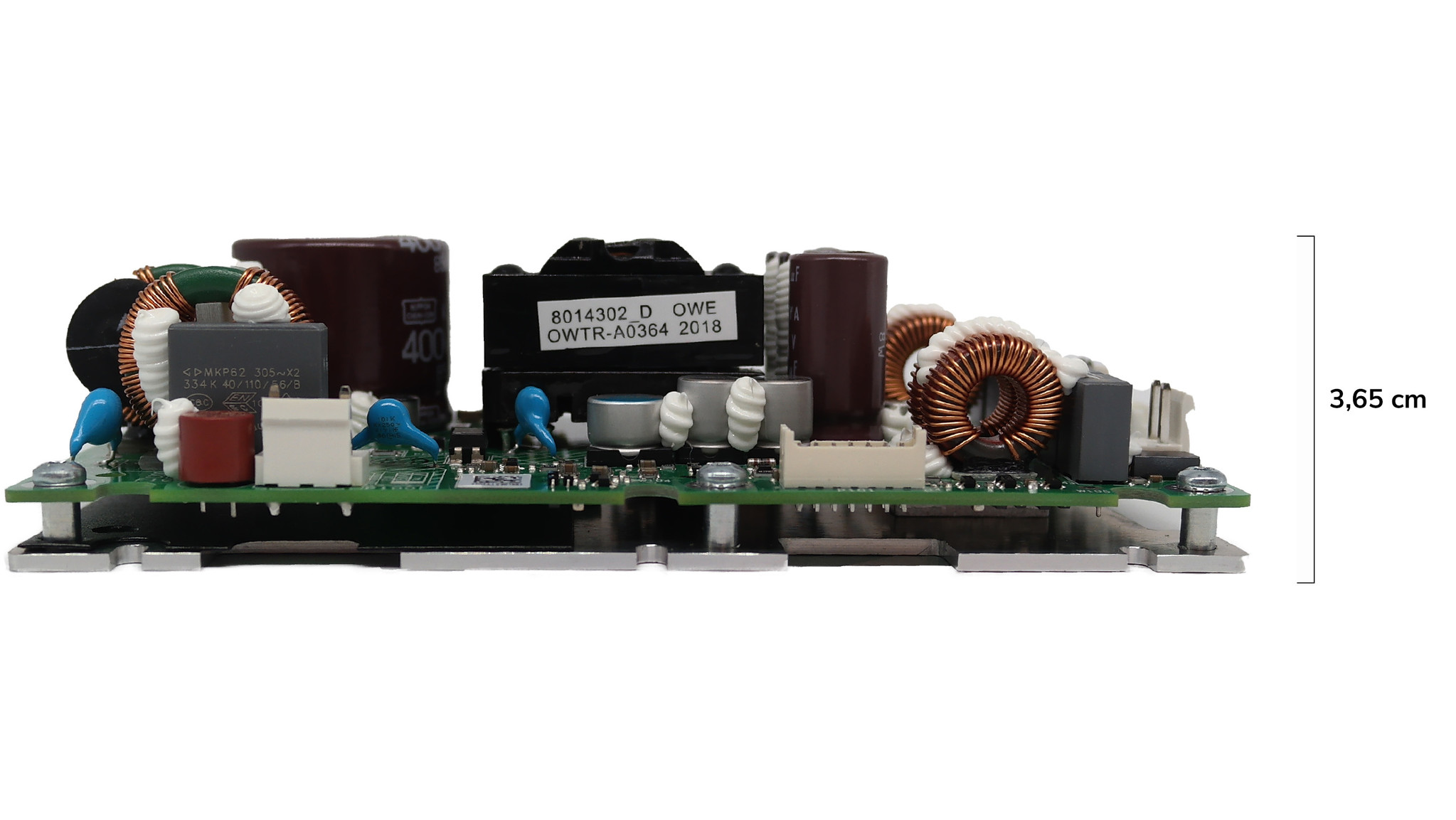

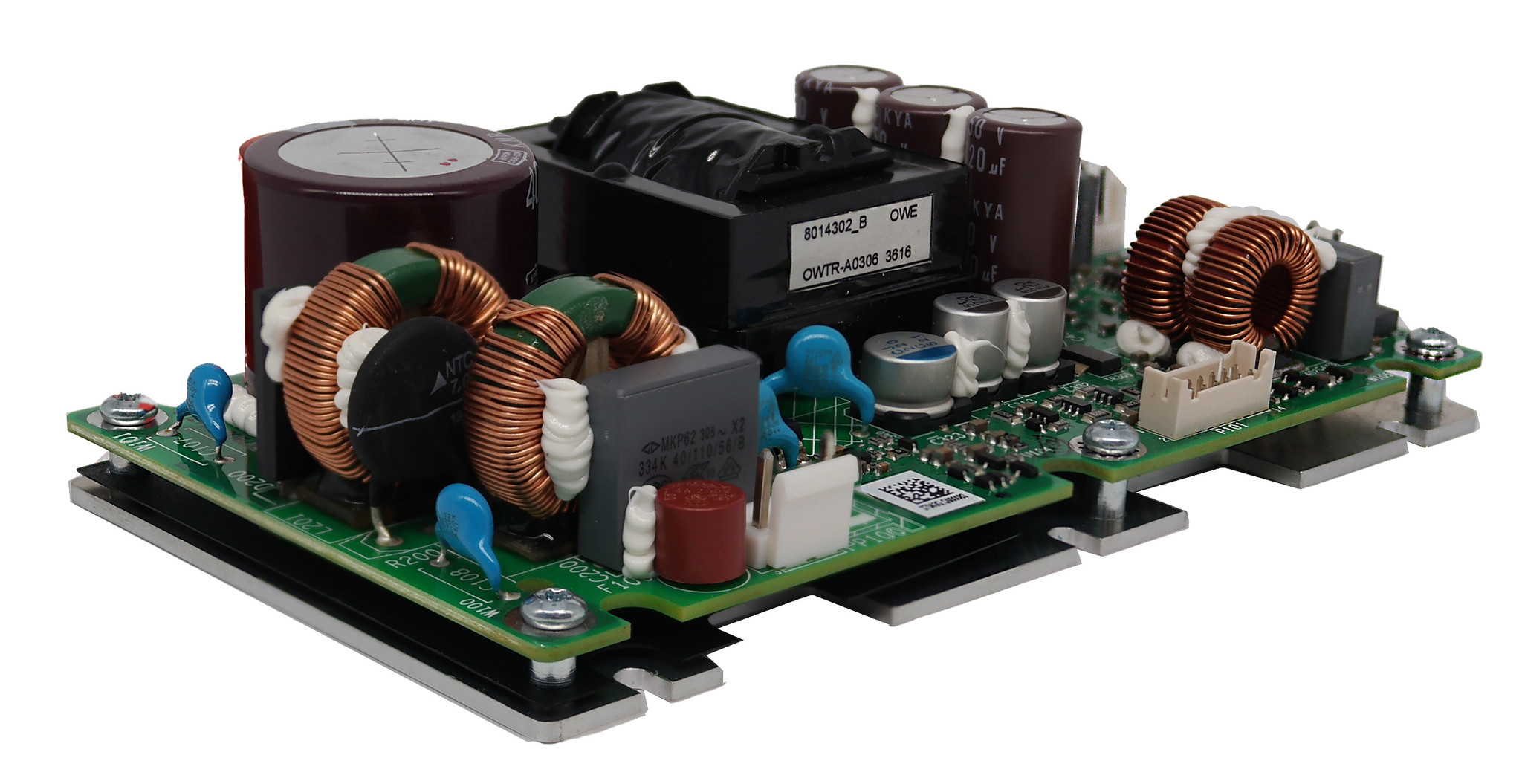

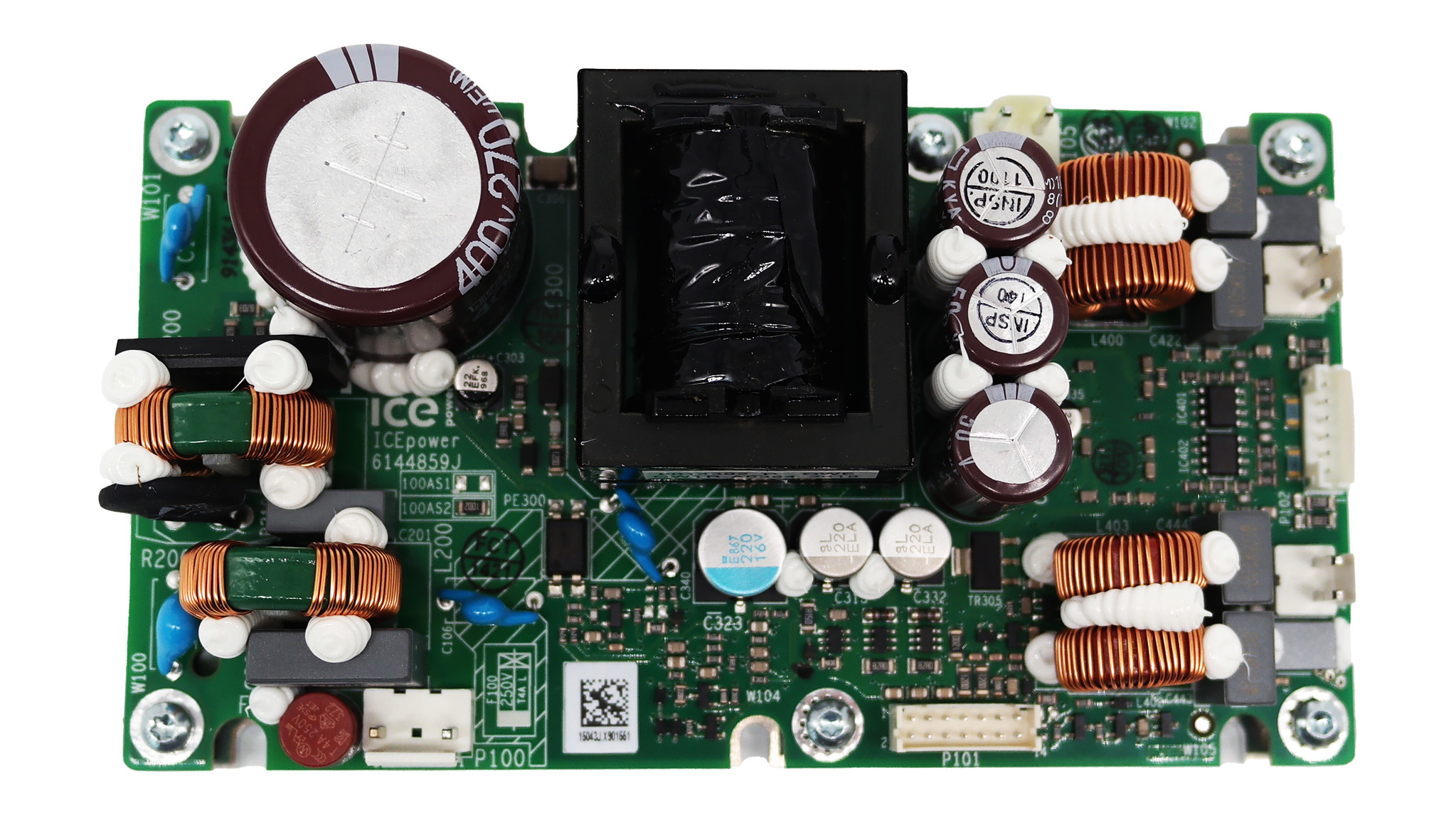

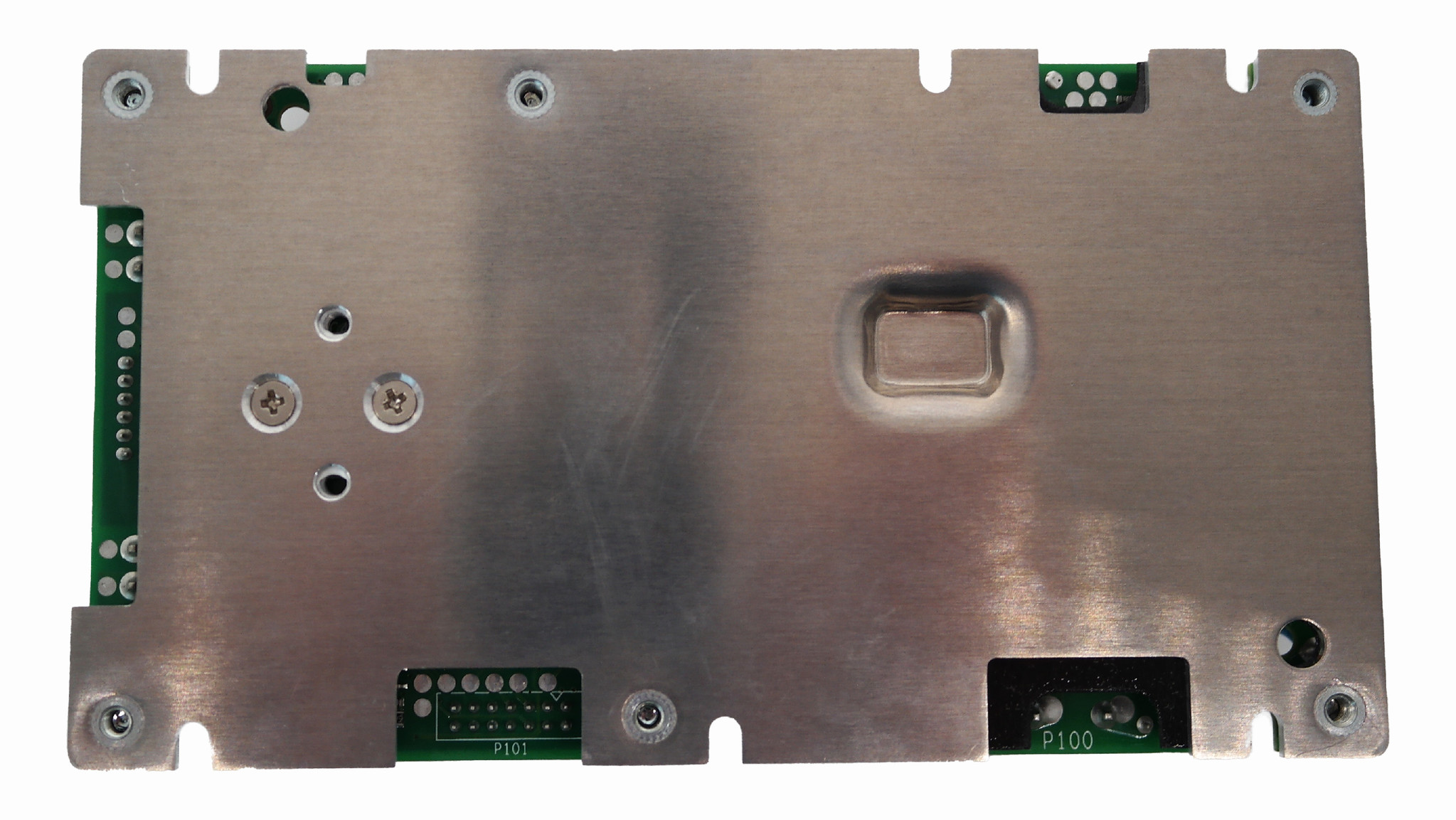

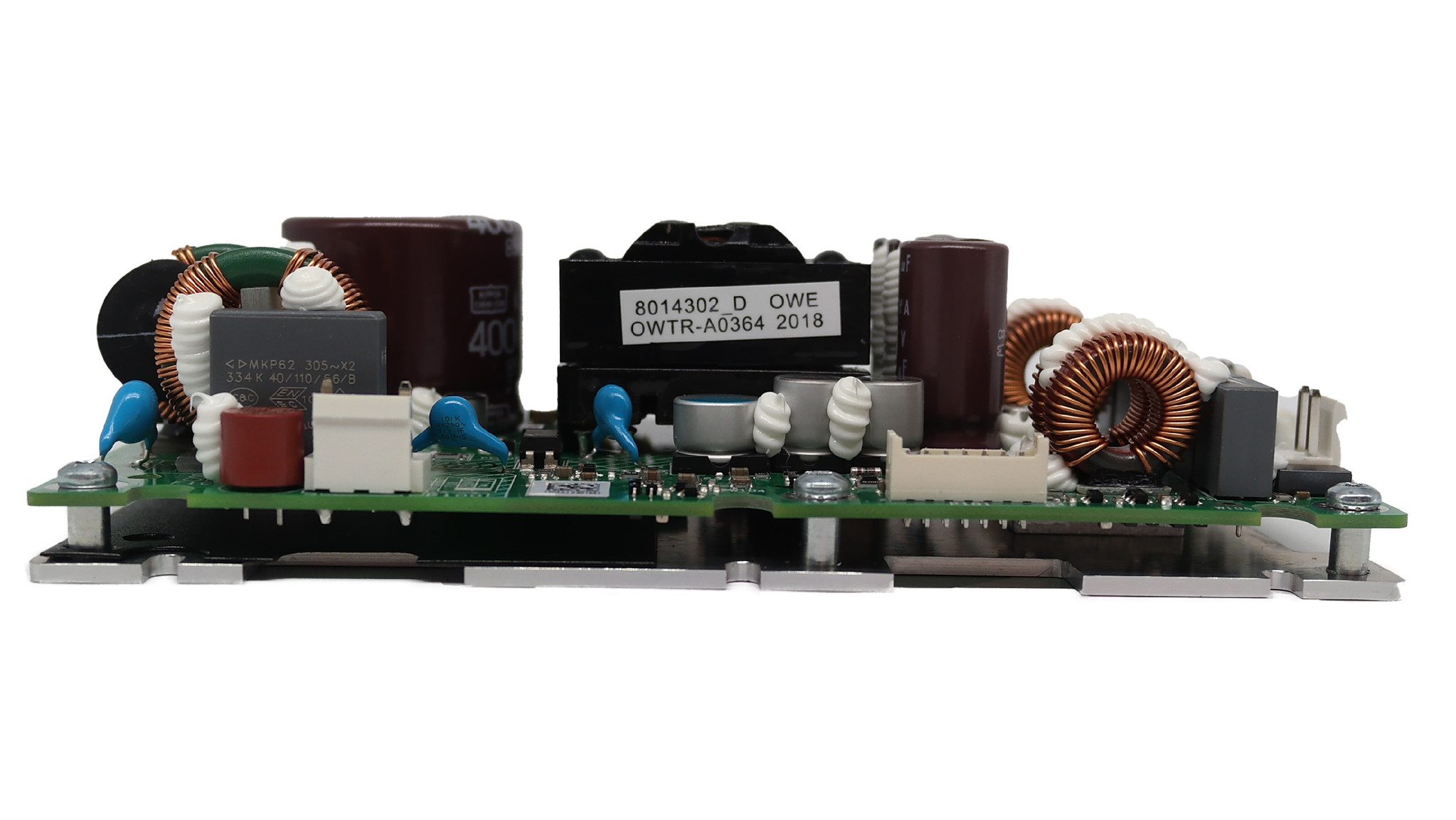

      ICEpower 100AS2 Amplifier Module with Integrated Universal Mains Power Supply

      € 123,93€ 149,95 Out of stock: please contact us for accurate delivery times

      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only €142,45 per piece
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      The 100AS2 is a single-channel, Class D amplifier with a fully integrated switch-mode power supply. Although designed for guitar, bass guitar and subwoofer amplification, this amplifier is suitable for many more applications.



      Highlights

      • Self-contained module, no need for additional circuits
      • Minimum load of 3 Ω
      • Extended but user-friendly control interface
      • 8 +Vdc and 17 +/- Vdc auxiliary outputs



      Product details

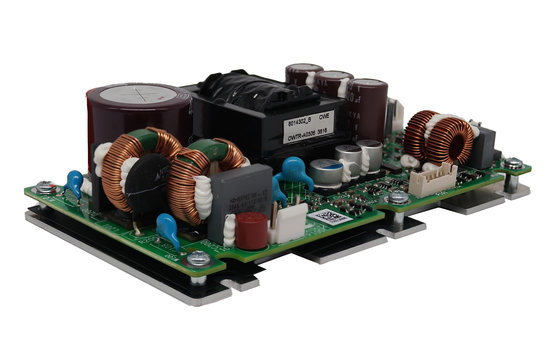

      ICEpower 100AS2 Amplifier Module with Integrated Universal Mains Power Supply



      This 100-watt high-performance, reliable and self-contained amplifier module is the smallest member of the AS-series from ICEpower. The integrated power supply, ruggedness and easy-to-use control features make it an excellent choice from the amplifier module category for a wide range of applications.



      The AS-series offers excellent audio performance thanks to the patented ICEpower modulation and control techniques. The integrated power supply is very capable and can supply up to 300-watts of continuous output. The capable supply, together with the protection circuits make even this smallest member not afraid of high continuous power demands. ICEpower strengthens the reliability further by using brand-name components and careful testing during production.



      There is a user-friendly control interface, that features stand-by control, Auto-on/ signal detect, auxiliary power outputs and a wide range of monitoring in- and outputs. Although none of this is required if you are looking for a simple operation; just connect the mains, signal and speakers and you are ready to play some music!



      Check out the 100AS1 for a mono version or the 1200AS2 for the most powerful member of the AS series. Looking for similar features, but a smaller footprint, check out the super-compact ICEpower 50ASX2(SE).

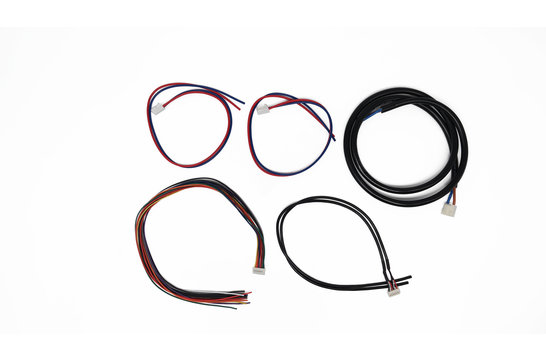

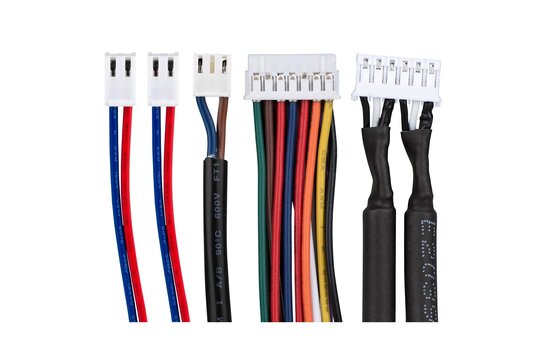

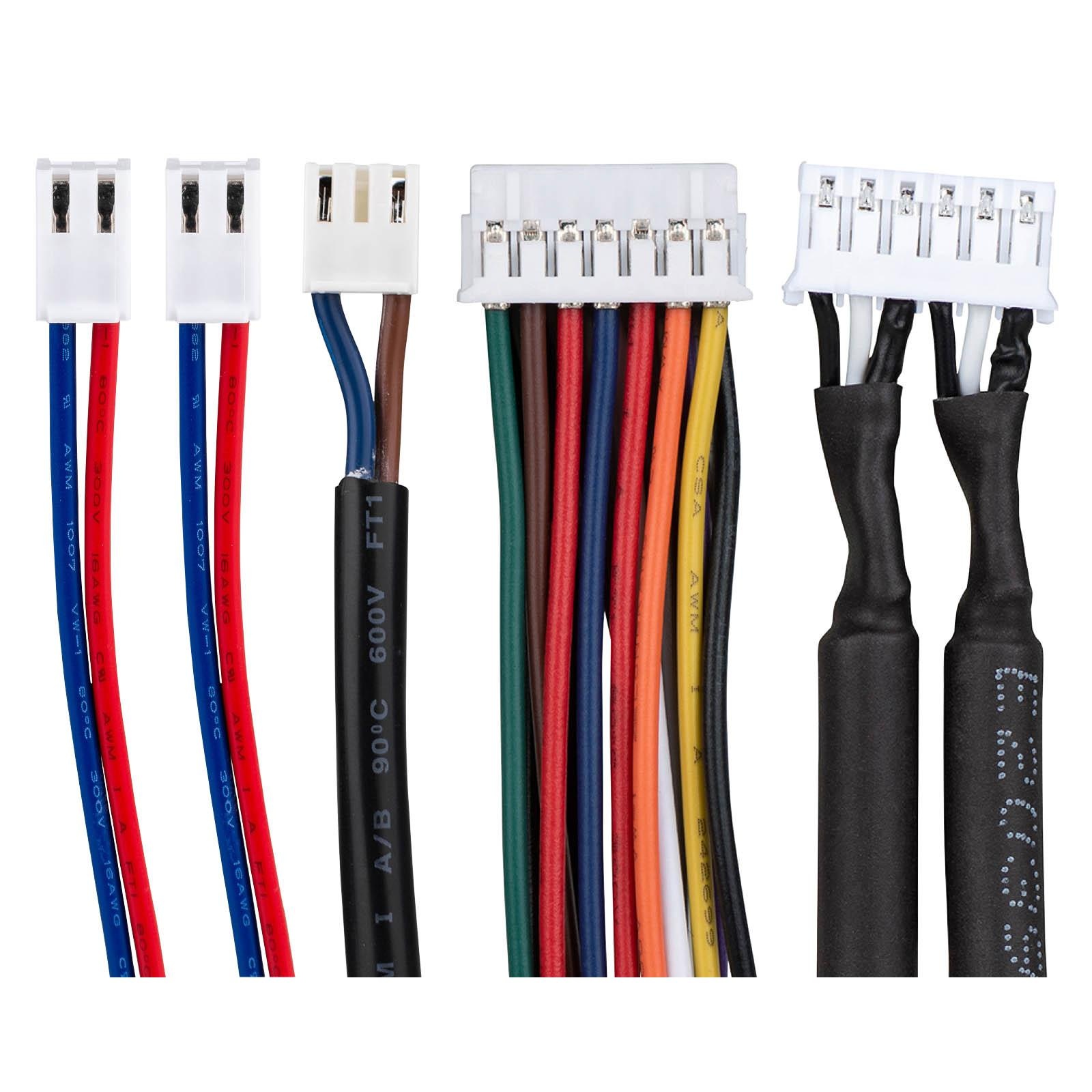

      Cable set

      The included cable set gives access to all the functions of the 100AS2 module. The leads are left unterminated so that it is possible to terminate the wires with the connections of your choice.

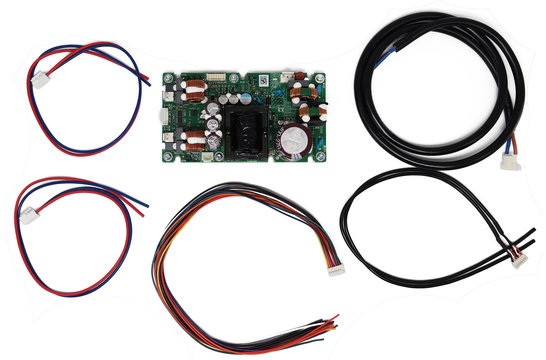

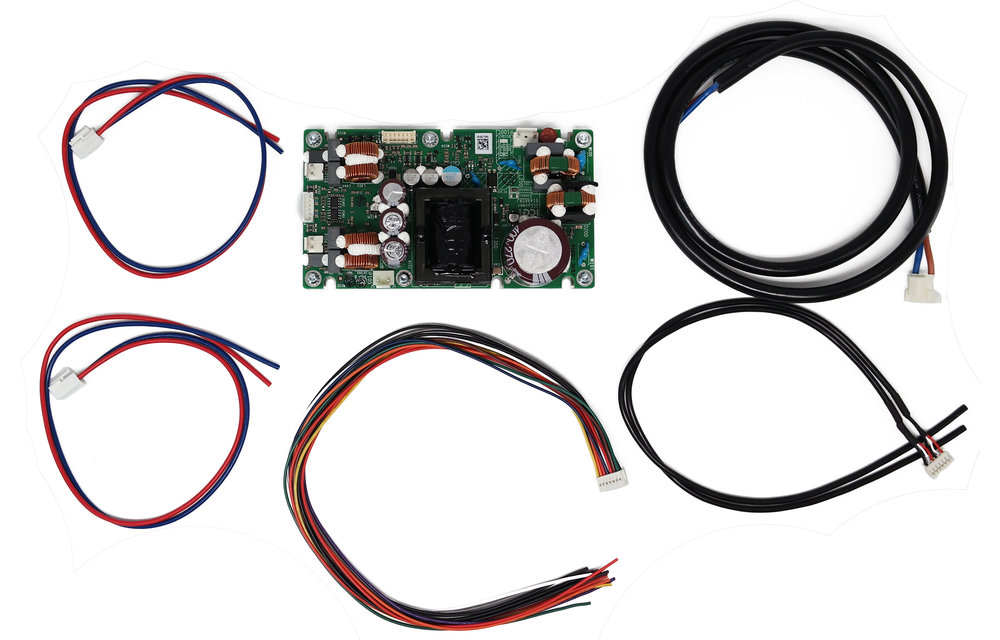

      What’s In The Box?

      • 1 x 100AS2 amplifier module with integrated SMPS
      • Cable set:
        • 1 x (NA) Audio input 2 channel
        • 1 x (K) Mains without Earth
        • 2 x (F) 2pole Universal Speaker
        • 1 x (NC) Signal Sense & Trigger

      Specifications

      Article number
      100AS2 - PB
      Rated power output
      100 watts at 4 ohms
      50 watts at 8 ohms
      Minimum load
      3 Ohm
      Efficiency
      72%
      Distortion
      0.006 % THD+N
      Gain
      21 dB
      Input sensitivity
      2.7 Vp
      Input impedance
      2.8 kOhm
      Amplifier Classification
      Class D
      Speaker output channels
      2
      Power Requirements
      85-264 VAC
      Current limit
      12.5 A

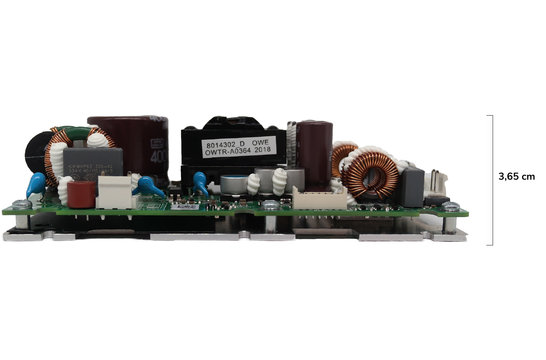

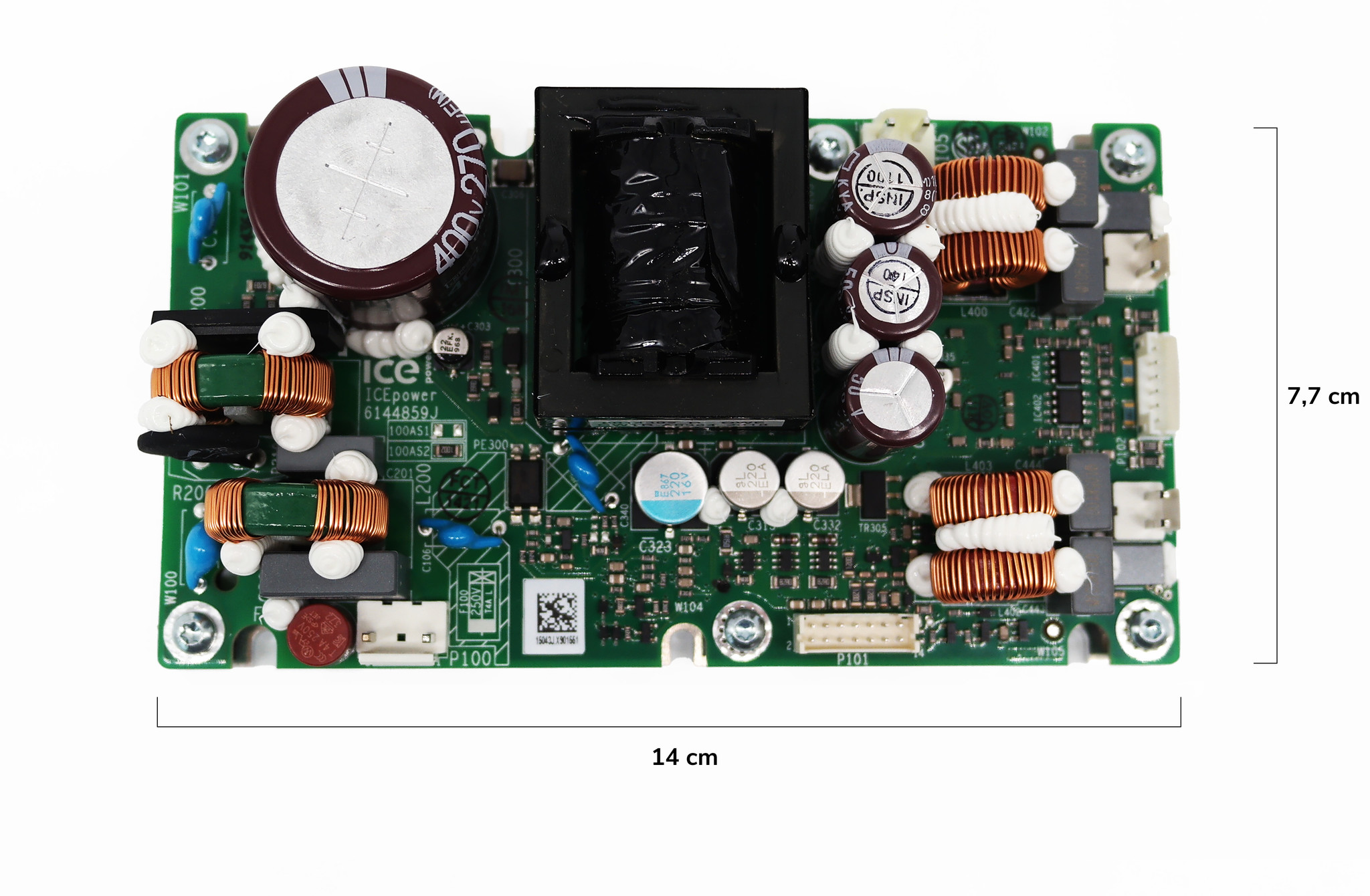

      Dimensions (L x W x H)
      140 x 77 x 36.5 mm

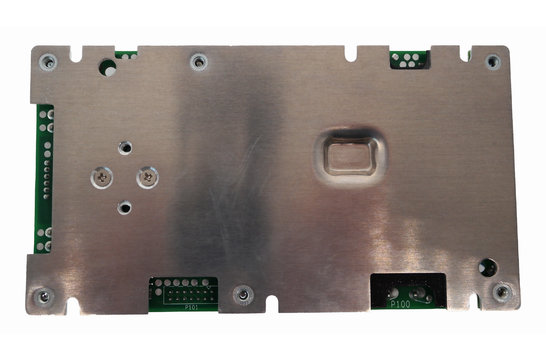

      Mounting hole diameter
      3.5 mm
