      ICEpower 1200AS1 Amplifier Module with Integrated Universal Mains Power Supply

      € 289,21€ 349,95 10+ In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only € 332,45 per piece
      • 24h express shipping available
      • Same day shipping
      • In-house techniscal support
      • 45 days worry-free returns
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Highlights

      • Fully integrated, one channel amplifier and power supply
      • Minimum load impedance at 2.7 Ohm
      • Comprehensive monitoring and protection
      • Real-time voltage and current monitor outputs
      • Audio signal and logic triggers
      • Auxiliary power supply output
      • Standby-mode
      • Universal mains with active Power Factor Correction
      • Simple but flexible mechanical mounting



      Product details

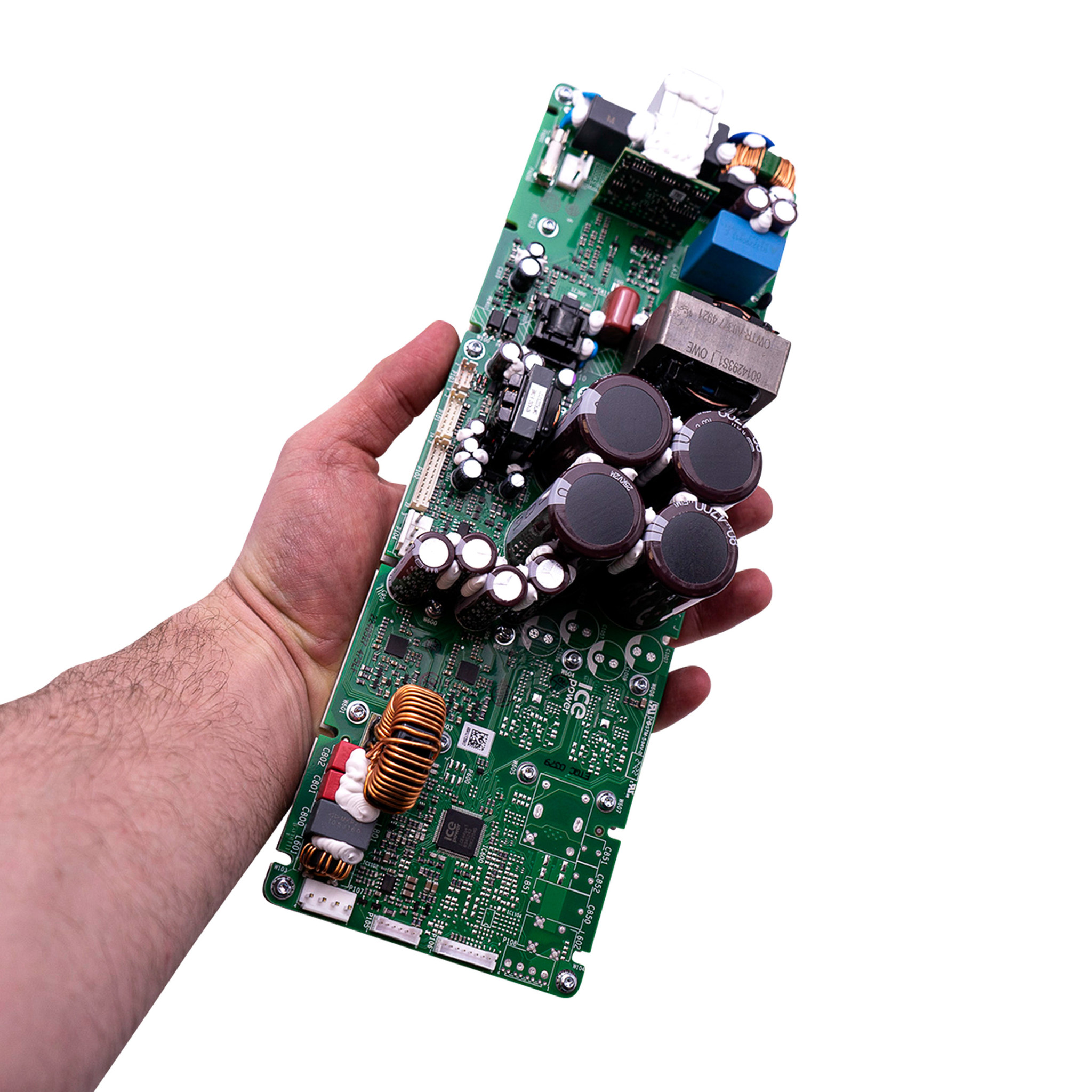

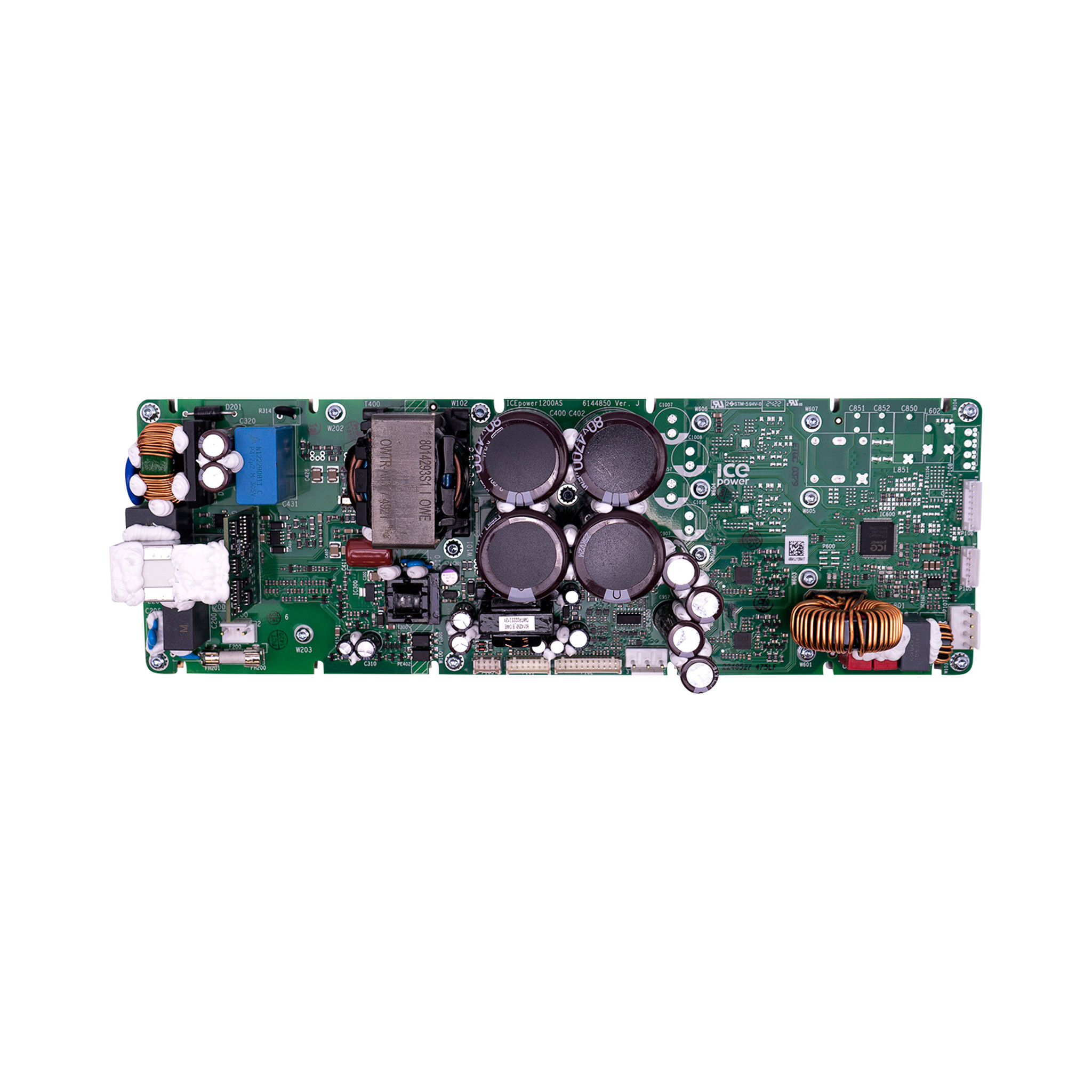

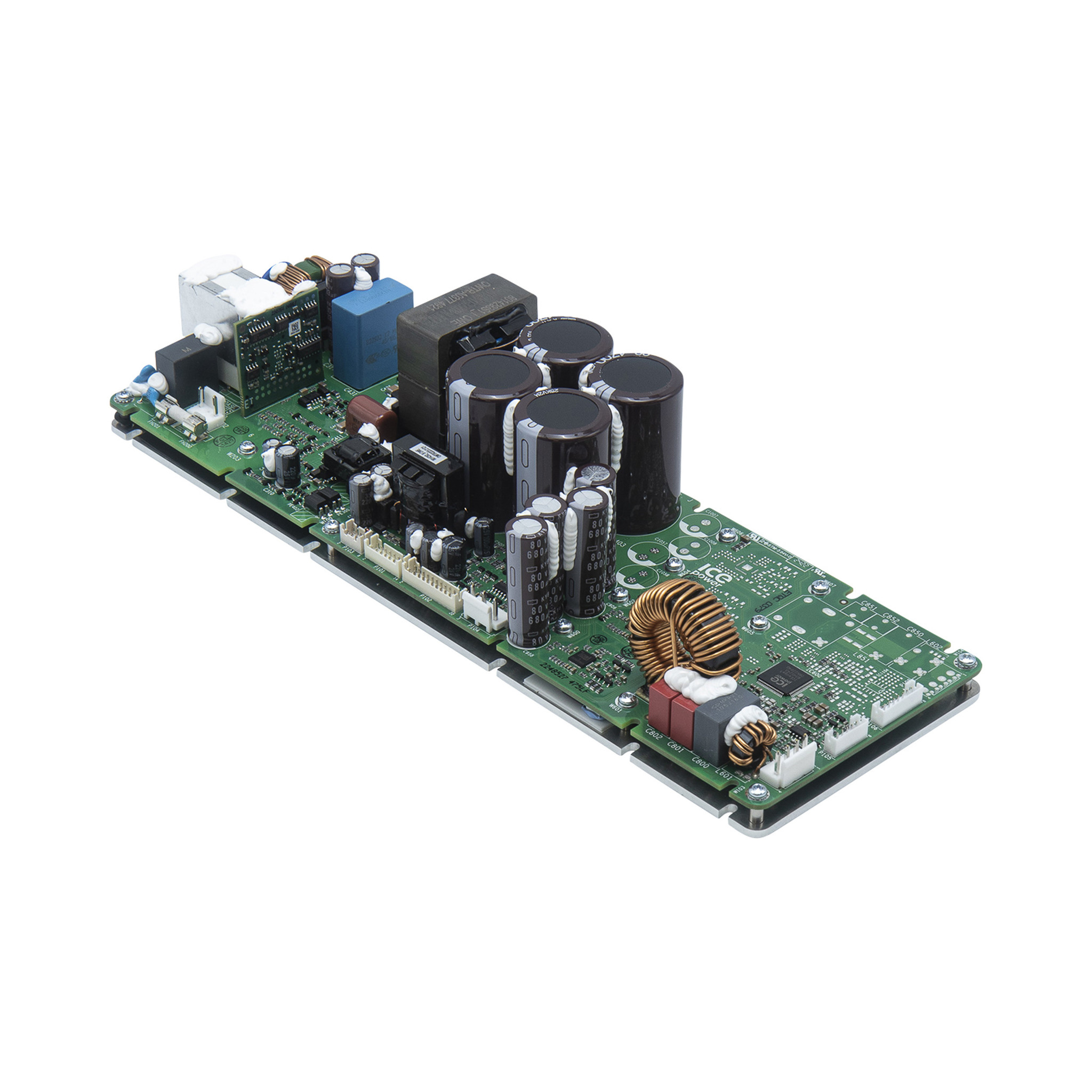

      ICEpower 1200AS1 Amplifier Module with Integrated Universal Mains Power Supply



      The ICEpower 1200AS1 combines a high-performance 1200 watt ICEedge based class D amplifier with an integrated mains power supply. Besides being the most powerful integrated solution, this is also the most convenient solution for extreme audio power and performance from all amplifier modules available at SoundImports.



      The DC hanger bus is suitable for powering the 400A2 amplifier modules. Perfect for professional subwoofers, 2-way and 2.1 speakers as well as high-end consumer products such as subwoofers or monoblock power amplifiers.



      The ICEpower 1200AS family uses a universal mains ErP and Energy Star compliant power supply and provides comprehensive protection and monitoring functions. All are accessible through an easy-to-use control interface. Additionally, dedicated monitor outputs for speaker connector output voltage and current enable real-time protection system of the loudspeaker. The integrated aluminium base plate on the 1200AS acts as both a cooling and mechanical interface. This enables easy mechanical integration and extra cooling can be added. This ICEpower 1200AS1 is a one-channel module. Check out the ICEpower 1200AS2 for a two-channel module.

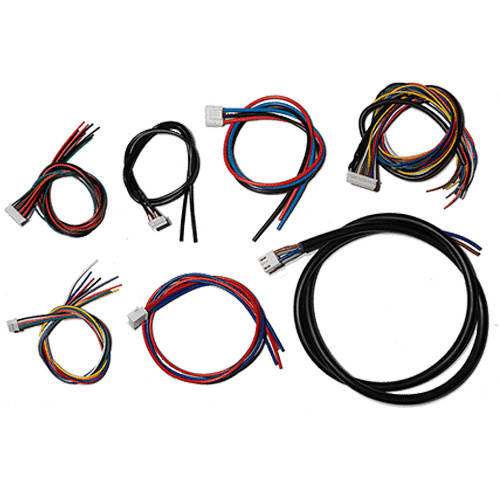

      Cable set

      The included cable set gives access to all the functions of the 1200AS1 module. The leads are left unterminated so that it is possible to terminate the wires with the connections of your choice.



      What’s In The Box?

      • 1 x 1200AS1 Amplifier Module with Integrated Universal Mains Power Supply
      • Cable set:
        • 1 x (K) Mains without Earth
        • 1 x (G) Speaker 1200AS
        • 1 x (NC) Basic control/features
        • 1 x (ND) Signal
        • 1 x (NE) Voltage and Current Monitor 2 channel
        • 1 X (NA) Audio input 2 channel
        • 1 x (NG) Hanger Rail Supply
        • 1 x (NH) Hanger Small Signal Supply

      Specifications

      Article number
      1200AS1
      Rated power output
      1200 watts at 4 ohms
      600 watts at 8 ohms
      Minimum load
      2.7 Ohm
      Efficiency
      80%
      Distortion
      0.005 % THD+N
      Gain
      25.8 dB
      Input impedance
      38 kOhm
      Amplifier Classification
      Class D
      Speaker output channels
      1
      Current limit
      38 A
      Dimensions (L x W x H)
      300 x 100 x 63 mm
      Mounting hole diameter
      3.5 mm
