18" Reference subwoofer kit

€749,95

Add to cart

Dayton Audio 18" Reference subwoofer kit

Name: Dayton Audio 18" Reference subwoofer kit
Brand: Dayton Audio
SKU: 300-7094
Price: 749.95 EUR
Availability: BackOrder

0 reviews

Brand: Dayton Audio

Show all DIY subwoofer kits

18'' | passive

€ 619,79€ 749,95 Out of stock

Backorder

We ship to
Same day shipping
Five-year warranty
45-day cooling-off period to return

Customer rating:

Compare

Request quotation

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

Build the ultimate in high fidelity bass reproduction using this superior subwoofer cabinet and the Dayton Audio RSS460HO-4 Reference Series 18" High Output subwoofer.

Highlights

113 liter cabinet made of 18 mm MDF panels with a 36 mm thick front baffle
CNC-machined dadoes, subwoofer cutout and recess, and a unique bracing system that increases cabinet rigidity

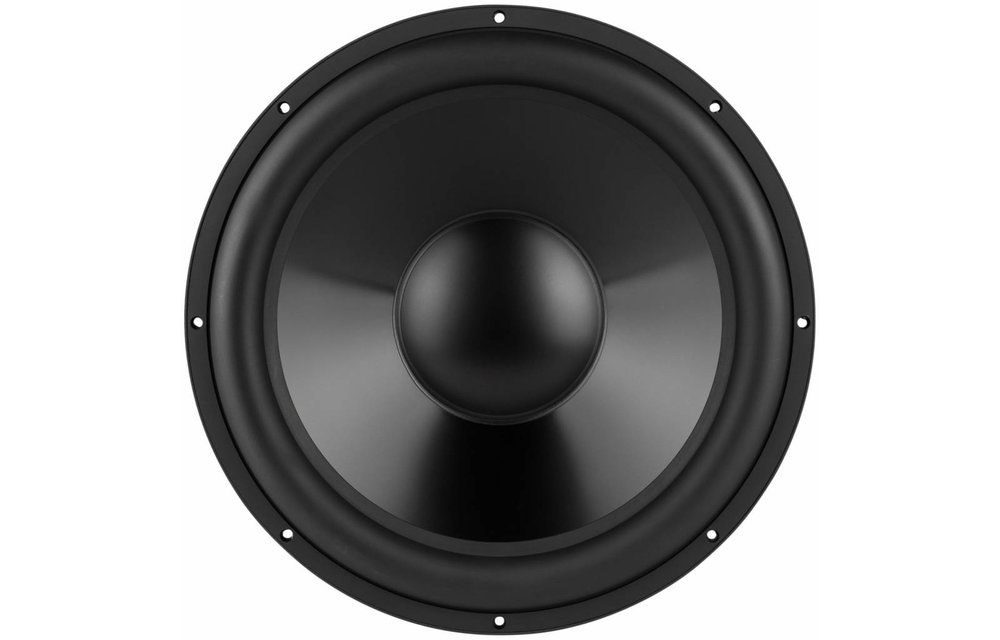

Dayton Audio 18" Reference Series High Output subwoofer included

Product details

Dayton Audio 18" Reference Series HO Subwoofer and Cabinet Bundle

The Dayton Audio Reference Series subwoofers take the quality and performance of the much-acclaimed RS line into the subwoofer realm. As with the rest of the Reference Series, the main focus of these subwoofers is ultra-low-distortion. Second, third, and intermodulation distortion are kept extremely low by utilizing three short-circuit paths within the motor structure.

This particular cabinet is designed specifically for the Dayton Audio 18" Reference Series High Output subwoofer. The sealed enclosure design creates a subwoofer system with a Qtc of 0.644 and an f3 of 40 Hz when used with the Dayton Audio RSS460HO-4 and minimal fill.

During the CNC manufacturing process, rabbets dadoes are cut into the back panel for precise panel alignment. A unique three-piece brace adds superior rigidity without affecting the subwoofer's performance. Both side panels feature 18 mm rabbeted extensions with recesses to perfectly install the first piece of the two-part, double-thick baffle. Plate amplifier installation is made easy by following the scribed interior guide with a jig saw and by modifying one of the braces.

The end result is a resonance-free, sealed subwoofer cabinet that is purpose-built to extract the best performance from Dayton Audio's 18" High Output Reference Series subwoofer. All that's left to do is finish it to match your décor or paint it to stand out. When your friends ask about it, you get the pleasure of saying, "I built it myself!"

Note: Here is a list of what you need to build this subwoofer-cabinet bundle that's not included and where to find it on our webshop:

Passive: When building passive, the kit requires a low passfiltered signal.

External amps: Dayton Audio SA1000 / Dayton Audio APA1200DSP
Speaker wire
Binding posts

Active:

Plate amps: Dayton Audio SPA500 / Dayton Audio SPA1000
Scribing for cutout: Yes
Braces have to be cut out too

Needed for both:

Screws: 8 x 081-425
Feet (optional)
Coating(optional)
Damping material (optional for tuning the response): Visaton 5070

Specifications:

Mounting holes (# and size in mm): 8 x 6,5 mm Ø
Panel thickness: 18 mm
Front baffle thickness: 36 mm
Panel material: Medium Density Fiberboard (MDF)
Finished net cabinet volume (subtracting the double-thick baffle, bracing, and woofer volume): 113 L
External dimensions: 584 x 508 x 527 mm
