        CX1601 6.5" Coaxial Woofer 8 ohm

        Volt Loudspeakers CX1601 6.5" Coaxial Woofer 8 ohm

        €349,95

        Out of stock

        Add to cart

        Volt Loudspeakers CX1601 6.5" Coaxial Woofer 8 ohm

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Volt Loudspeakers
        Show all New products
        6.5" | 8 Ω
        CX1601 6.5" Coaxial Woofer 8 ohm
        CX1601 6.5" Coaxial Woofer 8 ohm
        CX1601 6.5" Coaxial Woofer 8 ohm
        CX1601 6.5" Coaxial Woofer 8 ohm
        CX1601 6.5" Coaxial Woofer 8 ohm
        CX1601 6.5" Coaxial Woofer 8 ohm
        CX1601 6.5" Coaxial Woofer 8 ohm
        CX1601 6.5" Coaxial Woofer 8 ohm
        € 289,21€ 349,95 Out of stock
        • -5% Purchase 4 for only € 332,45 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        CX1601 6.5" Coaxial Woofer 8 ohm
        CX1601 6.5" Coaxial Woofer 8 ohm
        CX1601 6.5" Coaxial Woofer 8 ohm
        CX1601 6.5" Coaxial Woofer 8 ohm
        CX1601 6.5" Coaxial Woofer 8 ohm
        CX1601 6.5" Coaxial Woofer 8 ohm
        CX1601 6.5" Coaxial Woofer 8 ohm
        CX1601 6.5" Coaxial Woofer 8 ohm

        Product description Volt Loudspeakers CX1601 Coaxial Woofer

        The Volt CX1601 is a professional-grade 6.5-inch coaxial full-range driver designed for high-performance studio monitors and fixed installation systems. Engineered with an integrated dome tweeter and crossover, this driver delivers extended bandwidth and outstanding imaging from a compact footprint.



        Highlights of the Volt CX1601

        • Integrated 28mm dome tweeter with ferrofluid cooling and neodymium magnet
        • Full-range frequency response from 50Hz to 20kHz with excellent dispersion
        • Critically doped paper pulp cone with low damping rubber surround
        • Double rear suspensions and vented diecast aluminium chassis for enhanced linearity and cooling



        Product details Volt CX1601

        Volt CX1601 Full-Range Coaxial Driver

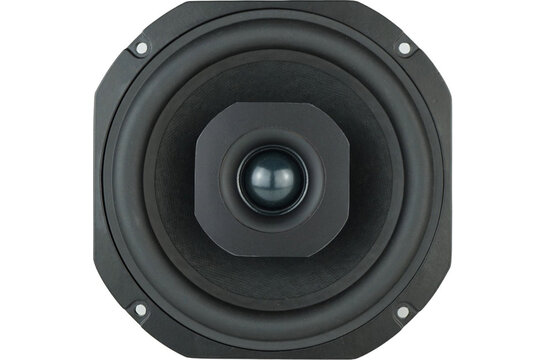

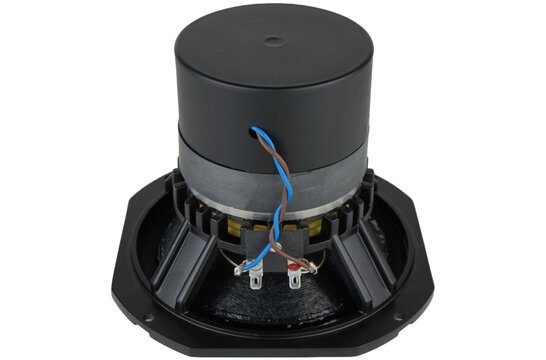

        The Volt CX1601 is a 6.5" coaxial drive unit combining a lightweight paper pulp cone for bass/midrange with a centrally mounted 28mm soft dome tweeter. The tweeter is ferrofluid cooled and powered by a neodymium magnet, delivering precise high-frequency reproduction and dynamic headroom. An integral passive crossover ensures seamless integration between the driver components.



        This full-range unit is ideal for compact studio monitors and critical listening environments, offering a frequency range of 50Hz to 20kHz and sensitivity of 89dB. The symmetrical field magnet system, critically doped cone, and double rear suspensions ensure low coloration and distortion, even at higher SPLs. The robust diecast aluminium chassis is vented to increase airflow over the voice coil and magnet, reducing power compression and enhancing thermal stability.



        With optimized Thiele-Small parameters for sealed and vented enclosures, the CX1601 supports box volumes from 10 to 20 litres. Its ±6mm linear excursion and 100W AES power rating make it suitable for demanding studio, broadcast, or installation applications where clarity and tonal accuracy are paramount.

        Show more

        Specifications

        Article number
        CX1601
        EAN
        9506381684262
        Woofer Type
        Coaxial Woofer
        Nominal Diameter
        6.5"
        Power Handling (RMS)
        100 Watts
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        89 dB
        Frequency Response
        50 - 20.000 Hz
        Voice Coil Diameter
        38 mm
        DC Resistance (Re)
        5.6 Ω
        Voice Coil Inductance (Le)
        0.67 mH
        Mechanical Q (Qms)
        9.53
        Electromagnetic Q (Qes)
        0.36
        Total Q (Qts)
        0.35
        Diaphragm Mass Inc. Airload (Mms)
        23 g
        Mechanical Compliance of Suspension (Cms)
        0.67 mm/N
        Surface Area of Cone (Sd)
        154 cm²
        Volume of Displacement (Vd)
        0.7 dm³
        BL Product (BL)
        9.5 N/A
        Compliance Equivalent Volume (Vas)
        22.6 Liters
        Maximum Linear Excursion (Xmax)
        12 mm
        Driver's Mechanical Losses (Rms)
        0.61 kg/s
        Cone / Diaphragm Material
        Paper
        Basket / Frame Material
        Aluminium
        Overall Outside Diameter
        189 x 171 mm
        Overall Depth
        125 mm
        Baffle Cutout Diameter
        178.5 mm
        # Mounting Holes
        4
        Mounting Hole Diameter
        5.0 mm

        Show more
