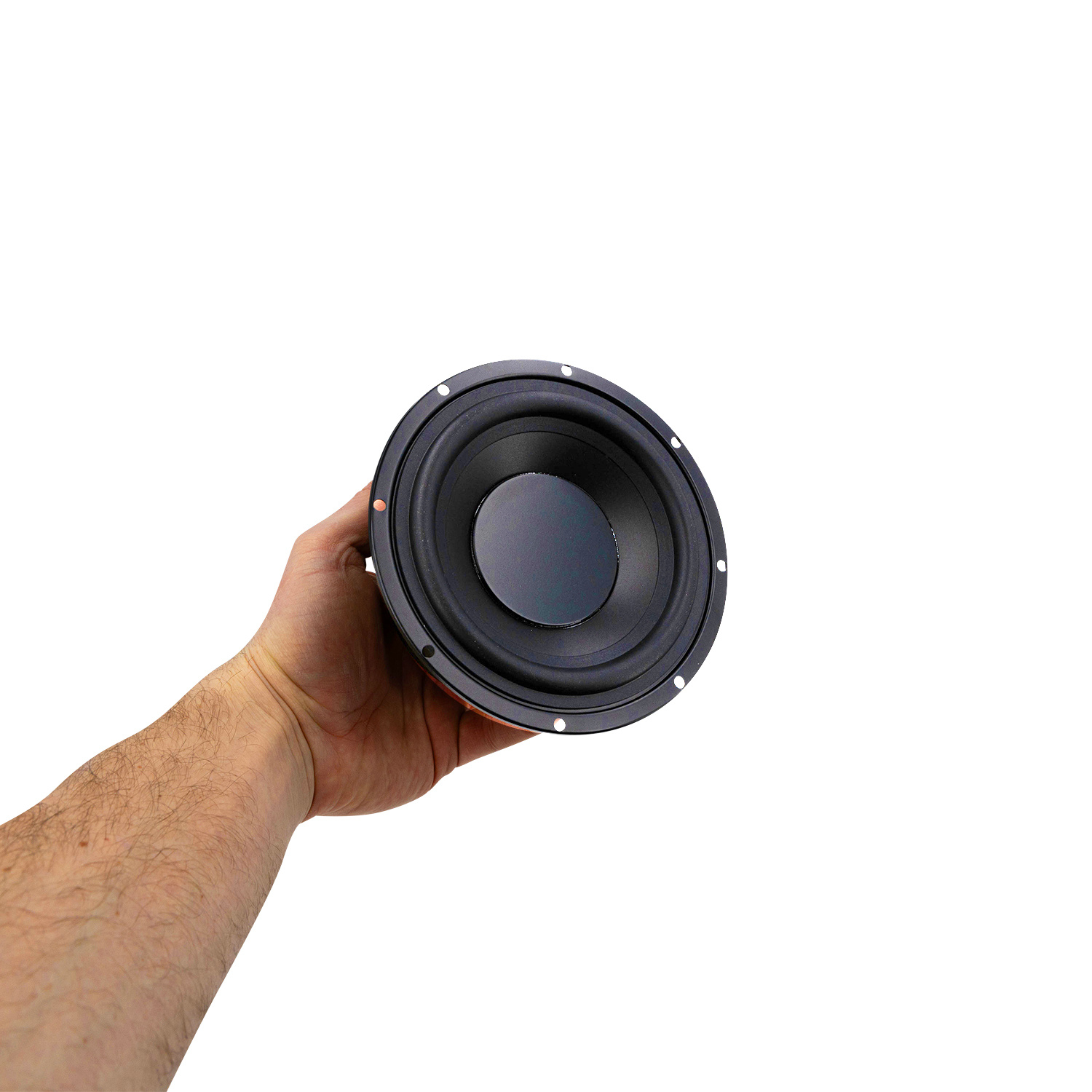

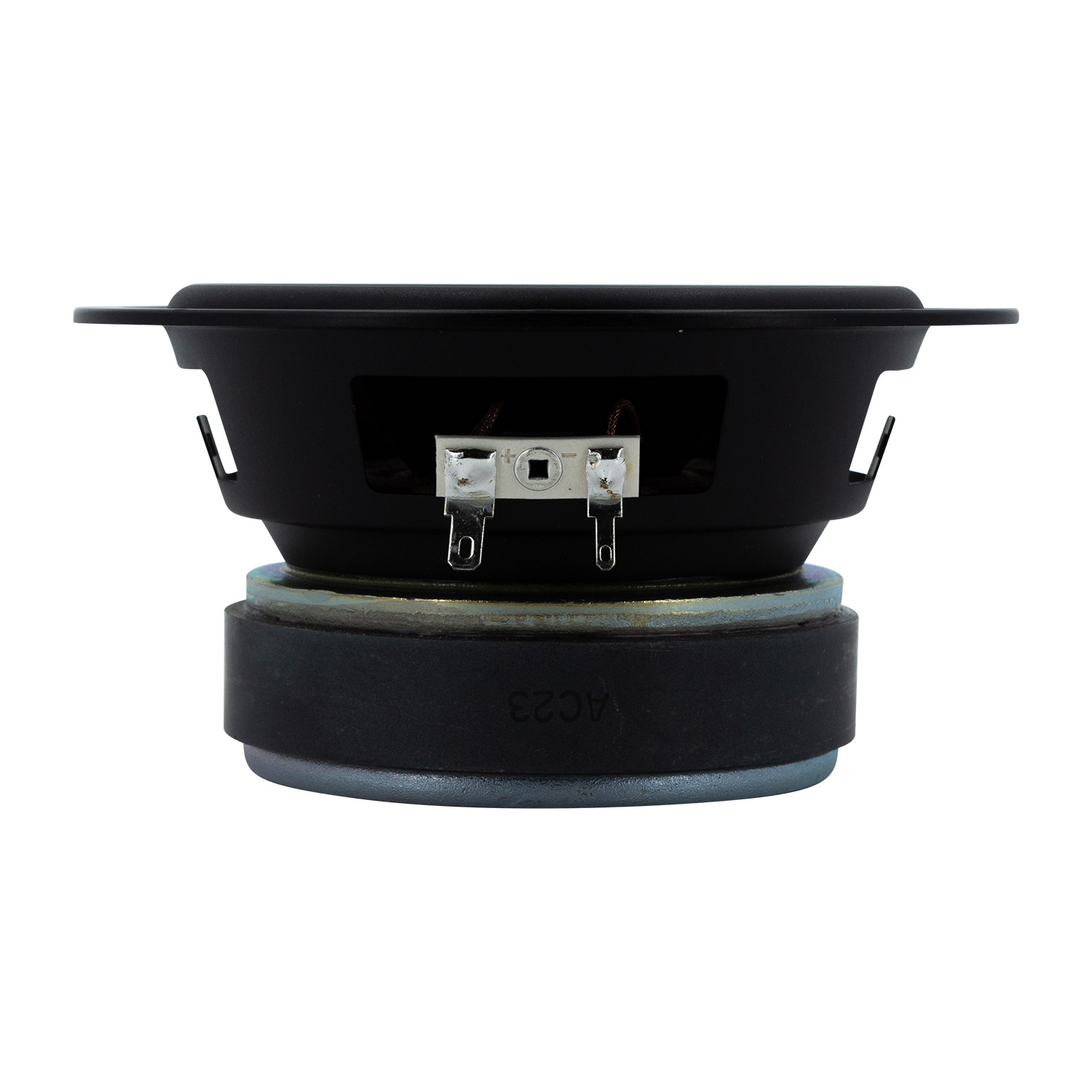

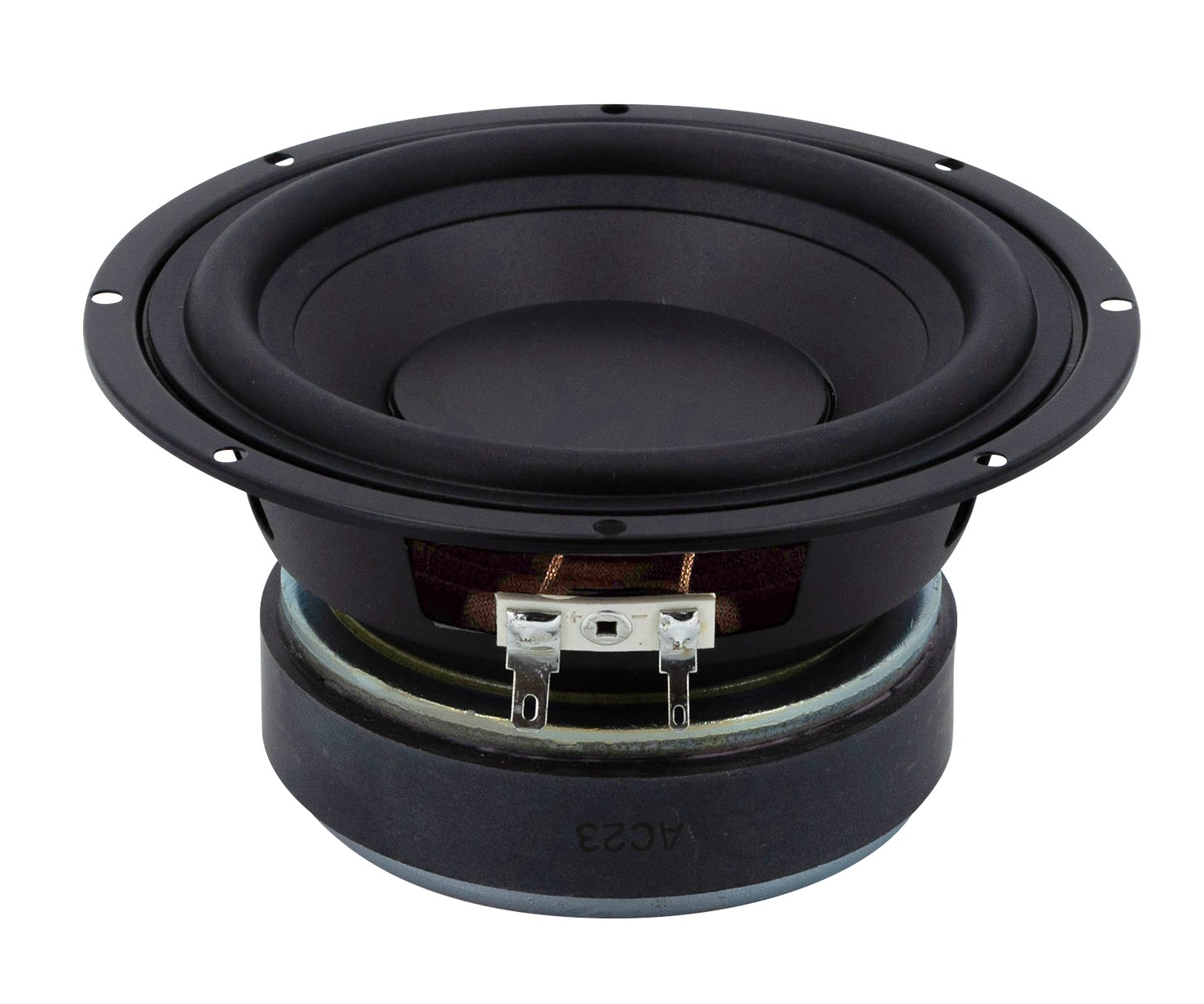

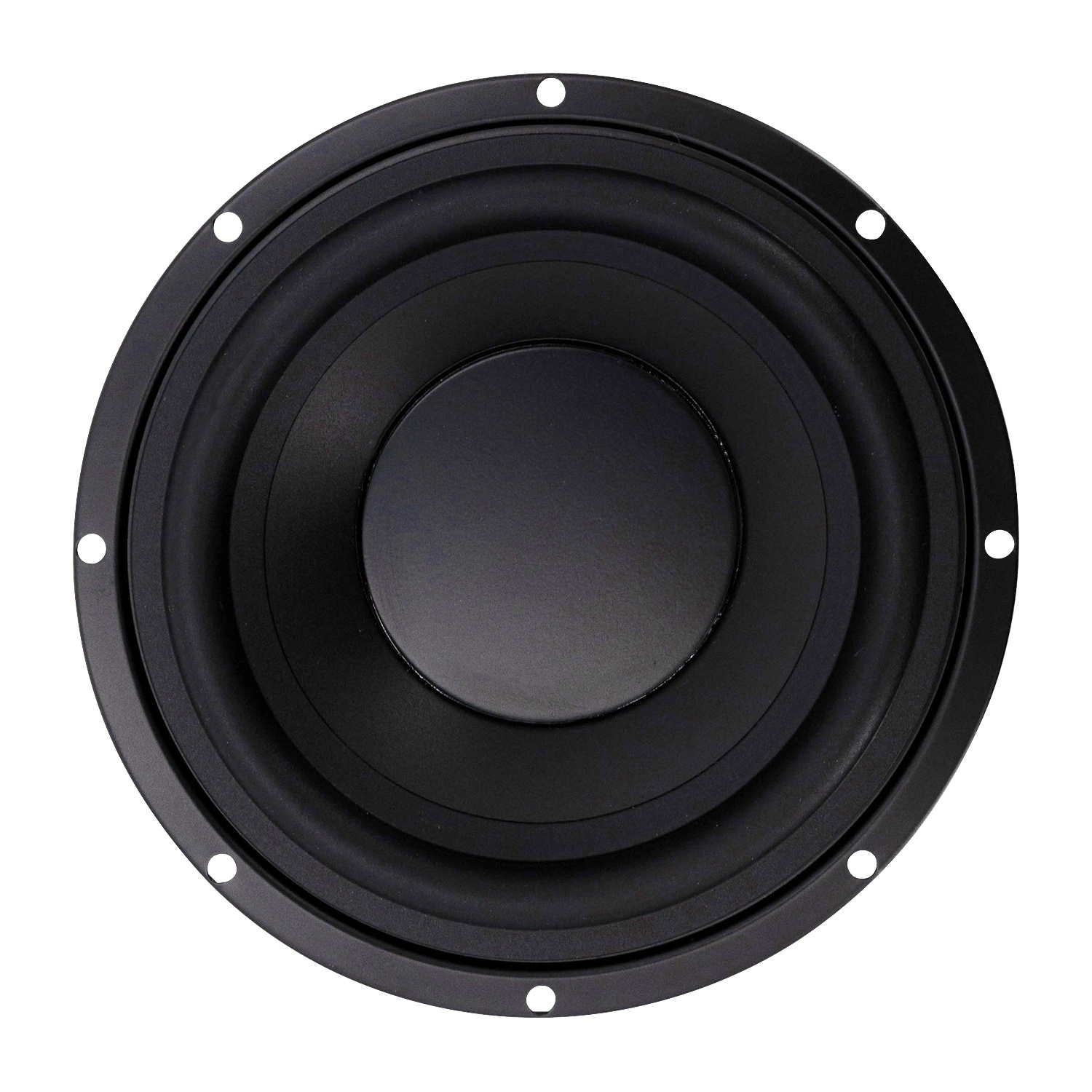

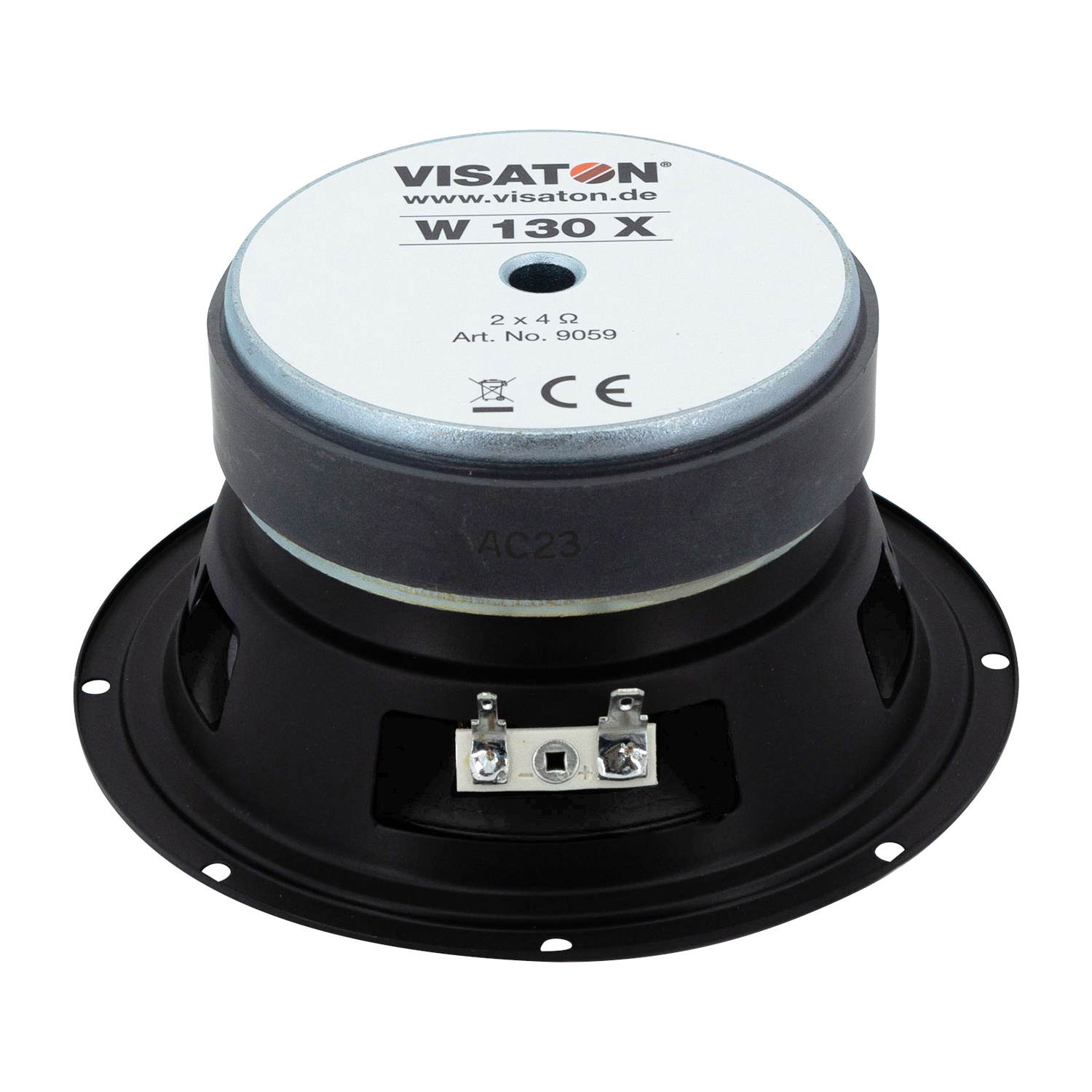

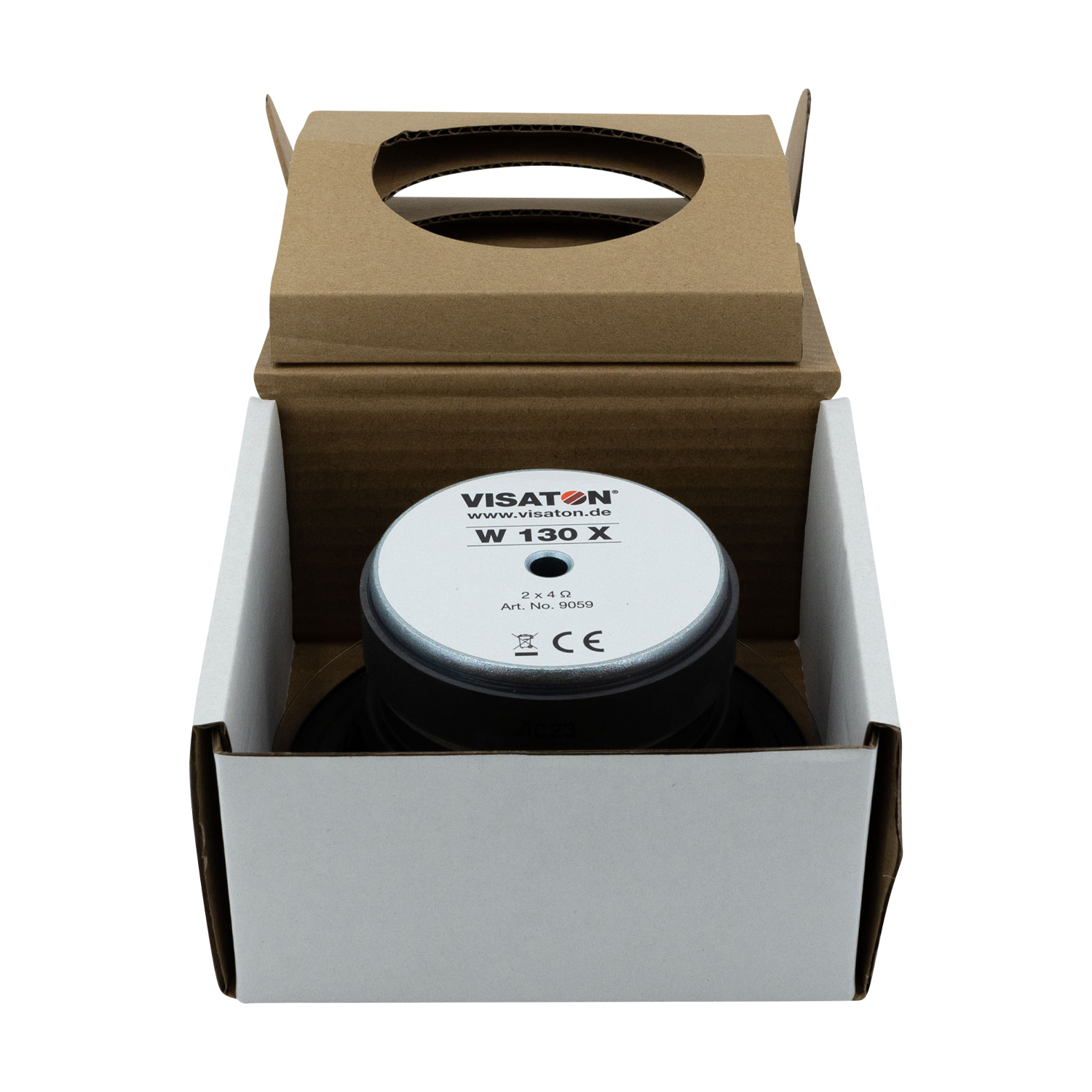

Visaton W 130 X 5" DVC Woofer 4 Ohm

Name: Visaton W 130 X 5" DVC Woofer 4 Ohm
Brand: Visaton
SKU: W 130 X
Price: 54.95 EUR
Availability: InStock
Rating: 5 (2 reviews)

2 reviews

Brand: Visaton

Show all Woofer

Compare

5" | 4+4 Ω

€ 45,41€ 54,95 8 In stock: delivery time 1-4 business days

24h express shipping available
Same day shipping
In-house techniscal support
45 days worry-free returns

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

13 cm (5") woofer with robust polypropylene membrane for very compact subwoofer.

Highlights

Large Volume Displacement
Low Resonance Frequency
Double Voice Coil

Product details

Visaton W 130 X 5" DVC Woofer 4 Ohm

Designed for multi-purpose applications due to 2 x 4 ohms double voice coil, with excellent properties as 8 ohms drivers in series configuration. The enormous membrane displacement for its size as well as the very low resonance frequency allows a considerable sound pressure level, this you would not expect from such a small speaker.

Specifications

Article number: W 130 X
Woofer Series: W Series
Woofer Type: Midwoofer
Nominal Diameter: 5"
Power Handling (RMS): 60 Watts
Power Handling (max): 90 Watts
Impedance (Z): 4+4 ohms
Sensitivity: 78 dB (1 W/1 m)
Frequency Response: 40 - 6,000 Hz
Voice Coil Diameter: 40 mm
DC Resistance (Re): 2.0 - 7.9 ohms
Voice Coil Inductance (Le): 0.69 - 2.75 mH
Resonant Frequency (Fs): 40 Hz
Mechanical Q (Qms): 4.27 - 4.59
Electromagnetic Q (Qes): 0.41 - 0.86
Total Q (Qts): 0.37 - 0.71
Diaphragm Mass Inc. Airload (Mms): 37g
Surface Area of Cone (Sd): 94.2 cm2
BL Product (BL): 6.5 - 13.2 Tm
Compliance Equivalent Volume (Vas): 5.1 - 5.64 Liters
Maximum Linear Excursion (Xmax): 3 mm
Cone / Diaphragm Material: Polypropylene
Dual Voice Coil
Overall Outside Diameter: 148.2 mm
Overall Depth: 72 mm
Baffle Cutout Diameter: 123 mm
Bolt Circle Diameter: 141 mm
# Mounting Holes: 4
Mounting Hole Diameter: 4.3 mm

Data sheet

Reviews

2 reviews

5 from 5Based on 2 reviews

Review this product

5 of 5

Es wurde keine Beschreibung gegeben.

By Ingo B. on 19 May 2021

5 of 5

Bought to replace and upgrade the driver in a small cheapish sub as part of a mini system I was puttingt ogether. Worked perfectly - have transformed the sub giving it more low end grunt. Its also more musical sound than the old unit which by comparison was dull and a bit boxy. Good value driver for the money.

By Barry H. on 26 April 2020
