      SoundImpress PU500-1CH-Kit DIY Mono amplifier Kit | 500WPC | Eigentakt | Powered by Purifi

      € 1.074,34€ 1.299,95 Out of stock

      Buy now, pay later

      • 24h express shipping available
      • Ordered now, shipped today
      • In-house technical support
      • 45 days worry-free returns
      Request quotation
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Build your own high-end class D monoblock amplifier based on the Eigentakt technology from Purifi Audio.



      Highlights

      • All-in-one monoblock kit
      • Easy assembly and no soldering required
      • Unprecedentedly low distortion over frequency and power range
      • Neutral and transparent reproduction
      • Plenty of power (500W @ 4 ohm and 950W @ 2 ohm)
      • Compact design



      Product details

      SoundImpress DIY PU500-1CH-Kit | 1x500W @ 4 ohm | Eigentakt | Powered by Purifi



      The Eigentaktimplementation from Purifi is one the best amplifier technologies available. This class D technology meets high standards and gives super performance an any playback level, regardless of load. The EVAL3 stands among the top of our amplifier module technology.

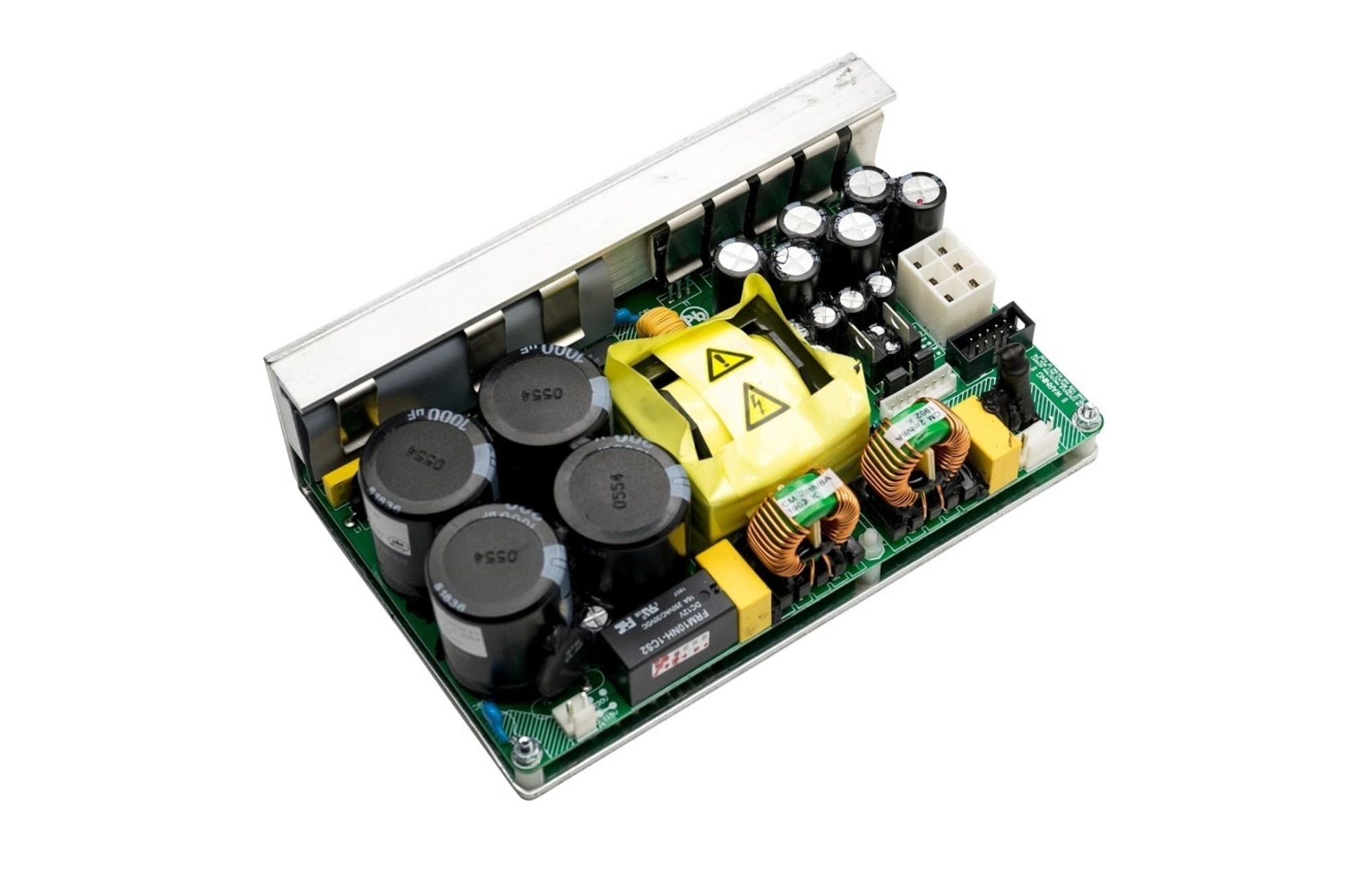

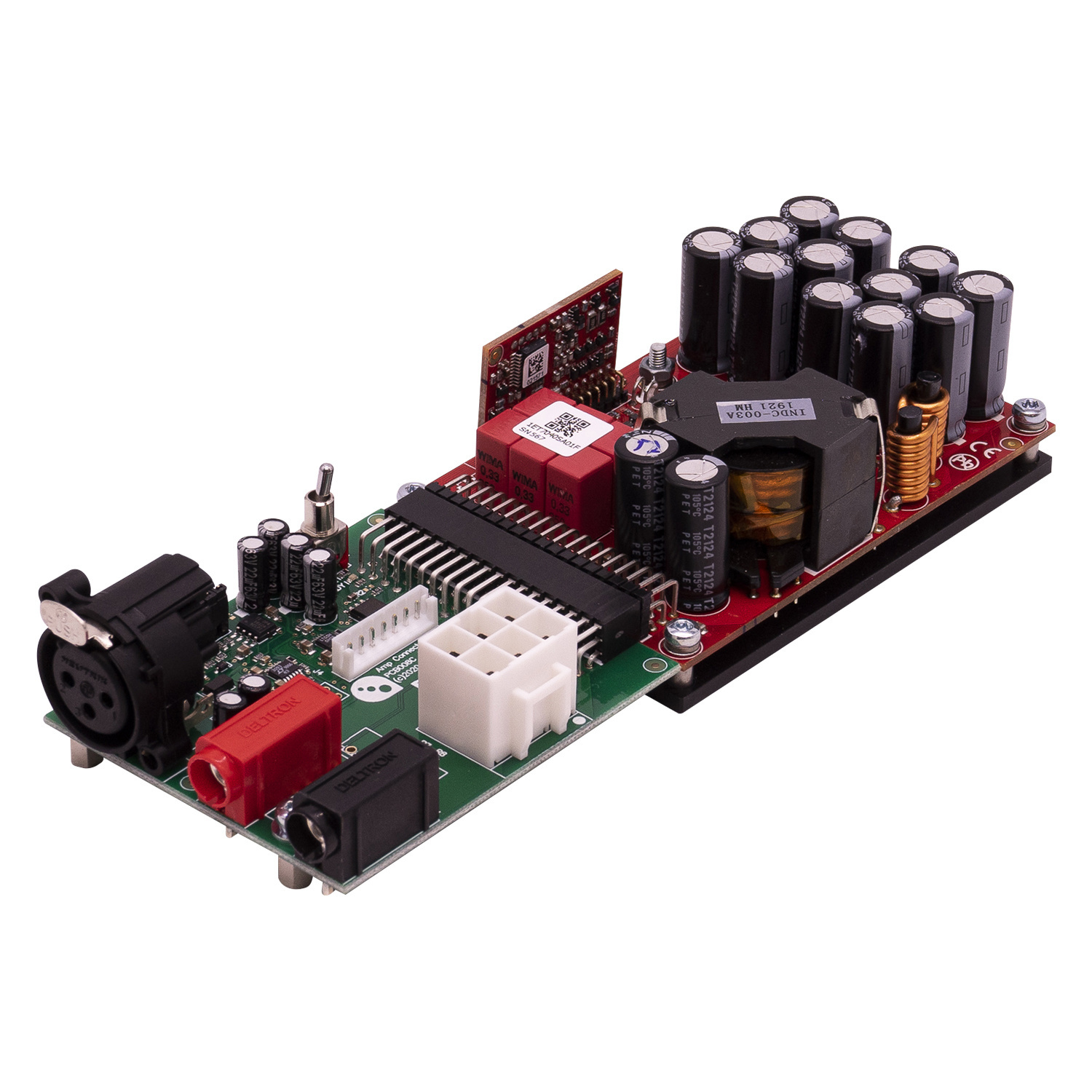

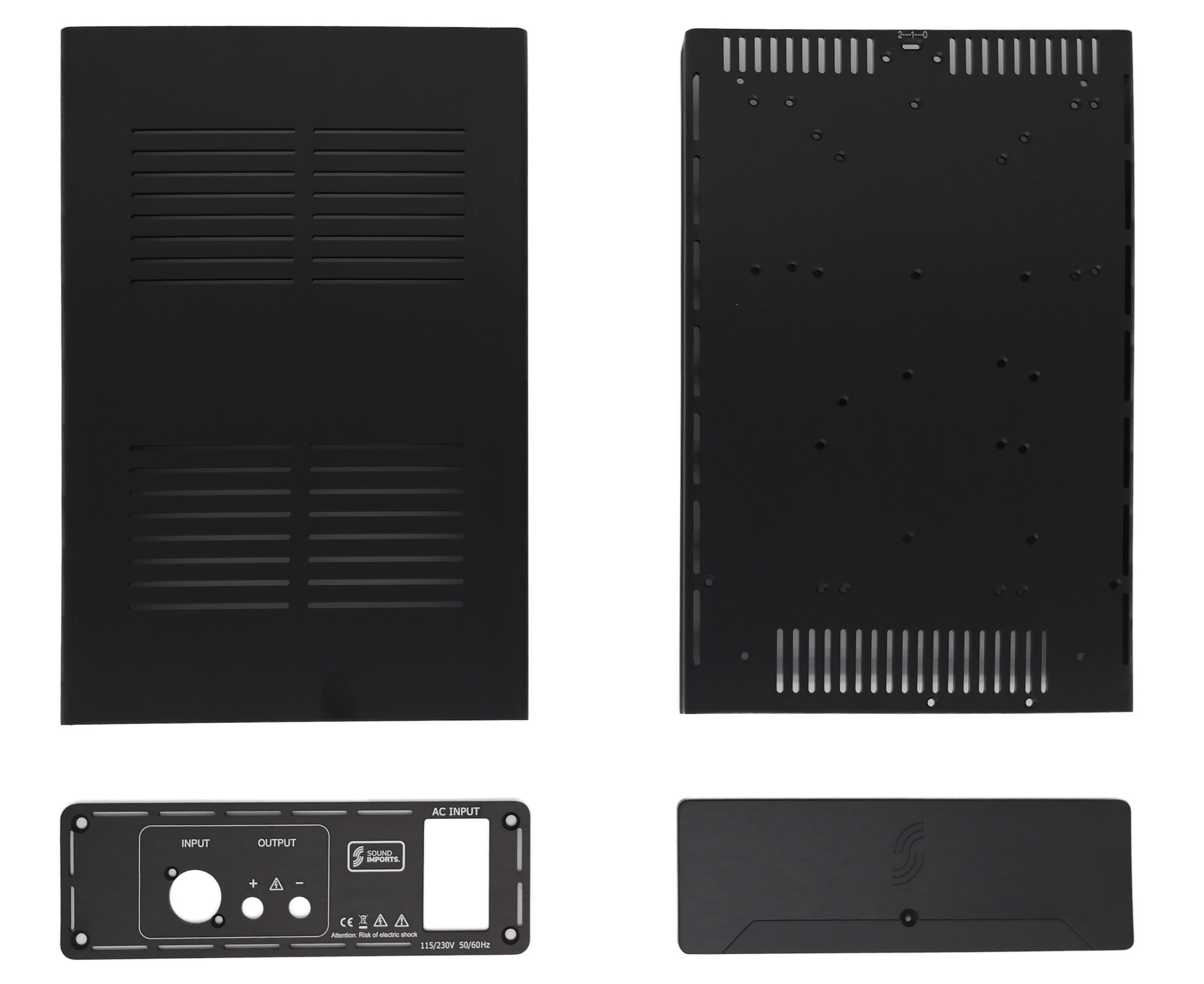

      Besides impeccable performance, this kit features everything you need to build your own Eigentakt monoblock amplifier. The main parts are the Purifi EVAL3 amplifer modules, SMPS1200A400 switch mode power supply and the SoundImpress DIY Monoblock Case. The amplifier module and power supply combination enable the best performance available from the Ncore technology. The black anodized case provides good heat dissipation and a compact design.



      Along with the main parts, everything else you need to build a powerful high-quality monoblock amplifier is included. Assembly only requires proper positioning, around 25 bolts to be tightened and some connectors to be clicked.  Anybody comfortable with a screwdriver can build one of the best amplifiers available.

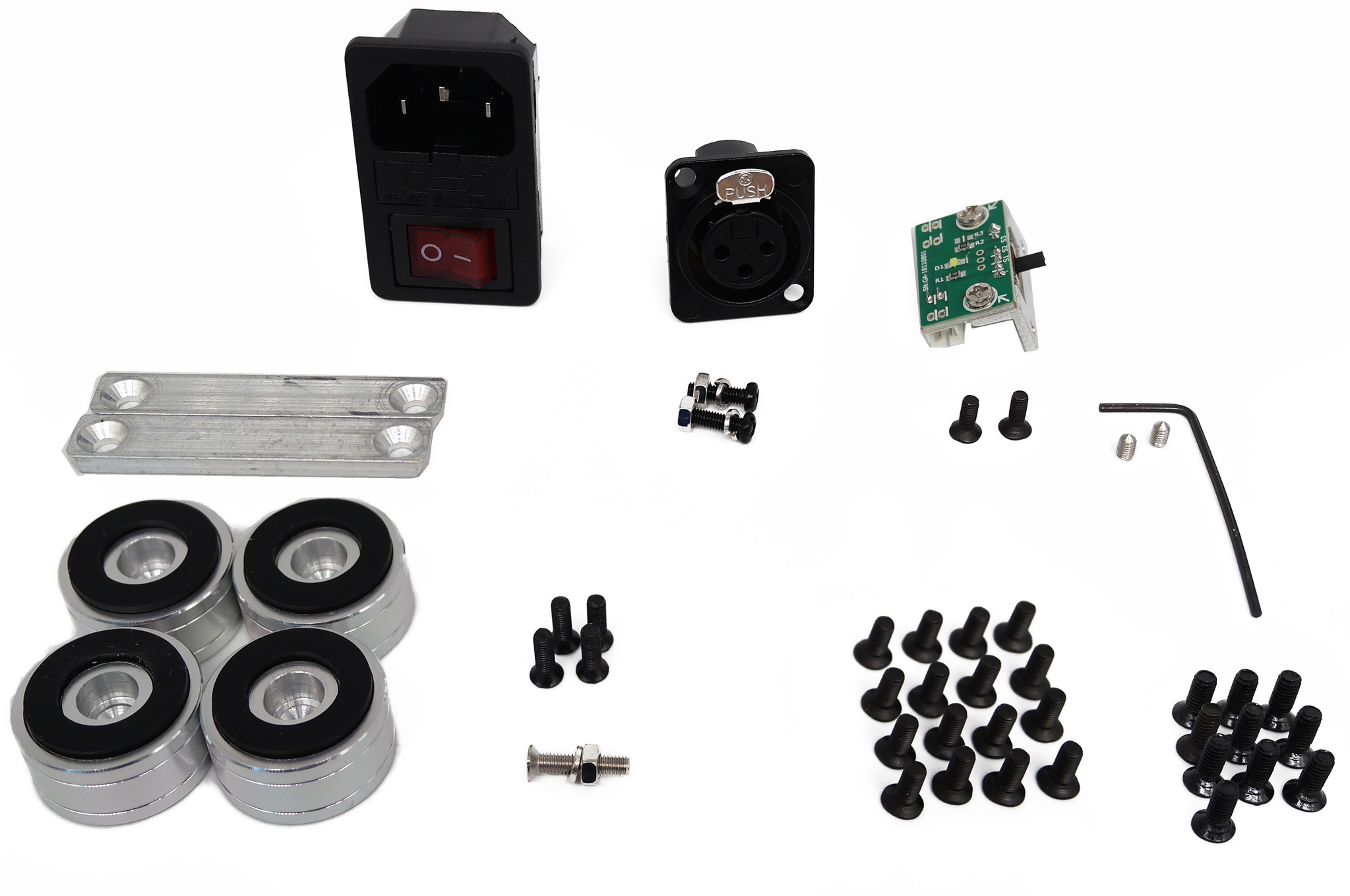

      Whats In The Box



      FAQ

      Q: I have a stereo system. Do I need two of these?

      A: A monoblock is an amplifier that only has one channel. A stereo setup requires two channels; you would need two monoblock amplifiers for a stereo setup. Compared to a stereo amplifier, this might seem cumbersome. However, a monoblock features a complete power supply for one channel. This allows for the best performance.

      Show more

      Specifications

      Article number
      PU500-1CH-Kit
      Rated power output

      1 x 950 watts at 2 ohms

      1 x 500 watts at 4 ohms

      1 x 250 watts at 8 ohms

      Minimum load
      2 ohms
      Efficiency
      > 94% @ 500W, 4Ω, 1kHz
      Signal-to-noise ratio (SNR)
      129 dB
      Frequency response
      0 - 20,000 Hz
      Gain
      13 dB
      Amplifier Classification
      Class D
      Circuit Topology
      Eigentakt™
      Speaker output channels
      1
      Input connection type
      XLR
      Speaker output connection type
      Banana-plug
      Power Requirements
      110/220 VAC, 50Hz/60Hz
      Power inlet connector
      IEC C14
      Current limit
      40A

      Show more
