Build your own high-performance mono amplifier based on the 500ASP module from ICEpower. This SoundImpress DIY mono amplifier kit all-in-on amplifier, designed for a wide range of audio applications, ranging from public address systems to ultra high-fidelity replay systems for studio and home use. The SoundImpress brand stands for outstanding quality, timeless designs, and Dutch craftsmanship. This amplifier kit gives you the opportunity to make an amplifier, when properly assembled, built to last as its modules are extensively tested.
- All-in-one mono amplifier kit
- Amplifier and Power Supply integrated solution
- Easy to assemble
- Switchable input RCA - XLR
- Detailed step-by-step instructions
- Very low distortion over whole frequency range
- Neutral and transparent reproduction
- Thermal and over-current protection
- Sound optimized soft clipping
SoundImpress ICE500-1CH-Kit DIY Mono Amplifier Kit | 500WPC | Powered by ICEpower
As sound sources have evolved from LP’s to CD’s to streaming audio, a high quality power amplifier remains a key ingredient to any good Hi-Fi stereo or mono setup. No matter whether you need a mono amplifier for your small bookshelf speakers, subwoofer or tower speakers, this amplifier kit with ICEpower technology inside creates a fantastic high quality result.
The 500ASP amplifier module is an audiophile, high performance class-D power amplifier. The performance stands out with high dynamics and crystal clear mid- and high-frequencies. The low noise level generates a completely black background to reveal the tiniest of details in every recording. Designed to withstand the demands of professional (live concert) applications, not only in terms of sound quality, but also on ruggedness and reliability.

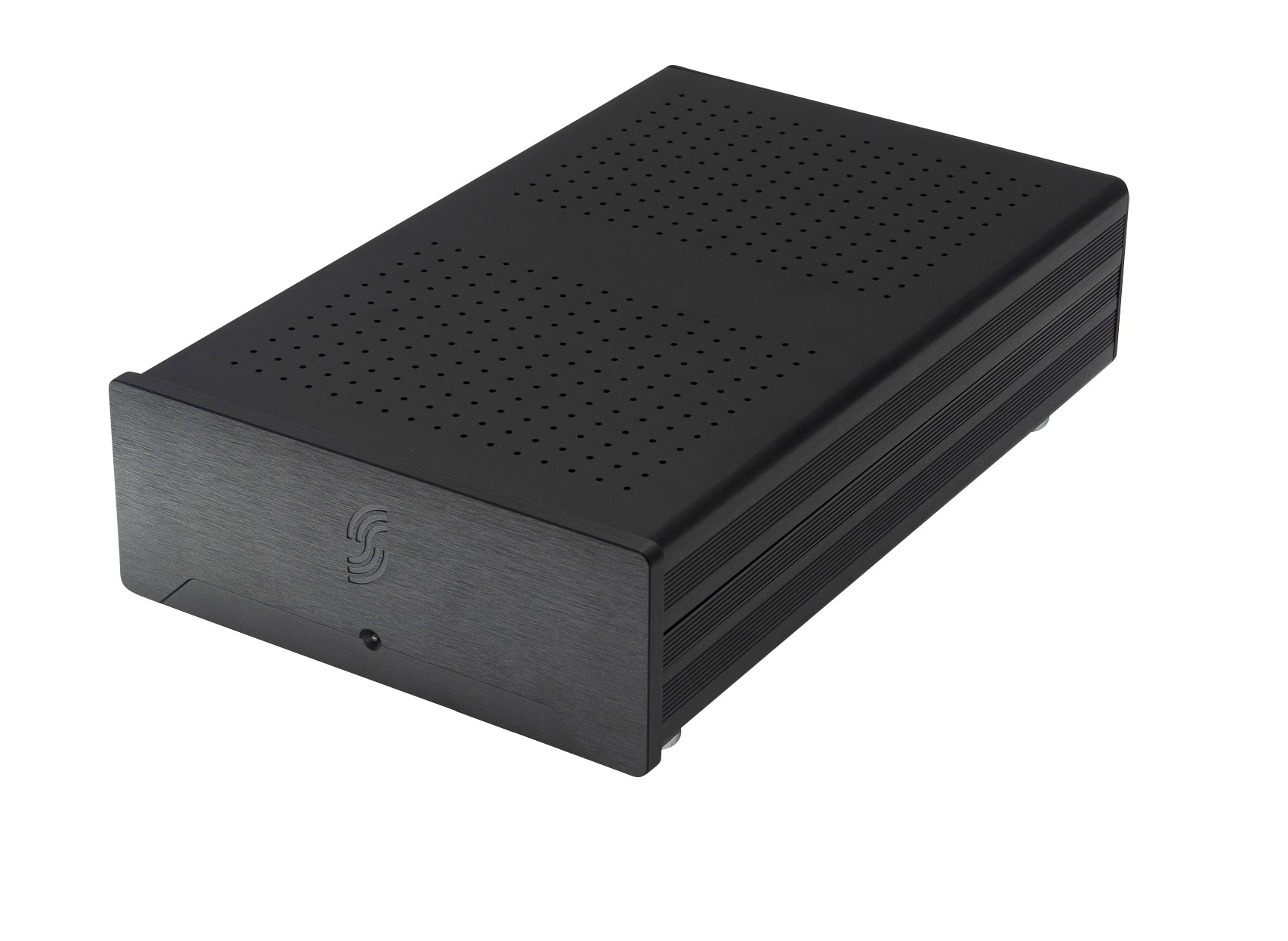

This kit contains everything you need to build your own SoundImpress mono amplifier. The main parts for this are the ICEpower 500ASP amplifier module and a black anodized aluminum case. The amplifier module with integrated high efficient resonant power supply offers audiophile quality, is extreme powerful but also compact. The custom milled aluminum enclosure, which houses the ICEpower 500ASP amplifier module, is the best thermal material for audio devices.
Along the main parts, this kit includes everything else you need to build a powerful, high-quality mono amplifier at a reasonable price. Assembly is easy and only requires proper positioning of the modules, some minor soldering, bolts to be tightened and connectors to be clicked. Anybody, who is comfortable with a screwdriver and can handle a soldering iron, can build this amazing mono amplifier.

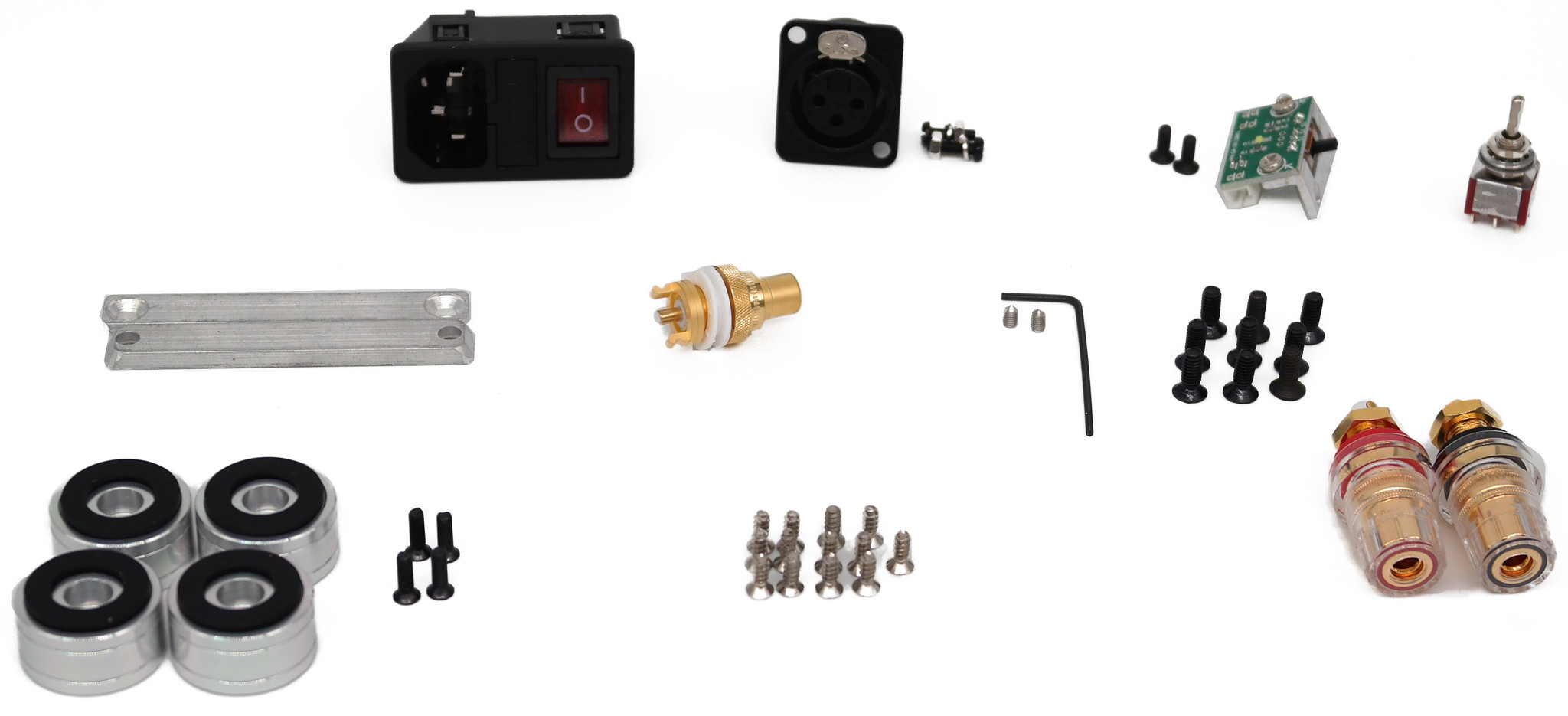

What’s In The Box
- 1x ICEpower 500ASP amplifier module with integrated power supply
- Aluminum enclosure
- All internal cables
- All needed mounting materials
- 2x binding posts (pair)
- 1x input RCA connector
- 1x input XLR connector
- 1x switch input selector
- On/Off Switch
- IEC C14 power connector (including fuse)
- IEC C13 power cable (UK/EU/US)
