        DIY 4CH amplifier kit | 700WPC | Powered by ICEpower

        DIY 4CH amplifier kit | 700WPC | Powered by ICEpower

        €1.399,95

        SoundImpress DIY 4CH amplifier kit | 700WPC | Powered by ICEpower

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        € 1.156,98€ 1.399,95 5 In stock

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • Five-year warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        Build your own high-performance quad amplifier based on the 1200AS2 module from ICEpower. This SoundImpress DIY quad amplifier kit all-in-on amplifier, designed for a wide range of audio applications, ranging from public address systems to ultra high-fidelity replay systems for studio and home use. The SoundImpress brand stands for outstanding quality, timeless designs, and Dutch craftsmanship. This amplifier kit gives you the opportunity to make an amplifier, when properly assembled, built to last as its modules are extensively tested.



        Highlights

        • All-in-one quad amplifier kit
        • Amplifier and Power Supply integrated solution
        • Easy to assemble
        • Universal mains with active Power Factor Correction
        • Detailed step-by-step instructions
        • Very low distortion over whole frequency range
        • Minimum load impedance at 2.7 Ohm
        • Thermal and over-current protection
        • Sound optimized soft clipping



        Product details

        SoundImpress ICE1200-4CH-Kit 4x700W DIY Amplifier Kit Powered by ICEpower



        As sound sources have evolved from LP’s to CD’s to streaming audio, a high quality power amplifier remains a key ingredient to any good Hi-Fi stereo setup. No matter whether you need an mono amplifier for your small bookshelf speakers, subwoofer or tower speakers, this amplifier kit with ICEpower technology inside creates a fantastic high quality result.

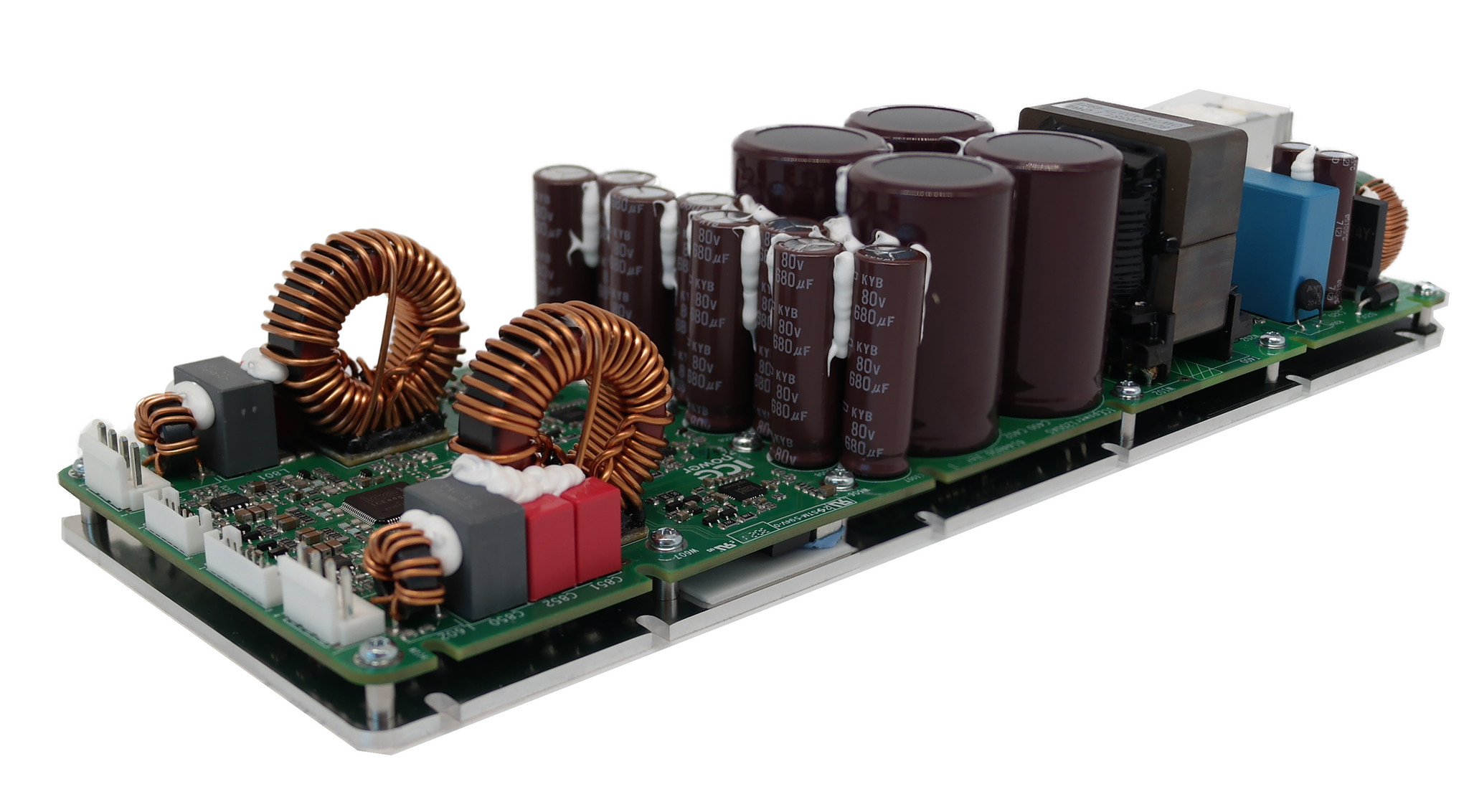

        The 1200AS2 amplifier module is an audiophile, high performance class-D power amplifier. The performance stands out with high dynamics and crystal clear mid- and high-frequencies. The low noise level generates a completely black background to reveal the tiniest of details in every recording. Designed to withstand the demands of professional (live concert) applications, not only in terms of sound quality, but also on ruggedness and reliability.

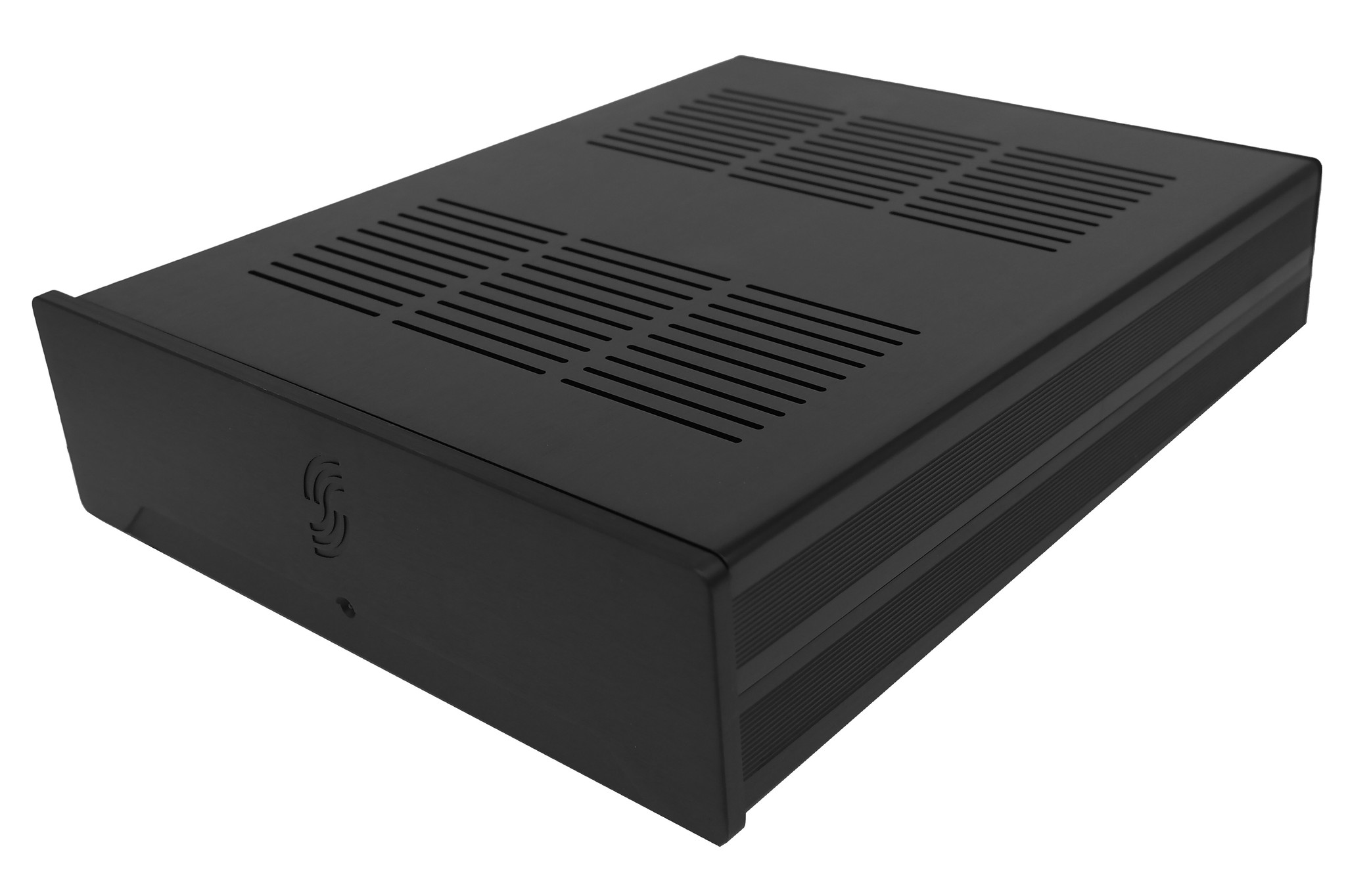

        This kit contains everything you need to build your own SoundImpress quad amplifier. The main part for this are the ICEpower 1200AS2 amplifier modules and a black anodized aluminum case. The amplifier modules with integrated high efficient resonant power supplies offers audiophile quality, are extreme powerful but also compact. The custom milled aluminum enclosure, which houses the ICEpower 1200AS2 amplifier modules, is the best thermal material for audio devices.



        Along the main parts, this kit includes everything else you need to build a powerful, high-quality quad amplifier at a reasonable price. Assembly is easy and only requires proper positioning of the modules, some minor soldering, bolts to be tightened and connectors to be clicked. Anybody, who is comfortable with a screwdriver and can handle a soldering iron, can build this amazing quad amplifier.

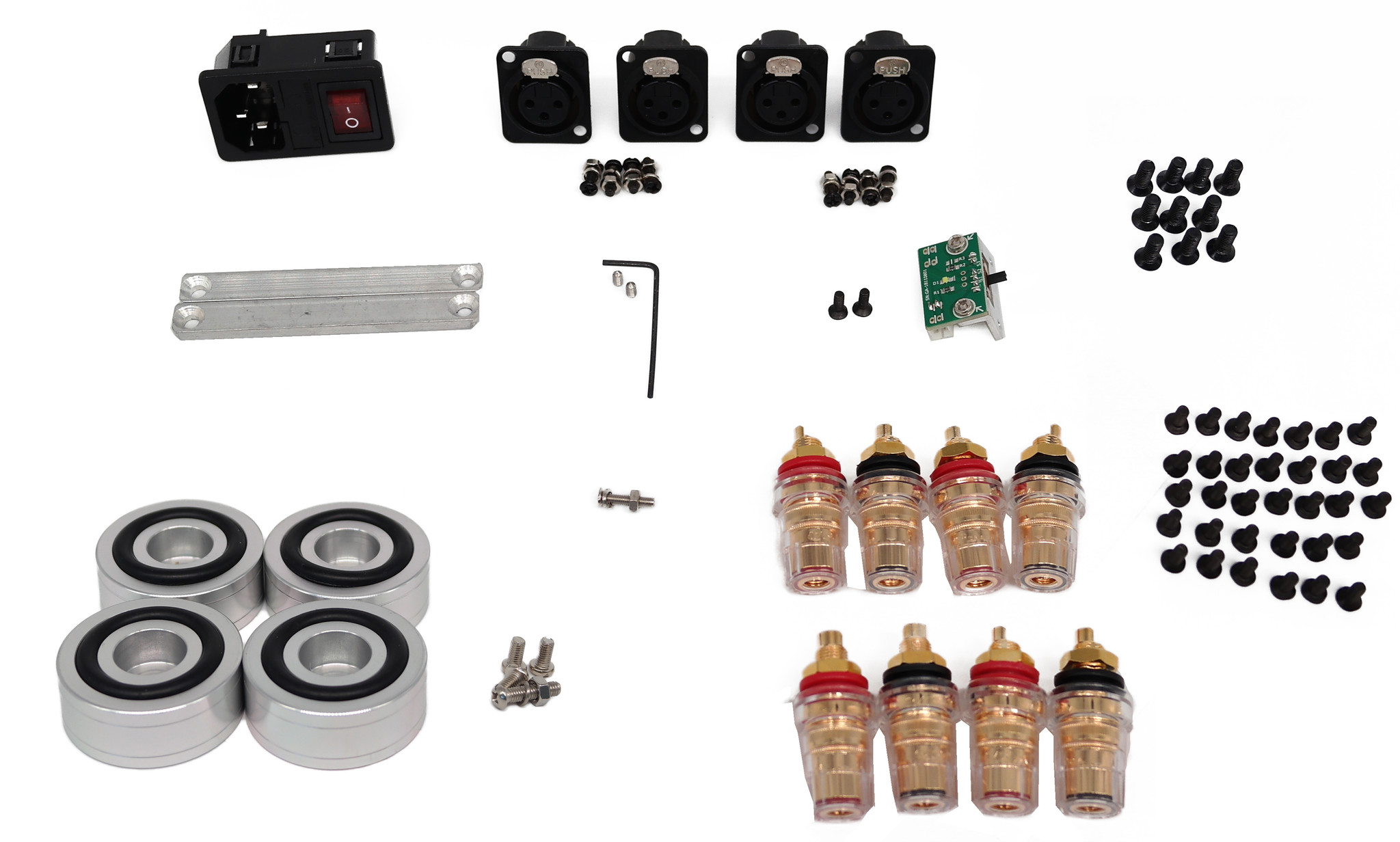

        Whats In The Box

        • 2x ICEpower 1200AS2 amplifier module with integrated power supply

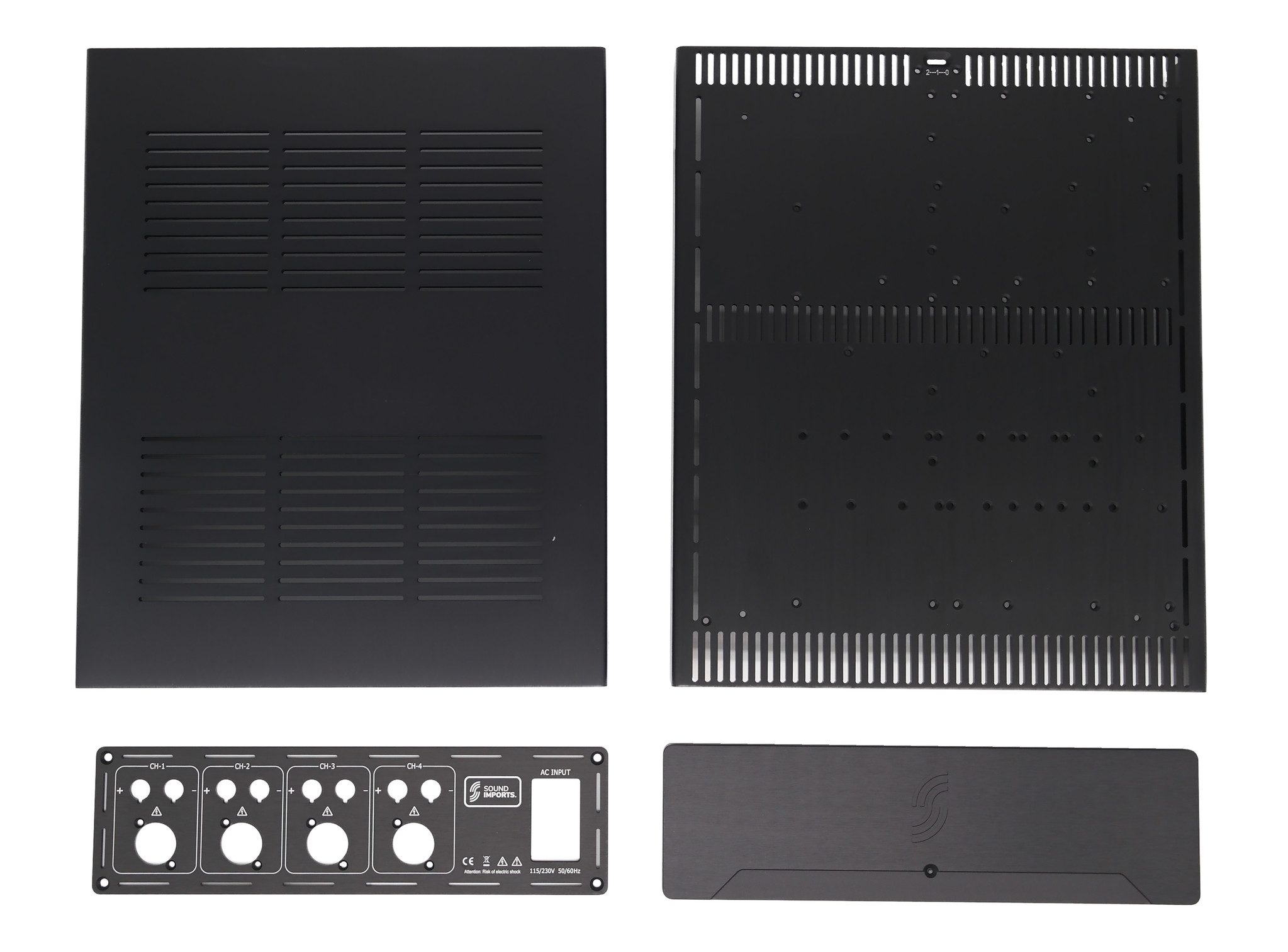

        • Aluminum enclosure

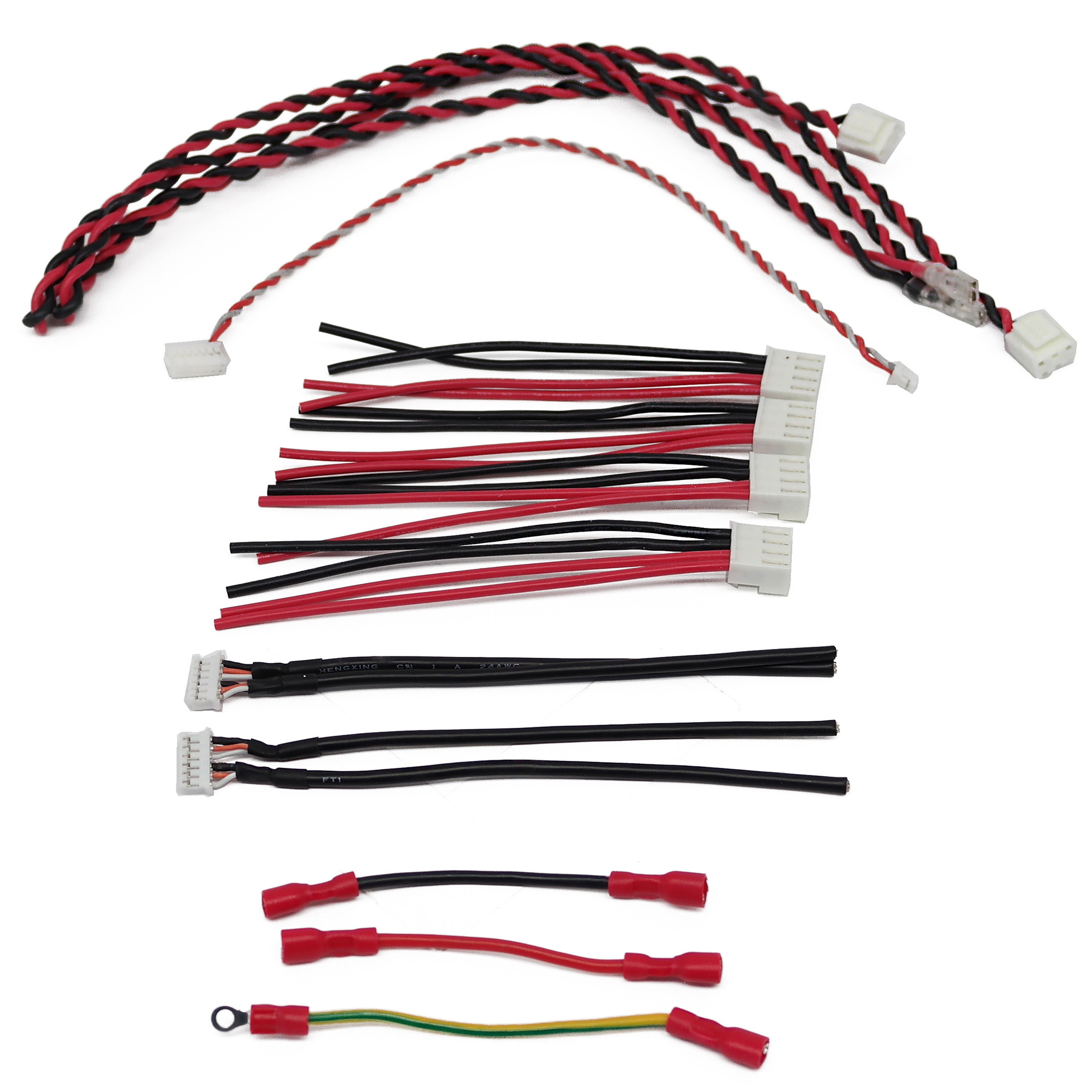

        • All internal cables
        • All needed mounting materials
        • 8x binding posts (4 pair)
        • 4x input XLR connector
        • On/Off Switch
        • IEC C14 power connector (including fuse)
        • IEC C13 power cable (UK/EU/US)

        Show more

        Specifications

        Article number
        ICE1200-4CH-Kit
        Rated power output
        4 x 700 watts at 4 ohms
        4 x 620 watts at 8 ohms
        Minimum load
        2.7 Ohm
        Efficiency
        80%
        Distortion
        0.005 % THD+N
        Gain
        25.8 dB
        Input impedance
        38 kOhm
        Amplifier Classification
        Class D
        Speaker output channels
        4
        Input connection type
        XLR
        Speaker output connection type
        Gold plated binding posts
        Power Requirements
        110/220 VAC, 50Hz/60Hz
        Power inlet connector
        IEC C14

        Show more
