        Product description

        This SoundImpress amplifier is a self-contained high-end class-D stereo amplifier intended for a wide range of audio applications, ranging from public address systems to ultra high-fidelity replay systems for studio and home use. The SoundImpress brand stands for outstanding quality, timeless designs, and Dutch craftsmanship. This amplifier is built to last as it is extensively tested and manually assembled to ensure every last detail is checked.



        Highlights

        • Ncore® technology inside
        • Impressive performance despite load
        • Neutral and transparent reproduction
        • Flat, fully load-independent frequency response
        • Plenty of power combined with high efficiency
        • Compact design
        • XLR input, binding posts output
        • Assembled by hand in the Netherlands
        • 5 year Warranty



        Product details

        SoundImpress HY502-2CH 2x500W Ncore Stereo Amplifier



        The HY502-2CH is a compact, high performance, two channel and no-nonsense class-D power amplifier. It incorporates the proven and renown Hypex Ncore® technology for nothing less than impressive performance!



        The performance stands out with authoritative and tightly controlled low registers, high dynamics and crystal clear mid- and high-frequencies. The super-low noise level generates a completely black background to reveal the tiniest of details in every recording.

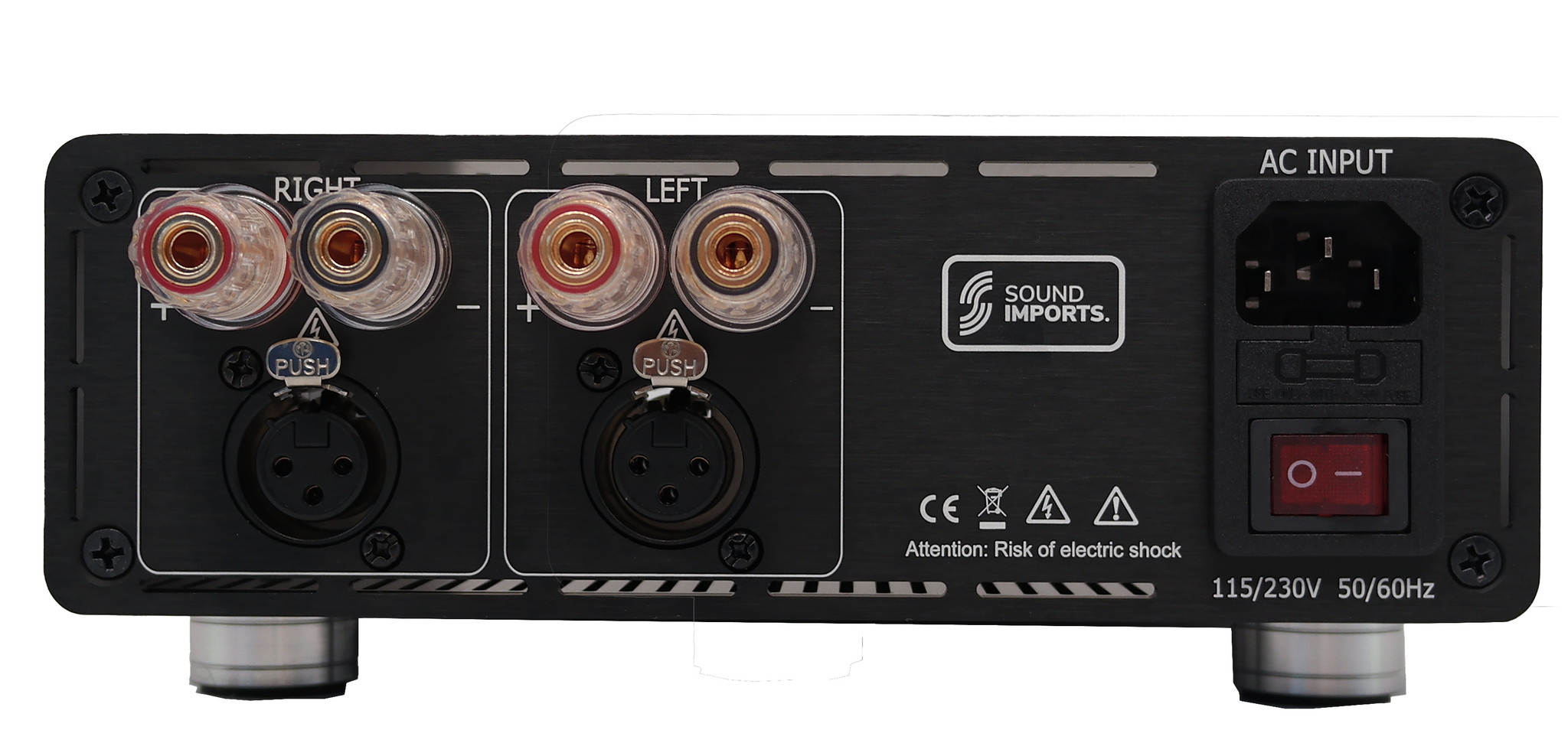

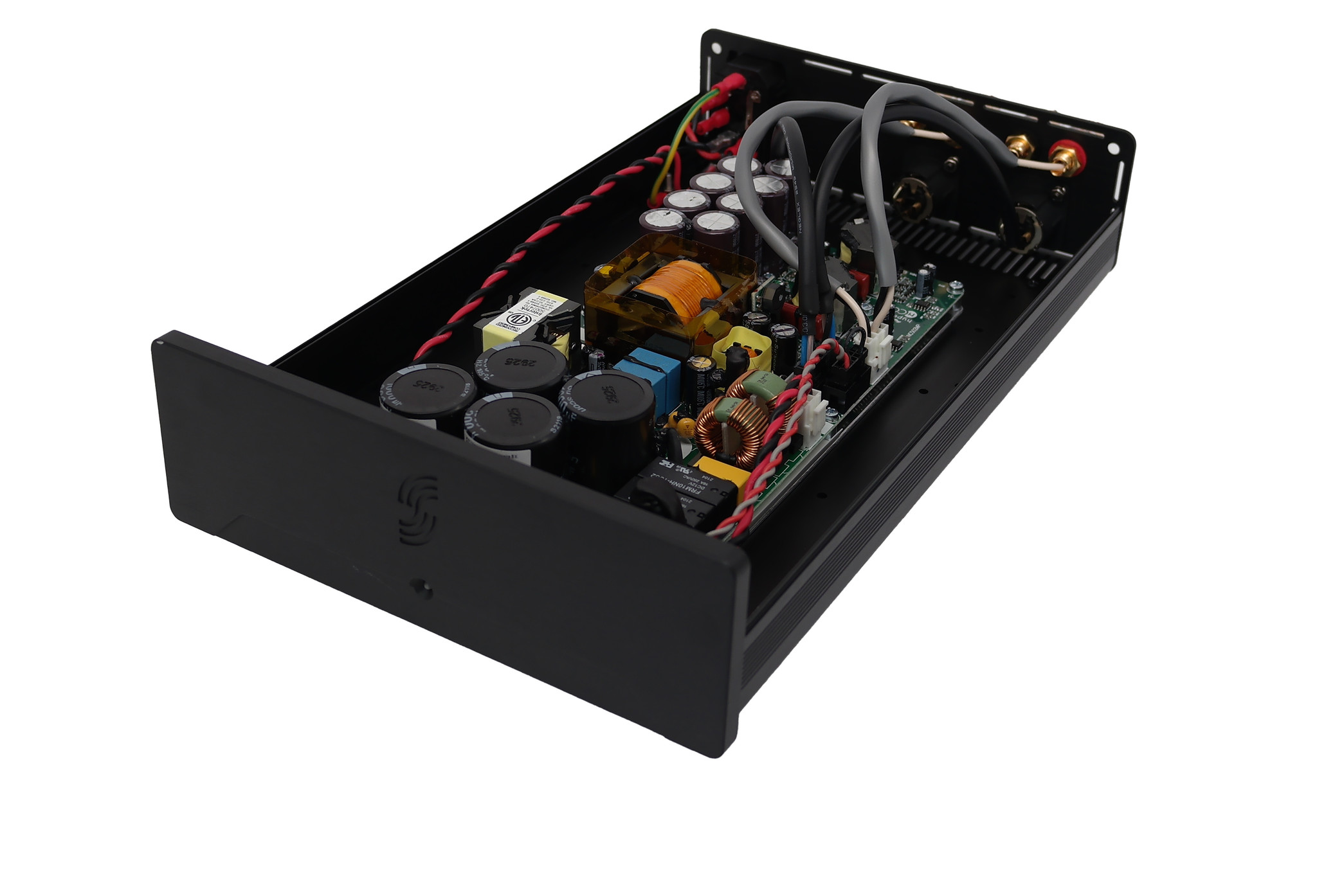

        All SoundImpress amplifiers are hand assembled in the Netherlands. The custom milled aluminum enclosure houses the Hypex NC502MP amplifier module, the best thermal material for audio devices. The in- and output connections are provided through high-quality binding posts from CMC and XLR-chassis from Neutrik and wiring from Mogami and Belden. It can operate from both 110 and 230 VAC mains voltage due to its universal mains input compatibility featuring an automatic input voltage doubler.



        Small and powerfull

        This amplifier can deliver all its power from as low as 2 ohm impedance combined with low idle loss, very low distortion and noise levels. Chief distinguishing features are flat frequency response irrespective of load impedance, nearly frequency independent distortion behaviour and very low radiated and conducted EMI. This results in performances such as the max output power of 500 Wrms at 4 ohm per channel, a Signal-to-Noise Ratio (SNR) of 124 dB and astonishing distorting level of 0.0018%.

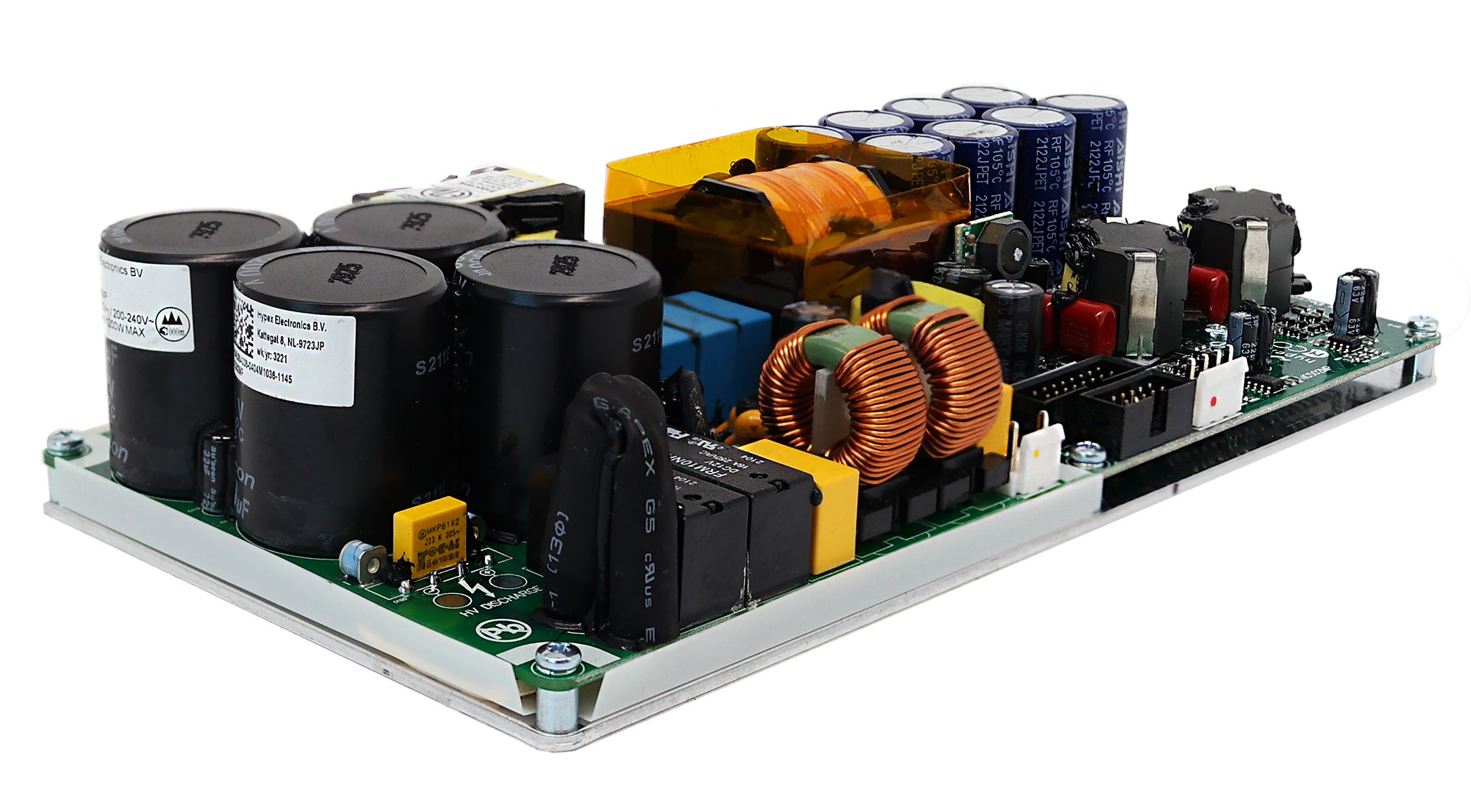

        An amplifier is only as good as the power supply it contains. In this SoundImpress amplifier, the power supply and amplifier are located on one board. The switched-mode power supply (SMPS) providing the power for the amplifier is a compact, high power, highly efficient, regulated half bridge converter with synchronous rectification on the main output rails. These properties make this technology ideal for powering Class D audio amplifiers.



        Whats In The Box

        • SoundImpress HY502-2CH Stereo Amplifier
        • IEC C13 power cable (UK/EU/US)
        • SoundImpress manual

        Show more

        Specifications

        Article number
        HY502-2CH
        Rated power output (RMS)

        2 x 500 watts at 4 ohms

        2 x 350 watts at 8 ohms

        Minimum load
        2 ohm
        Signal-to-noise ratio (SNR)
        124 dB
        Distortion
        0.0018% (20-20,000 Hz at 0.5 x rated power output)
        Efficiency
        92%
        Frequency response
        10 - 48,000 Hz
        Circuit Topology
        Ncore®
        Amplifier classification
        Class D
        Speaker output channels
        2
        XLR in/out
        2/0
        Banana plug compatible
        Check
        Power requirements
        110 / 230 VAC
        Power inlet connector
        IEC C14
        Dimensions (D x W x H)
        326mm x 200mm x 78mm (size incl feet, excl connectors)
        Case material
        Aluminum

        Show more

        5 of 5
        Fast delivery by SoundImports and very nicely packaged, I was impressed though! The Nc502 is a fine digital amplifier. Did hesitate for a long time but am very happy with it. The sound is very good, super tight bass and very detailed reproduction in mid and highs. All in all, a little powerhouse!
        By Frank B on 13 December 2023
