        HY500-1CH Mono Amplifier | 500WPC | Ncore® | Powered by Hypex

        HY500-1CH Mono Amplifier | 500WPC | Ncore® | Powered by Hypex

        €599,95

        SoundImpress HY500-1CH Mono Amplifier | 500WPC | Ncore® | Powered by Hypex

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        € 495,83€ 599,95 4 In stock: .

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • Five-year warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        This SoundImpress amplifier is a self-contained high-end class-D mono amplifier intended for a wide range of audio applications, ranging from public address systems to ultra high-fidelity replay systems for studio and home use. The SoundImpress brand stands for outstanding quality, timeless designs, and Dutch craftsmanship. This amplifier is built to last as it is extensively tested and manually assembled to ensure every last detail is checked.



        Highlights

        • Ncore® technology inside
        • Impressive performance despite load
        • Neutral and transparent reproduction
        • Flat, fully load-independent frequency response
        • Plenty of power combined with high efficiency
        • Compact design
        • XLR input, binding posts output
        • Assembled by hand in the Netherlands
        • 5 year Warranty



        Product details

        SoundImpress HY500-1CH 1x500W Ncore Mono Amplifier



        The HY500-1CH is a compact, high performance, one channel and no-nonsense class-D power amplifier. It incorporates the proven and renown Hypex Ncore® technology, which settles for nothing less than an impressive performance!



        The performance stands out with authoritative and tightly controlled low registers, high dynamics and crystal clear mid- and high-frequencies. The super-low noise level generates a completely black background to reveal the tiniest of details in every recording.

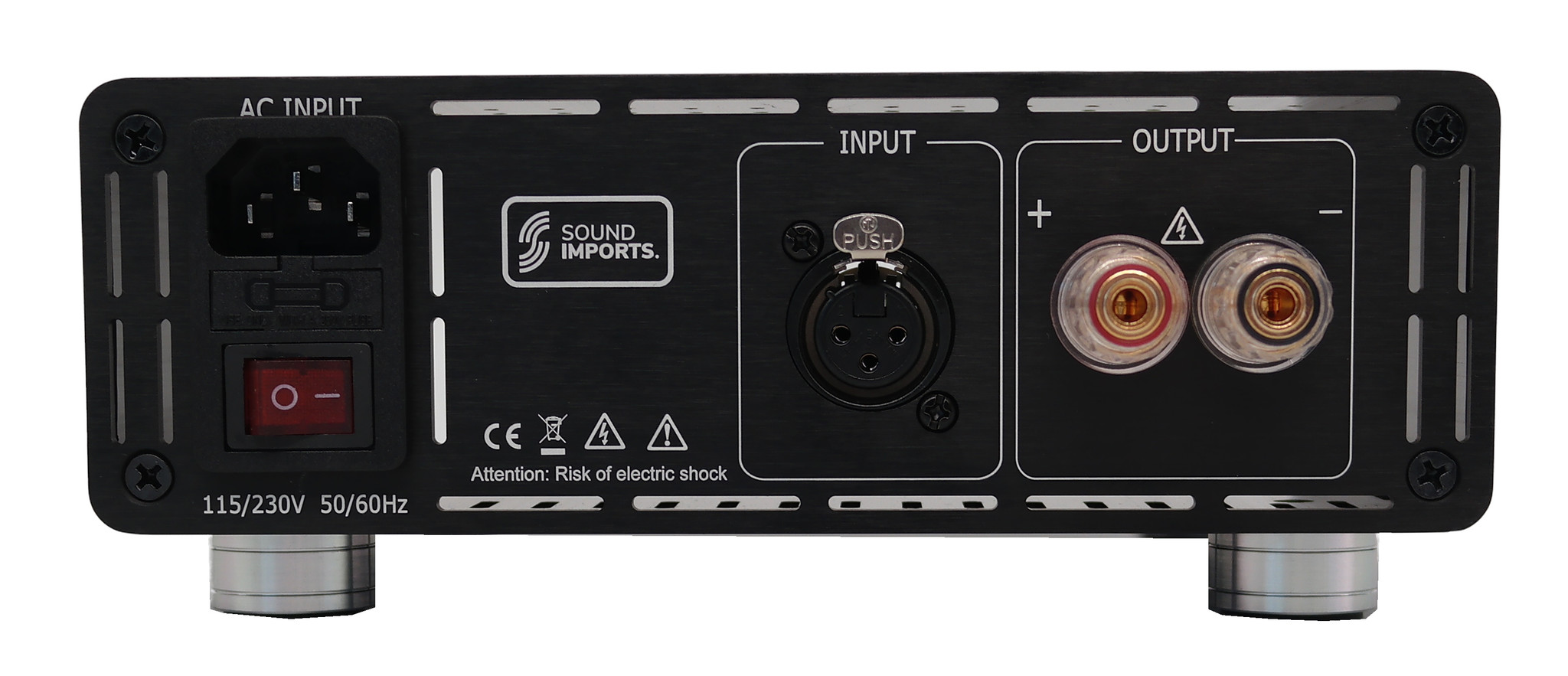

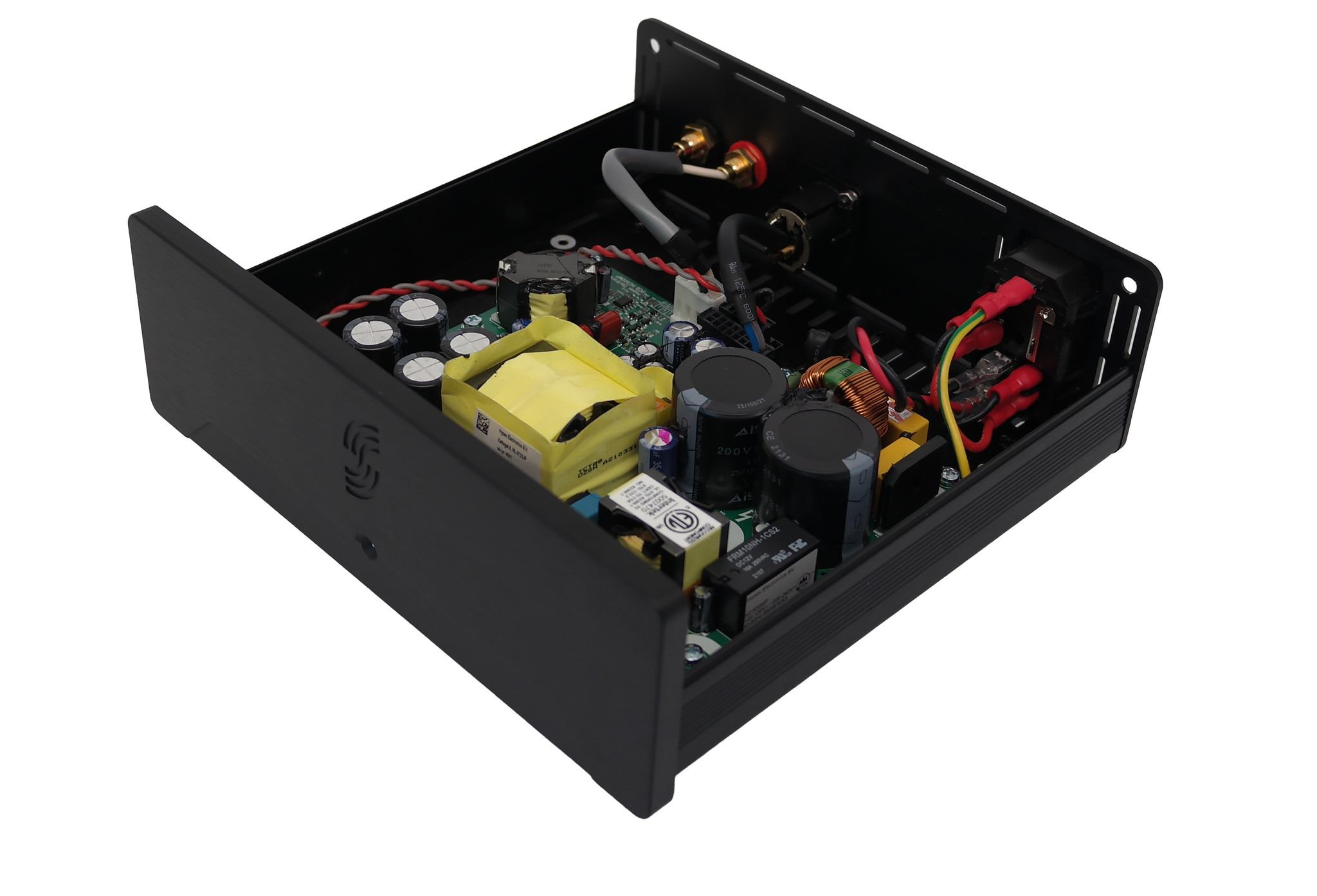

        All SoundImpress amplifiers are hand assembled in the Netherlands. The custom milled aluminum enclosure houses the Hypex NC500MP amplifier module, the best thermal material for audio devices. The in- and output connections are provided through high-quality binding posts from CMC and XLR-chassis from Neutrik and wiring from Mogami and Belden. It can operate from both 110 and 230 VAC mains voltage due to its universal mains input compatibility featuring an automatic input voltage doubler.



        Small and powerful

        This amplifier can deliver all its power from as low as 2 ohm impedance combined with low idle loss, very low distortion and noise levels. Chief distinguishing features are flat frequency response irrespective of load impedance, nearly frequency independent distortion behaviour and very low radiated and conducted EMI. This results in performances such as the max output power of 500Wrms at 4 ohm, a Signal-to-Noise Ratio (SNR) of 106 dB and astonishing distorting level of 0.00
        20%.

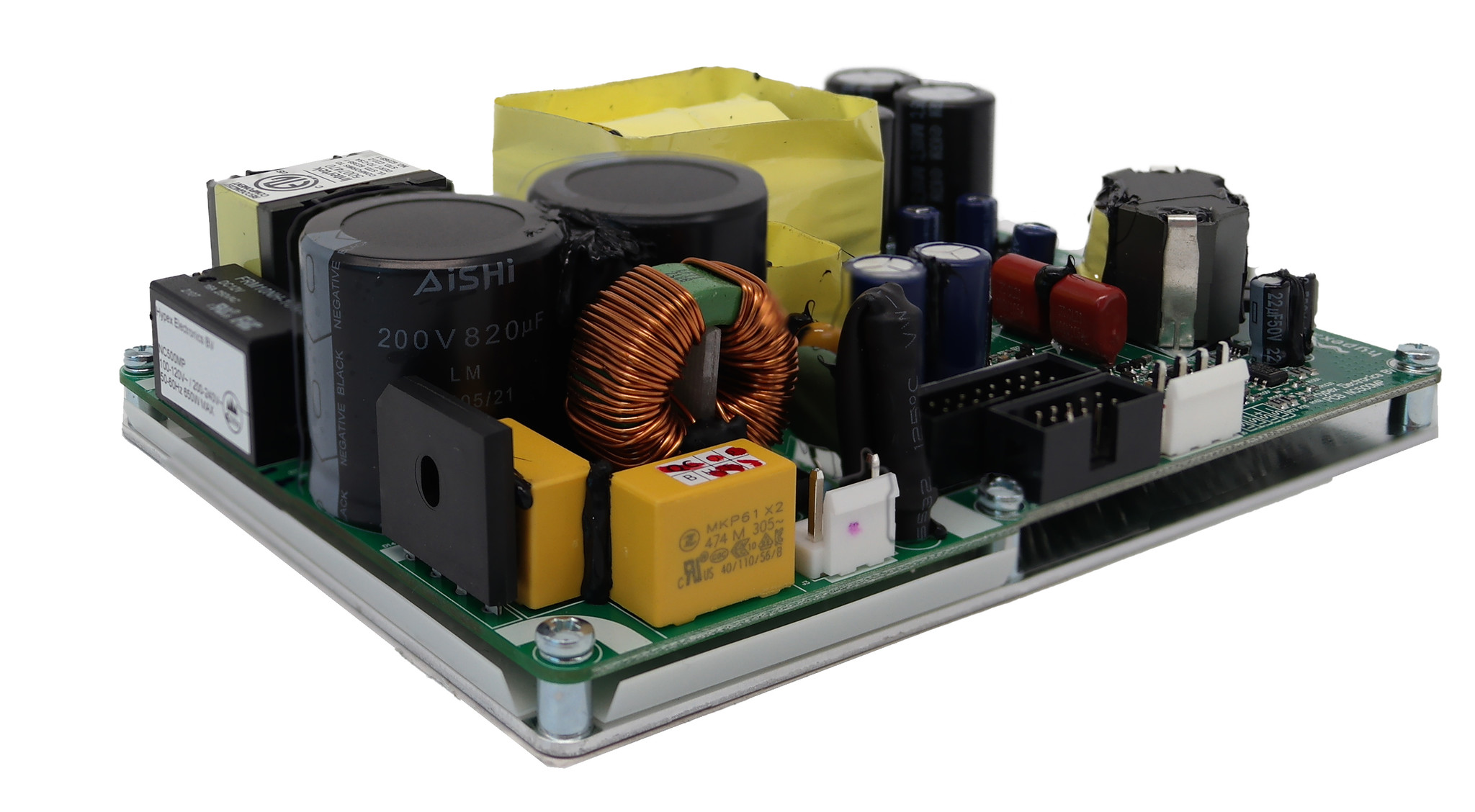

        An amplifier is only as good as the power supply it contains. In this SoundImpress amplifier, the power supply and amplifier are located on one board. The switched-mode power supply (SMPS) providing the power for the amplifier is a compact, high power, highly efficient, regulated half bridge converter with synchronous rectification on the main output rails. These properties make this technology ideal for powering Class D audio amplifiers.



        Whats In The Box

        • SoundImpress HY500-1CH Stereo Amplifier
        • IEC C13 power cable (UK/EU/US)
        • SoundImpress manual

        Show more

        Specifications

        Article number
        HY500-1CH
        Rated power output (RMS)

        1 x 400 watts at 2 ohms

        1 x 500 watts at 4 ohms

        1 x 270 watts at 8 ohms

        Minimum load
        2 ohm
        Signal-to-noise ratio (SNR)
        124 dB
        Distortion
        0.0020% THD+N (10 Hz - 20 kHz)
        Efficiency
        92 %
        Frequency response
        10 Hz - 50 kHz
        Circuit Topology
        Ncore®
        Amplifier classification
        Class D
        XLR in/out
        1/0
        Banana plug compatible
        Check
        Power requirements
        110 / 230 VAC
        Power inlet connector
        IEC C14
        Dimensions (D x W x H)
        191mm x 200mm x 78mm (size incl feet, excl connectors)
        Case material
        Aluminum

        Show more
