        Product description SEAS Prestige U22REX/P-SL - H1659-08 Bass-midwoofer

        Highlights

        • Long term power handling (RMS) is 100 Watts
        • New Curv cone, a woven polypropylene with excellent internal damping
        • Bullet shaped phase plug reduces compression, avoids resonance problems and increases the long term power handling capacity



        Product details

        Seas Prestige U22REX/P-SL - H1659-08 8" Woven Poly Cone Woofer

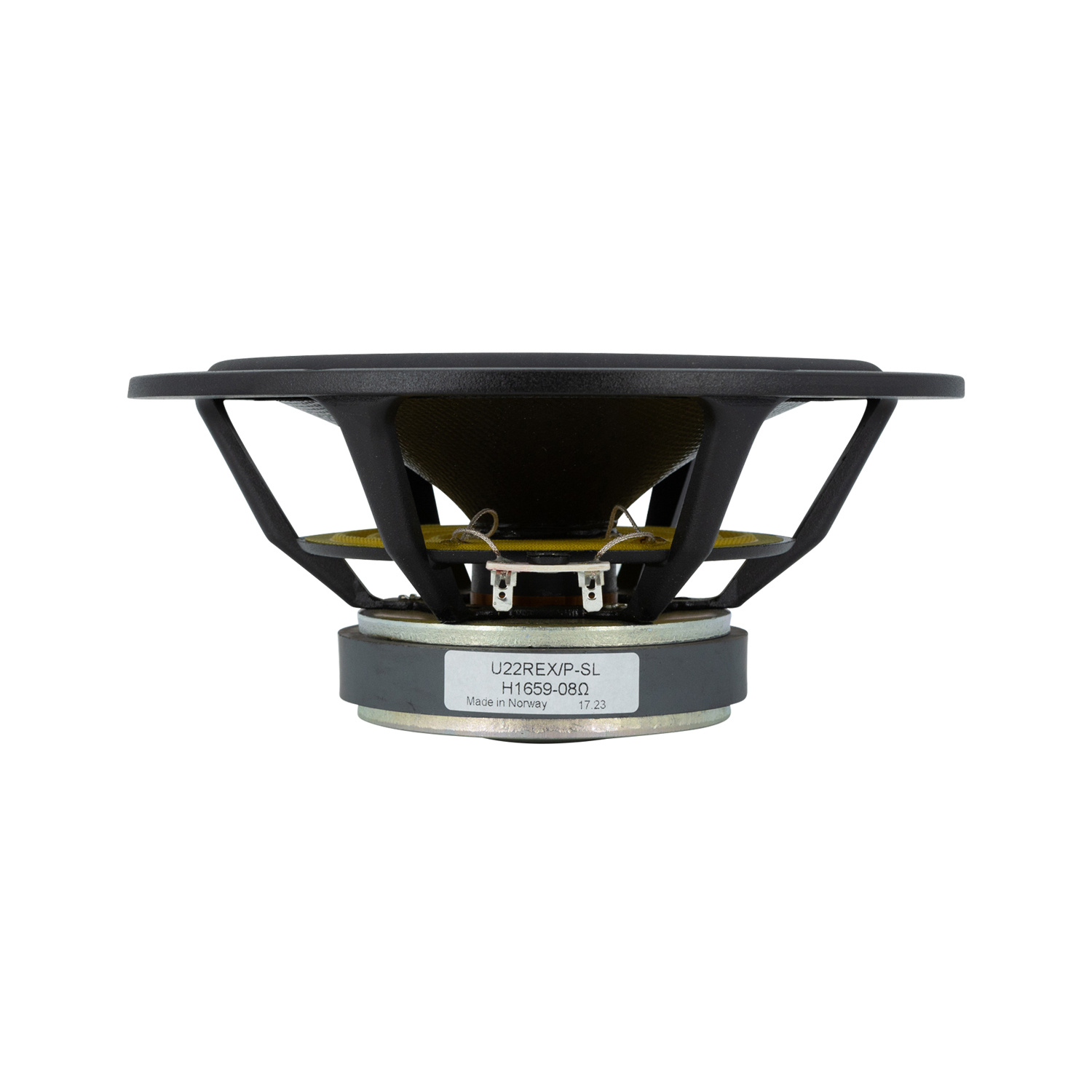

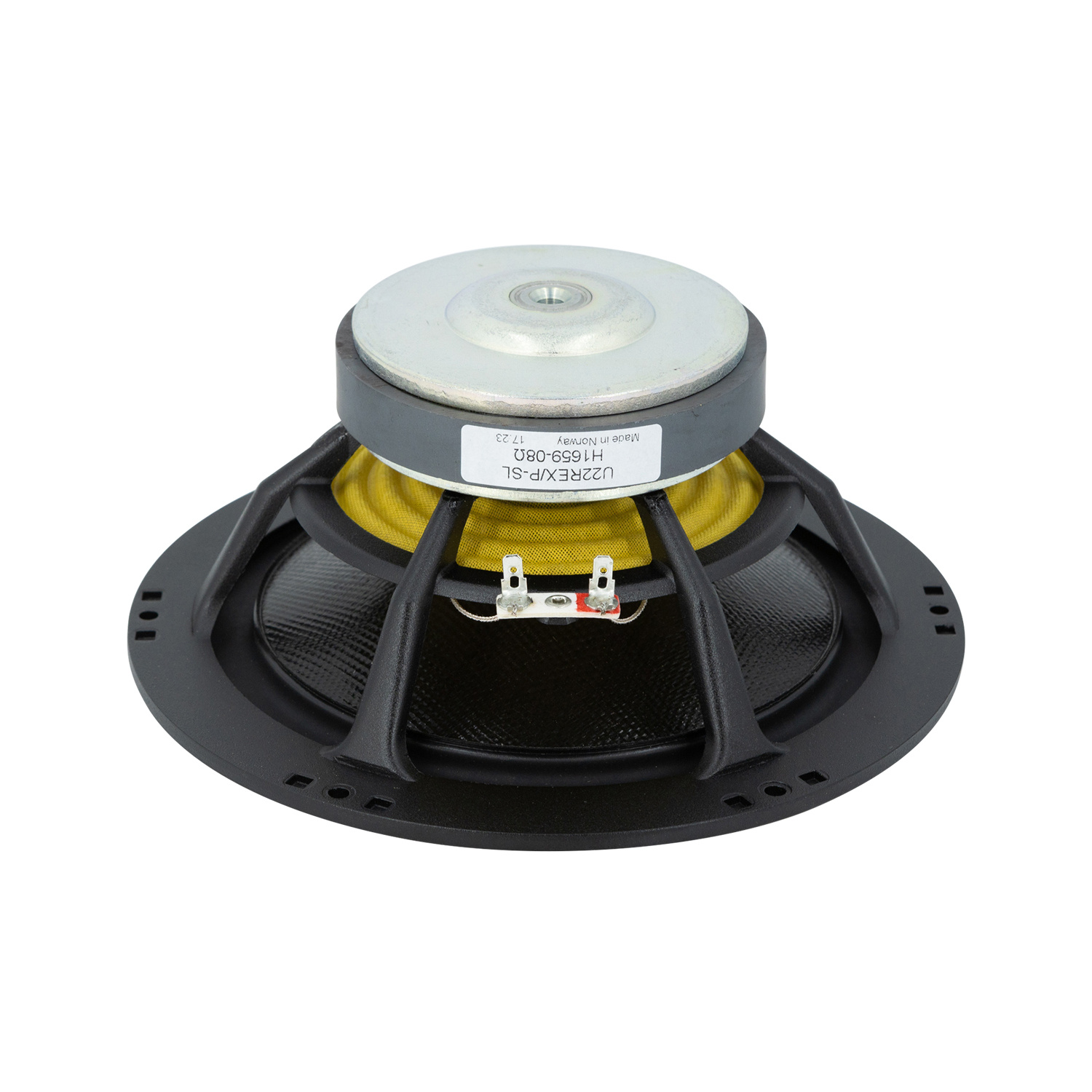

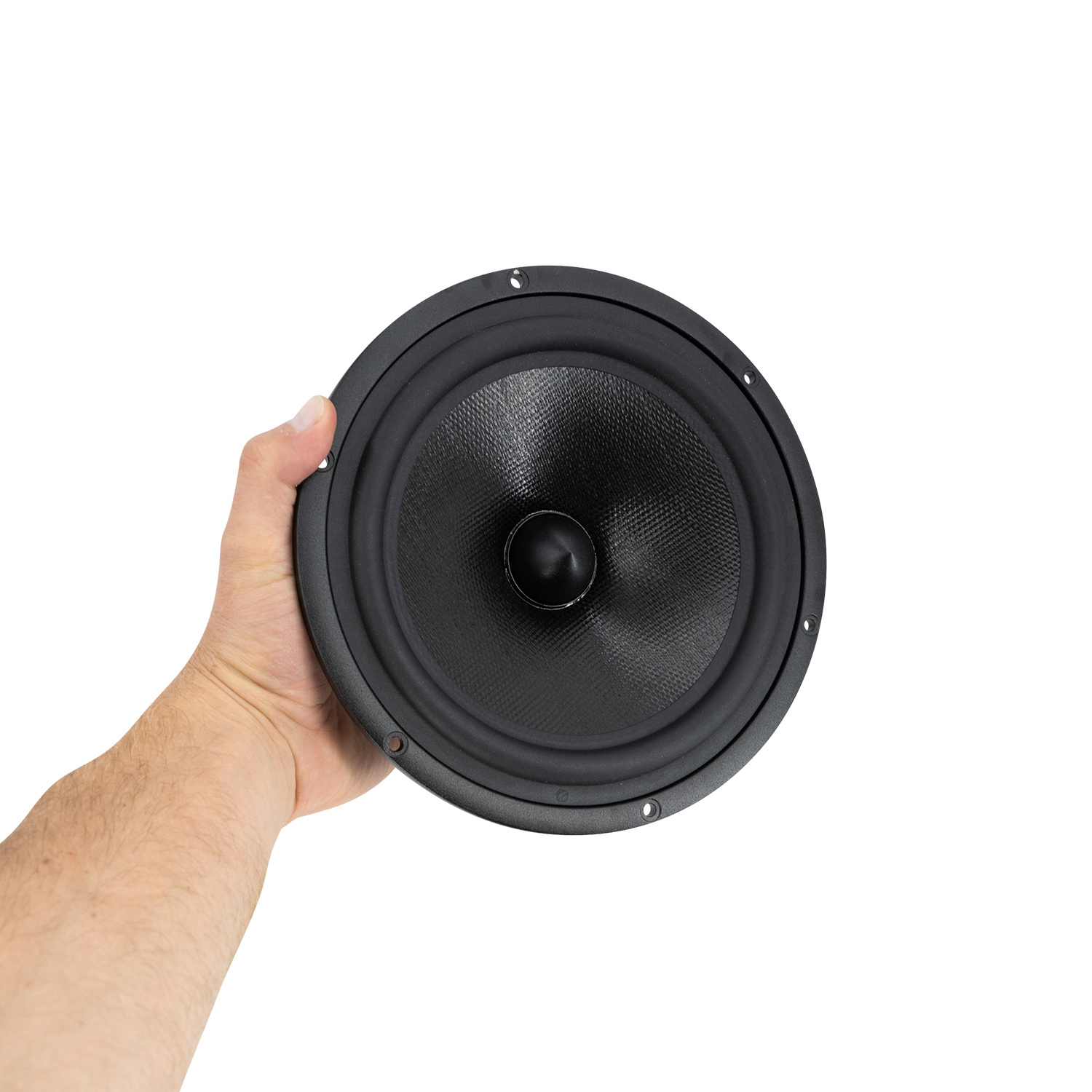

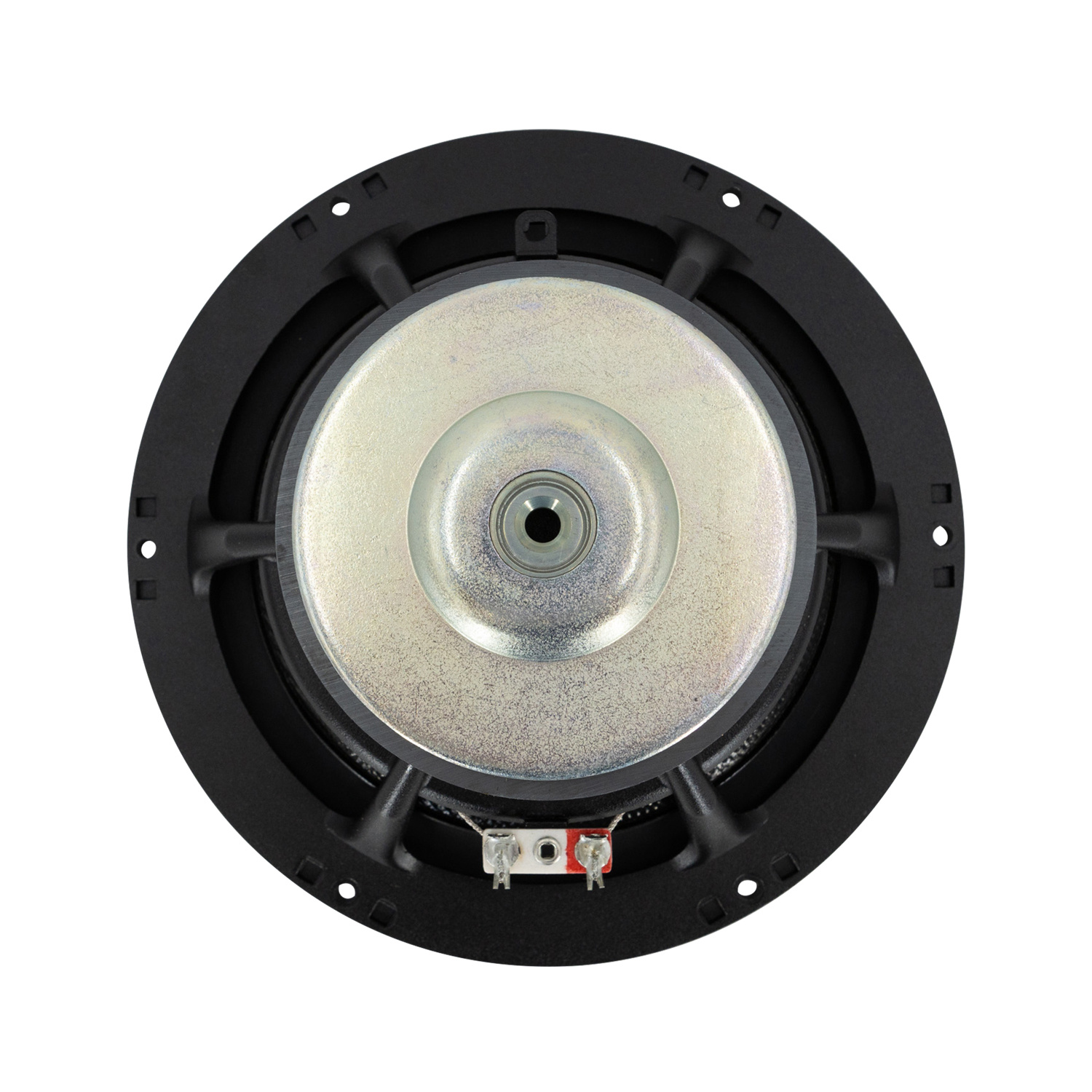

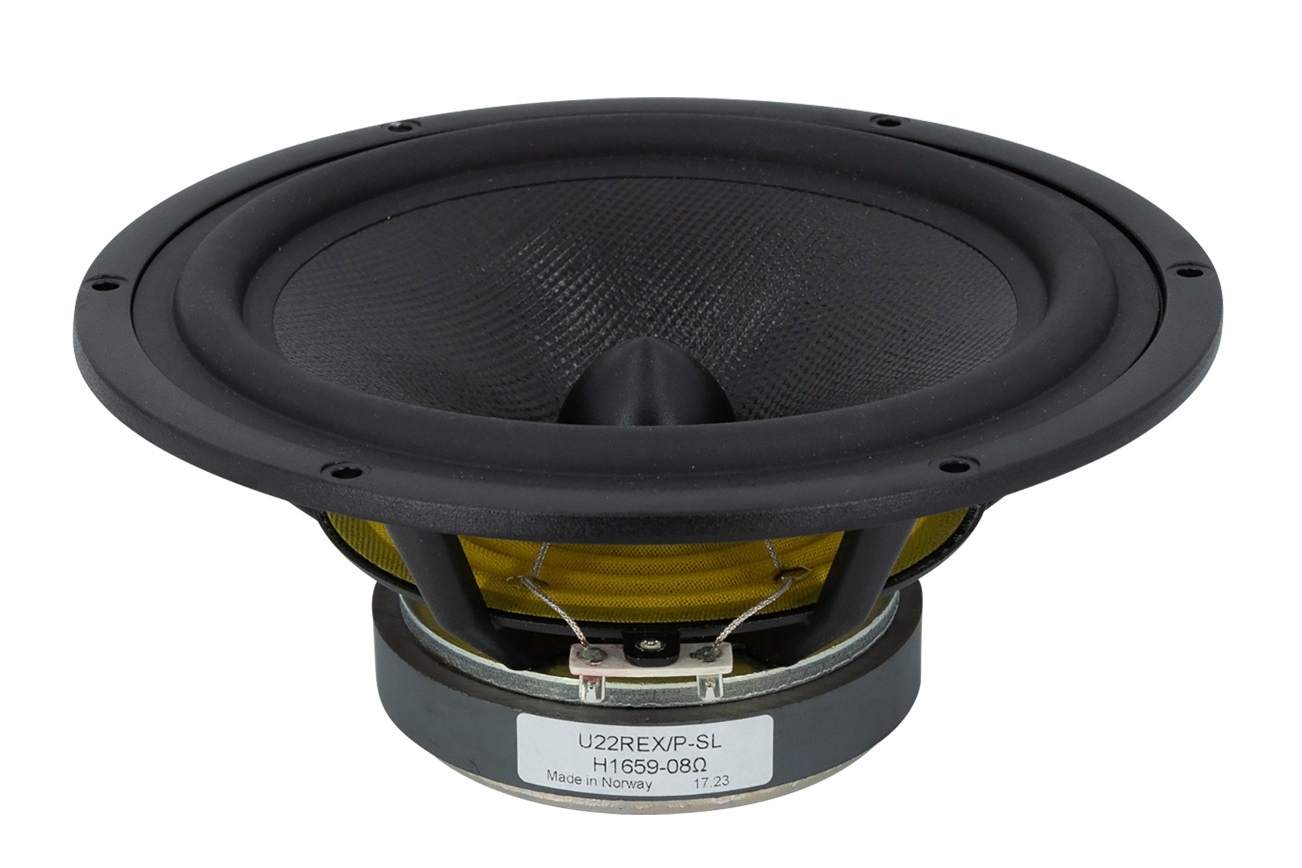

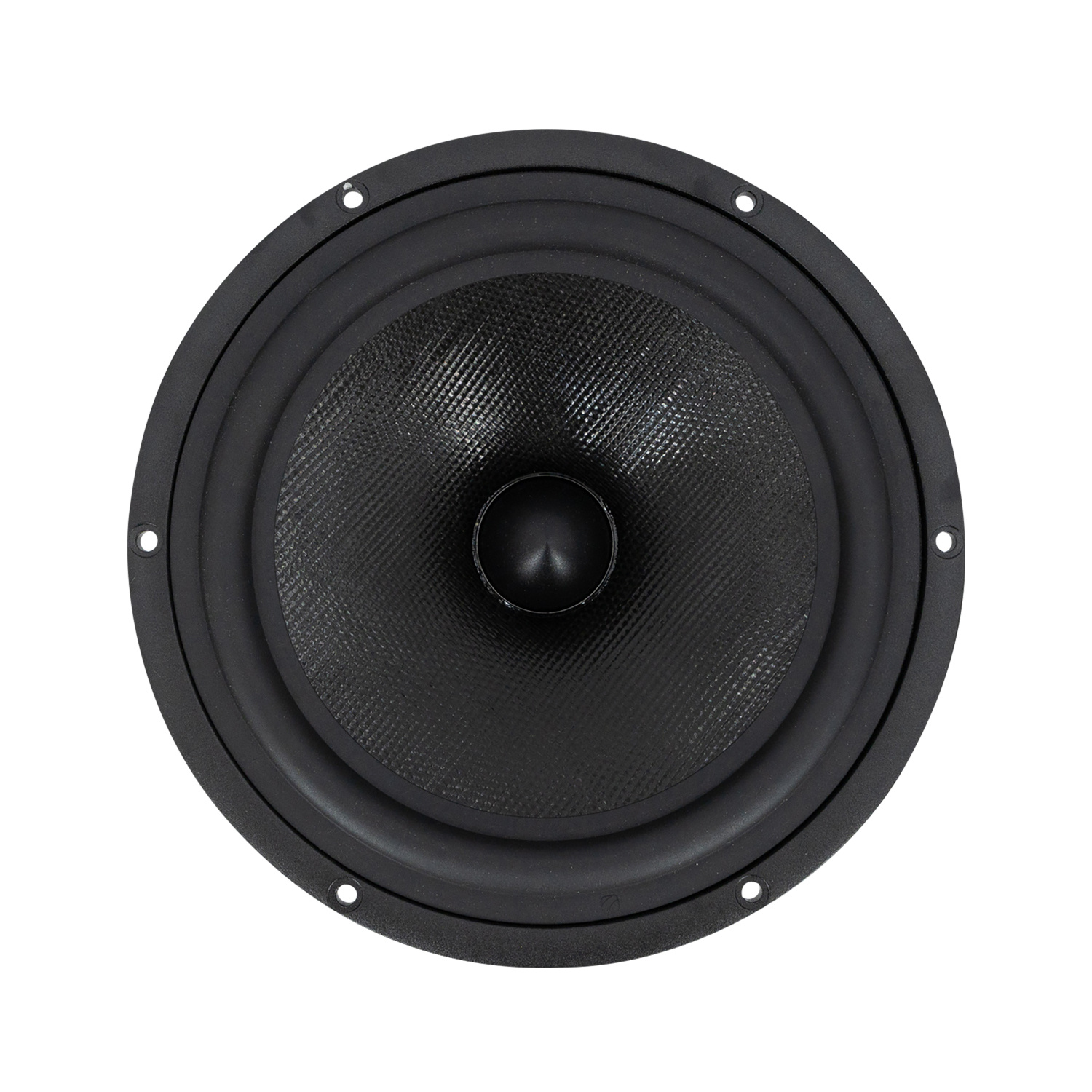

        The U22REX/P-SL is a 8” High Fidelity woofer with an injection molded metal chassis, intended for bass reflex and transmission line designs. New Curv cone, a woven polypropylene with excellent internal damping together with perfectly matched moving parts gives a smooth, extended frequency response.



        Bumped back plate in the magnet system together with a high temperature voice coil wound on an aluminum voice coil former gives low distortion and high power handling capacity. Heavy copper ring below the T-shaped pole piece will reduce non linear and modulation distortion. Bullet shaped phase plug reduces compression due to temperature variations in the voice coil, avoids resonance problems which would occur in the volume between the dust cap and the pole piece and increases the long term power handling capacity.



        Extremely stiff and stable injection molded metal basket, keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.

        Show more

        Specifications

        Article number
        U22REX/P-SL
        EAN
        0696277270019
        Woofer Series
        Prestige
        Woofer Type
        Woofer
        Nominal Diameter
        8 " | 221 mm
        Power Handling (RMS)
        100 W
        Power Handling (max)
        250 W
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        90.5 dB
        Frequency Response
        29 - 4000 Hz
        Voice Coil Diameter
        39 mm
        Magnet Weight
        0.64 kg
        DC Resistance (Re)
        6.0 Ω
        Voice Coil Inductance (Le)
        0.7 mH
        Resonant Frequency (Fs)
        29 Hz
        Mechanical Q (Qms)
        1.77
        Electromagnetic Q (Qes)
        0.34
        Total Q (Qts)
        0.29
        Diaphragm Mass Inc. Airload (Mms)
        19.8 g
        Mechanical Compliance of Suspension (Cms)
        1.7 mm/N
        Surface Area of Cone (Sd)
        220 cm²
        BL Product (BL)
        8.0 N/A
        Compliance Equivalent Volume (Vas)
        103 L
        Maximum Linear Excursion (Xmax)
        4 mm
        Driver's Mechanical Losses (Rms)
        2.1 Ns/m
        Cone / Diaphragm Material
        Woven polypropylene
        Basket / Frame Material
        Injection moulded metal
        Overall Outside Diameter
        221.0 mm
        Overall Depth
        90.0 mm
        Baffle Cutout Diameter
        186.4 mm
        Bolt Circle Diameter
        209.5 mm
        # Mounting Holes
        6
        Mounting Hole Diameter
        5.0 mm
