      SEAS Excel T25CF002 - E0011 1" Fabric Dome Tweeter

      € 305,74€ 369,95 10+ In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only € 351,45 per piece
      • 24h express shipping available
      • Same day shipping
      • In-house techniscal support
      • 45 days worry-free returns
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Highlights

      • Optimally shaped and coated fabric dome diaphragm manufactured by SEAS from SONOTEX provides excellent performance and consistency
      • 90 Watts RMS Power Handling
      • 89 dB 2.83V/1m Sensitivity



      Product details

      Seas Excel T25CF002 - E0011 1" Fabric Dome Tweeter

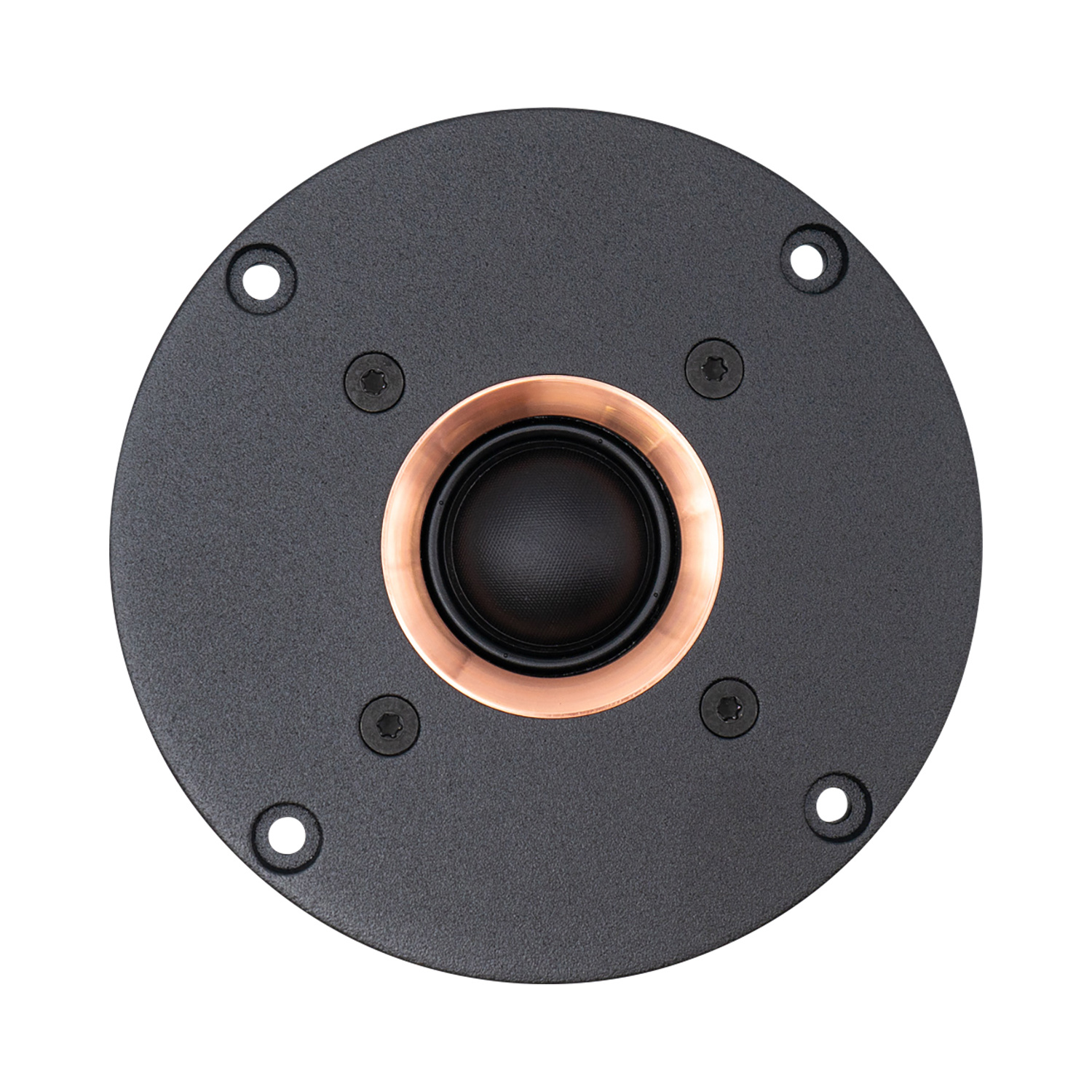

      The T25CF002, “MILLENNIUM” is a 25mm soft dome tweeter with a novel Neodymium based magnet system. A unique HEXADYM magnet system (US Pat 6.020.805 ) based on 6 radially magnetized NdFeB magnet blocks. Efficient ventilation and damping of every potentially resonant cavity behind the dome, surround and voice coil. Moderate magnetic stray fields present no problems in AV installations. A generously underhung voice coil ( + and - 0.5mm ) ensures low distortion even with low crossover frequencies.



      An optimally shaped and coated fabric dome diaphragm manufactured by SEAS from SONOTEX for excellent performance and consistency. Flexible lead-out wires ensure a good connection between voice coil and terminals. This arrangement also helps to prevent lead breakage due to the large excursions encountered when low crossover frequencies are used.

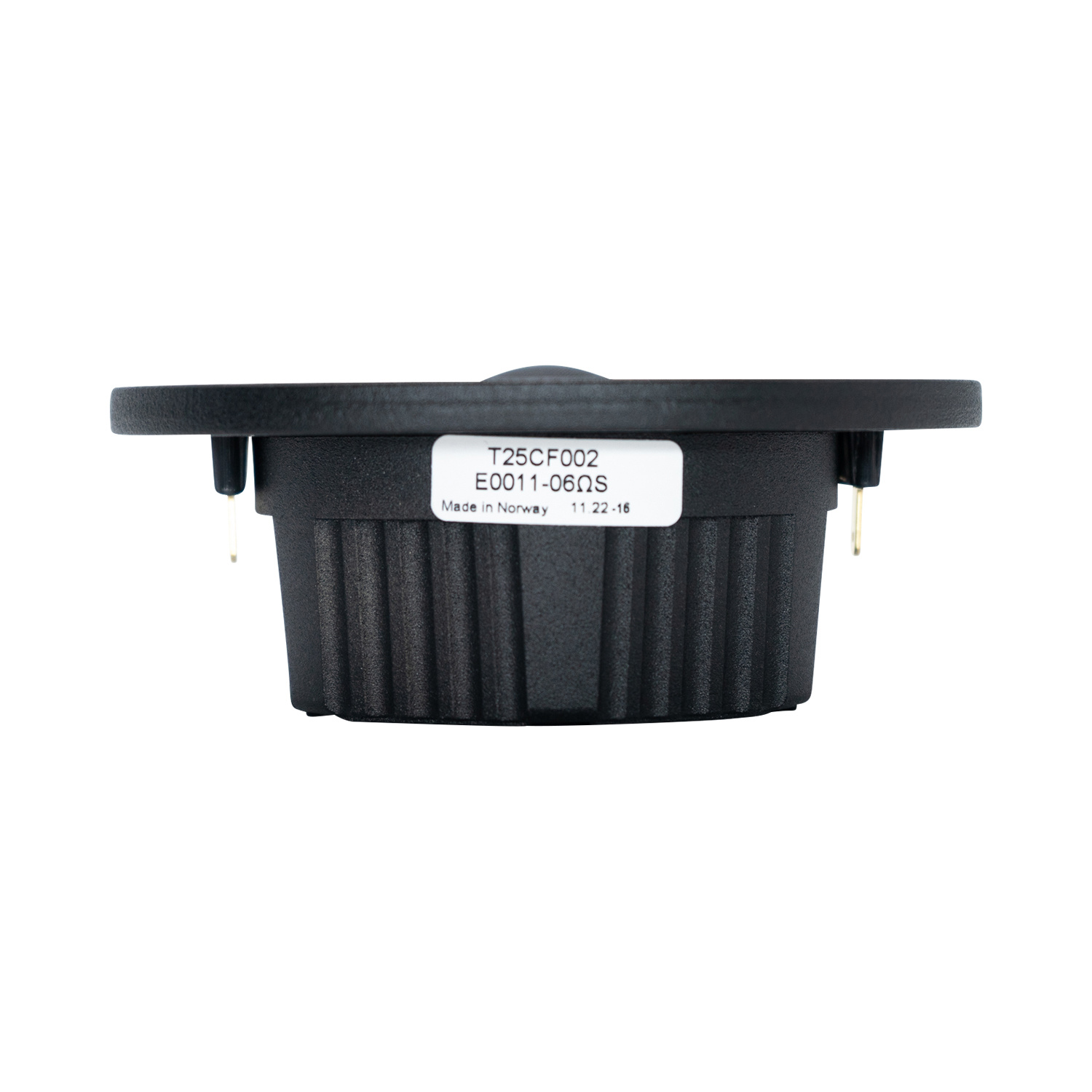

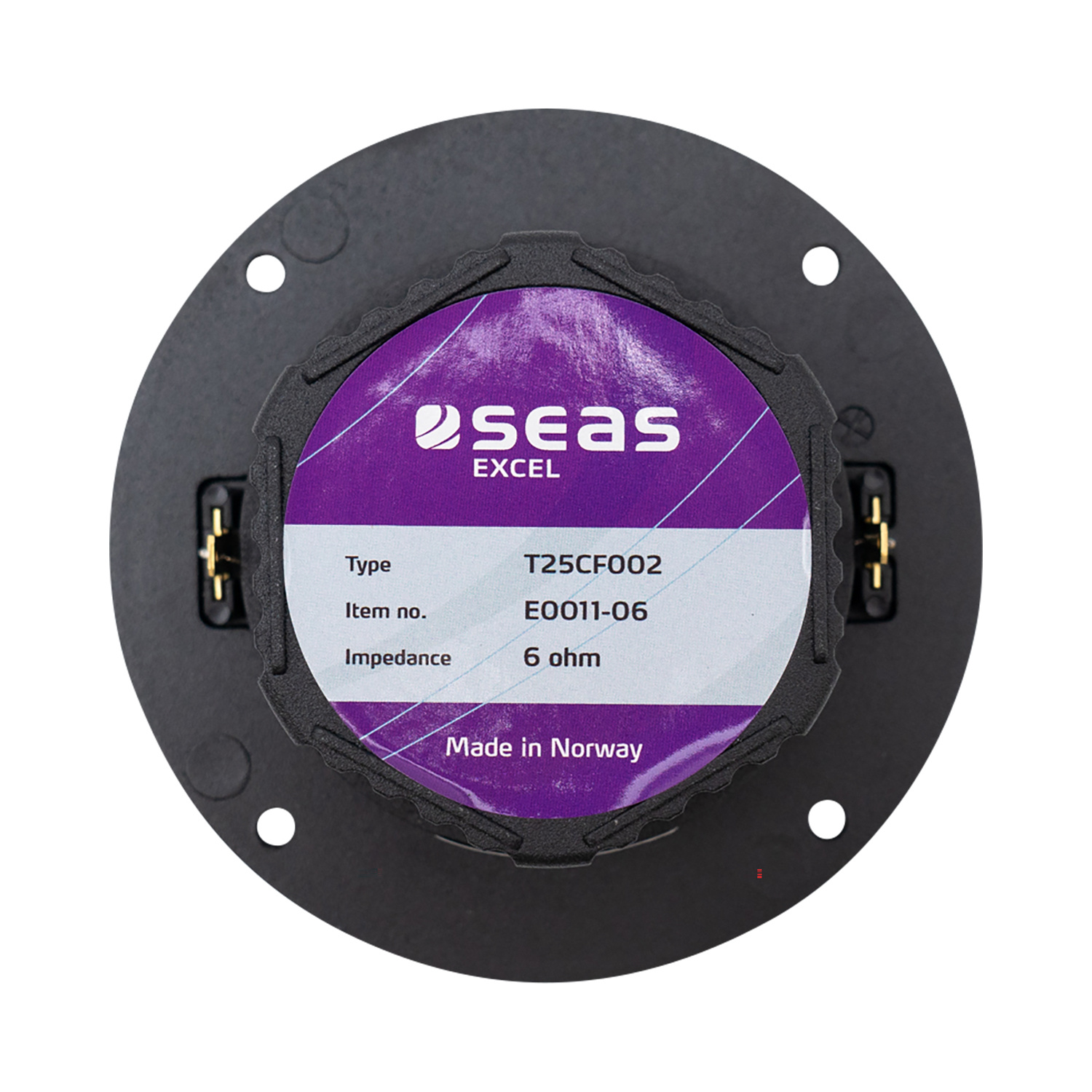

      A 6,0 mm injection molded zinc front plate with a very slight loading characteristic which ensures linear frequency response, and a stiff and stable connection to the cabinet. A substantial injection-molded rear chamber made from zinc eliminates unwanted chamber all resonances and conducts heat away from the magnet system.

      Specifications

      Article number
      T25CF002
      Tweeter Type
      Fabric Dome
      Cone / Dome Diameter
      25 mm | 1"
      Power Handling (RMS)
      90 Watts
      Impedance (Z)
      6 Ω
      Sensitivity
      89 dB 2.83V/1m
      Frequency Response
      2,000 to 25,000 Hz
      Resonant Frequency (Fs)
      500 Hz
      DC Resistance (Re)
      4.6 ohms
      Voice Coil Inductance (Le)
      0.05 mH
      Overall Outside Diameter
      4.34"
      Cutout Diameter
      3.35"
      Depth
      1.62"
