      SEAS Prestige T18REX/XFC - H1353-08/06 7" Coaxial Woofer

      € 181,78€ 219,95 10+ In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only € 208,95 per piece
      • 24h express shipping available
      • Same day shipping
      • In-house techniscal support
      • 45 days worry-free returns
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Highlights

      • Long term power handling (RMS) is 200 Watts (Woofer) and 180 Watts (Tweeter)
      • The coaxially arranged precoated fabric dome high frequency unit has a low resonance frequency and integrates with the cone driver to a point source
      • The cone of the woofer acts as a horn loading for the tweeter, and the chassis of the dome unit represents the throat of this horn



      Product details

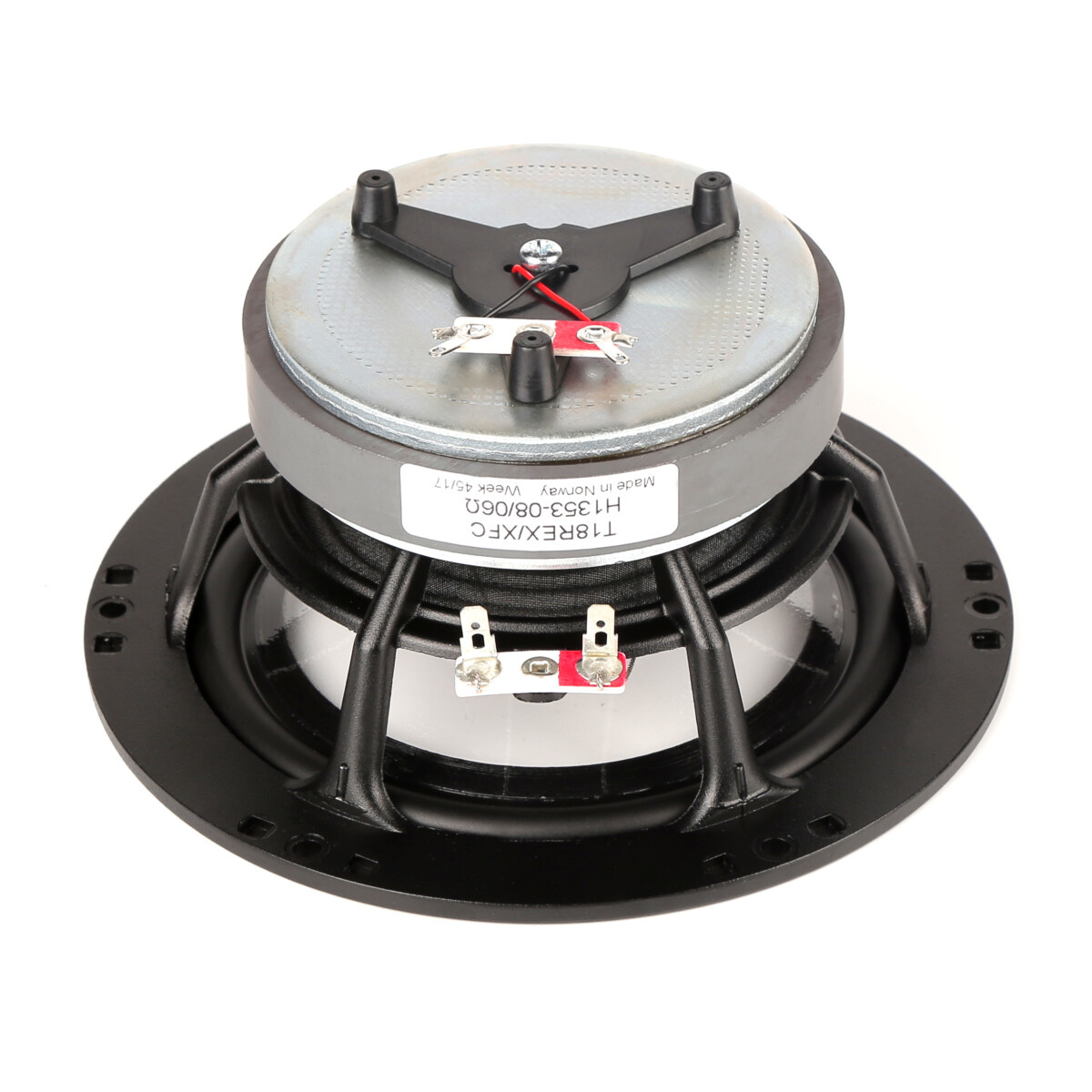

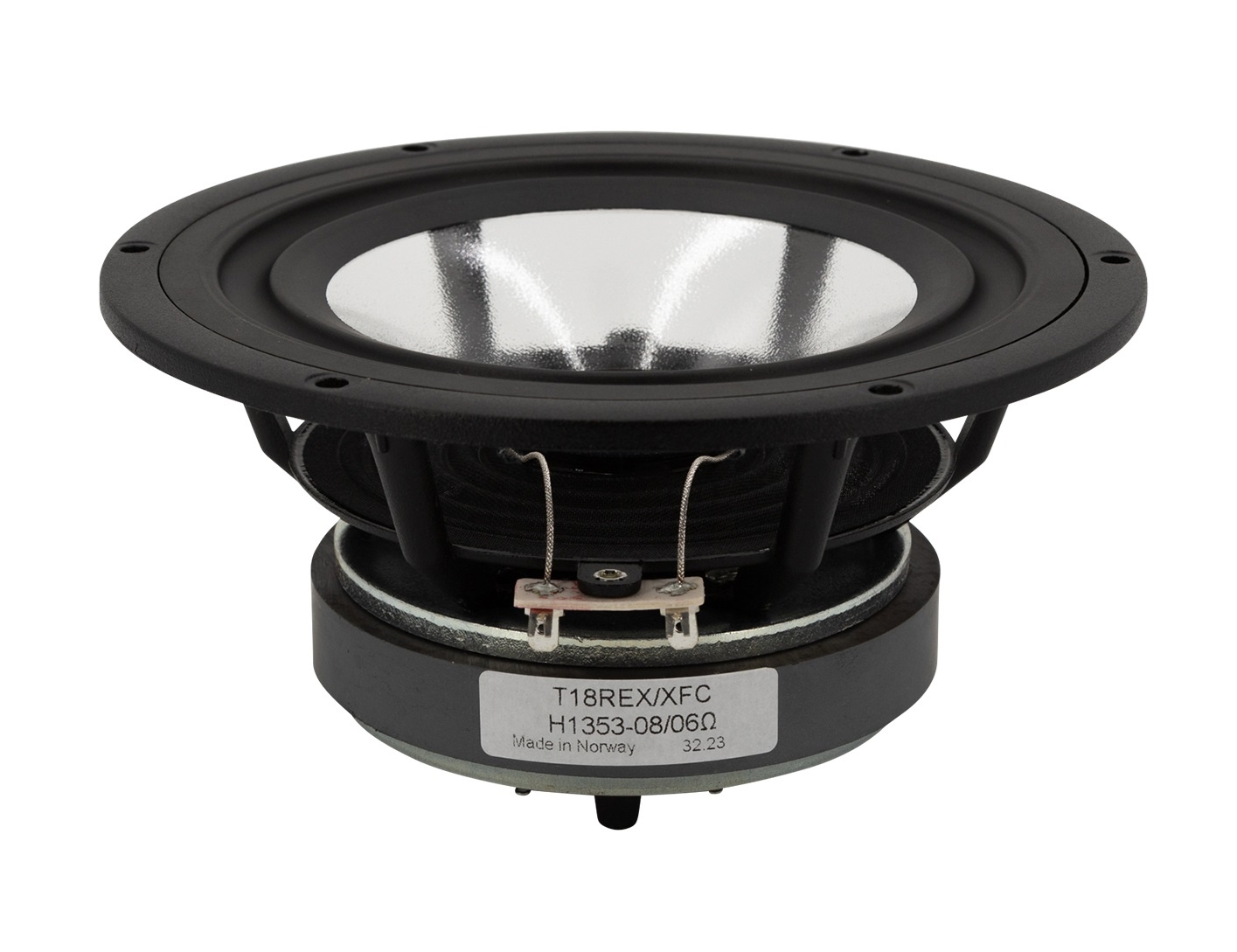

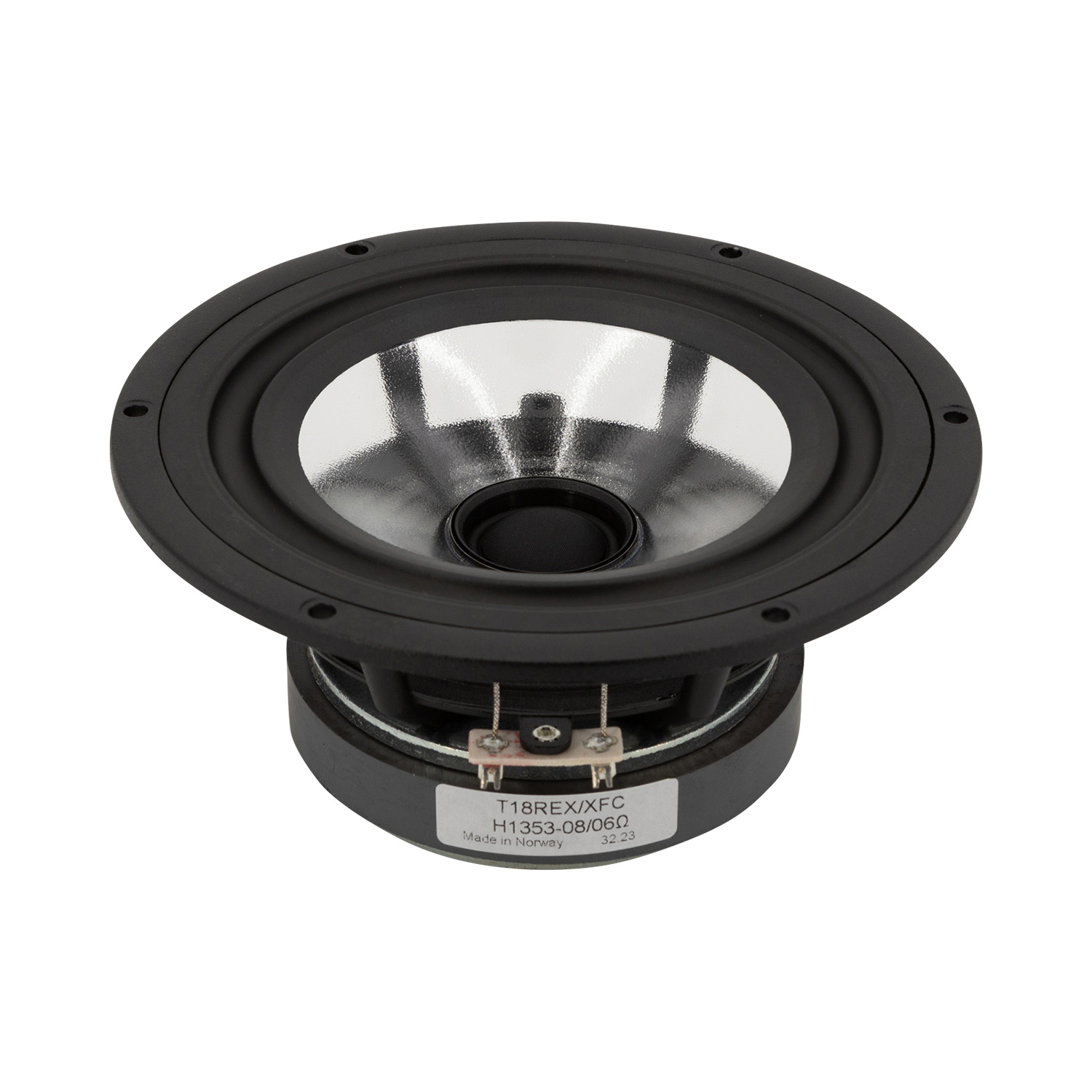

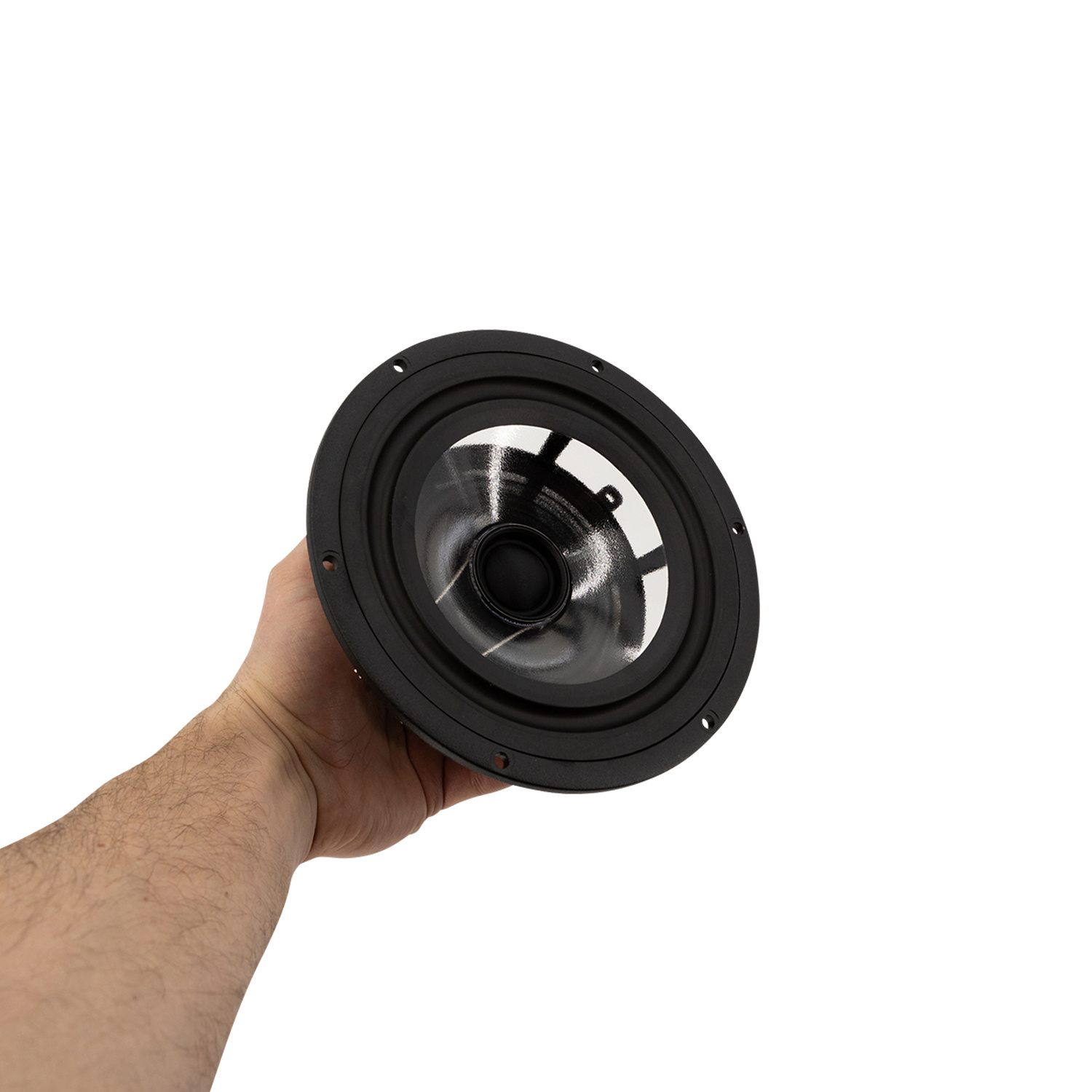

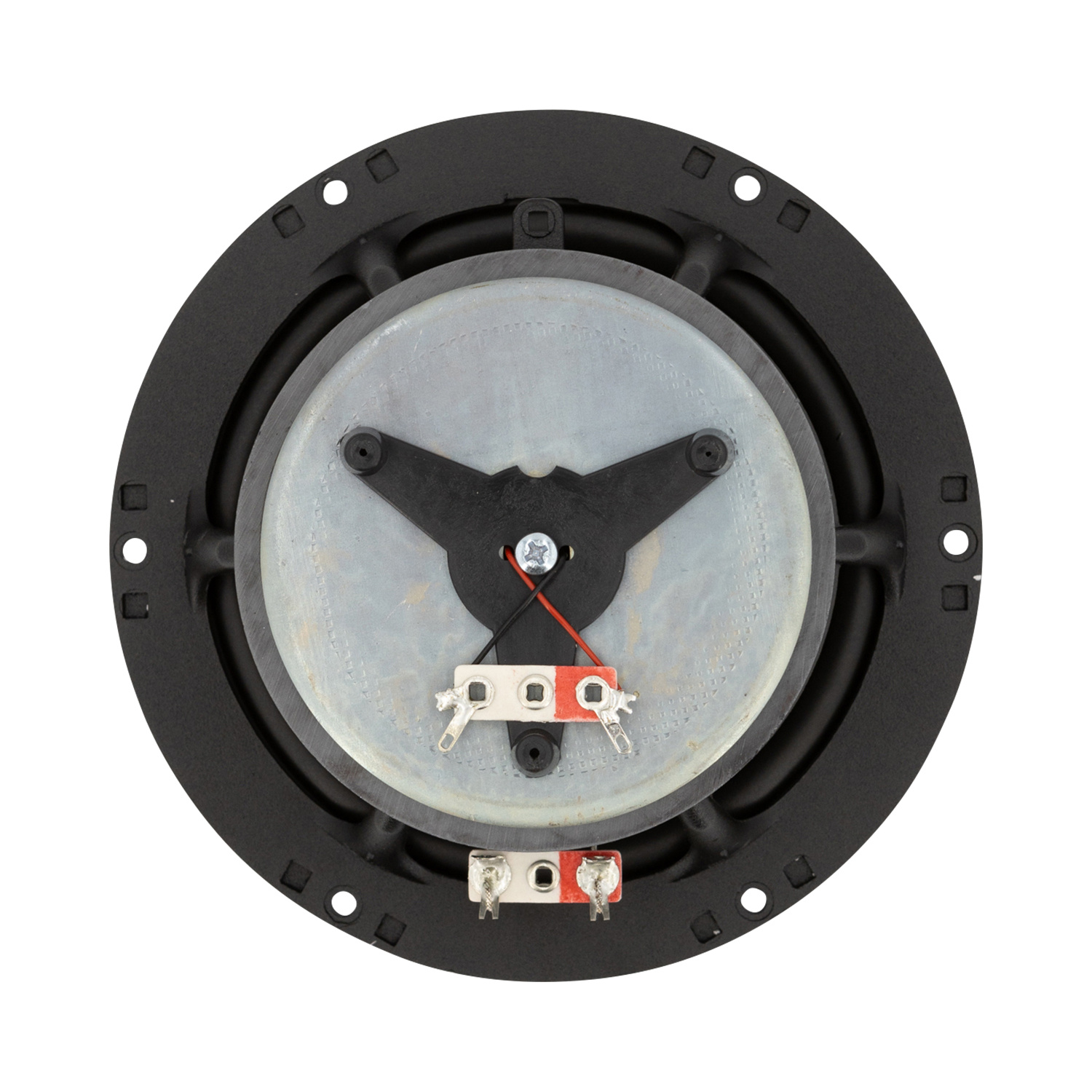

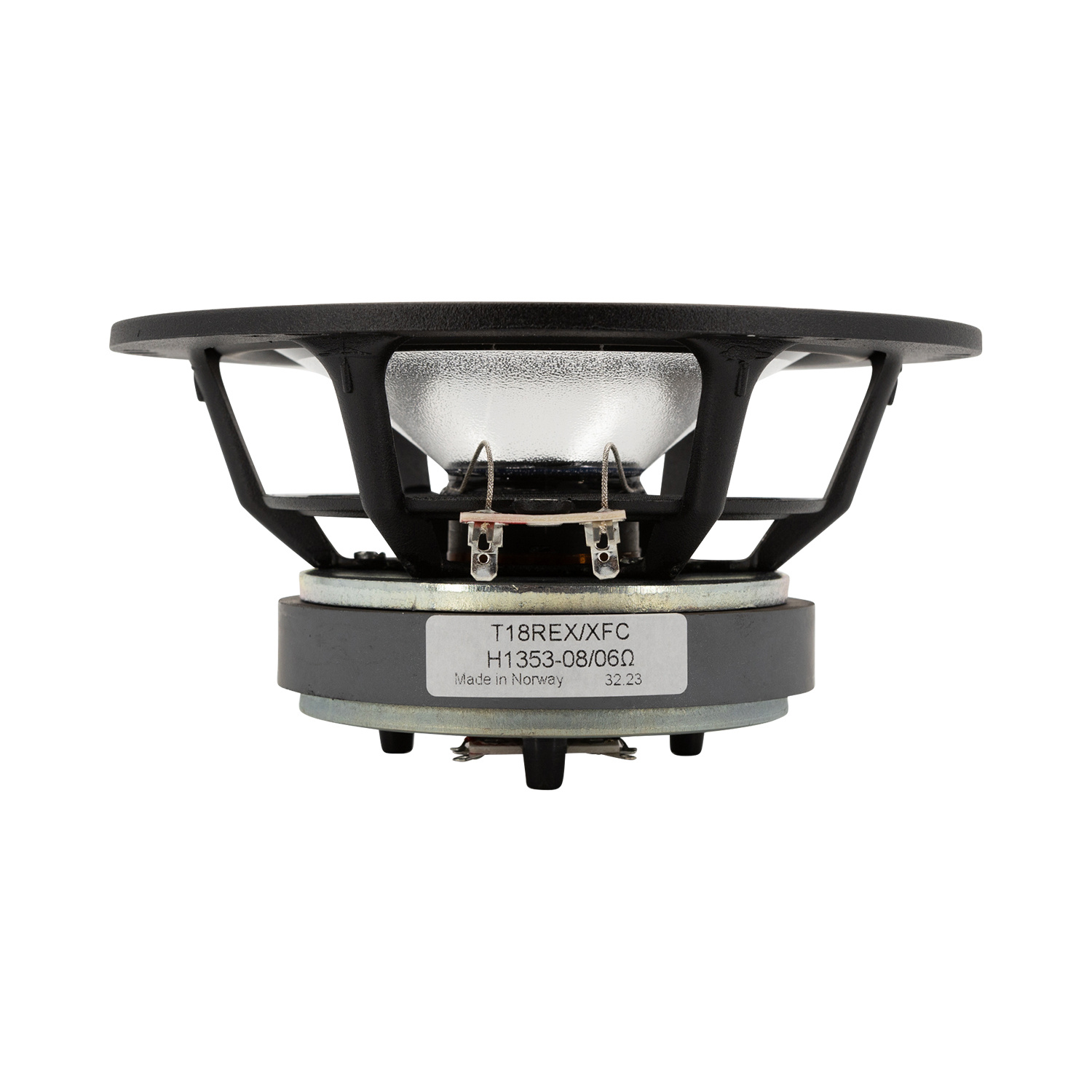

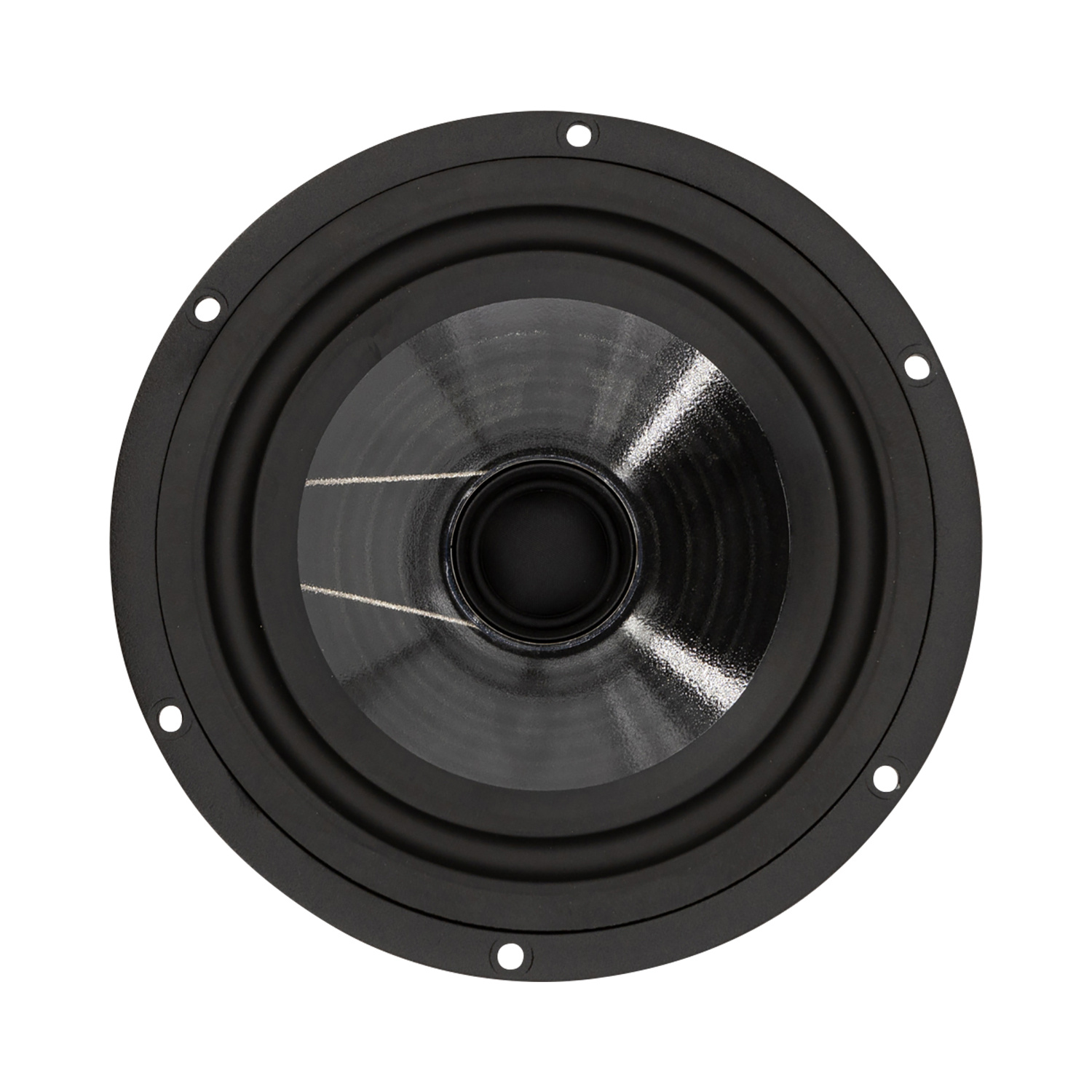

      Seas Prestige T18REX/XFC - H1353-08/06 7" Coaxial Woofer

      The PP/TPX based cone matches ideally with the adaptive rubber surround. The result is an outstandingly smooth frequency response from the mid woofer. The coaxially arranged precoated fabric dome high frequency unit has a low resonance frequency and integrates with the cone driver to a point source. The cone of the woofer acts as a horn loading for the tweeter, and the chassis of the dome unit represents the throat of this horn.

      Extremely stiff and stable injection molded metal basket, keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.

      A great application example would be the SEAS application Loki Mk III. To learn more, please check out our blog article "SEAS Application Notes".

      Specifications

      Article number
      T18REX/XFC
      Woofer Series
      Prestige Series
      Woofer Type
      Coaxial
      Nominal Diameter
      7"
      Power Handling (RMS)
      200 Watts
      Power Handling (max)
      300 Watts
      Impedance (Z)
      8 ohms
      Sensitivity
      87.5 dB 2.83V/1m
      Frequency Response
      30 - 25,000 Hz
      Voice Coil Diameter
      1.53"
      Magnet Weight
      29.9 oz.
      DC Resistance (Re)
      6.2 ohms
      Voice Coil Inductance (Le)
      0.70 mH
      Resonant Frequency (Fs)
      30 Hz
      Mechanical Q (Qms)
      1.64
      Electromagnetic Q (Qes)
      0.29
      Total Q (Qts)
      0.24
      Diaphragm Mass Inc. Airload (Mms)
      0.82g
      Mechanical Compliance of Suspension (Cms)
      1.9 mm/N
      Compliance Equivalent Volume (Vas)
      1.48 ft.³
      Maximum Linear Excursion (Xmax)
      3 mm
      Overall Outside Diameter
      6.93"
      Overall Depth
      3.49"
      Baffle Cutout Diameter
      5.72"
      Bolt Circle Diameter
      6.54"
      # Mounting Holes
      6
