      SEAS Excel C18EN002/A - E0060-08/06S 6.5" Coaxial Woofer

      € 413,18€ 499,95 10+ In stock
      • -5% Order 4 for only € 474,95 per piece

      Buy now, pay later

      • 24h express shipping available
      • Ordered now, shipped on Monday
      • In-house techniscal support
      • 45 days worry-free returns
      Request quotation
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Highlights

      • Long term power handling (RMS) is 100 Watts (Woofer) and 90 Watts (Tweeter)
      • Low-mass, surface-treated aluminum/magnesium alloy cone
      • Powerful neodymium magnet system results in high midrange sensitivity with minimal back wave reflections



      Product details

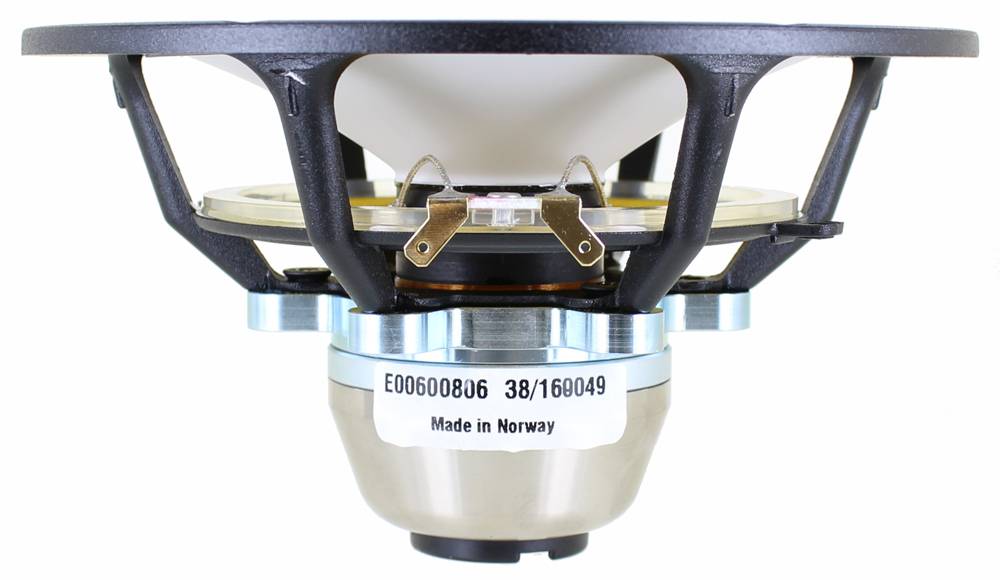

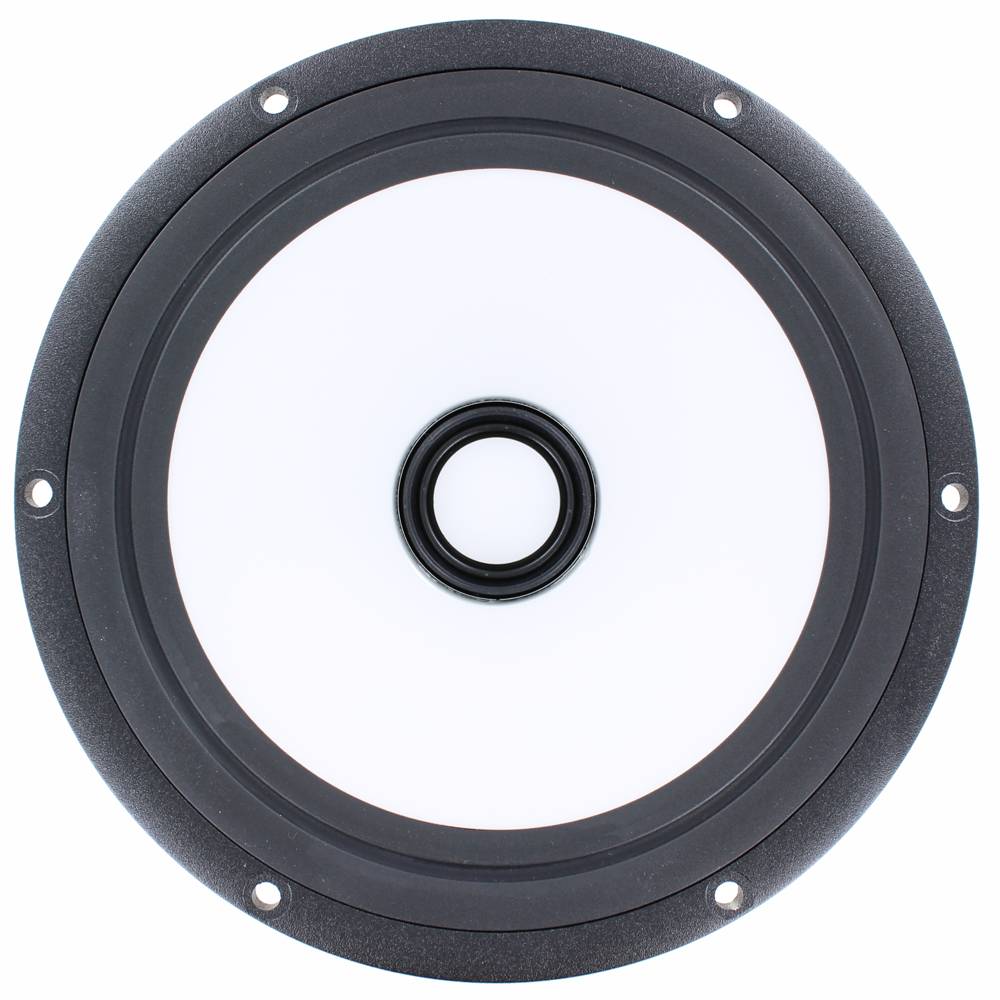

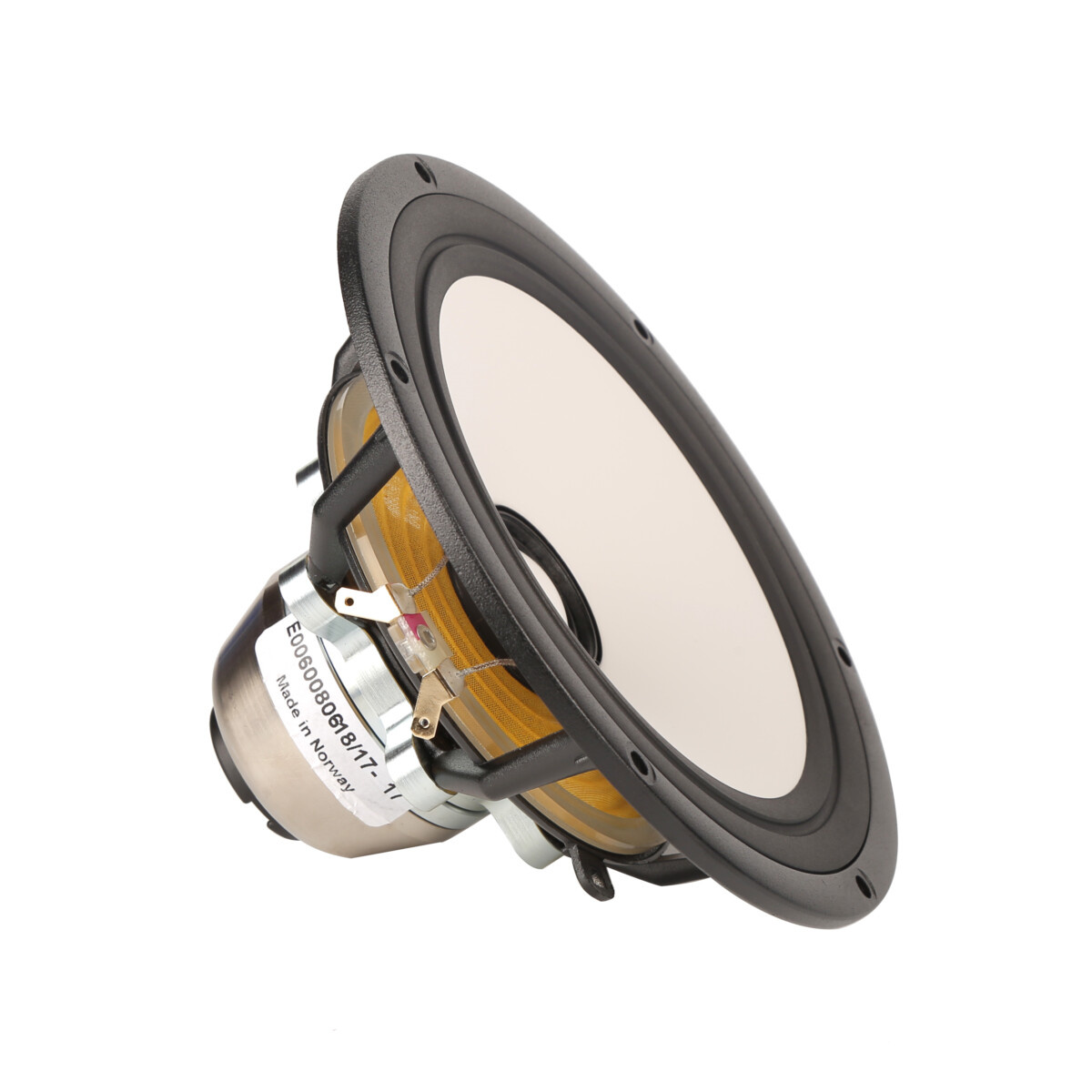

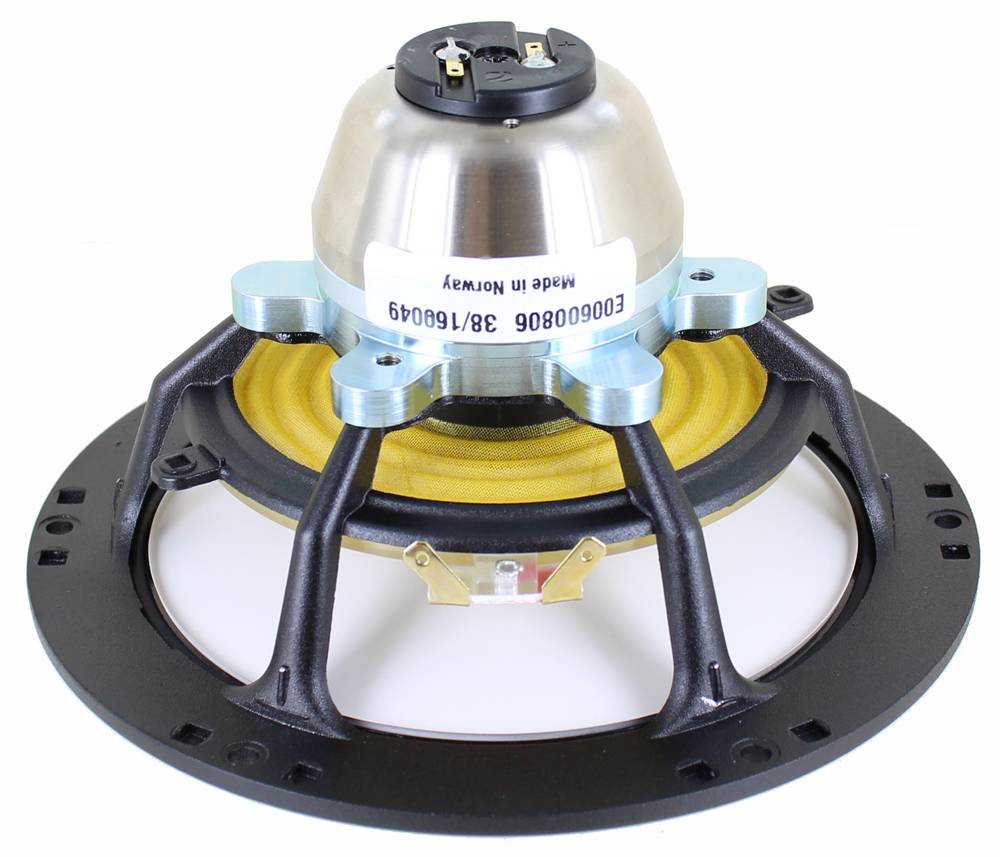

      Seas Excel C18EN002/A - E0060-08/06S 6.5" Coaxial Woofer



      This driver features a low-mass, surface-treated aluminum/magnesium alloy cone which behaves like a piston throughout the audible frequency range, without any sign of midrange resonances. The coaxially mounted aluminum/magnesium alloy dome tweeter has a low resonance frequency and integrates with the cone driver to form a point source. The cone profile has been carefully designed to optimally load the tweeter’s radiation.



      A completely new rubber surround reduces resonances and prevents surround break up in the midrange band. The surround’s small inverted roll, combined with a profile that follows the shape of the cone, results in almost total elimination of diffraction effects on the tweeter’s output. The powerful neodymium magnet system, with its small profile and optimal shape, results in high midrange sensitivity with minimal back wave reflections.



      Heavy copper rings mounted above and below the T-shaped pole piece reduce nonlinear and modulation distortion and increase overload margin. The crown-shaped copper tweeter support ring eliminates any resonance coming from the cavity between the tweeter body and midrange voice coil former. All these features work together to provide a smooth and well behaved off-axis response throughout the entire operating range.

      A great application example would be the SEAS application De KingRO4Y MkIII. To learn more, please check out our blog article "SEAS Application Notes".

      Show more

      Specifications

      Article number
      C18EN002/A
      Woofer Series
      Excel Series
      Woofer Type
      Coaxial
      Nominal Diameter
      6.5"
      Power Handling (RMS)
      100 Watts
      Power Handling (max)
      250 Watts
      Impedance (Z)
      8 ohms
      Sensitivity
      87 dB 2.83V/1m
      Frequency Response
      150 - 25,000 Hz
      Voice Coil Diameter
      1.53"
      Magnet Weight
      33.5 oz.
      DC Resistance (Re)
      6.2 ohms
      Voice Coil Inductance (Le)
      0.62 mH
      Resonant Frequency (Fs)
      98 Hz
      Mechanical Q (Qms)
      2.16
      Electromagnetic Q (Qes)
      0.86
      Total Q (Qts)
      0.62
      Diaphragm Mass Inc. Airload (Mms)
      1.69g
      Mechanical Compliance of Suspension (Cms)
      0.17 mm/N
      Compliance Equivalent Volume (Vas)
      0.13 ft.³
      Maximum Linear Excursion (Xmax)
      3 mm

      Show more
