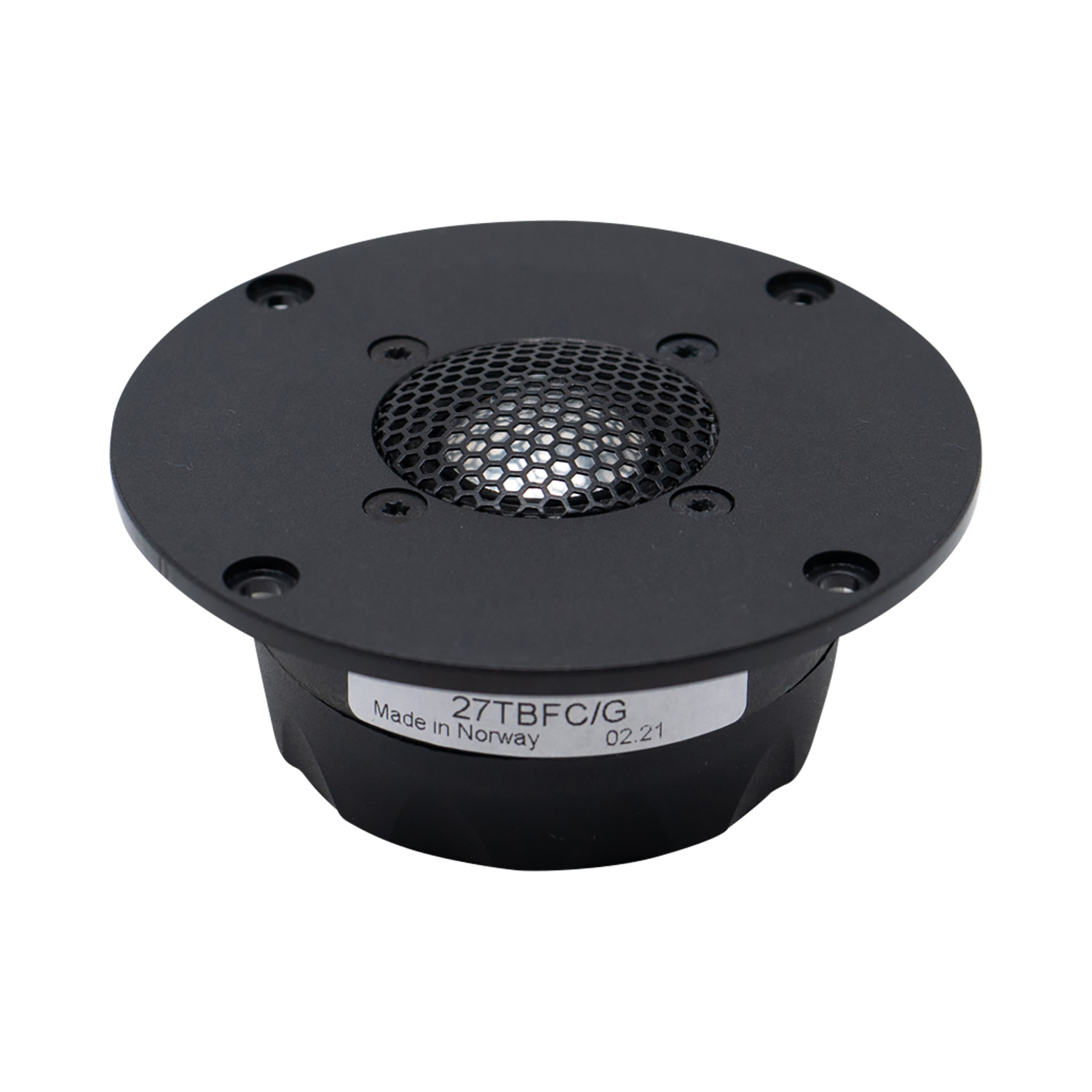

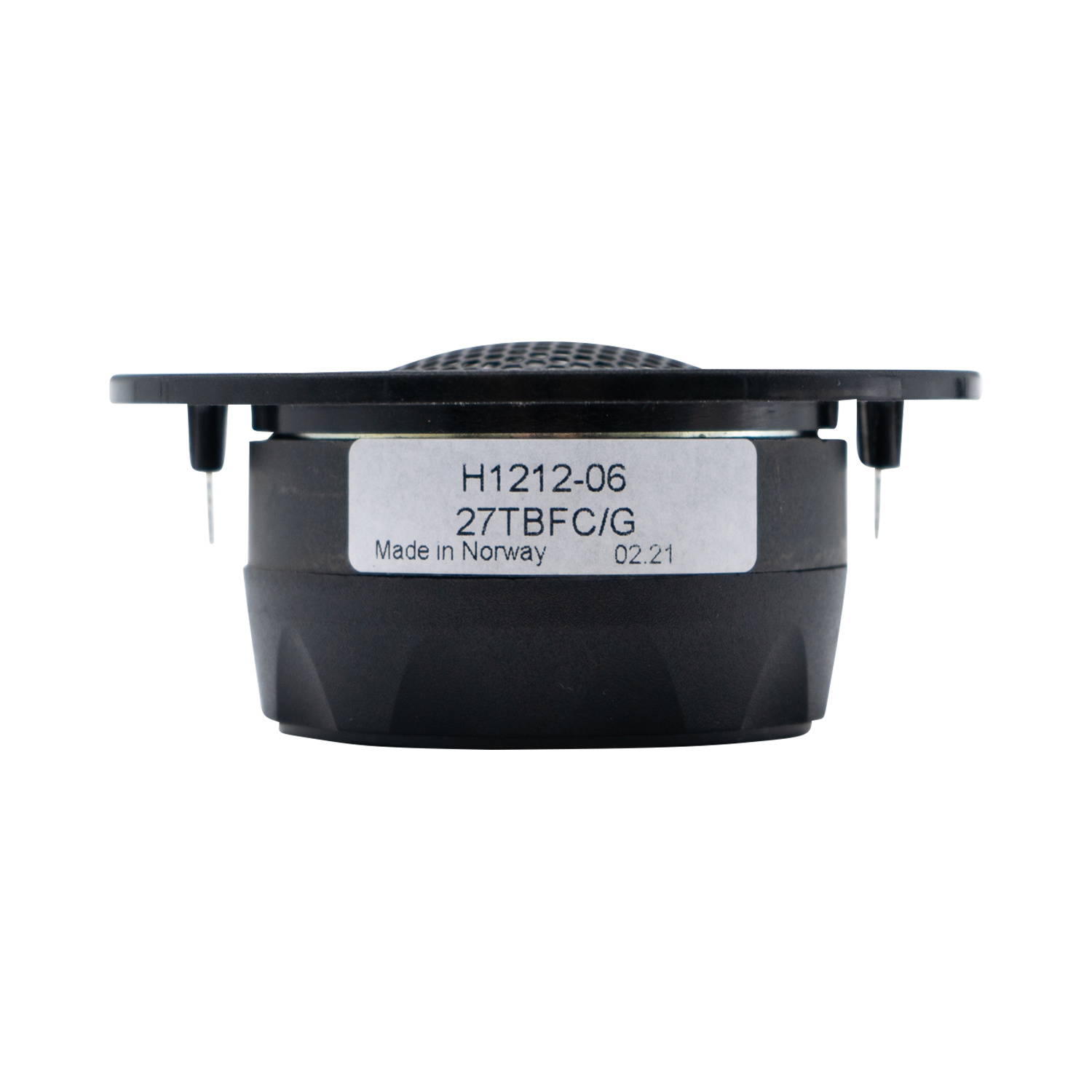

SEAS Prestige 27TBFC/G - H1212-06 1'' Aluminum Dome Tweeter

6 reviews

Brand: SEAS

Show all Tweeters

Compare

1" | 6 Ω

Prestige 27TBFC/G - H1212-06 1'' Aluminum Dome Tweeter

€ 42,93€ 51,95 >10 In stock: delivery time 1-4 business days

24h express shipping available
Low international shipping rates
Same day shipping
In-house technical support

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

Highlights

Aluminum/magnesium alloy diaphragm with pistonic behavior throughout the audible frequency range, resulting in a good dispersion above 10kHz
90 Watts RMS Power Handling
91.5 dB 2.83V/1m Sensitivity

Product details

Seas Prestige 27TBFC/G - H1212-06 1'' Aluminum Dome Tweeter

The 27TBFC/G is a High Definition metal dome tweeter with a wide, soft polymer surround and a rear chamber. Aluminum/magnesium alloy diaphragm with pistonic behavior throughout the audible frequency range, resulting in a good dispersion also above 10kHz. A Hexagrid protects the diaphragm and supports a phase plate which compensates for a slight axial roll off towards 20 kHz. Sonomax surround for low resonance and excellent mechanical linearity.

Voice coil windings immersed in magnetic fluid increase short term power handling capacity and reduce the compression at high power levels. Stiff and stable rear chamber with optimal acoustic damping allows the tweeter to be used with moderately low crossover frequencies.

Precision molded chassis from glass fiber reinforced plastic, and its front design offers optimum radiation conditions.

Specifications

Article number: 27TBFC/G
Tweeter Type: Aluminum Dome
Cone / Dome Diameter: 25 mm | 1"
Power Handling (RMS): 90 Watts
Impedance (Z): 6 Ω
Sensitivity: 91.5 dB 2.83V/1m
Frequency Response: 1,500 to 20,000 Hz
Resonant Frequency (Fs): 550 Hz
DC Resistance (Re): 4.8 ohms
Voice Coil Inductance (Le): 0.05 mH
Overall Outside Diameter: 4.09"
Cutout Diameter: 3.35"
Depth: 1.26"

Data sheet

Reviews

6 reviews

5 from 5Based on 6 reviews

Review this product

4 of 5

Gute Verarbeitung, guter Klang. Gehäuse: Lötfahnen etwas weit außen. Gehäuse ist solide verarbeitet. Klangbild: Etwas spitzer, als der originale Vifa D 25TA 006 aus einer IQ 5180 MK2 und somit als Ersatz bedingt geeignet. Dies war aber zu erwarten.

By Hafez on 21 February 2022

5 of 5

A set of HF drive units was purchased as part of an upgrade to Audio Physic Tempo loudspeakers. I am delighted with the results and quality which are a significant improvement on the original units, the response is smooth, detailed and articulate and power handling is improved by the use of ferro fluid. My order was handled in a friendly yet professional way, altogether a great post Brexit experience.

By Prof. M. J. H. on 19 March 2021
