      SEAS Prestige 22TFF - H1280-06 7/8'' Soft Dome Tweeter

      € 38,80€ 46,95 >10 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only €44,60 per piece
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Highlights

      • Smooth and extended frequency response
      • One-piece Sonomex dome and surround allows for very tight production tolerances and high consistency
      • 90 Watts RMS Power Handling
      • 91 dB 2.83V/1m Sensitivity



      Product details

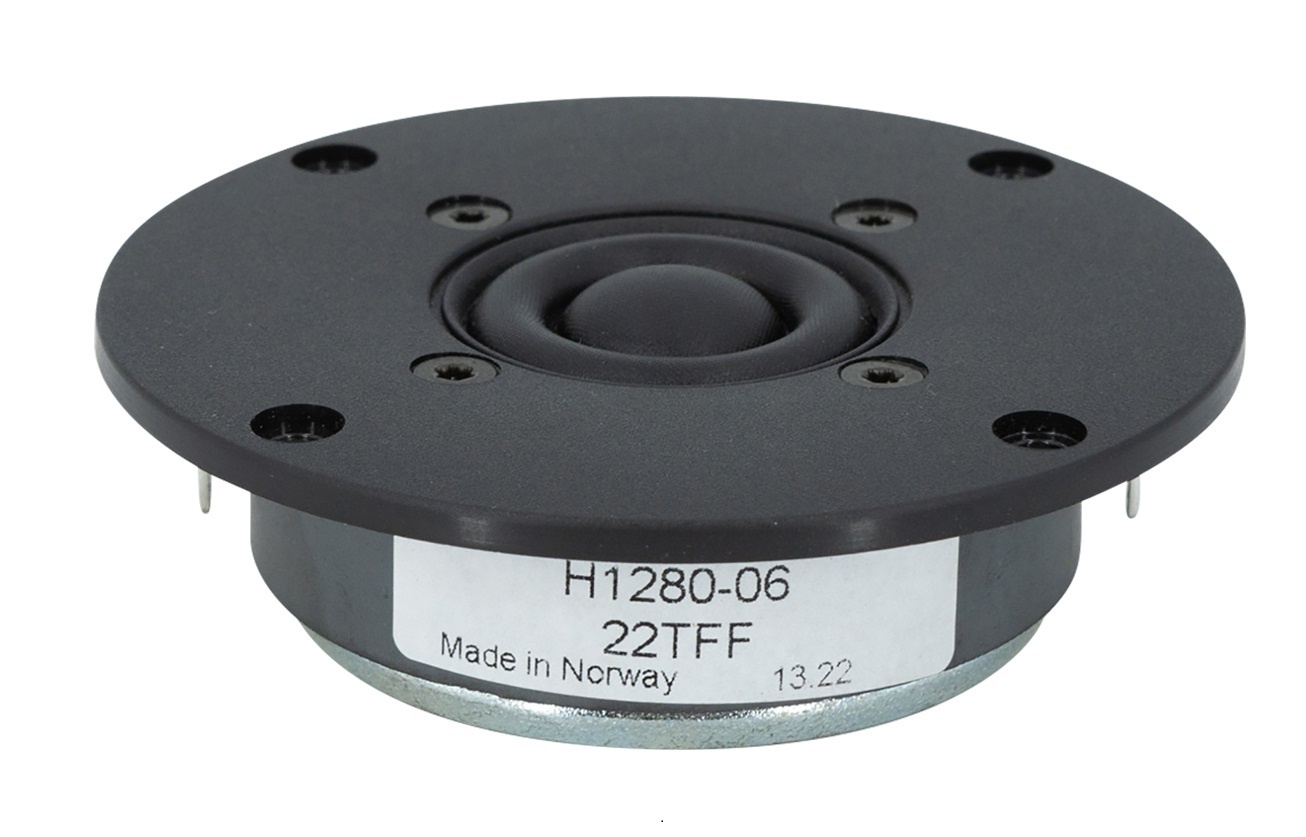

      Seas Prestige 22TFF - H1280-06 7/8'' Soft Dome Tweeter



      The 22TFF is a high definition soft dome tweeter with a wide surround combining the high frequency dispersion of a three-quarter inch dome with the low frequency characteristics of a one-inch dome. One-piece Sonomex dome and surround allows for very tight production tolerances and high consistency, with a smooth and extended frequency response.



      Voice coil windings immersed in magnetic fluid for increased power handling capacity and reduced compression at high power levels. The chassis is molded from a stiff and stable glass fiber reinforced polymer material, and its front design offers optimum radiation conditions. Large ferrite magnet for high efficiency, and good transient response.

      Specifications

      Article number
      22TFF
      Tweeter Type
      Soft Dome
      Tweeter Series
      Prestige Series
      Cone / Dome Diameter
      22 mm | 7/8"
      Power Handling (RMS)
      90 Watts
      Impedance (Z)
      6 Ω
      Sensitivity
      91 dB 2.83V/1m
      Frequency Response
      2,500 to 30,000 Hz
      Resonant Frequency (Fs)
      1,050 Hz
      DC Resistance (Re)
      4.9 ohms
      Voice Coil Inductance (Le)
      0.05 mH
      Overall Outside Diameter
      3.85"
      Cutout Diameter
      3.35"
      Depth
      1.08"
