        Prestige 22TAF/G - H1283 Dome Tweeter

        Prestige 22TAF/G - H1283 Dome Tweeter

        €60,95

        SEAS Prestige 22TAF/G - H1283 Dome Tweeter

        2 reviews
        5 from 5
        2 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: SEAS
        € 50,37€ 60,95 10+ In stock
        • -5% Purchase 4 for only € 57,90 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        Highlights

        • Smooth frequency response
        • Precoated Sonomex surround gives low resonance frequency, high consistency and excellent stability against variations in air humidity
        • 80 Watts RMS Power Handling
        • 92 dB 2.83V/1m Sensitivity



        Product details

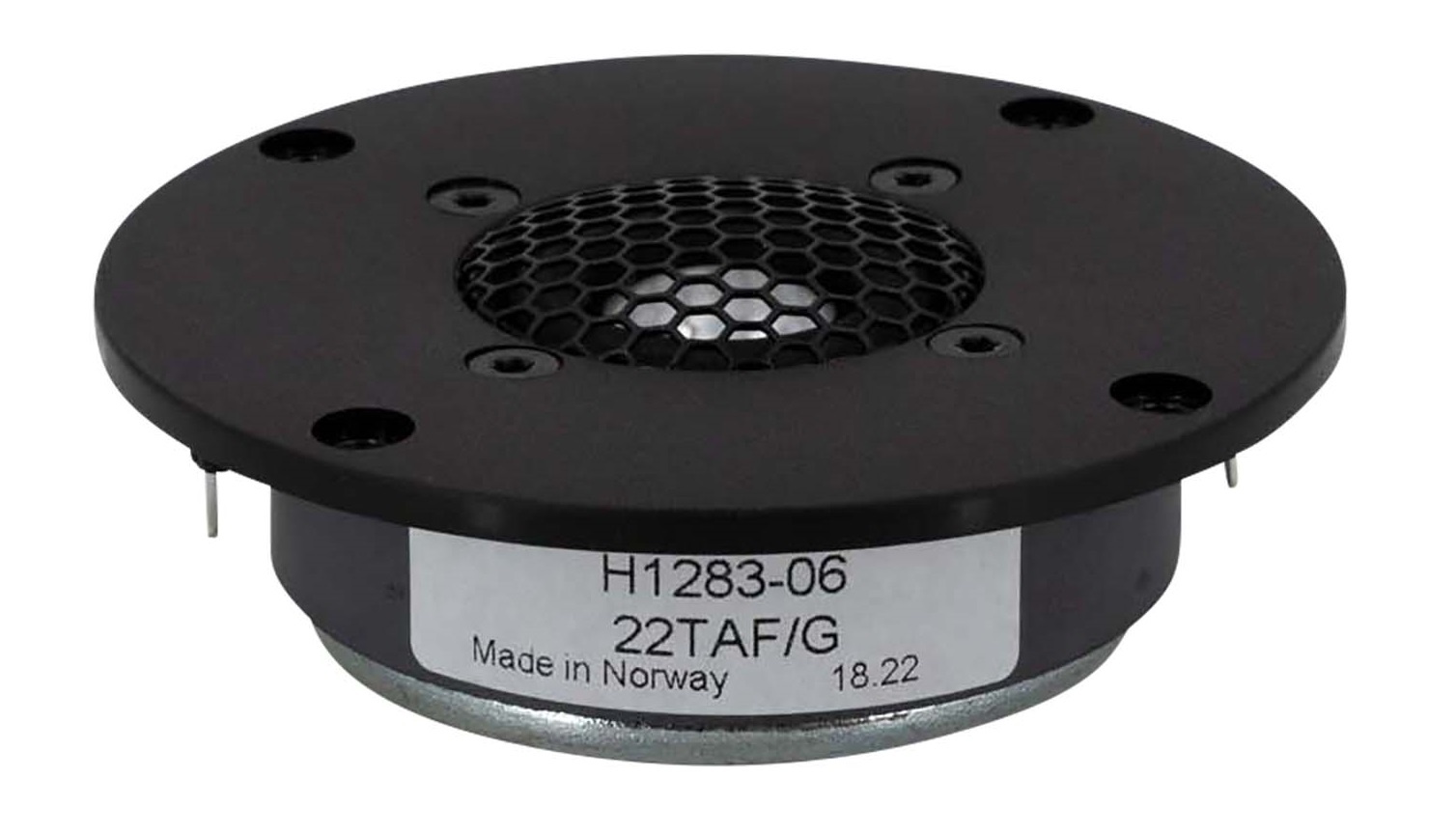

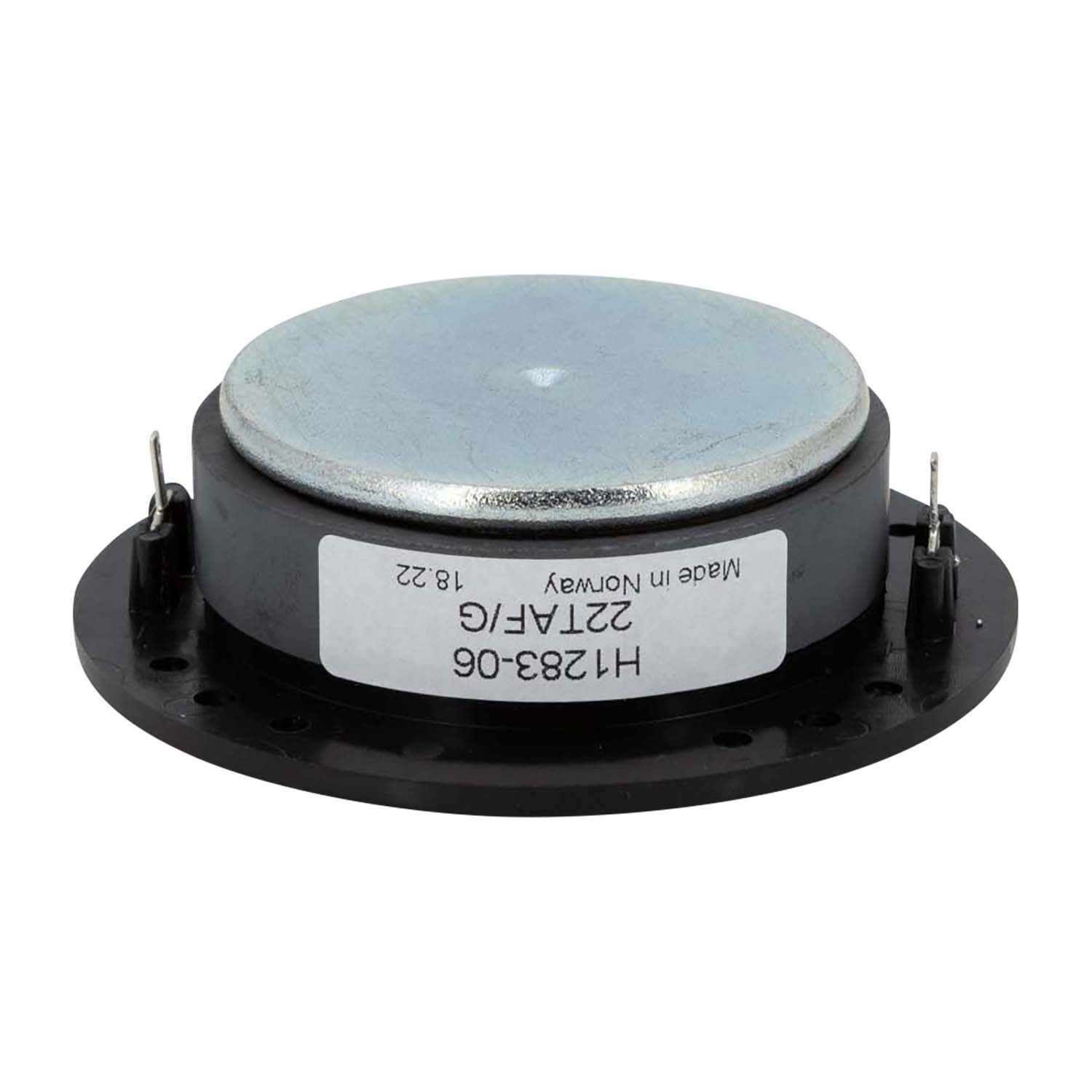

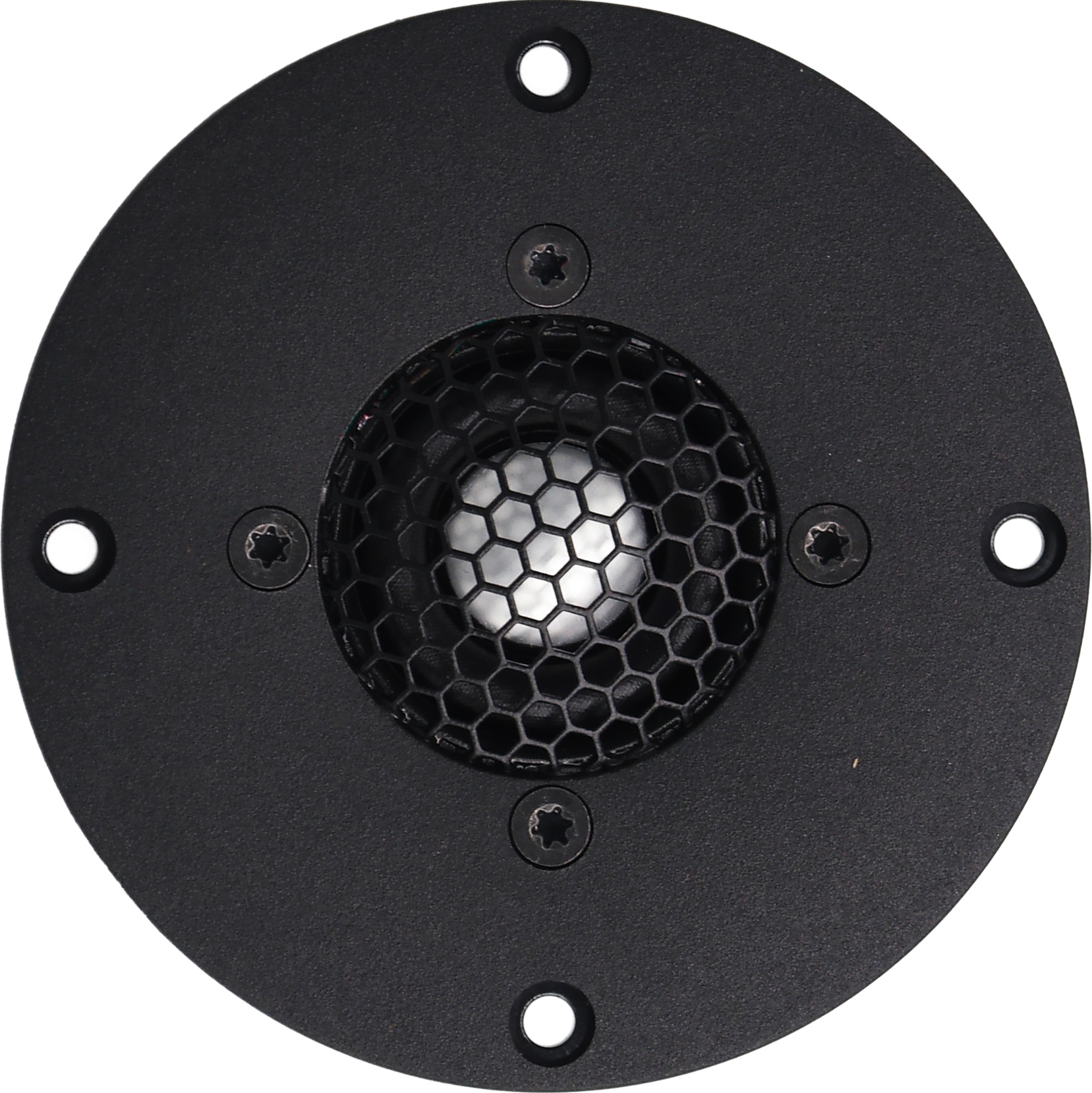

        Seas Prestige 22TAF/G - H1283 7/8'' Aluminum Dome Tweeter



        The 22TAF/G is a high definition metal dome tweeter with wide, coated fabric surround that combines the high frequency behavior of a ¾” dome with the low frequency characteristics of a 1” dome. Aluminum/magnesium dome for low mass and high rigidity and stability, protected by an acoustically open Hexagrid.



        Its precoated Sonomex surround gives low resonance frequency, high consistency and excellent stability against variations in air humidity. Voice coil windings immersed in magnetic fluid increase short term power handling capacity and reduce the compression at high power levels.



        The chassis is molded from a stiff and stable glass fiber reinforced polymer material, and its front design offers optimum radiation conditions. Large ferrite magnet creates high efficiency.

        Show more

        Specifications

        Article number
        22TAF/G
        Tweeter Type
        Metal Dome
        Tweeter Series
        Prestige Series
        Cone / Dome Diameter
        22 mm | 7/8"
        Power Handling (RMS)
        80 Watts
        Impedance (Z)
        6 Ω
        Sensitivity (SPL at 1m / 2.83V)
        92 dB
        Frequency Response
        2,500 to 30,000 Hz
        Resonant Frequency (Fs)
        1100 Hz
        DC Resistance (Re)
        4.9 ohms
        Voice Coil Inductance (Le)
        0.05 mH
        Overall Outside Diameter
        3.85"
        Cutout Diameter
        3.35"
        Depth
        1.08"

        Show more

        5 of 5
        -
        By Michael on 19 November 2023
        5 of 5
        Hele goede tweeter . Combinatie van softdome ophanging en titanium dome. Van Break up heeft deze tweeter weinig last . Helder maar niet te fel !
        By Niko H. on 1 July 2020
