SEAS Prestige 19TFF1 - H0737 3/4" Textile Dome Tweeter

1 reviews

Brand: SEAS

Show all Dome tweeter

Compare

3/4" | 8 Ω

Prestige 19TFF1 - H0737 3/4" Textile Dome Tweeter

€ 33,02€ 39,95 10+ In stock: delivery time 1-4 business days

24h express shipping available
Same day shipping
In-house techniscal support
45 days worry-free returns

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

Highlights

Smooth, extended frequency response
Precoated Sonotex fabric diaphragm and suspension allows a fundamental frequency response of 4,000 to 20,000 Hz
90 Watts RMS Power Handling
88 dB 2.83V/1m Sensitivity

Product details

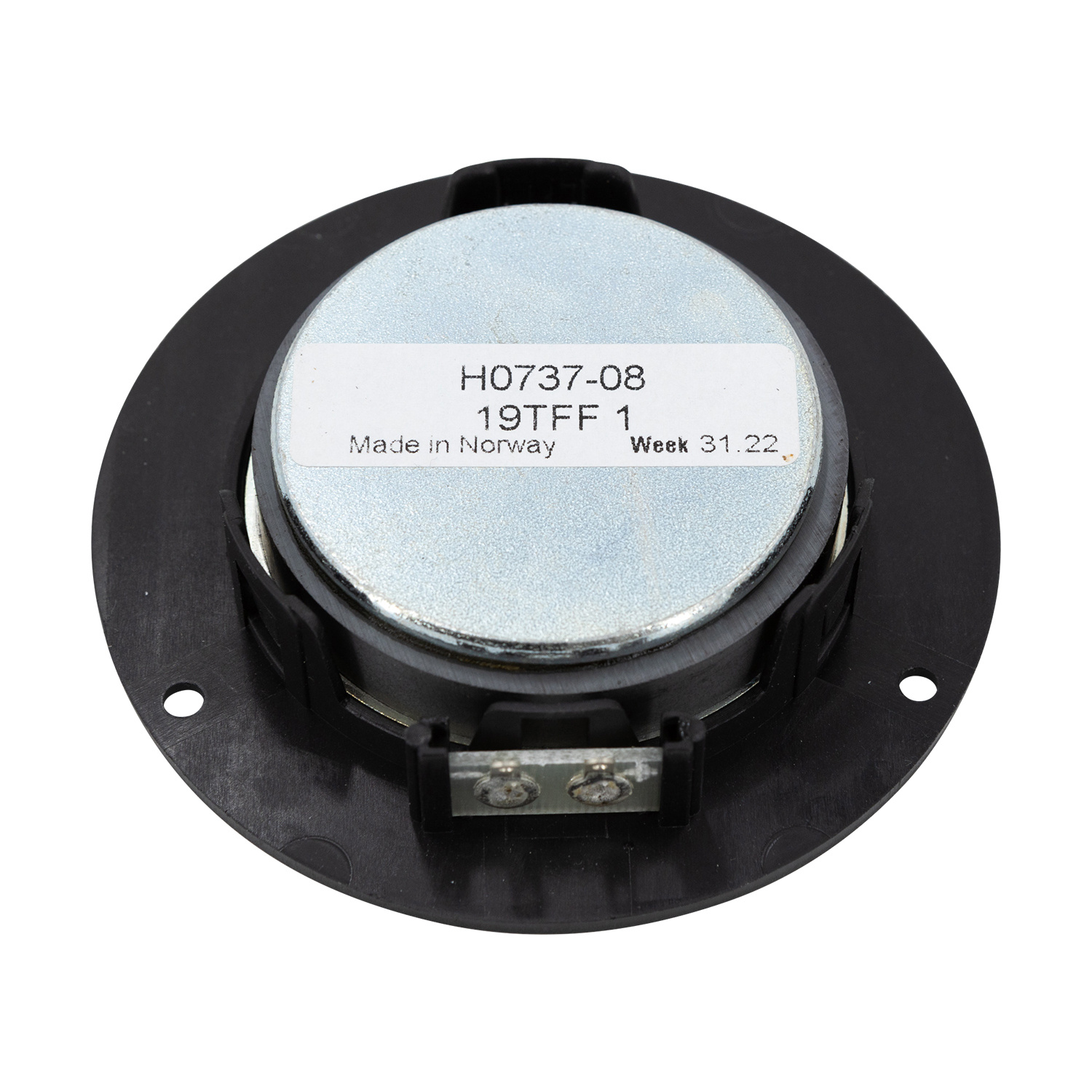

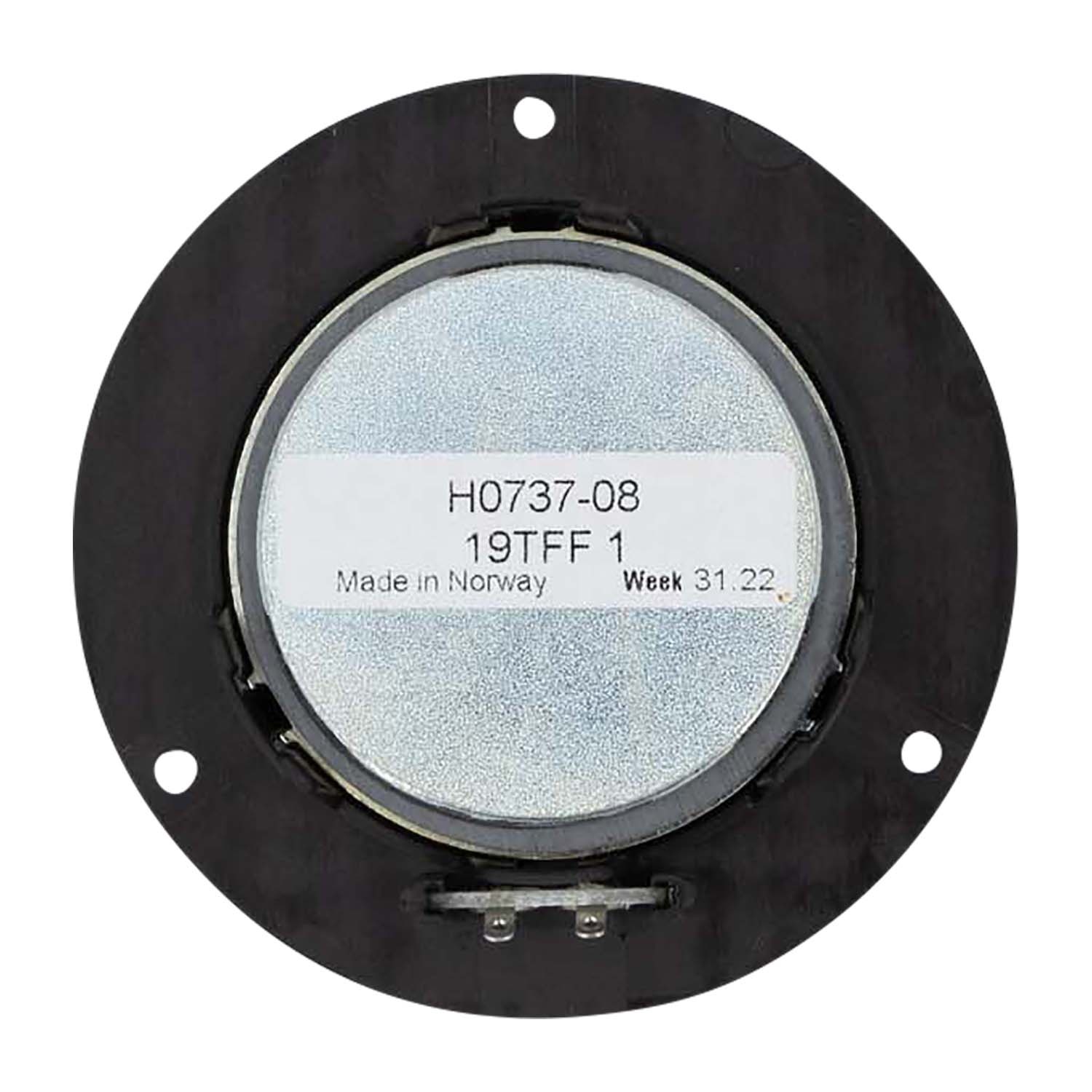

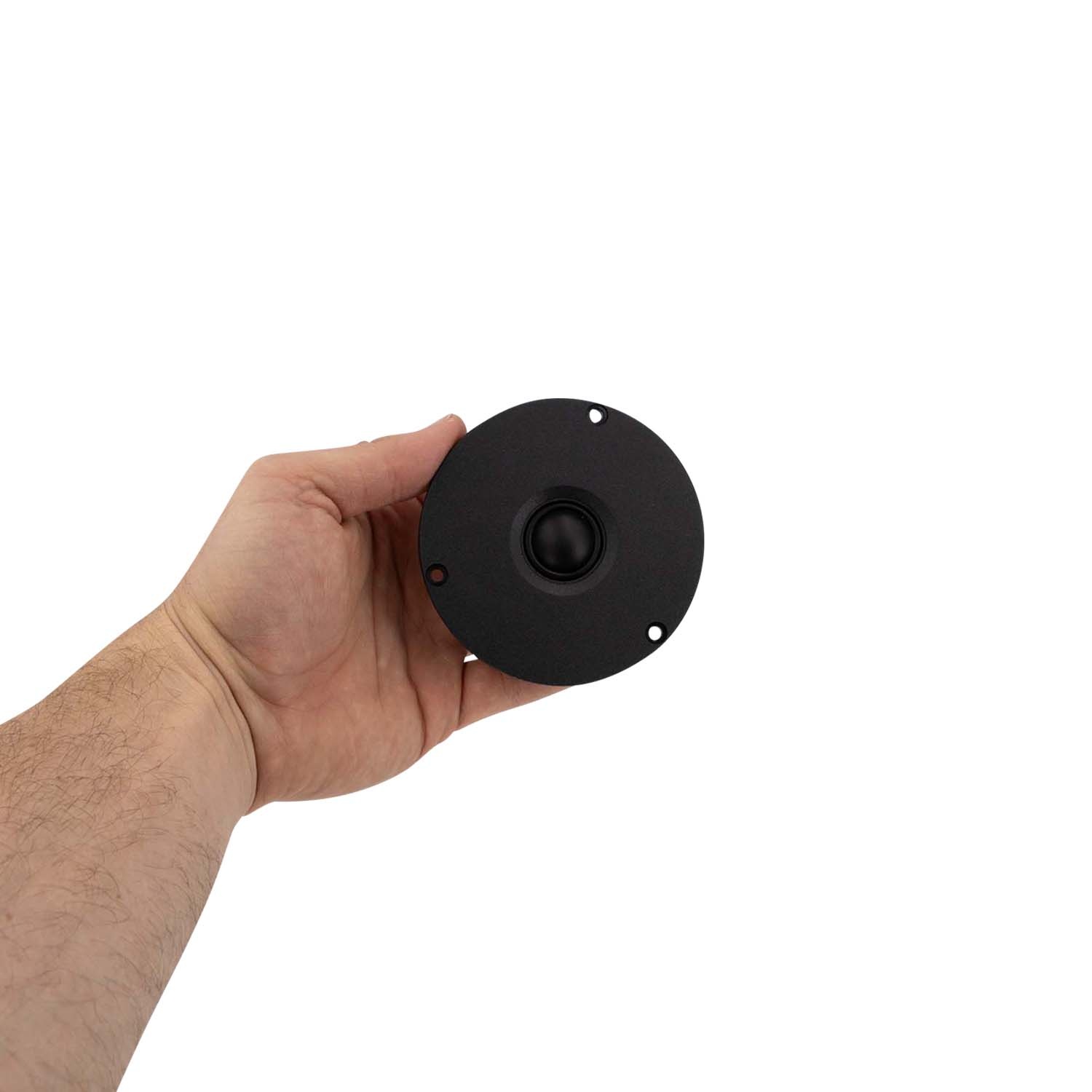

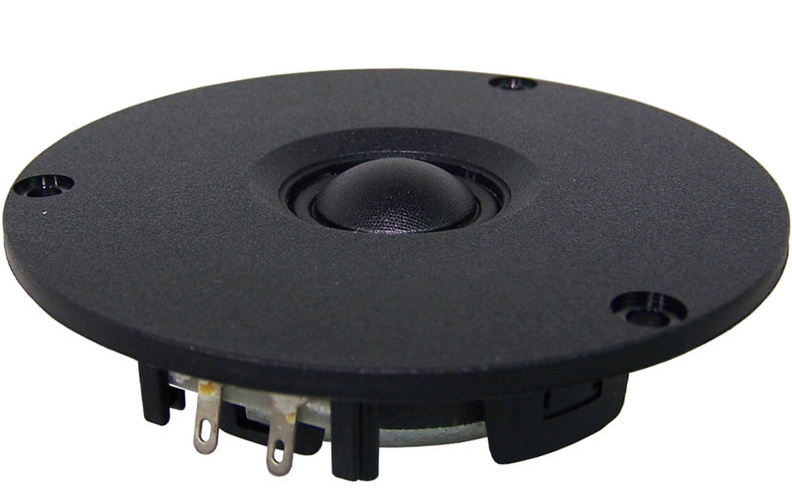

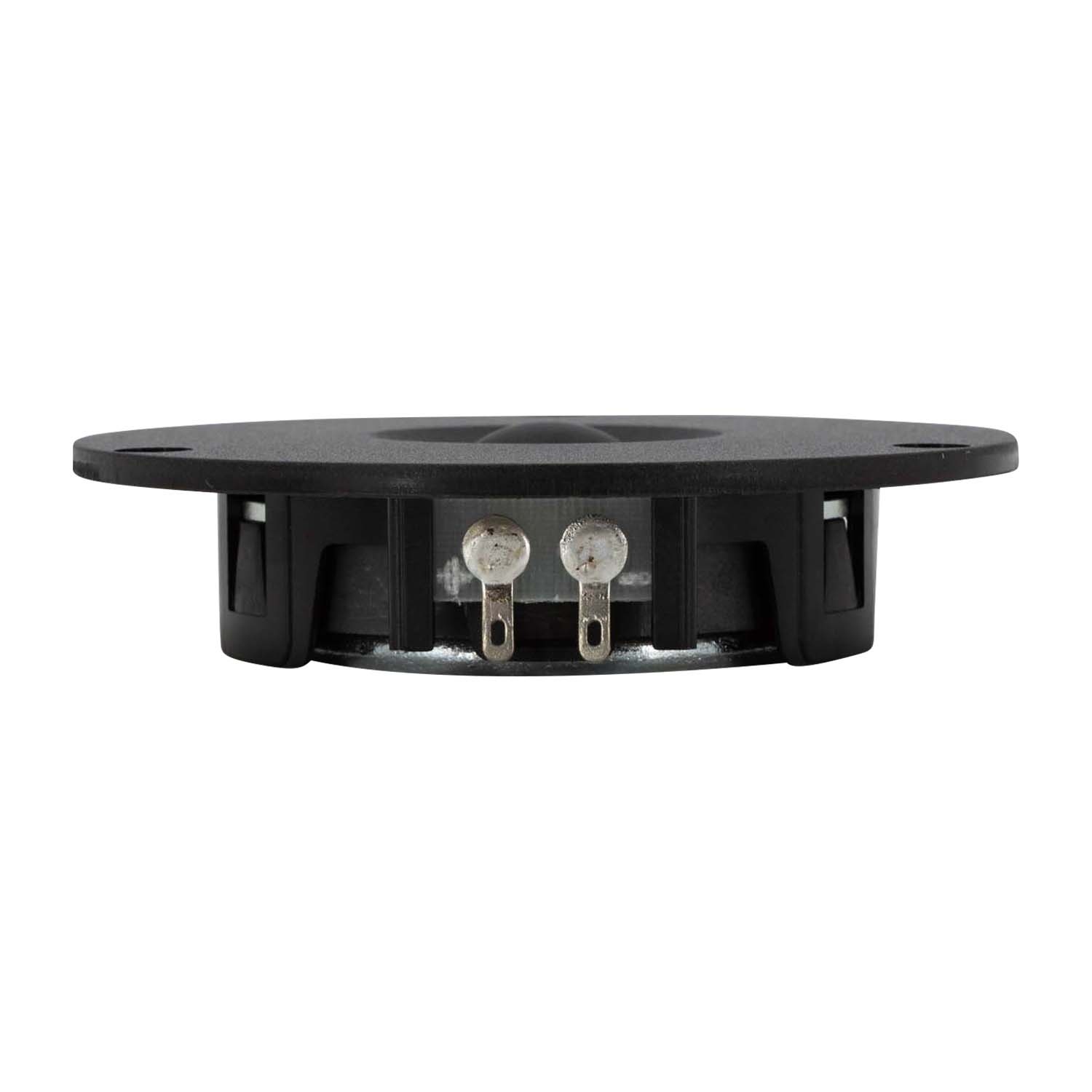

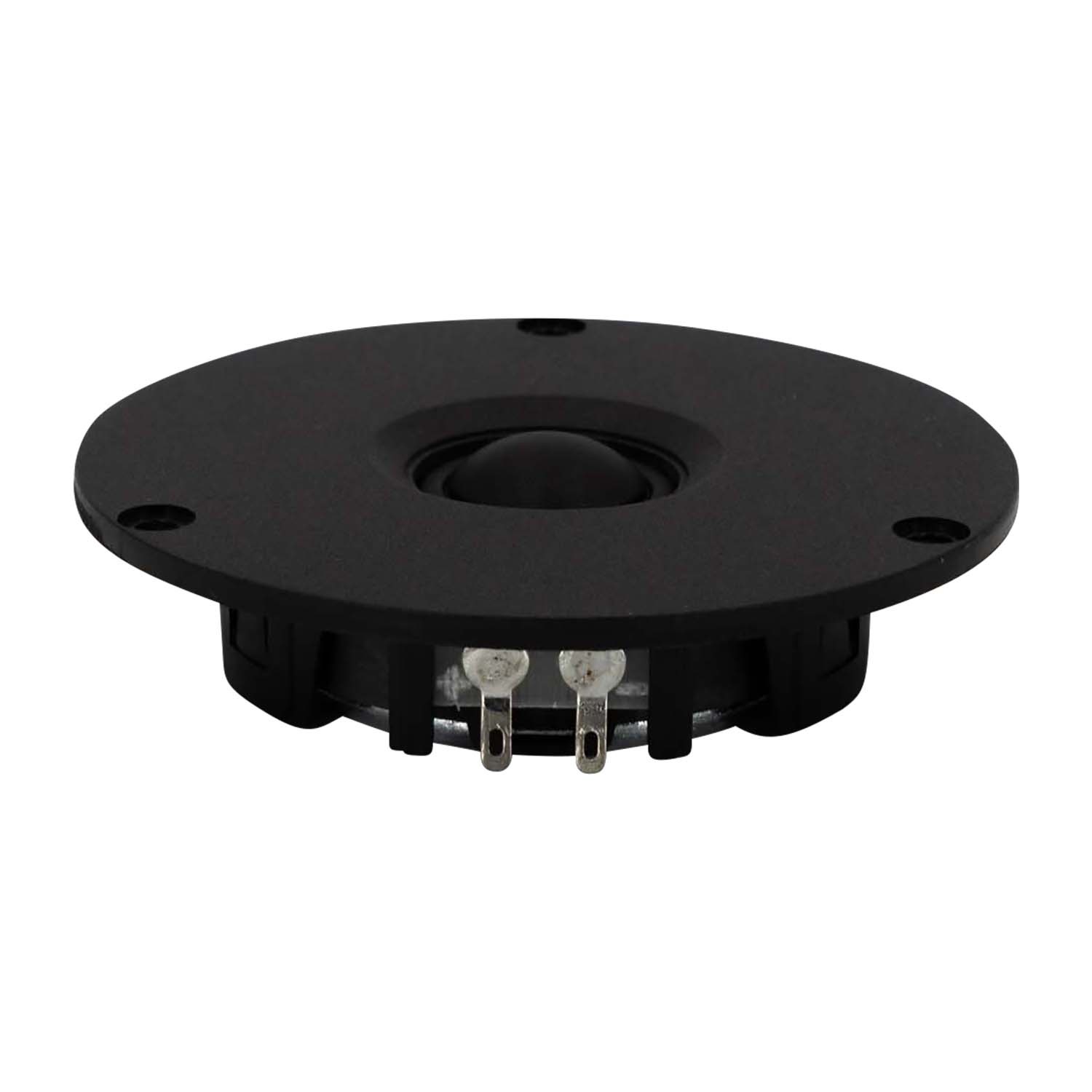

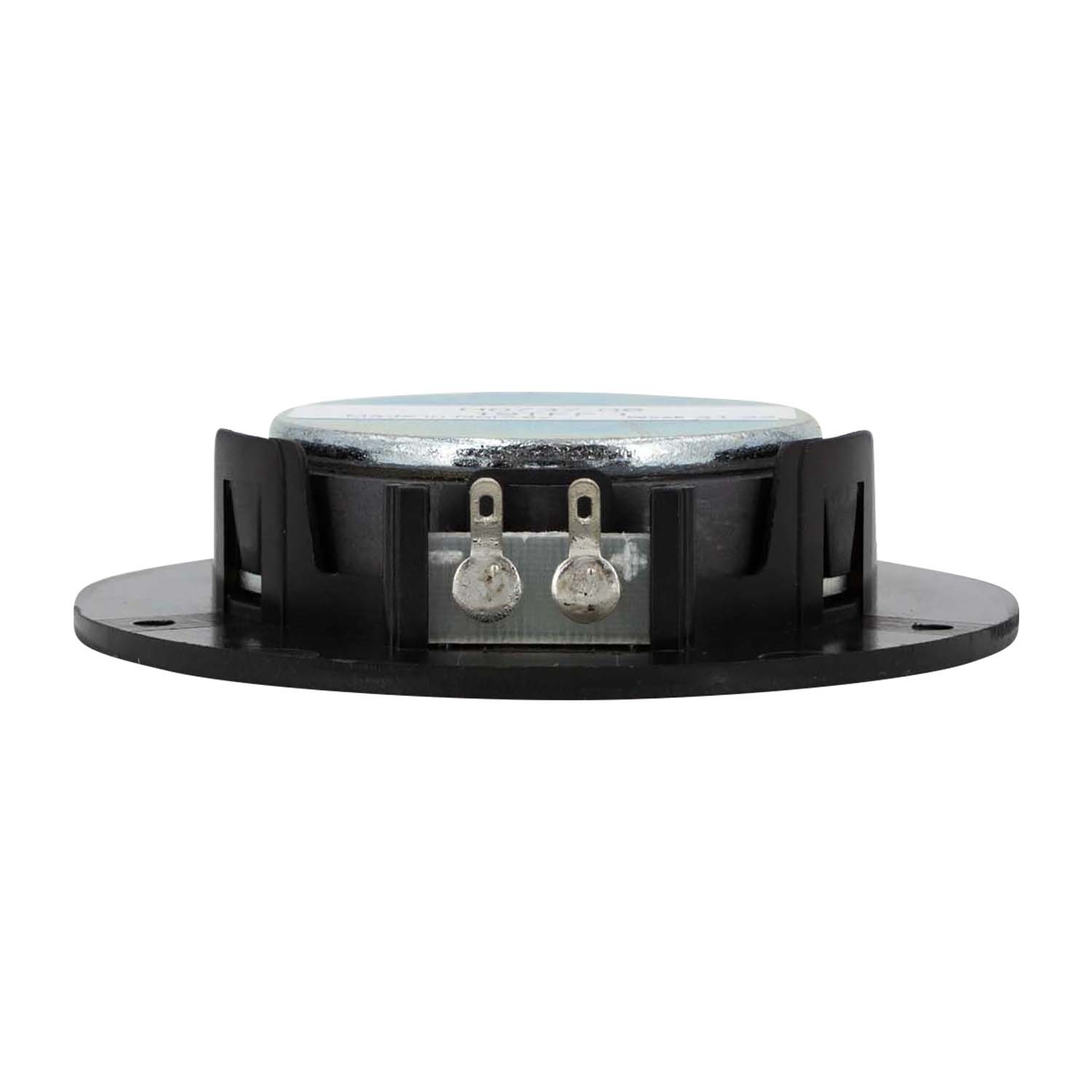

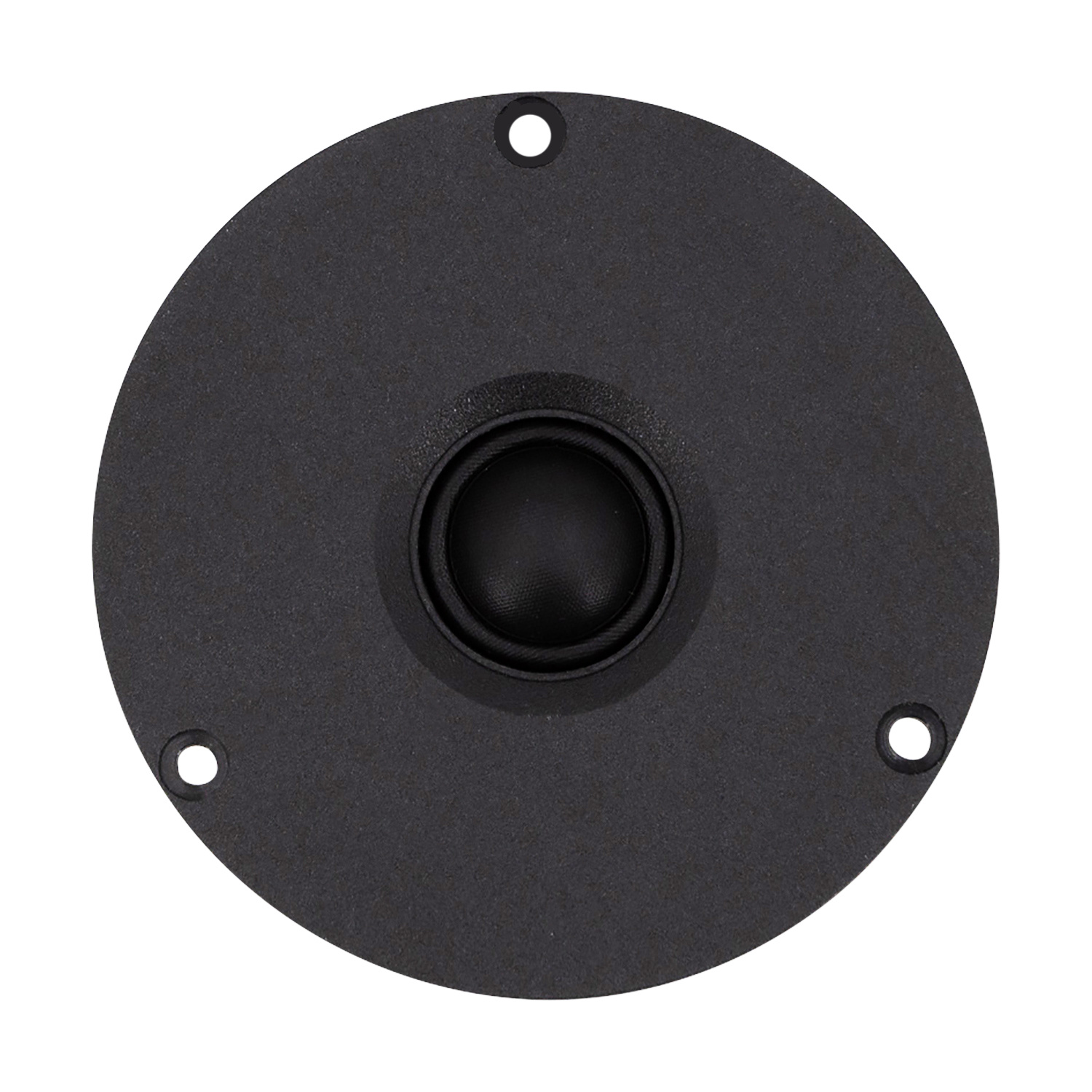

Seas Prestige 19TFF1 - H0737 3/4" Textile Dome Tweeter

19mm High Fidelity dome tweeter with extremely smooth and extended frequency response. Precoated Sonotex fabric diaphragm and suspension allows for very tight production tolerances and high consistency.

Injection molded chassis in high grade glass fiber reinforced plastic keeps the moving parts in perfect alignment and provides good coupling to the cabinet. Voice coil windings immersed in magnetic fluid increase short term power handling capacity and reduce the compression at high power levels.

Specifications

Article number: 19TFF1
Tweeter Type: Textile Dome
Tweeter Series: Prestige Series
Cone / Dome Diameter: 19 mm | 3/4"
Power Handling (RMS): 90 Watts
Power Handling (max): 90 Watts
Impedance (Z): 8 Ω
Sensitivity: 88 dB 2.83V/1m
Frequency Response: 4,000 to 20,000 Hz
Resonant Frequency (Fs): 1,700 Hz
DC Resistance (Re): 6.2 ohms
Voice Coil Inductance (Le): 0.05 mH
Overall Outside Diameter: 3.69"
Cutout Diameter: 2.62"
Depth: 0.83"

Data sheet

Reviews

1 reviews

5 from 5Based on 1 reviews

Review this product

5 of 5

This tweeter is great value for money. Not only the frequency response is smooth, but also the sound of it, with no sense of harshness. I have bought a pair of these as replacements for the original ones in a set of Mission 761 speakers. Together with the HiVi D6.8B mid/woofer, they are a good match for my first DIY project of (re)building my own speakers. It would be great, if there were more info on the model, like the T/S parameters Qes, Qms and Vas.

By Allex on 17 April 2019
