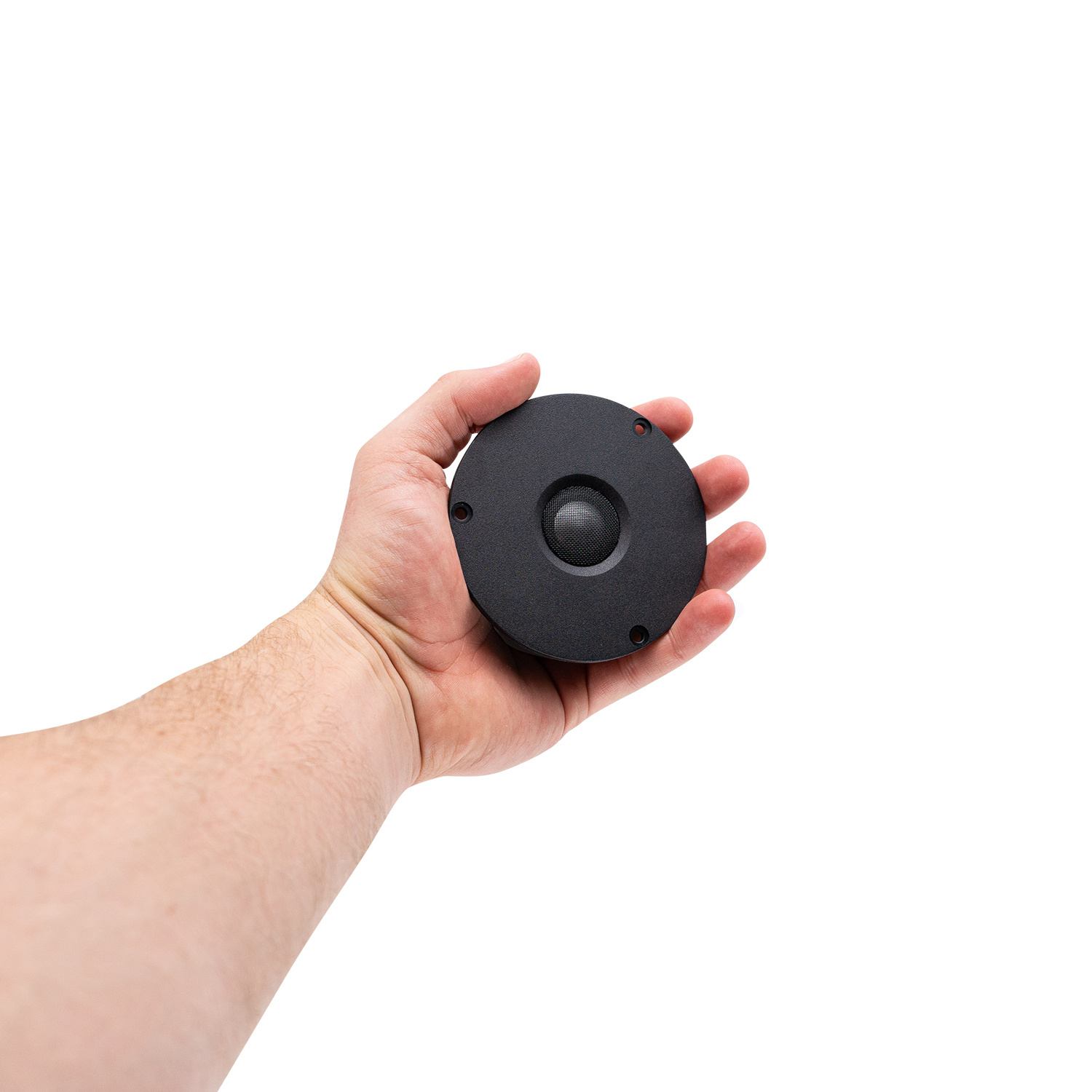

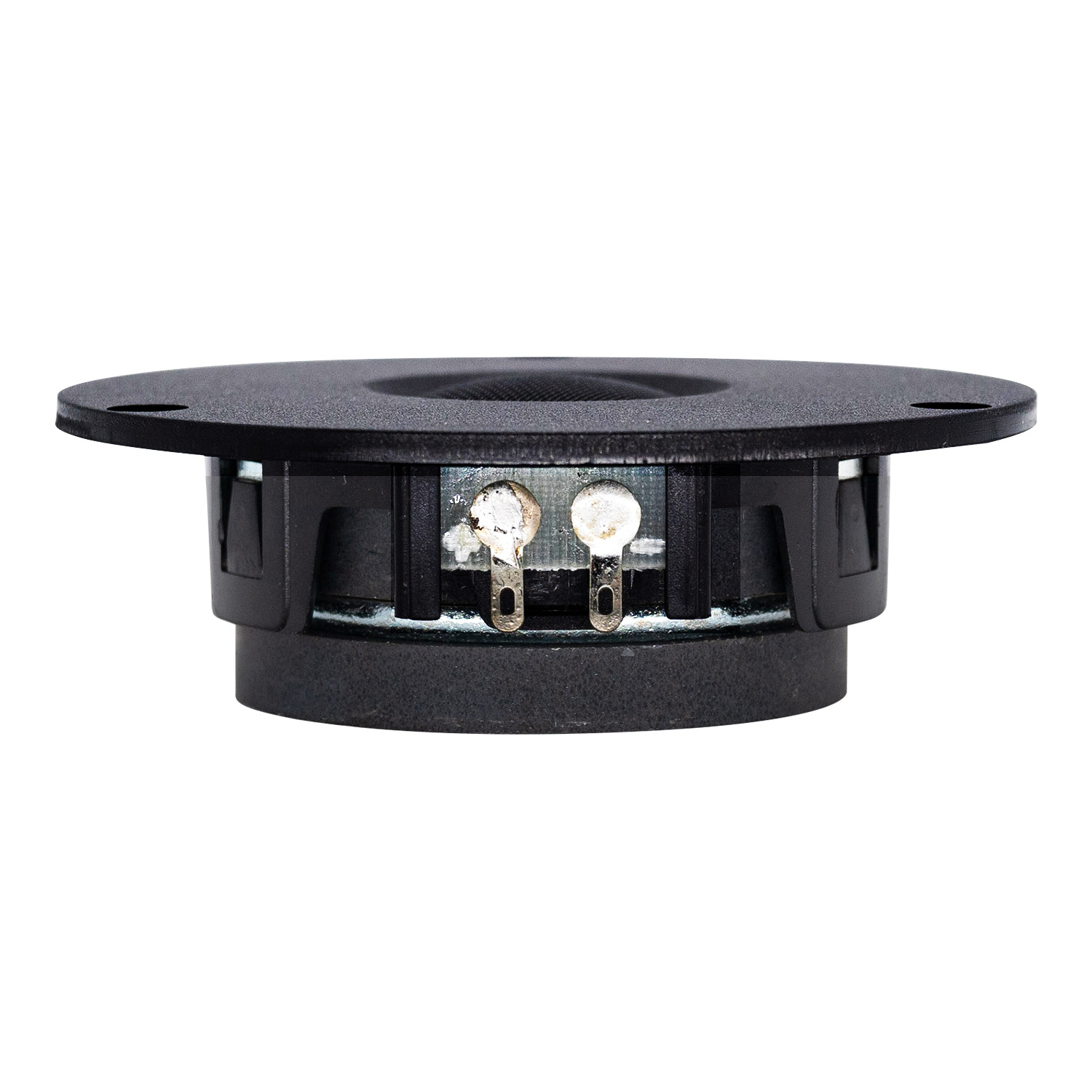

        Prestige 19TAFD/G - H0532-8 Dome Tweeter

        SEAS Prestige 19TAFD/G - H0532-8 Dome Tweeter

        €62,95

        10+ In stock

        SEAS Prestige 19TAFD/G - H0532-8 Dome Tweeter

        16 reviews
        5 from 5
        16 reviews
        5 stars
        88%
        4 stars
        6%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: SEAS
        € 52,02€ 62,95 10+ In stock
        • -5% Purchase 4 for only € 59,80 per piece

        Buy now, pay later

        • We ship to
        • Same day shipping
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description SEAS Prestige 19TAFD/G - H0532-8 Dome Tweeter

        Highlights

        • Smooth, extended frequency response.
        • Specially designed soft Sonotex surround which allows a low fundamental frequency (4,000 to 20,000 Hz)
        • 90 Watts RMS Power Handling
        • 88 dB 2.83V/1m Sensitivity



        Product details
        Seas Prestige 19TAFD/G - H0532-8 3/4" Aluminum Dome Tweeter



        19mm High Fidelity dome tweeter with smooth, extended frequency response. Aluminum diaphragm suspended by a specially designed soft Sonotex surround which allows a low fundamental frequency.



        Double magnet reduces stray fi elds around the magnet system and allows the unit to be used in close proximity to a CRT. The double magnet also gives a higher sensitivity. Fine mesh grid protects the diaphragm and carries a phase plate which compensates for a slight axial roll off towards 20 kHz.



        Voice coil windings immersed in magnetic fl uid increase short term power handling capacity and reduce the compression at high power levels.

        Show more

        Specifications

        Article number
        19TAFD/G
        EAN
        0696277269709
        Tweeter Type
        Aluminum Dome
        Tweeter Series
        Prestige Series
        Cone / Dome Diameter
        19 mm | 3/4"
        Power Handling (RMS)
        90 Watts
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        88 dB
        Frequency Response
        4,000 to 20,000 Hz
        Resonant Frequency (Fs)
        1700 Hz
        DC Resistance (Re)
        6.20 ohms
        Voice Coil Inductance (Le)
        0.05 mH
        Overall Outside Diameter
        3.69"
        Cutout Diameter
        2.62"
        Depth
        1.23"

        Show more

        5 of 5
        -
        By Szymon on 21 September 2025
        1 of 5
        I found the tweeters sensitivity to be very low, so its kind of useless to me unfortunately
        By fredrik on 22 August 2025
