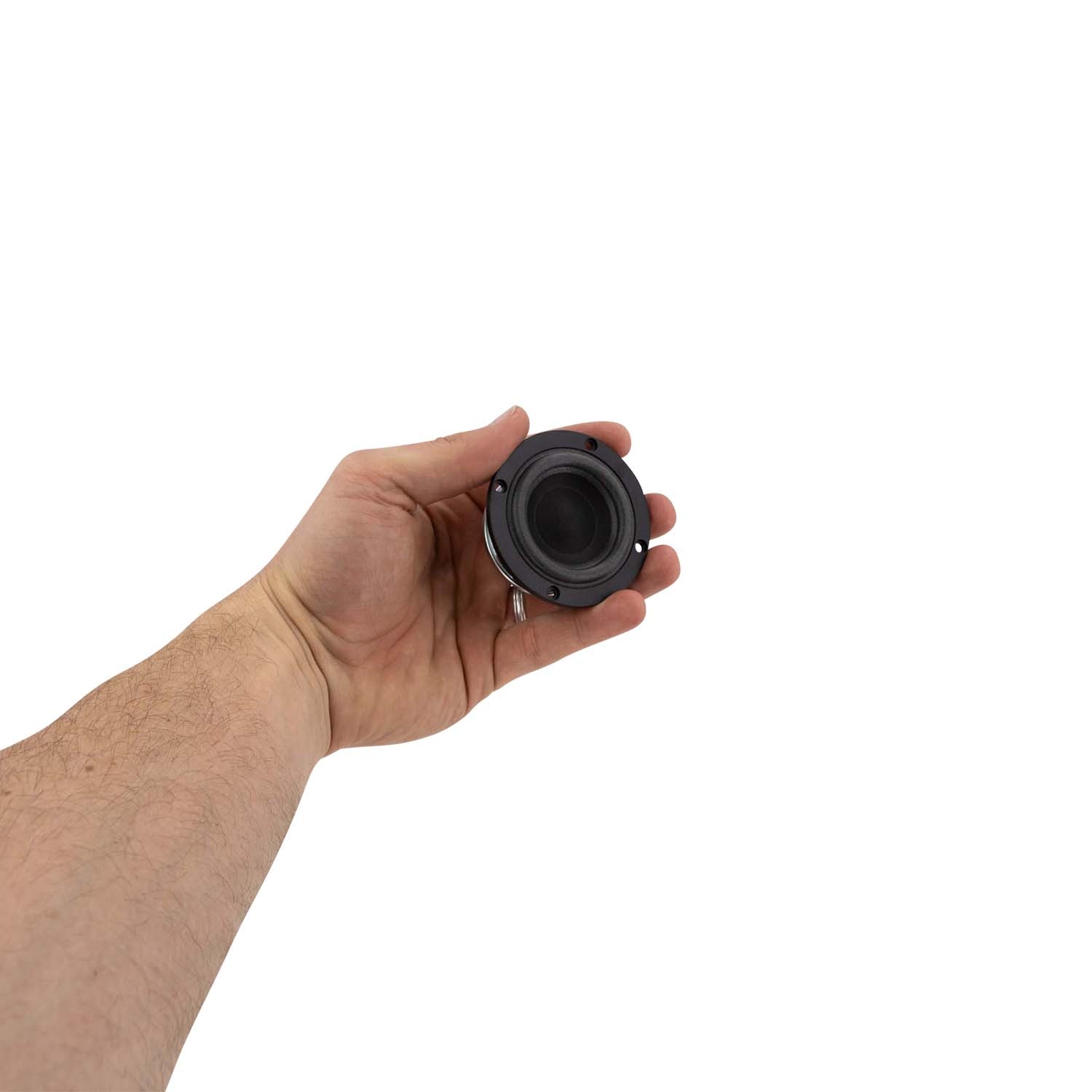

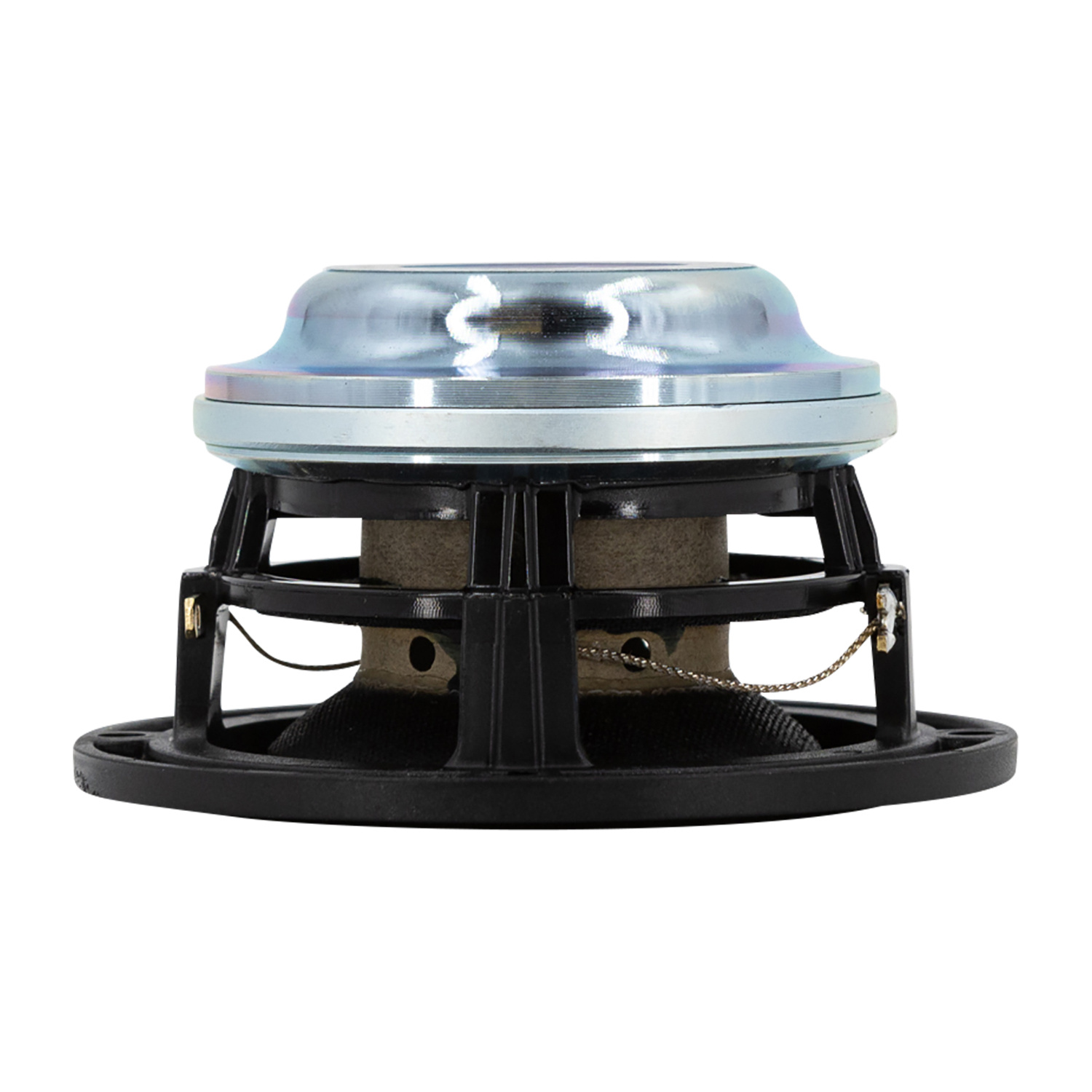

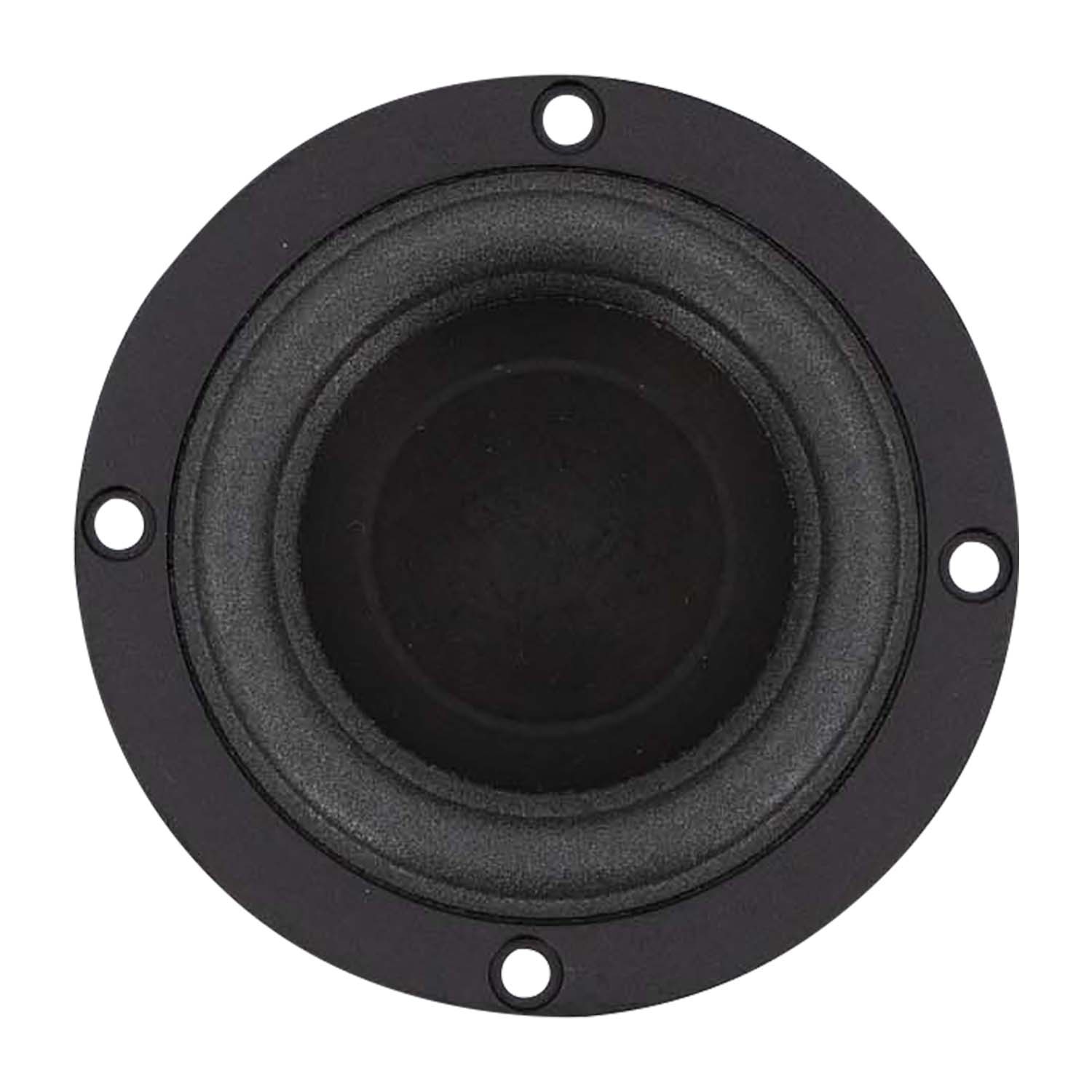

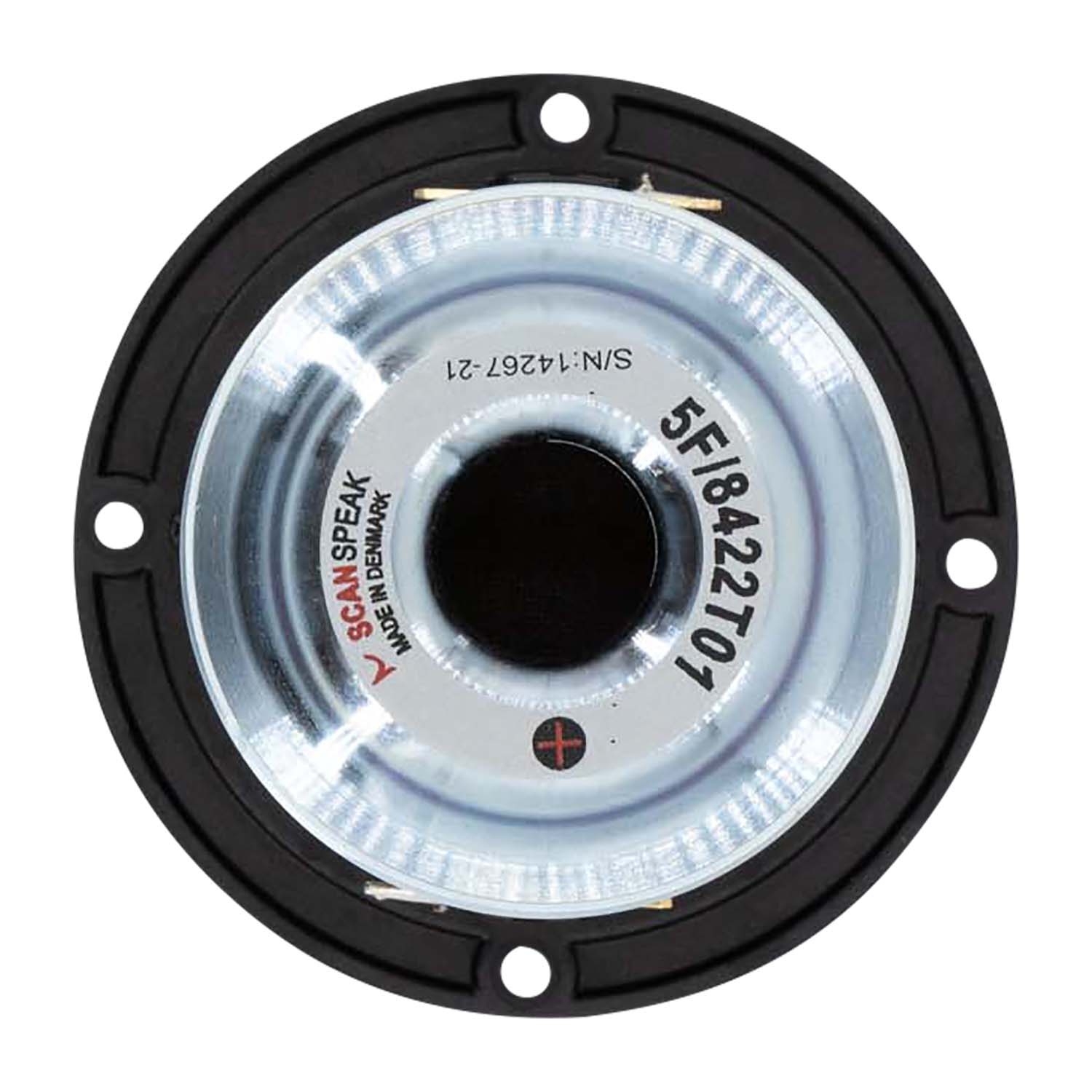

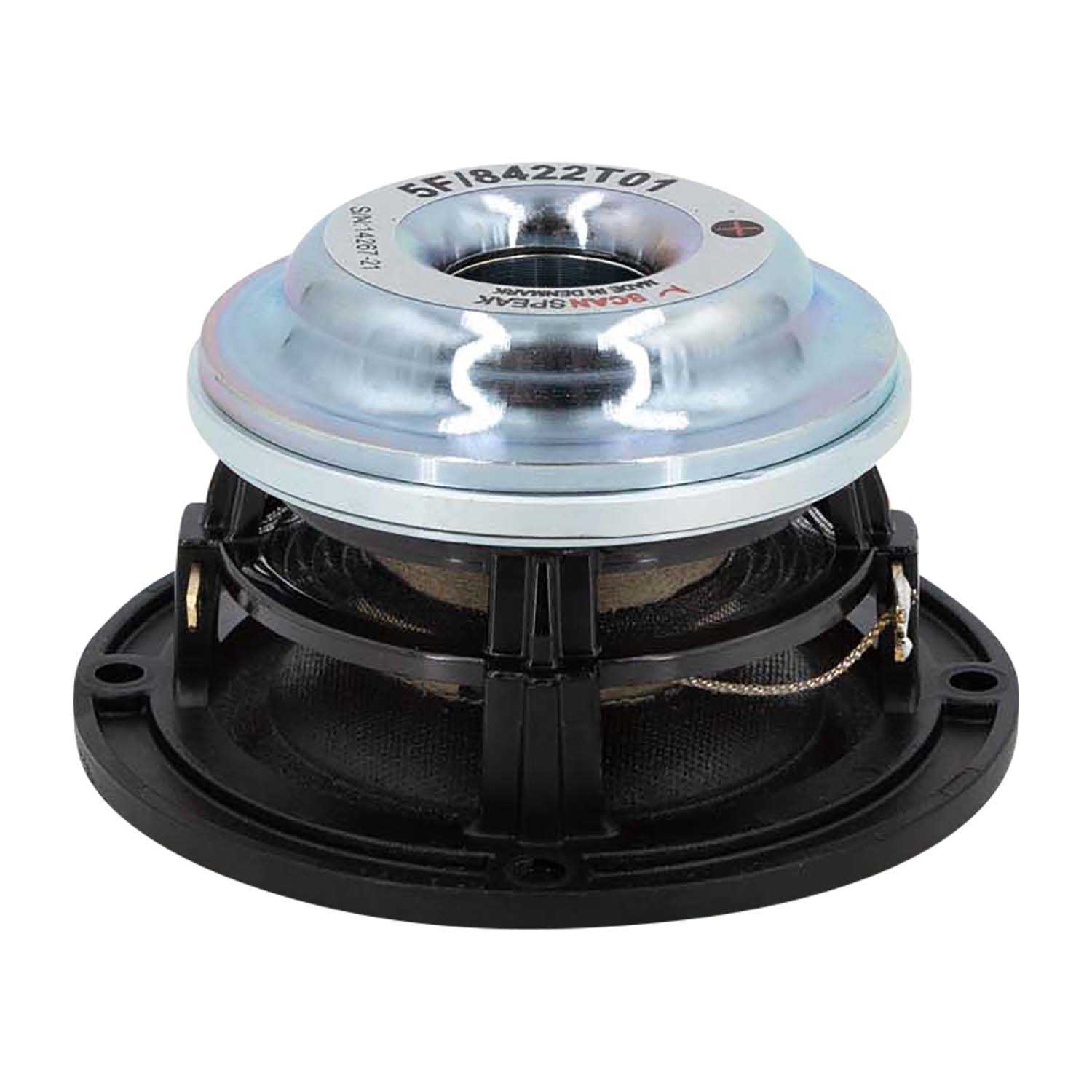

Scan-Speak 5F/8422T01 2'' Full Range Driver

2 reviews

Brand: Scan-Speak

Show all Full-range woofer

Compare

2" | 8 Ω

€ 53,68€ 64,95 2 In stock: delivery time 1-4 business days

24h express shipping available
Same day shipping
In-house techniscal support
45 days worry-free returns

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

Highlights

Powerful Neo Ring Motor, Symmetric Drive
1" Voice Coil, Ti Former, European Soft Parts
Paper Cone, Foam Surround, Long Excursion
Large Pole Piece Vent, Low Distortion
Wide Frequency Range
Extended Copper Cap on Pole Piece

Product details

Scan-Speak 5F/8422T01 2'' Full Range Driver

The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements - plus a wealth of technical features and finesses - gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point! The Scan-Speak 5F/8422T01 Full Range Driver boasts all the good stuff that you are used to seeing when looking at a Scan-Speak driver. A powerful motor, well designed soft parts and low distortion.

Specifications

Article number: 5F/8422T01
Woofer Series: Discovery Series
Woofer Type: Full-range
Nominal Diameter: 2"
Power Handling (RMS): 10 Watts
Power Handling (max): 20 Watts
Impedance (Z): 8 ohms
Sensitivity: 80 dB 2.83V/1m
Frequency Response: 100 to 20,000 Hz
Voice Coil Diameter: 1"
DC Resistance (Re): 6.0 ohms
Voice Coil Inductance (Le): 0.07 mH
Resonant Frequency (Fs): 93 Hz
Mechanical Q (Qms): 5.17
Electromagnetic Q (Qes): 0.69
Total Q (Qts): 0.61
Diaphragm Mass Inc. Airload (Mms): 1.86g
Mechanical Compliance of Suspension (Cms): 1.58 mm/N
Surface Area of Cone (Sd): 15.2 cm²
BL Product (BL): 3.07 Tm
Compliance Equivalent Volume (Vas): 0.02 ft.³
Maximum Linear Excursion (Xmax): 2 mm
Driver's Mechanical Losses (Rms): 0.21 kg/s
Cone / Diaphragm Material: Paper
Surround Material: Foam
Voice Coil Former: Titanium
Dual Voice Coil: No
Basket / Frame Material: Aluminum
Magnet Material: Neodymium
Shielded: No
Overall Outside Diameter: 2.64''
Overall Depth: 1.30''
Baffle Cutout Diameter: 2.11''
Bolt Circle Diameter: 2.38''
# Mounting Holes: 4
Mounting Hole Diameter: 0.13''

Data sheet

Reviews

2 reviews

5 from 5Based on 2 reviews

Review this product

4 of 5

Sounds incredibly full for such a tiny speaker! The foam surround could be an issue but still its very high quality foam, it will last quite a while. One thing I have to complaint is, that the basket is made out of plastic not that it would bad but if you try to solder the wires on the terminal, the plastic will melt veeery quickly, the plastic is pretty soft too so be careful with that. Also what has happened is that the magnet has come loose! I really am very careful with my speakers but this is the second time this ever happened to me. But no problem, I glued it carefully back, still is fine. Overall opinion: Very full bodied sound, balanced, great excursion, simply Scan-Speak sound. But its very fragile, it can break easily, however builtquality is great.

By GIZMO320 on 23 January 2021

5 of 5

Koper heeft geen omschrijving achtergelaten.

By Derk Jan R. on 13 March 2020
