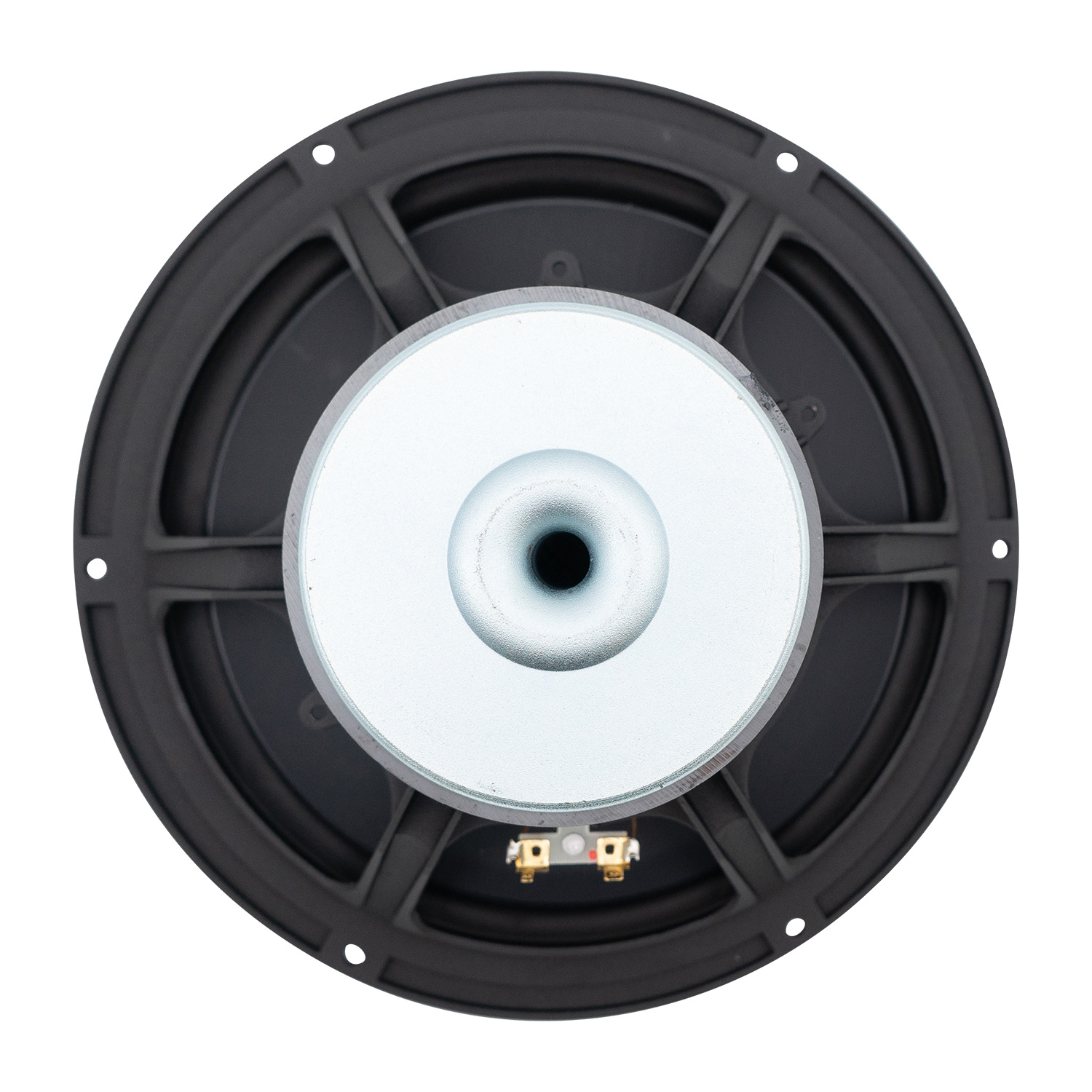

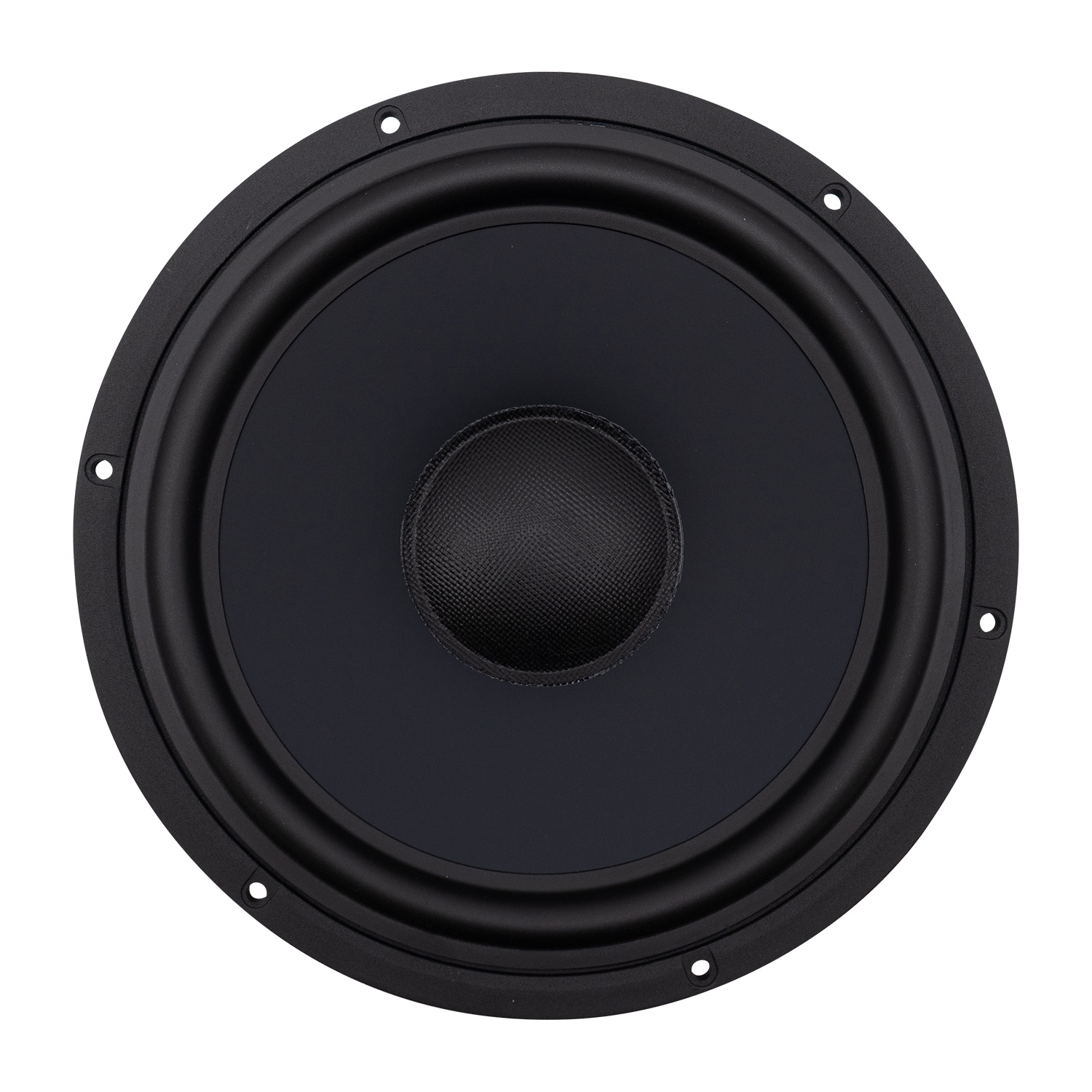

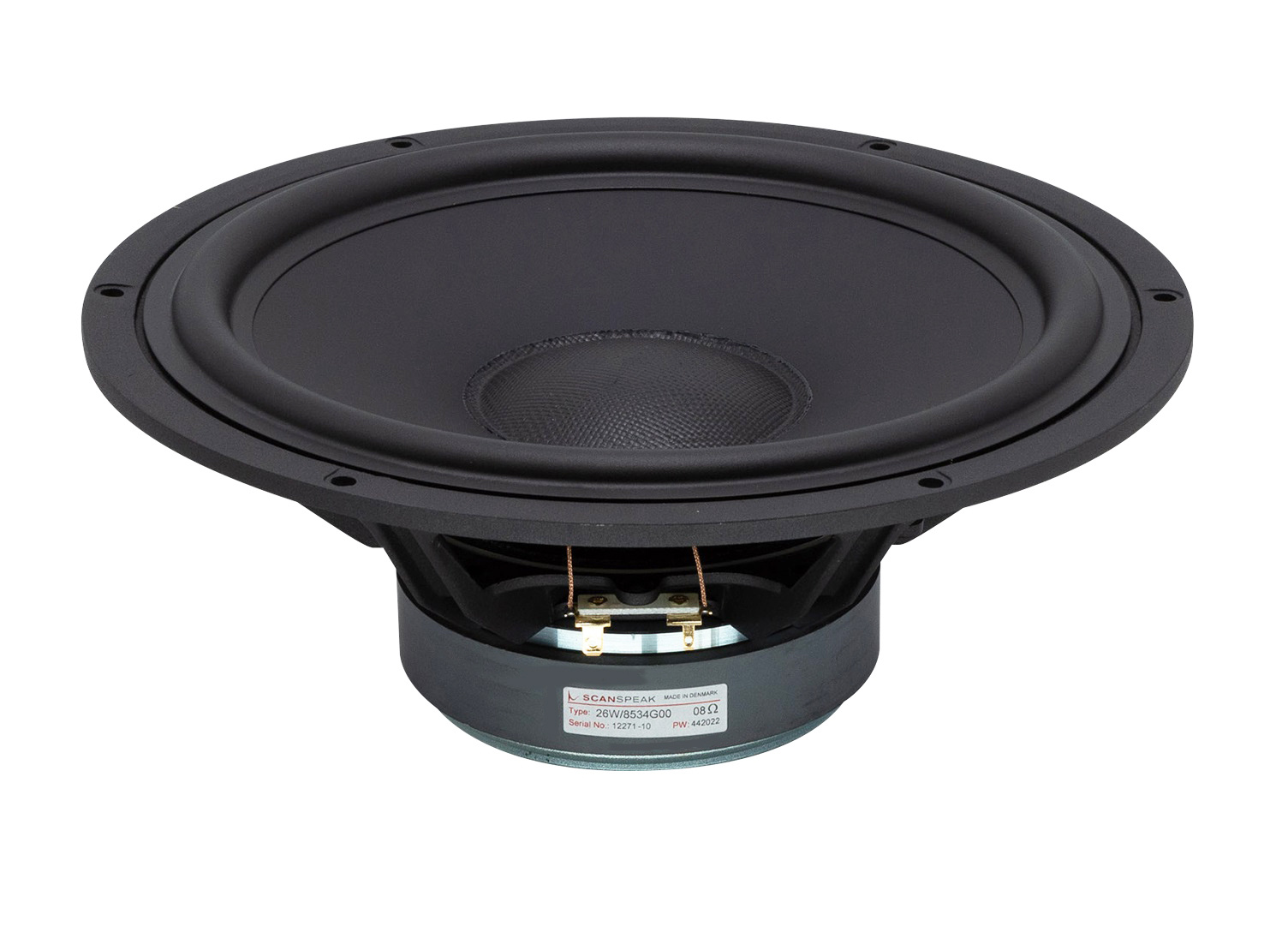

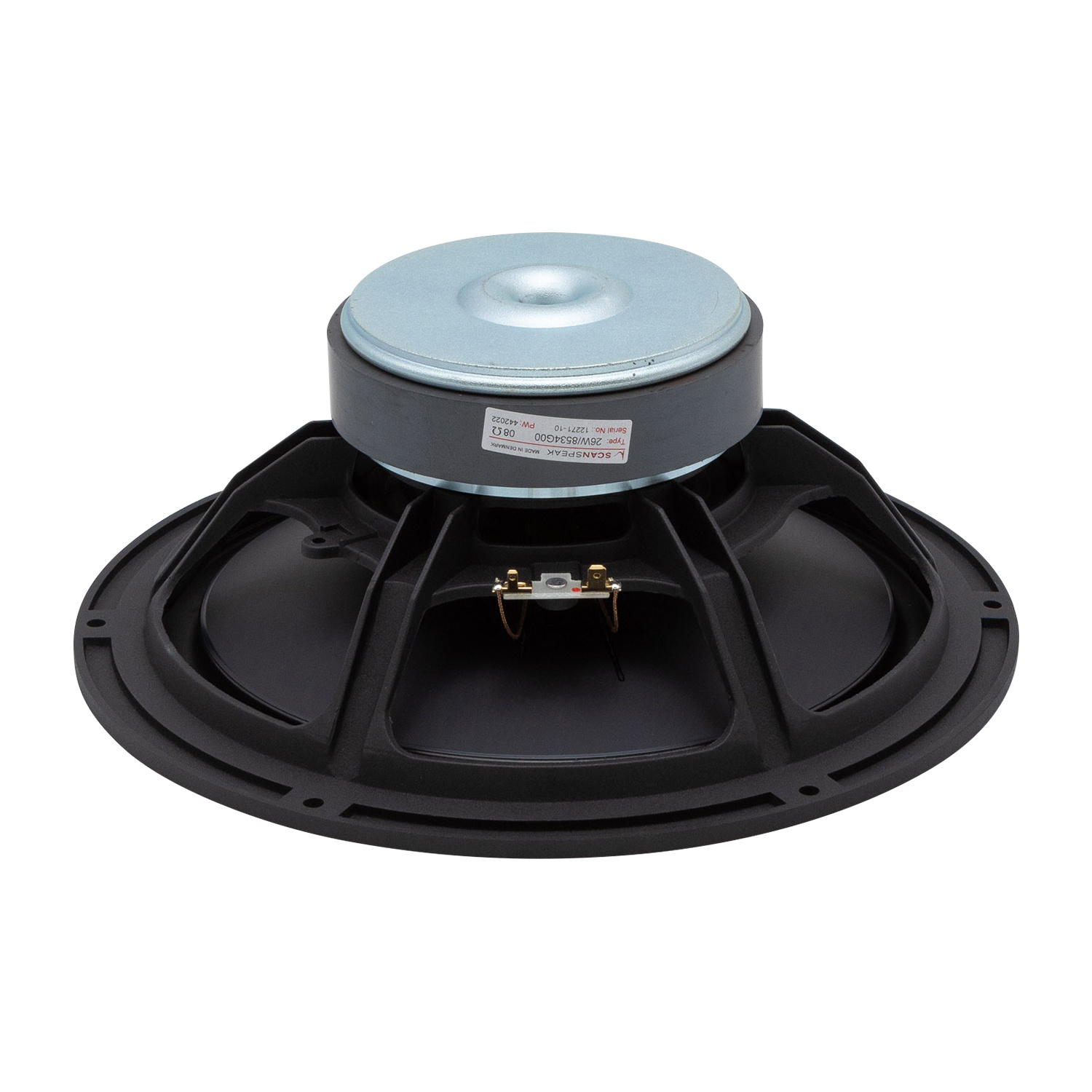

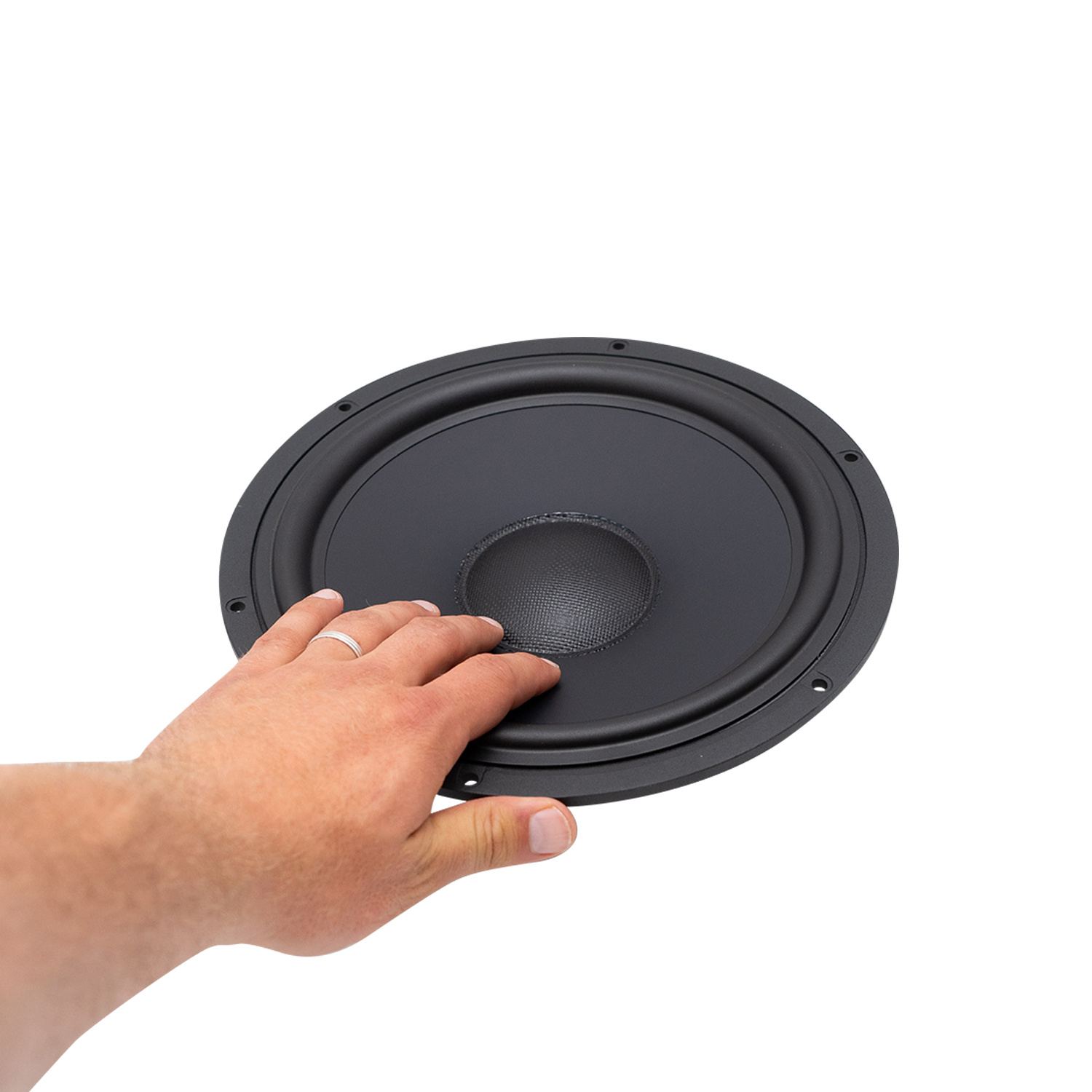

      Scan-Speak Discovery 26W/8534G00 10" Woofer 8 Ohm

      € 115,66€ 139,95 1 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only €132,95 per piece
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Highlights

      • Black anodized aluminum cone
      • Magnet system with aluminum Ring
      • Die cast aluminum chassis vented below spider
      • Low resonance Frequency of 23 Hz
      • Coated fiberglass dust cap



      Product details

      Scan-Speak Discovery 26W/8534G00 10" Woofer



      The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements - plus a wealth of technical features and finesses - it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point!

      Specifications

      Article number
      26W/8534G00
      Woofer Series
      Discovery Series
      Woofer Type
      Woofer
      Nominal Diameter
      10"
      Power Handling (RMS)
      80 watts
      Power Handling (max)
      150 watts
      Continuous Program Power
      -
      Impedance (Z)
      8 ohms
      Sensitivity
      89 dB (2.83V/1m)
      Frequency Response
      -
      Voice Coil Diameter
      38 mm
      Magnet Weight
      -
      DC Resistance (Re)
      5.7 ohms
      Voice Coil Inductance (Le)
      0.96 mH
      Resonant Frequency (Fs)
      23 Hz
      Mechanical Q (Qms)
      9.12
      Electromagnetic Q (Qes)
      0.42
      Total Q (Qts)
      0.40
      Diaphragm Mass Inc. Airload (Mms)
      50.5g
      Moving Mass Of Diaphragm (Mmd)
      -
      Mechanical Compliance of Suspension (Cms)
      0.95 mm/N
      Surface Area of Cone (Sd)
      350 cm²
      Volume of Displacement (Vd)
      210 cm³
      BL Product (BL)
      10.1 Tm
      Compliance Equivalent Volume (Vas)
      150 liters
      Maximum Linear Excursion (Xmax)
      6 mm
      Driver's Mechanical Losses (Rms)
      0.80 kg/s
      Cone / Diaphragm Material
      Aluminum
      Surround Material
      Rubber
      Voice Coil Wire Material
      -
      Voice Coil Former
      -
      Dual Voice Coil
      -
      Basket / Frame Material
      Aluminum
      Magnet Material
      -
      Shielded
      -
      Overall Outside Diameter
      272 mm
      Overall Depth
      106 mm
      Baffle Cutout Diameter
      232 mm
      Bolt Circle Diameter
      258 mm
      # Mounting Holes
      6
      Mounting Hole Diameter
      5.3 mm
      Sealed Volume
      -
      Sealed F3
      -
      Vented Volume
      -
      Vented F3
      -

      Show more
