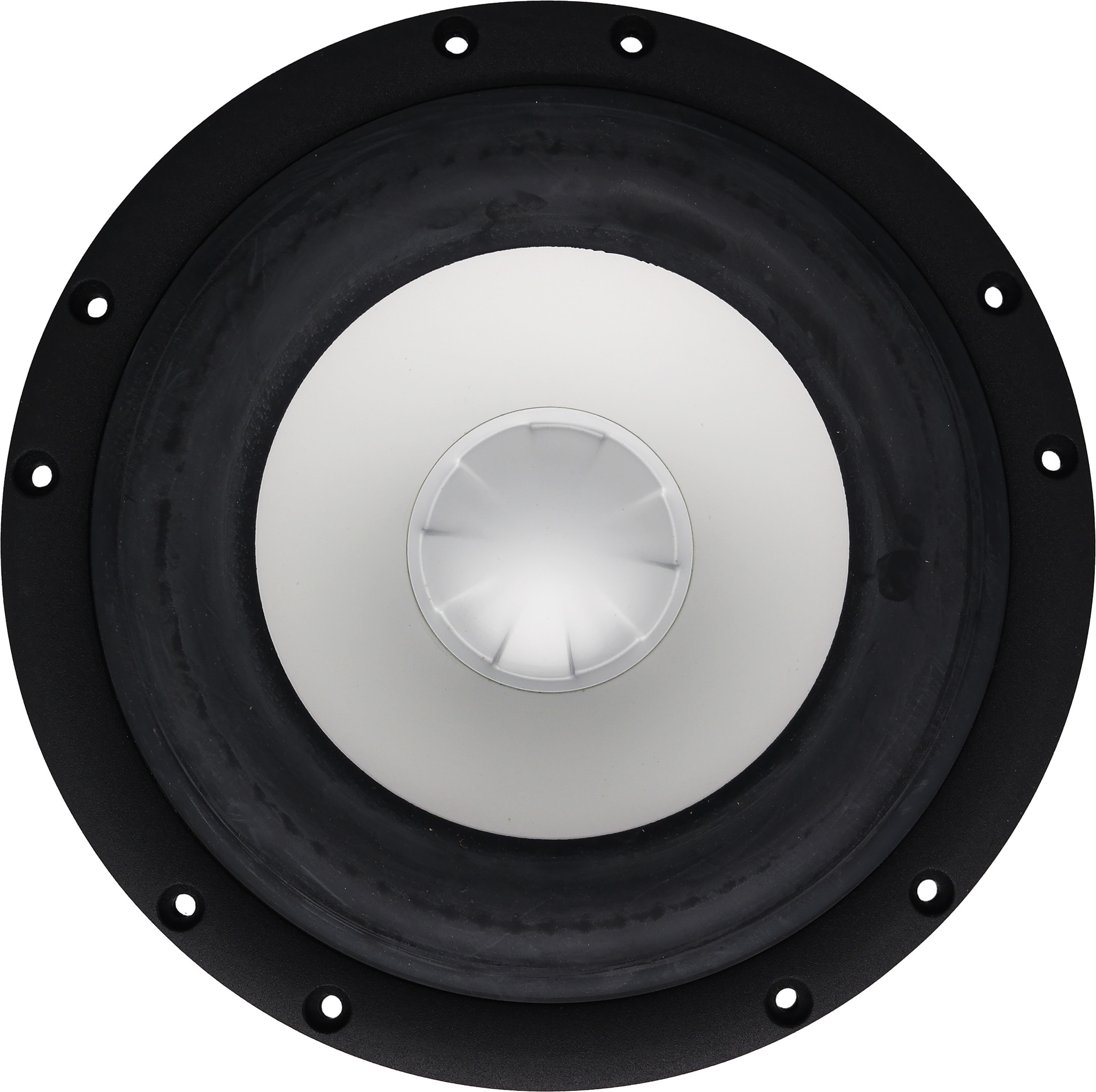

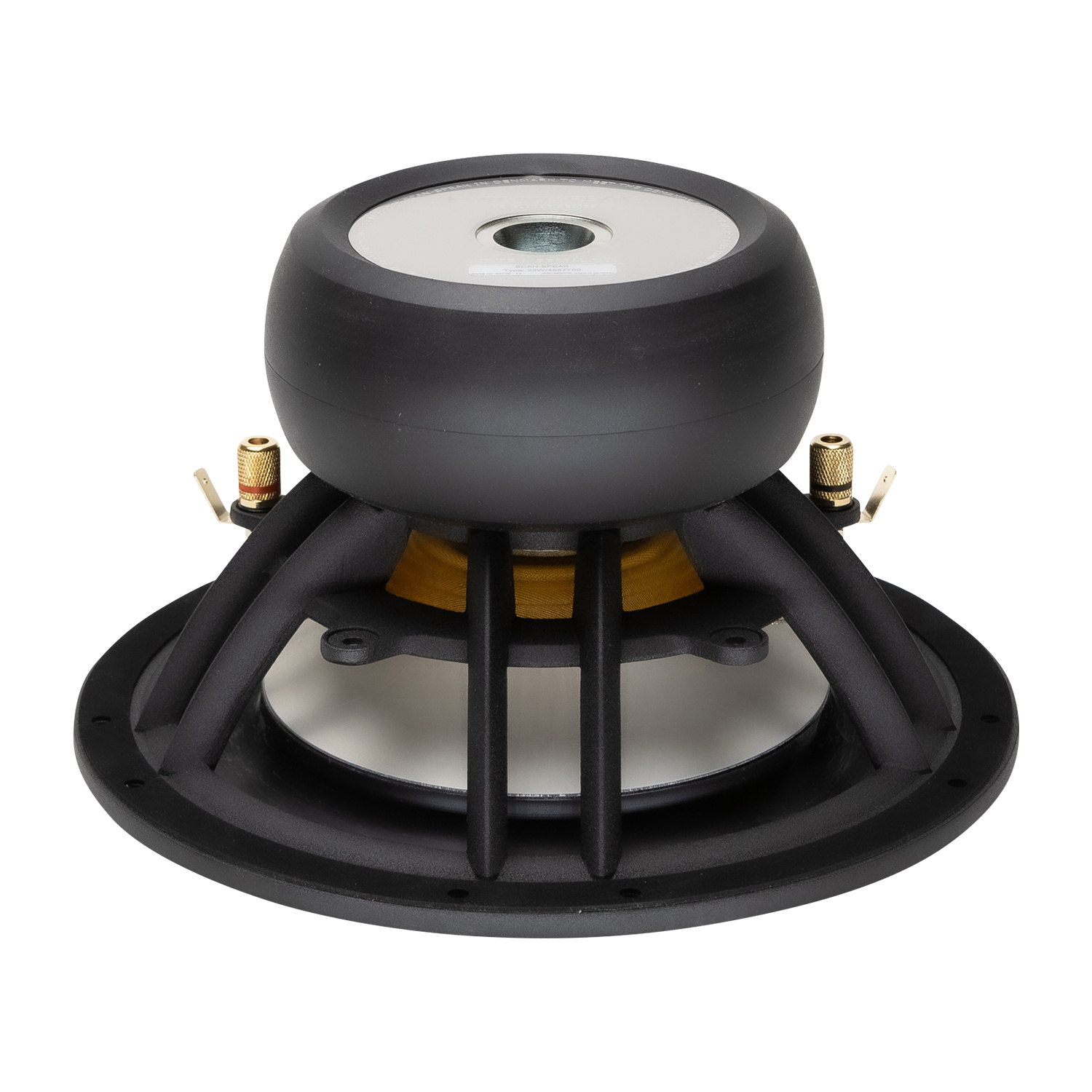

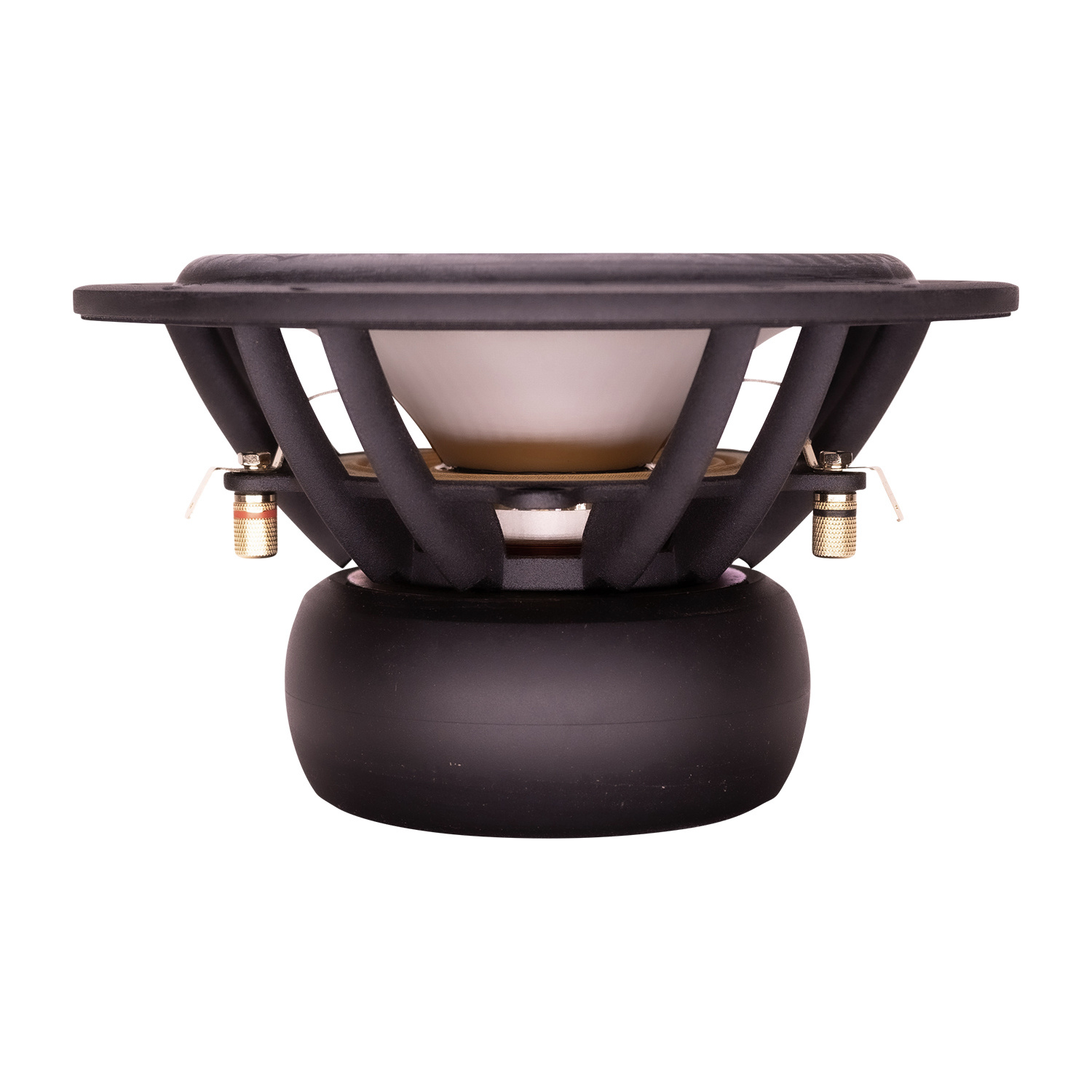

      Scan-Speak Revelator 23W/4557T00 9" Aluminum Cone Subwoofer - white

      € 363,60€ 439,95 1 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only €417,95 per piece
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      The Scan-speak 23W/4557T is a high end subwoofer featuring a very rigid aluminum cone, low loss rubber surround and cast frame. The 23W/4557T uses the SD-1 motor system. There are gold plated binding posts and the woofer magnet is covered by a decorative rubber cap.



      Highlights

      • Patented Symmetrical Drive Motor Design
      • Long Throw Surround
      • Ferrite Magnet System w. Rubber Boot
      • Black Anodized Rigid Alu Cone
      • Die cast Alu Chassis vented below spider
      • Gold Binding Post Terminals



      Product details

      The Revelator woofers and subwoofers features very rigid cones in paper or aluminium that operates as a piston over a wide frequency range, in combination with Scan-Speaks linear suspension and the patented Symmetrical Drive (SD-1) it results in very low distortion and a smooth and well behaved frequency response as well as perfect transient reproduction.



      The Scan-speak 23W/4557T is a high end subwoofer featuring a very rigid aluminum cone, low loss rubber surround and cast frame. The 23W/4557T uses the SD-1 motor system. There are gold plated binding posts and the woofer magnet is covered by a decorative rubber cap.

      Specifications

      Article number
      23W/4557T00
      Woofer Series
      Revelator series
      Woofer Type
      Subwoofer
      Nominal Diameter
      9"
      Power Handling (RMS)
      225 Watts
      Impedance (Z)
      4 ohms
      Sensitivity
      82 dB 2.83V/1m
      Voice Coil Diameter
      2"
      DC Resistance (Re)
      3.45 ohms
      Resonant Frequency (Fs)
      21 Hz
      Mechanical Q (Qms)
      4.80
      Electromagnetic Q (Qes)
      0.52
      Total Q (Qts)
      0.47
      Diaphragm Mass Inc. Airload (Mms)
      101 g
      Mechanical Compliance of Suspension (Cms)
      0.60 mm/N
      Surface Area of Cone (Sd)
      232 cm²
      BL Product (BL)
      9.3 Tm
      Compliance Equivalent Volume (Vas)
      45.0 L
      Maximum Linear Excursion (Xmax)
      13 mm
      Cone / Diaphragm Material
      Paper
      Basket / Frame Material
      Die cast aluminum
      Magnet Material
      Ferrite
      Overall Outside Diameter
      10.04"
      Overall Depth
      5.31"
      Baffle Cutout Diameter
      8.86"
      # Mounting Holes
      8

      Show more

      Reviews

      0 from 5Based on 0 reviews
      Review this product

      There are no reviews written yet about this product..
