        Illuminator 18WU/4741T00 7" Woofer

        Scan-Speak Illuminator 18WU/4741T00 7" Woofer

        €369,95

        10+ In stock

        Add to cart

        Scan-Speak Illuminator 18WU/4741T00 7" Woofer

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Scan-Speak
        7" | 4 Ω
        Illuminator 18WU/4741T00 7" Woofer
        Illuminator 18WU/4741T00 7" Woofer
        Illuminator 18WU/4741T00 7" Woofer
        Illuminator 18WU/4741T00 7" Woofer
        Illuminator 18WU/4741T00 7" Woofer
        Illuminator 18WU/4741T00 7" Woofer
        Illuminator 18WU/4741T00 7" Woofer
        Illuminator 18WU/4741T00 7" Woofer
        Illuminator 18WU/4741T00 7" Woofer
        Illuminator 18WU/4741T00 7" Woofer
        Illuminator 18WU/4741T00 7" Woofer
        Illuminator 18WU/4741T00 7" Woofer
        Illuminator 18WU/4741T00 7" Woofer
        € 305,74€ 369,95 10+ In stock
        • -5% Purchase 4 for only € 351,45 per piece
        € 369,95
        +-
        Add to cart
        🔒 Secure payment
        MastercardVisaBank TransferCarte BancaireApple PayGoogle Paypaypal

        Buy now, pay later

        • We ship to
        • Ordered now, shipped tomorrow
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Illuminator 18WU/4741T00 7" Woofer
        Illuminator 18WU/4741T00 7" Woofer
        Illuminator 18WU/4741T00 7" Woofer
        Illuminator 18WU/4741T00 7" Woofer
        Illuminator 18WU/4741T00 7" Woofer
        Illuminator 18WU/4741T00 7" Woofer
        Illuminator 18WU/4741T00 7" Woofer
        Illuminator 18WU/4741T00 7" Woofer
        Illuminator 18WU/4741T00 7" Woofer
        Illuminator 18WU/4741T00 7" Woofer
        Illuminator 18WU/4741T00 7" Woofer
        Illuminator 18WU/4741T00 7" Woofer
        Illuminator 18WU/4741T00 7" Woofer
        Illuminator 18WU/4741T00 7" Woofer

        Product description Scan-Speak Illuminator 18WU/4741T00 Bass-midwoofer

        Highlights

        • Under-Hung Neodymium Motor Design
        • Patented Sandwich Paper Cone
        • Low-Loss linear suspension
        • Patented Symmetrical Drive (SD-3)
        • Exceptionally Long Linear Excursion



        Product details

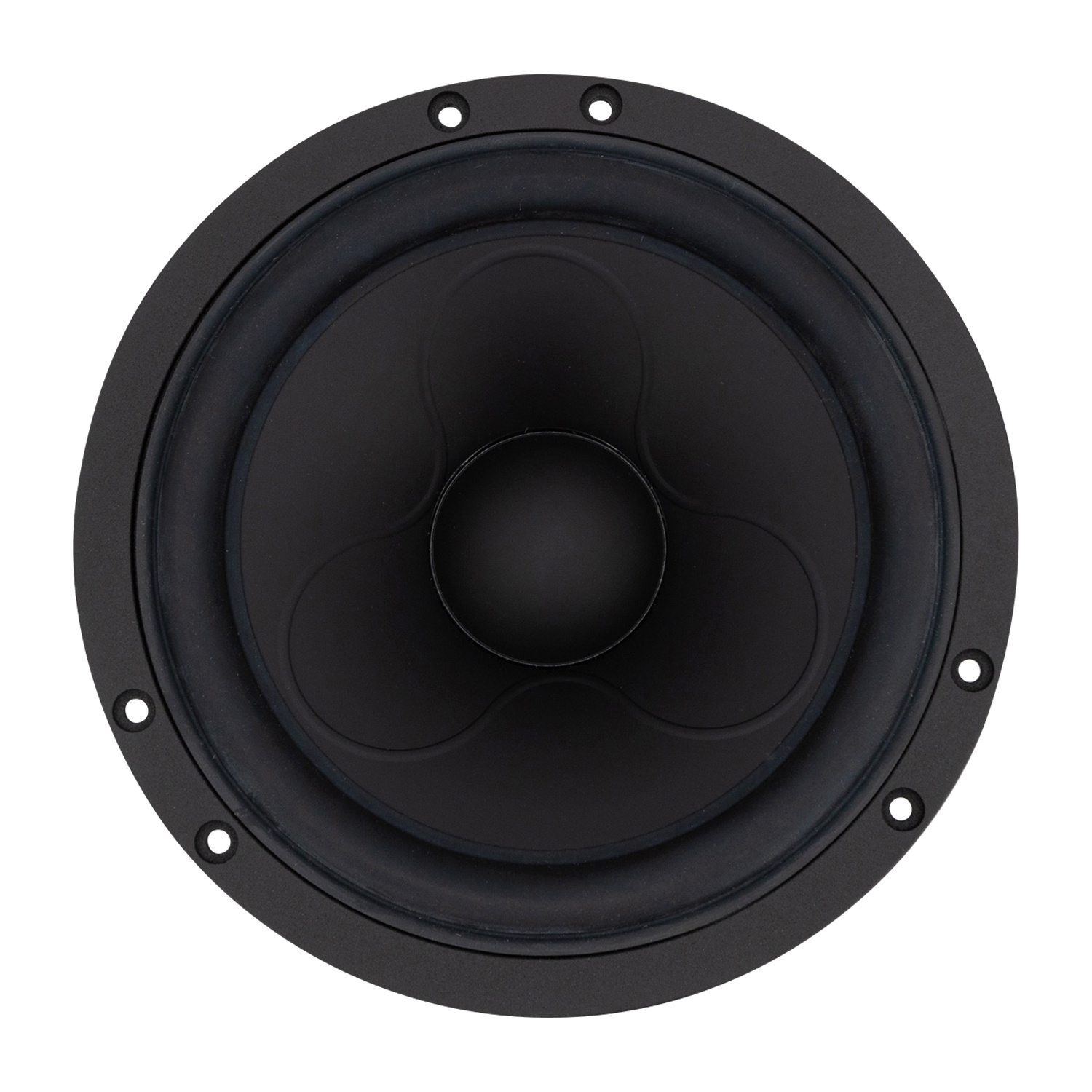

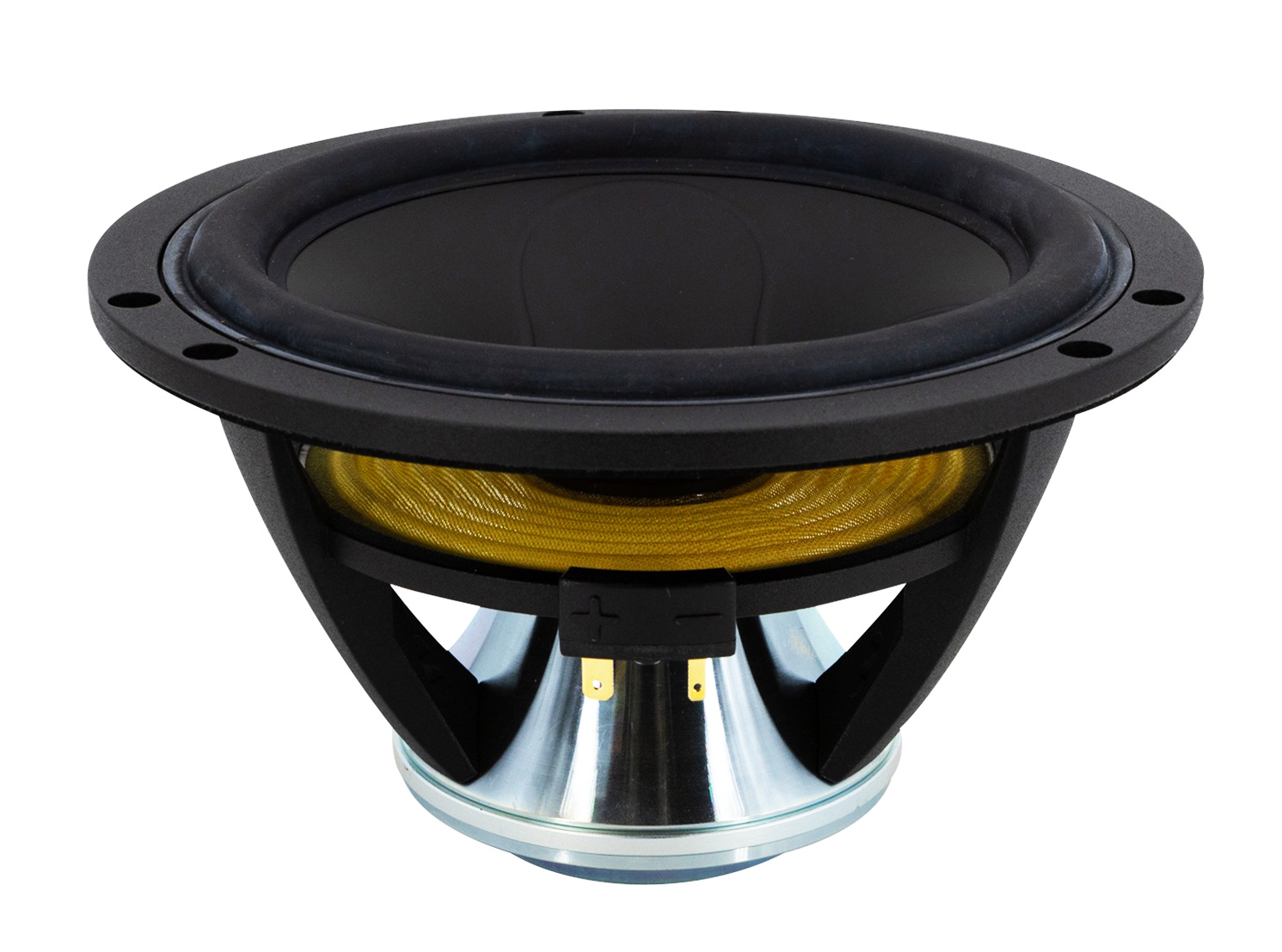

        Scan-Speak Illuminator 18WU/4741T00 7" Woofer

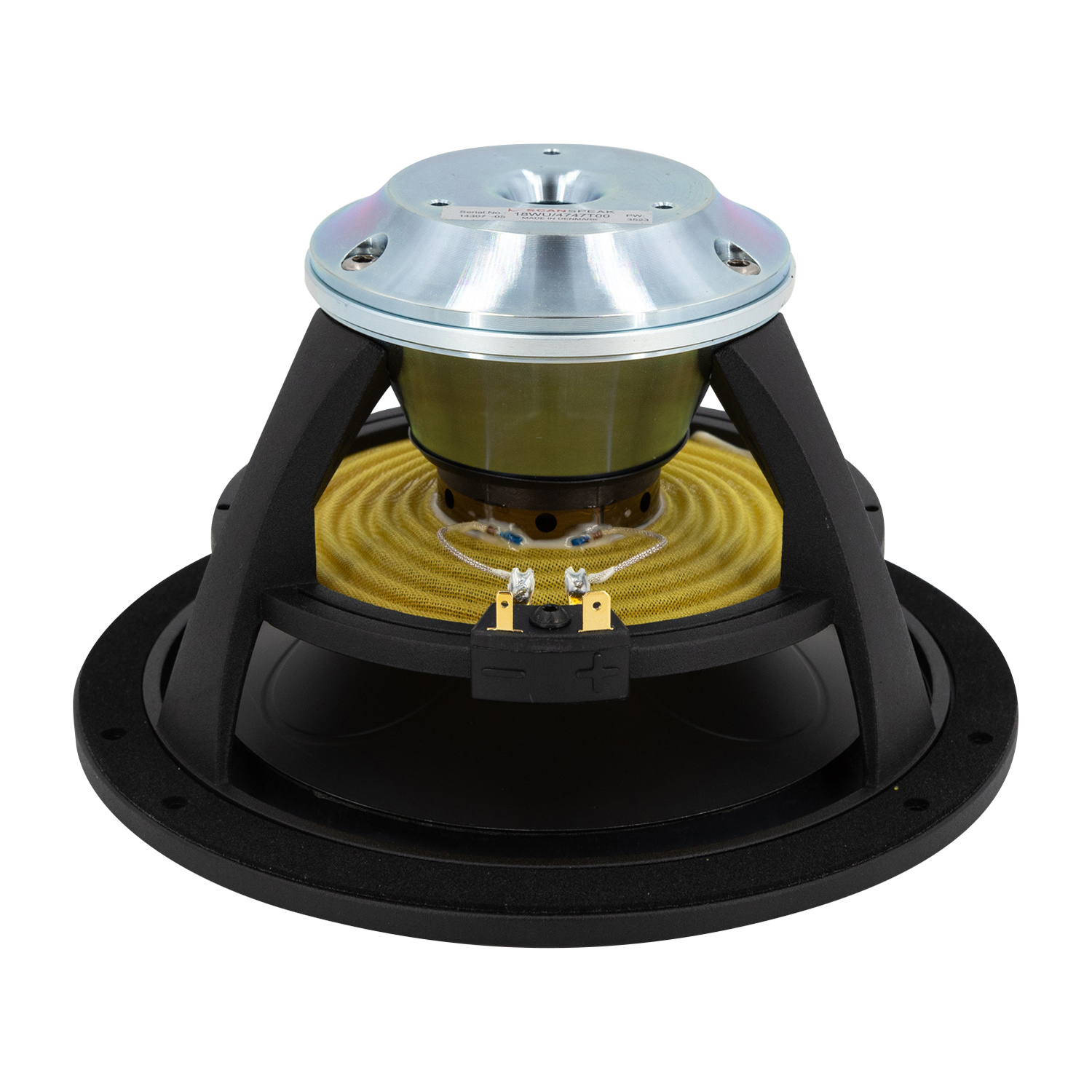

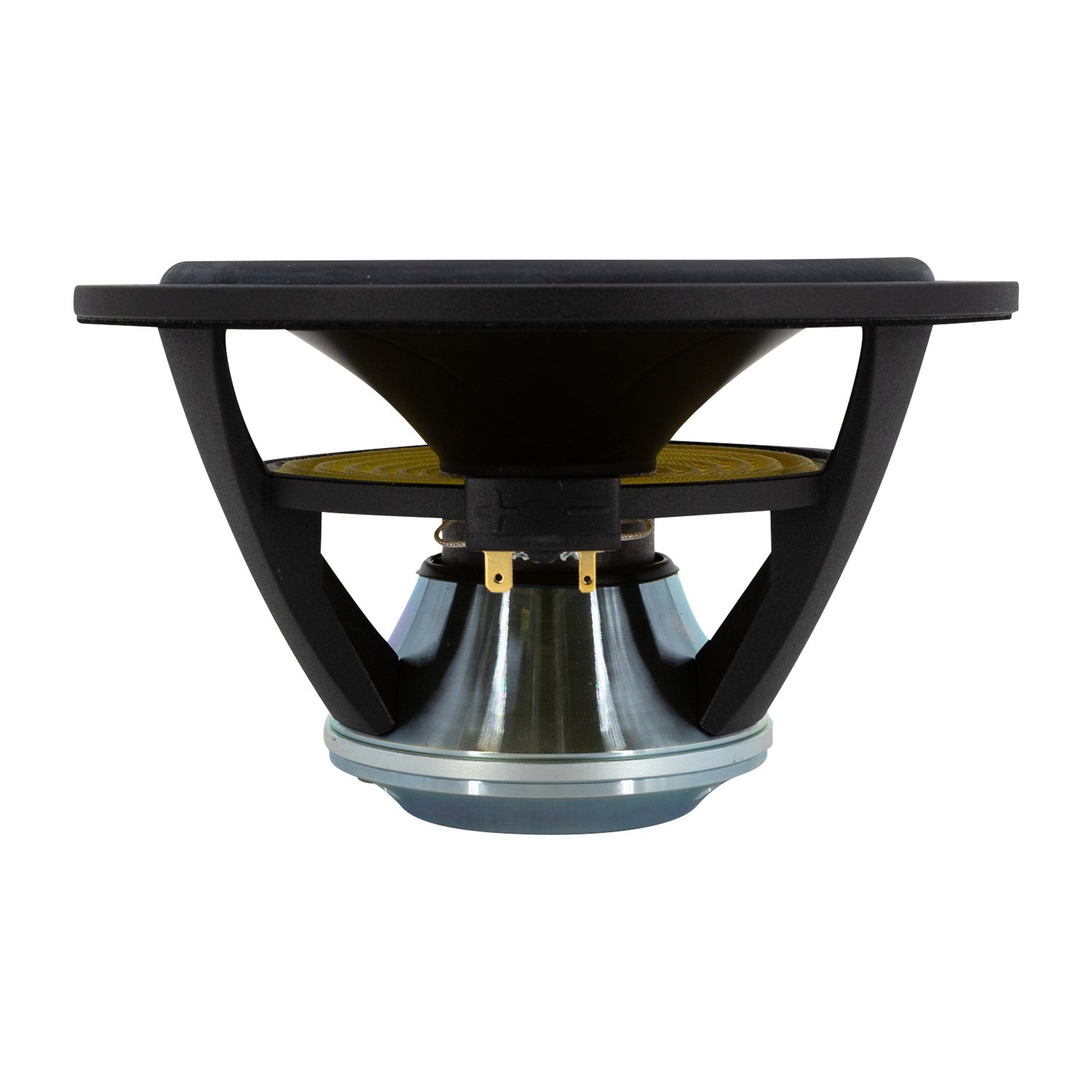

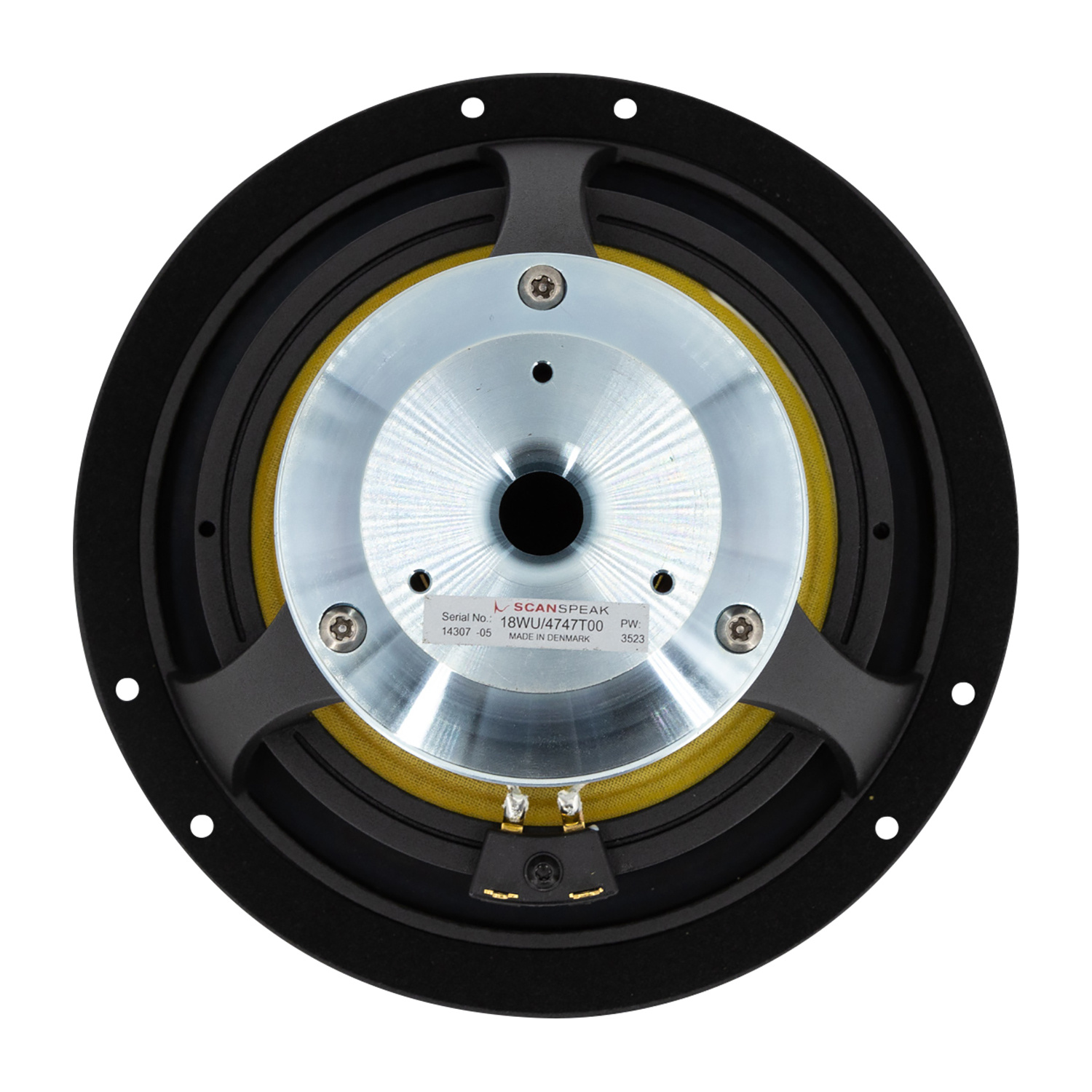

        The Illuminator woofers are based on compact under-hung motor systems with large neodymium ring magnets. The patent pending motor offers a very long linear excursion together with a very high force factor. The top plate is shaped to “guide” the backside airflow around the motor and with the very open cast aluminum chassis design the driver is virtually free from compression.

        Show more

        Specifications

        Article number
        18WU/4741T00
        EAN
        0696277268412
        Woofer Series
        Illuminator
        Woofer Type
        Woofer
        Nominal Diameter
        177.8 mm
        Power Handling (RMS)
        70 W
        Power Handling (max)
        150 W
        Impedance (Z)
        4 Ω
        Sensitivity (SPL at 1m / 2.83V)
        87.5 dB
        Frequency Response
        34-4000 Hz
        Voice Coil Diameter
        42 mm
        DC Resistance (Re)
        3.3 Ω
        Voice Coil Inductance (Le)
        0.4 mH
        Resonant Frequency (Fs)
        34 Hz
        Mechanical Q (Qms)
        3.76
        Electromagnetic Q (Qes)
        0.38
        Total Q (Qts)
        0.36
        Diaphragm Mass Inc. Airload (Mms)
        18.0 g
        Mechanical Compliance of Suspension (Cms)
        1.2 mm/N
        Surface Area of Cone (Sd)
        154 cm²
        Volume of Displacement (Vd)
        0.45 L
        BL Product (BL)
        5.8 Tm
        Compliance Equivalent Volume (Vas)
        38.4 L
        Maximum Linear Excursion (Xmax)
        8 mm
        Driver's Mechanical Losses (Rms)
        1.0 kg/s
        Cone / Diaphragm Material
        Sandwich Paper
        Basket / Frame Material
        7"
        Magnet Material
        Neodymium
        Overall Outside Diameter
        184 mm
        Overall Depth
        104.8 mm
        Baffle Cutout Diameter
        158 mm
        Bolt Circle Diameter
        172,5 mm
        # Mounting Holes
        6
        Mounting Hole Diameter
        4.2 mm
        Sealed Volume
        7 L
        Sealed F3
        66 Hz
        Vented Volume
        35 L
        Vented F3
        35 Hz
