        Classic 18W/8545-01 Mid-range Woofer

        Scan-Speak Classic 18W/8545-01 Mid-range Woofer

        €189,95

        10+ In stock

        Add to cart

        Scan-Speak Classic 18W/8545-01 Mid-range Woofer

        11 reviews
        5 from 5
        11 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Scan-Speak
        Show all Scan-Speak woofers
        7'' | 8 Ω
        Classic 18W/8545-01 Mid-range Woofer
        Classic 18W/8545-01 Mid-range Woofer
        Classic 18W/8545-01 Mid-range Woofer
        Classic 18W/8545-01 Mid-range Woofer
        Classic 18W/8545-01 Mid-range Woofer
        Classic 18W/8545-01 Mid-range Woofer
        Classic 18W/8545-01 Mid-range Woofer
        Classic 18W/8545-01 Mid-range Woofer
        Classic 18W/8545-01 Mid-range Woofer
        Classic 18W/8545-01 Mid-range Woofer
        Classic 18W/8545-01 Mid-range Woofer
        Classic 18W/8545-01 Mid-range Woofer
        Classic 18W/8545-01 Mid-range Woofer
        € 156,98€ 189,95 10+ In stock
        • -5% Purchase 4 for only € 180,45 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Classic 18W/8545-01 Mid-range Woofer
        Classic 18W/8545-01 Mid-range Woofer
        Classic 18W/8545-01 Mid-range Woofer
        Classic 18W/8545-01 Mid-range Woofer
        Classic 18W/8545-01 Mid-range Woofer
        Classic 18W/8545-01 Mid-range Woofer
        Classic 18W/8545-01 Mid-range Woofer
        Classic 18W/8545-01 Mid-range Woofer
        Classic 18W/8545-01 Mid-range Woofer
        Classic 18W/8545-01 Mid-range Woofer
        Classic 18W/8545-01 Mid-range Woofer
        Classic 18W/8545-01 Mid-range Woofer
        Classic 18W/8545-01 Mid-range Woofer
        Classic 18W/8545-01 Mid-range Woofer

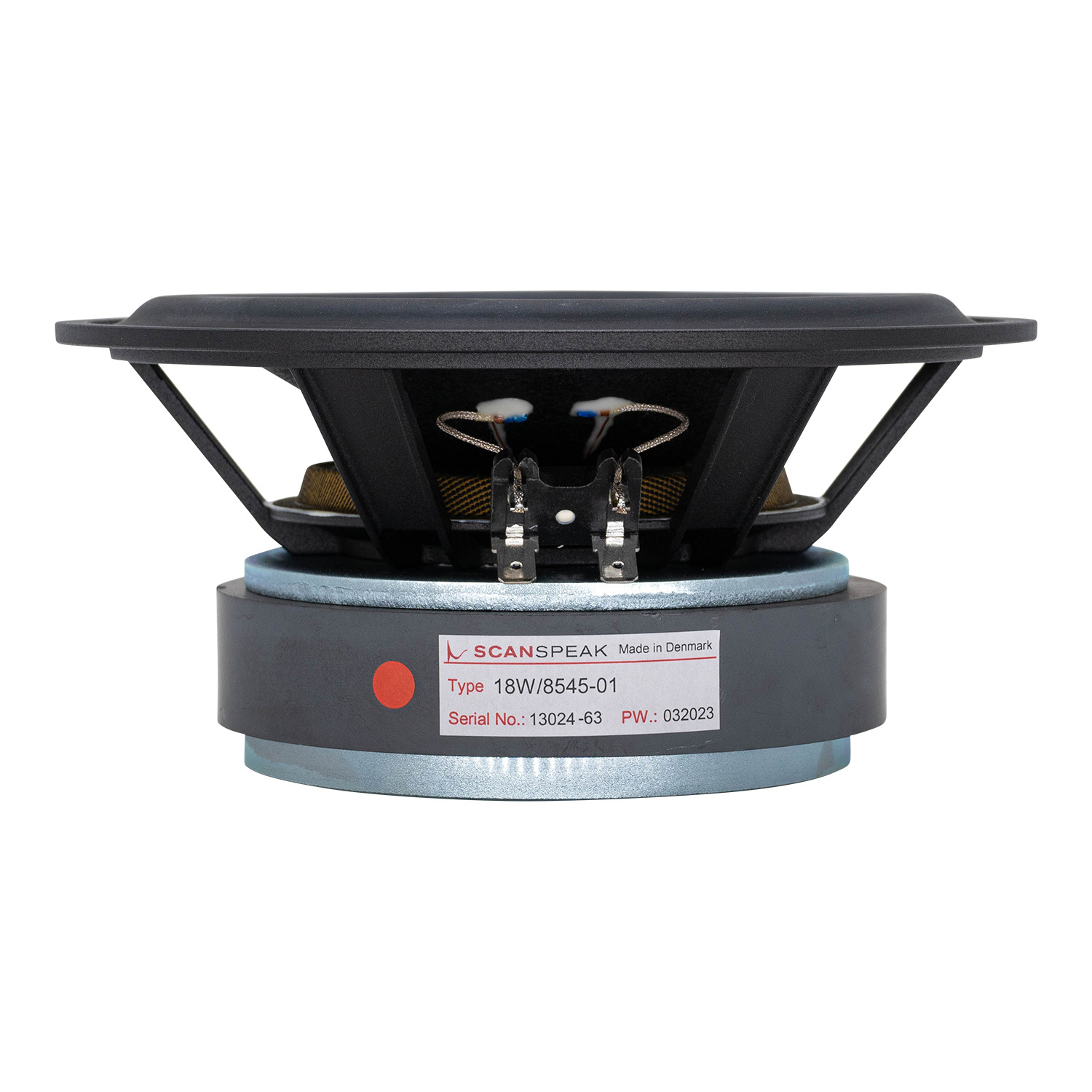

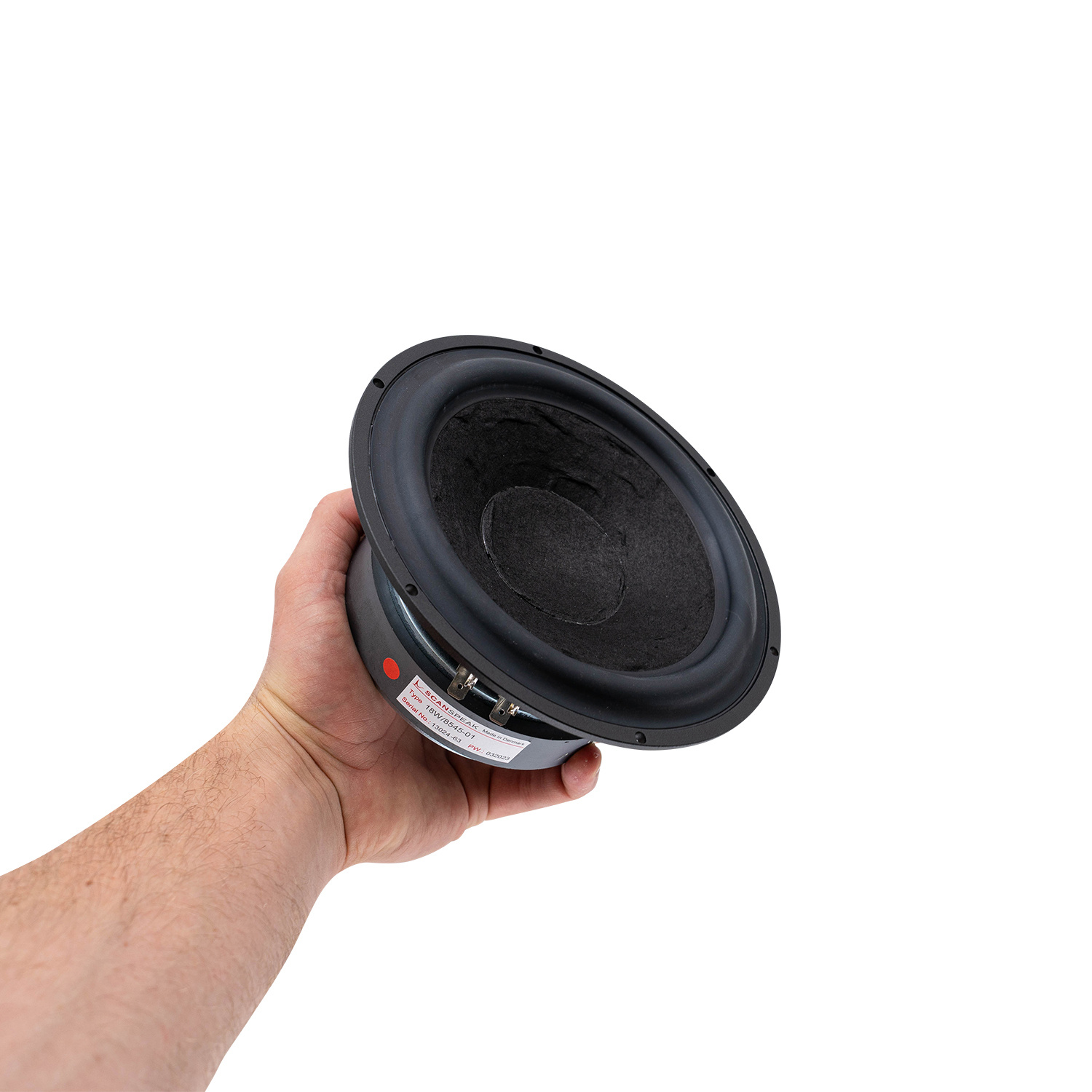

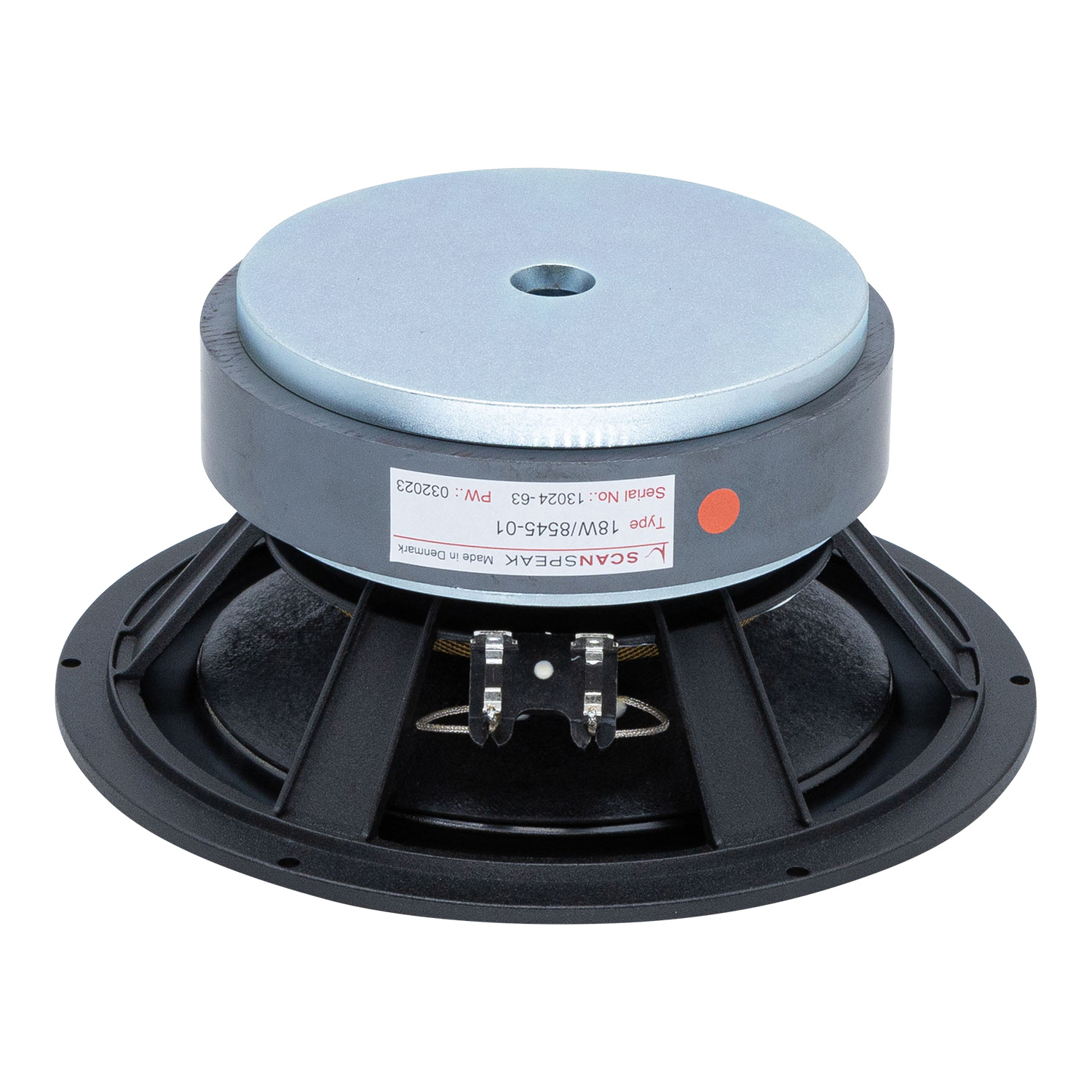

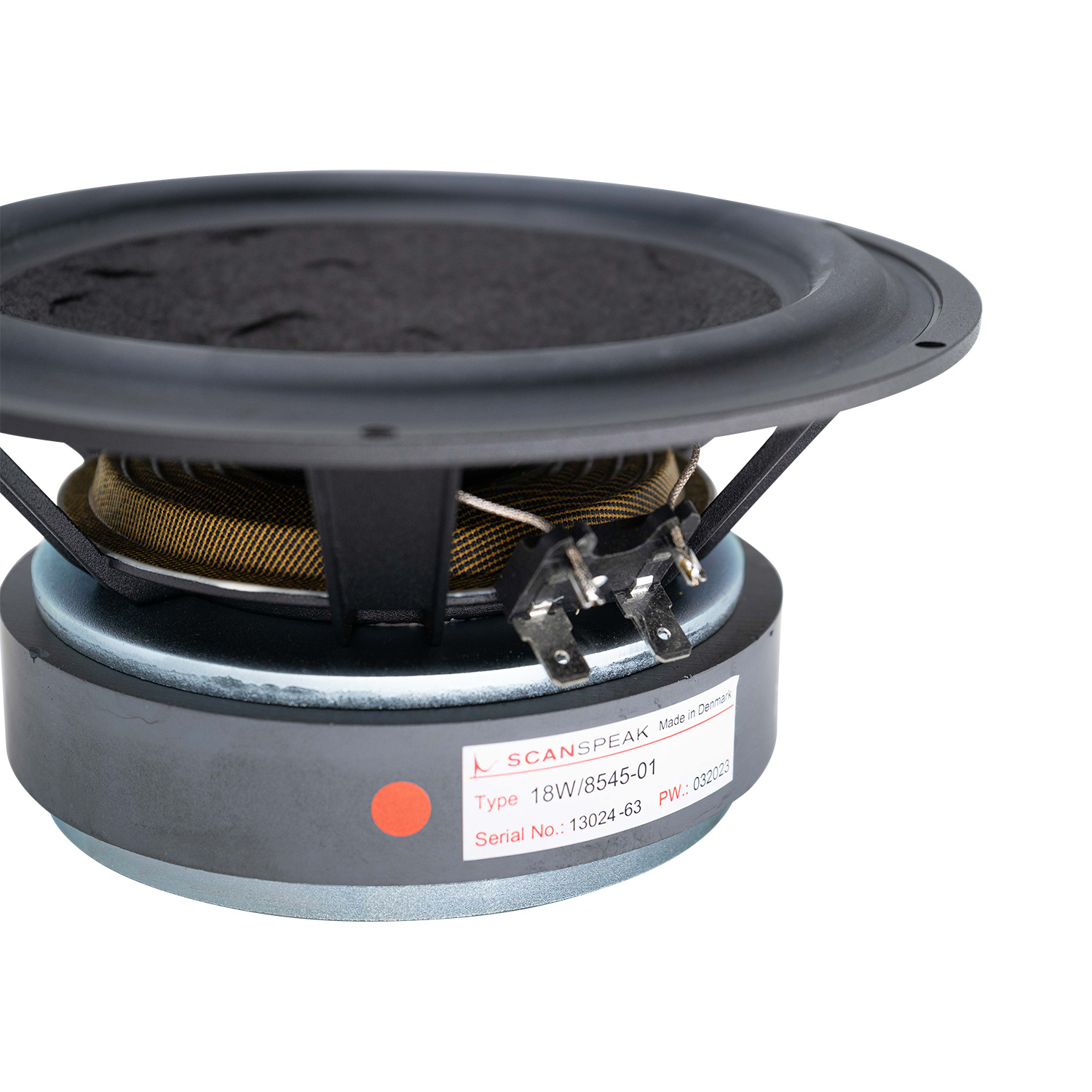

        Product description Scan-Speak Classic 18W/8545-01 Mid-range Woofer

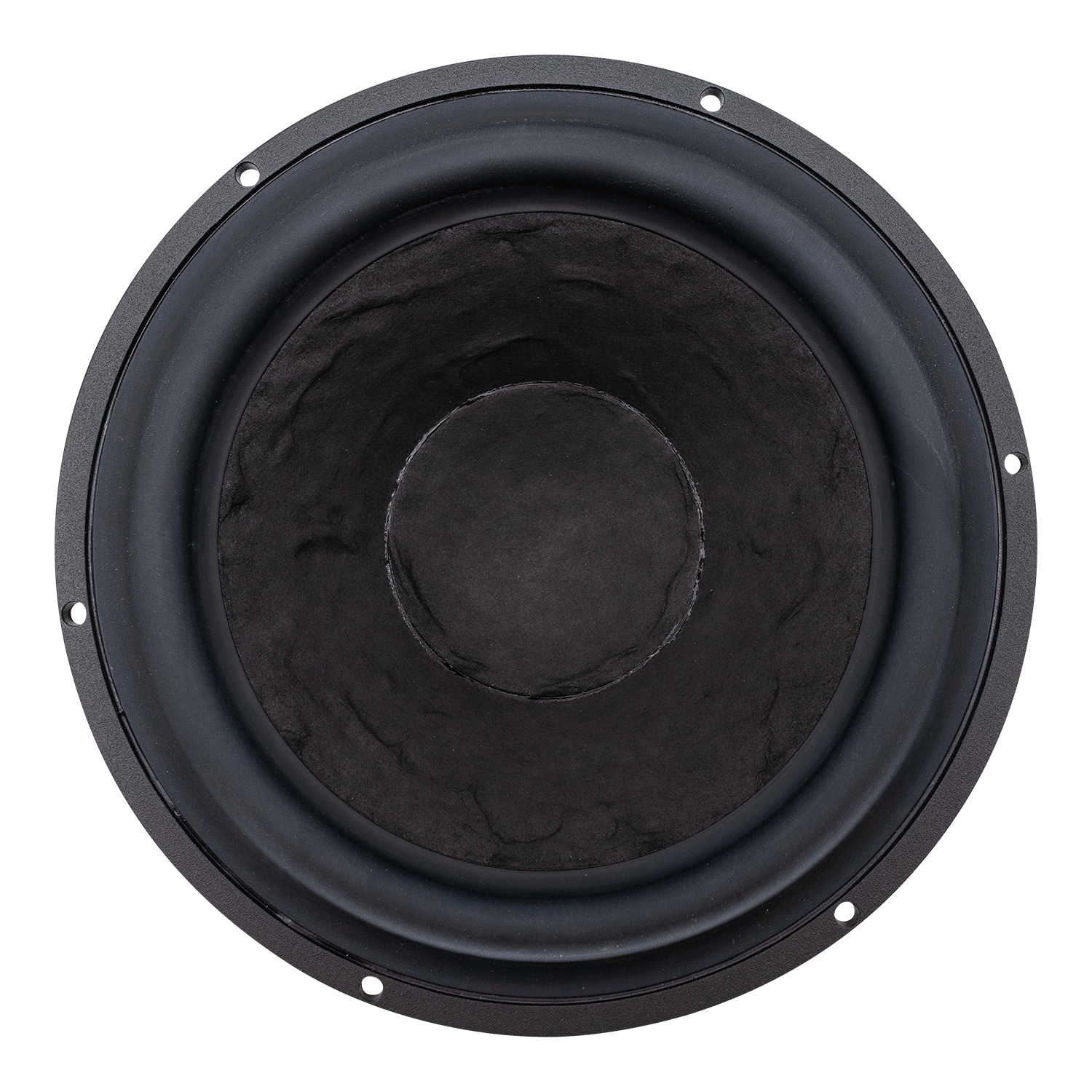

        The ScanSpeak Classic 18W/8545-01 Mid-range Woofer is a high-quality speaker driver that is known for its accurate sound reproduction and smooth frequency response. It is a 7-inch speaker with a paper cone and a rubber surround. The cone is impregnated with carbon fiber, which gives it a high stiffness-to-mass ratio and helps to improve the speaker's dynamic range. The rubber surround is low-damping, which helps to reduce distortion.



        Highlights

        • Accurate sound reproduction
        • Wide frequency response
        • High sensitivity
        • Low impedance
        • Well-made construction



        Product details

        Scan-Speak Classic 18W/8545-01 Mid-range Woofer



        The Classic 18W/8545-01 has a frequency response of 60-2,200 Hz, which makes it well-suited for reproducing the mid-range frequencies in music. It has a sensitivity of 86 dB, which means that it can be driven by a wide range of amplifiers. The speaker has an impedance of 8 ohms, which makes it compatible with most speaker systems.

        Show more

        Specifications

        Article number
        18W/8545-01
        EAN
        8785256848515
        Woofer Series
        Scan-Speak Classic series
        Woofer Type
        Midwoofer
        Nominal Diameter
        7 "
        Power Handling (RMS)
        100 Watts
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        88 dB
        Frequency Response
        60 - 2200 Hz
        Voice Coil Diameter
        42 mm
        DC Resistance (Re)
        5.7 Ω
        Voice Coil Inductance (Le)
        0.39 mH
        Resonant Frequency (Fs)
        25 Hz
        Mechanical Q (Qms)
        1.55
        Electromagnetic Q (Qes)
        0.22
        Total Q (Qts)
        0.2
        Diaphragm Mass Inc. Airload (Mms)
        18g
        Mechanical Compliance of Suspension (Cms)
        2.3 mm/N
        Surface Area of Cone (Sd)
        145 cm²
        BL Product (BL)
        8.4 N/A
        Compliance Equivalent Volume (Vas)
        68.6 Liters
        Maximum Linear Excursion (Xmax)
        6.5 mm

        Show more

        Reviews

        11 reviews
        Review this product
        5 of 5
        Used to replace the 06 version in Merlin speakers with no crossover modification. Outstanding sound.
        By Xavier on 20 November 2025
        5 of 5
        -
        By Andrea on 10 November 2025
