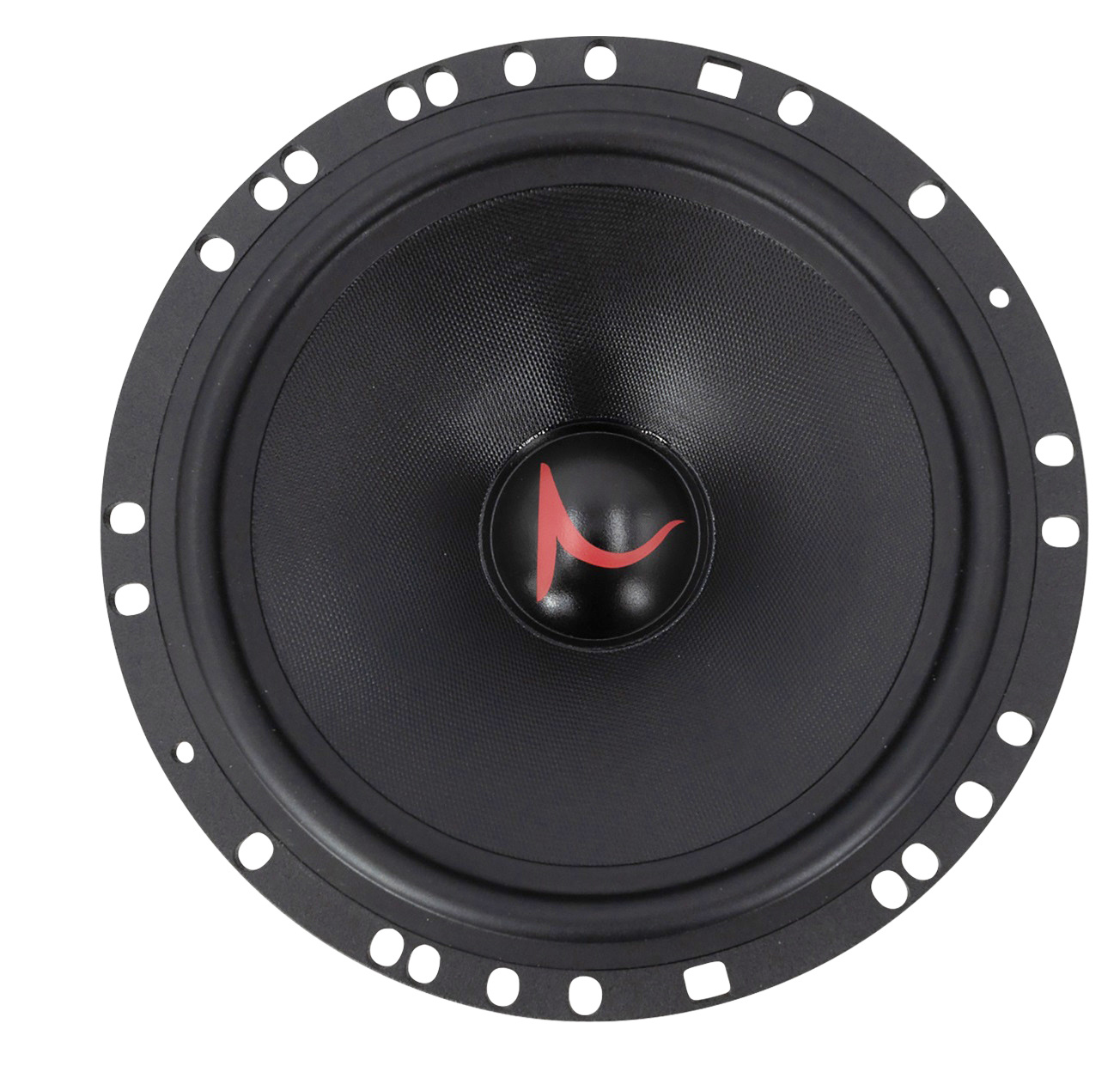

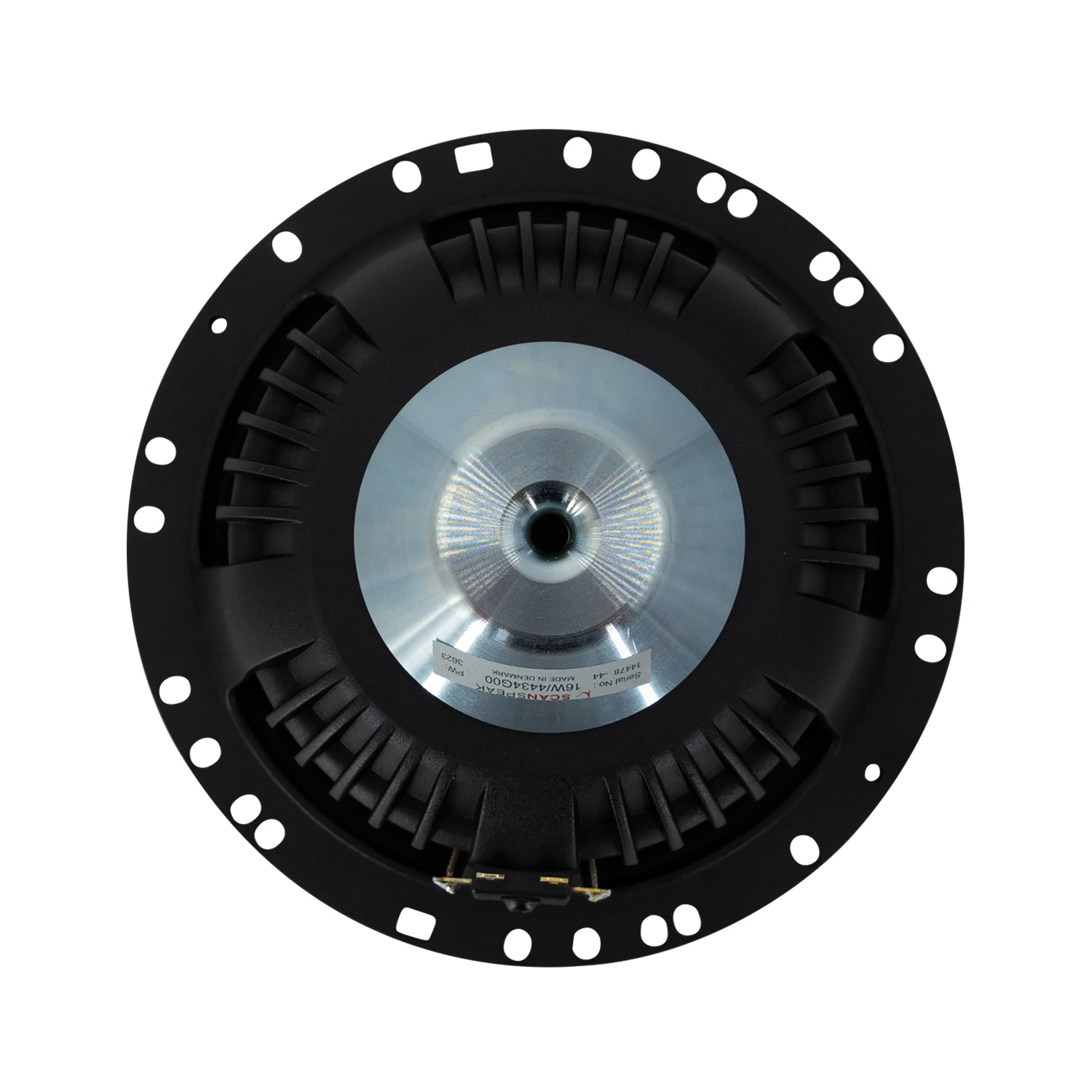

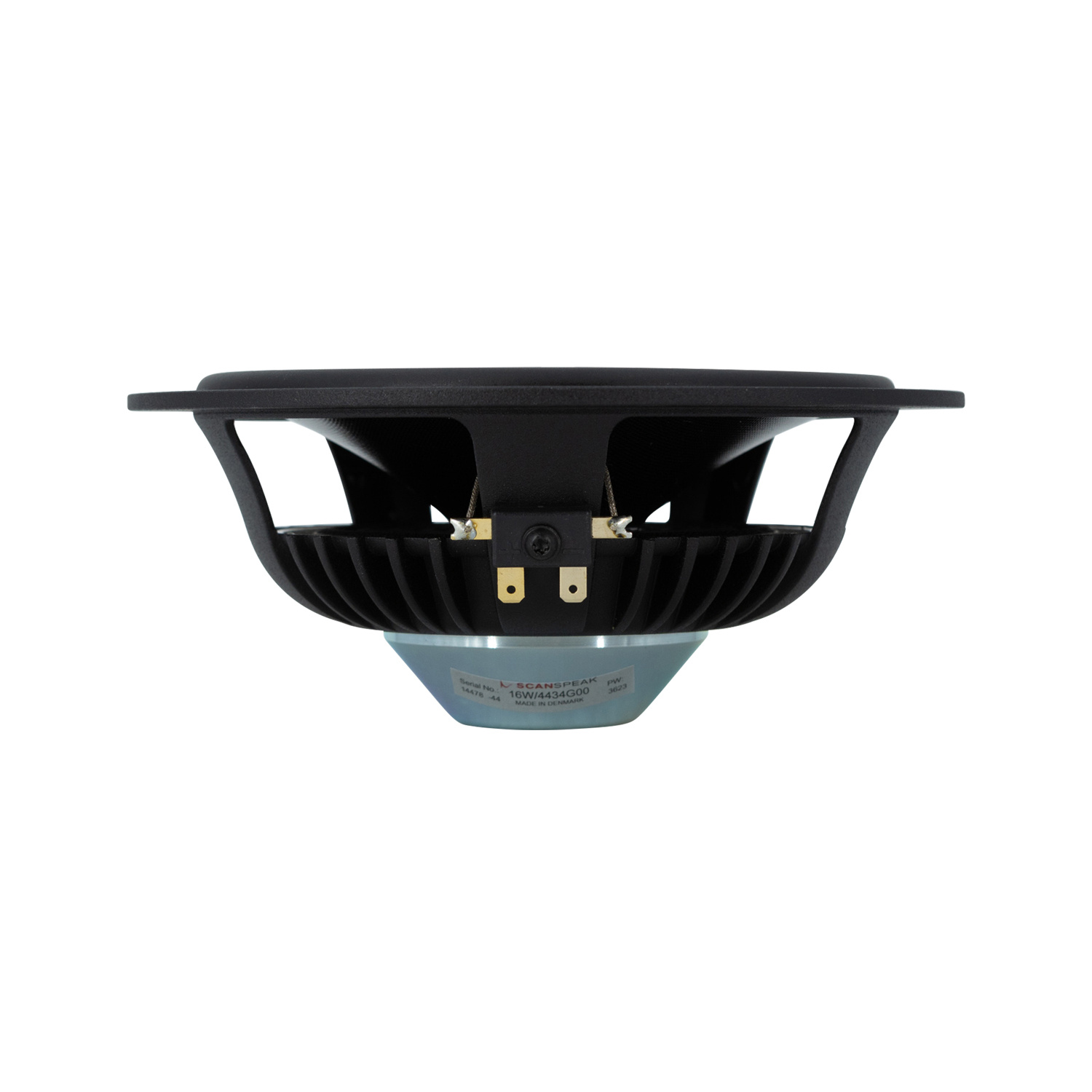

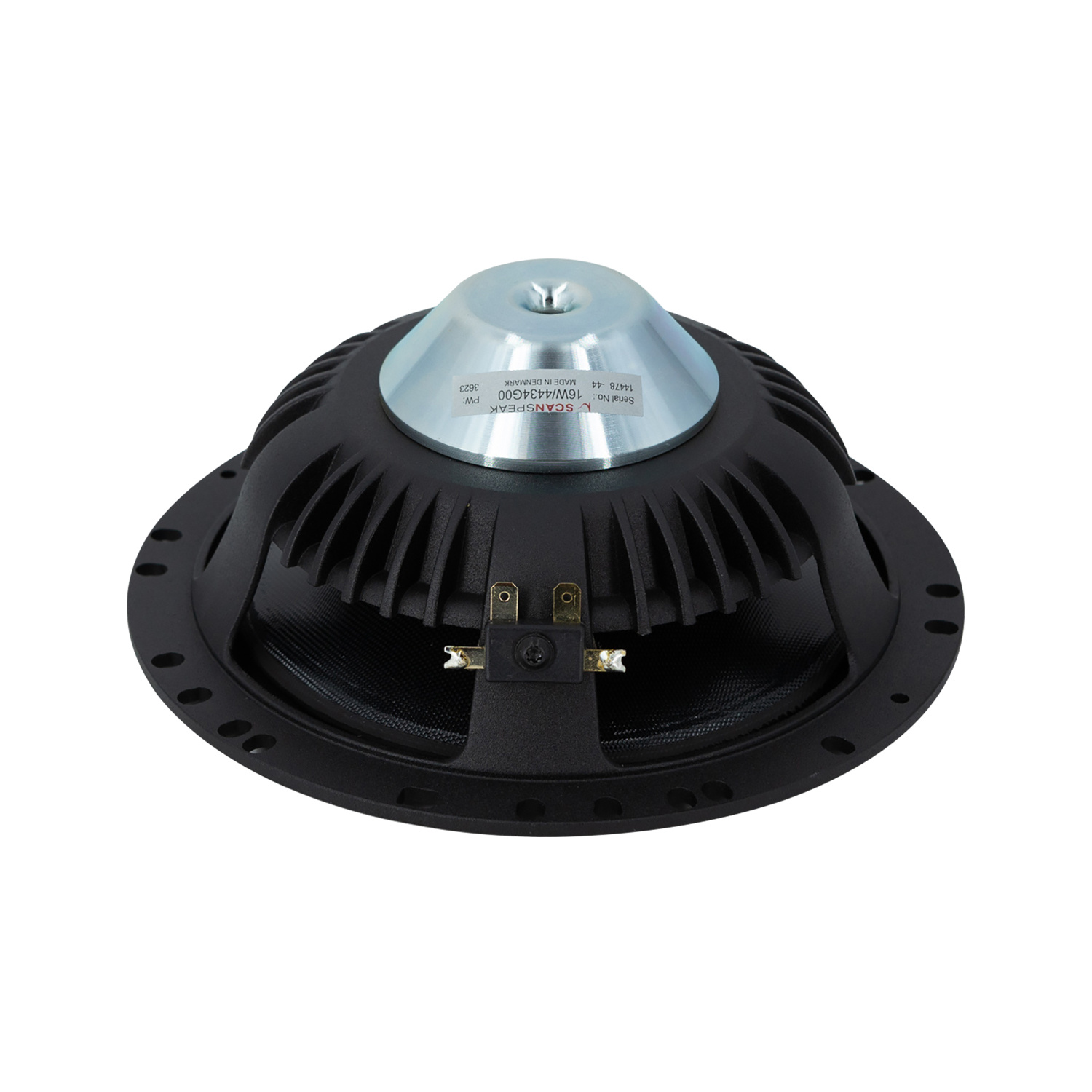

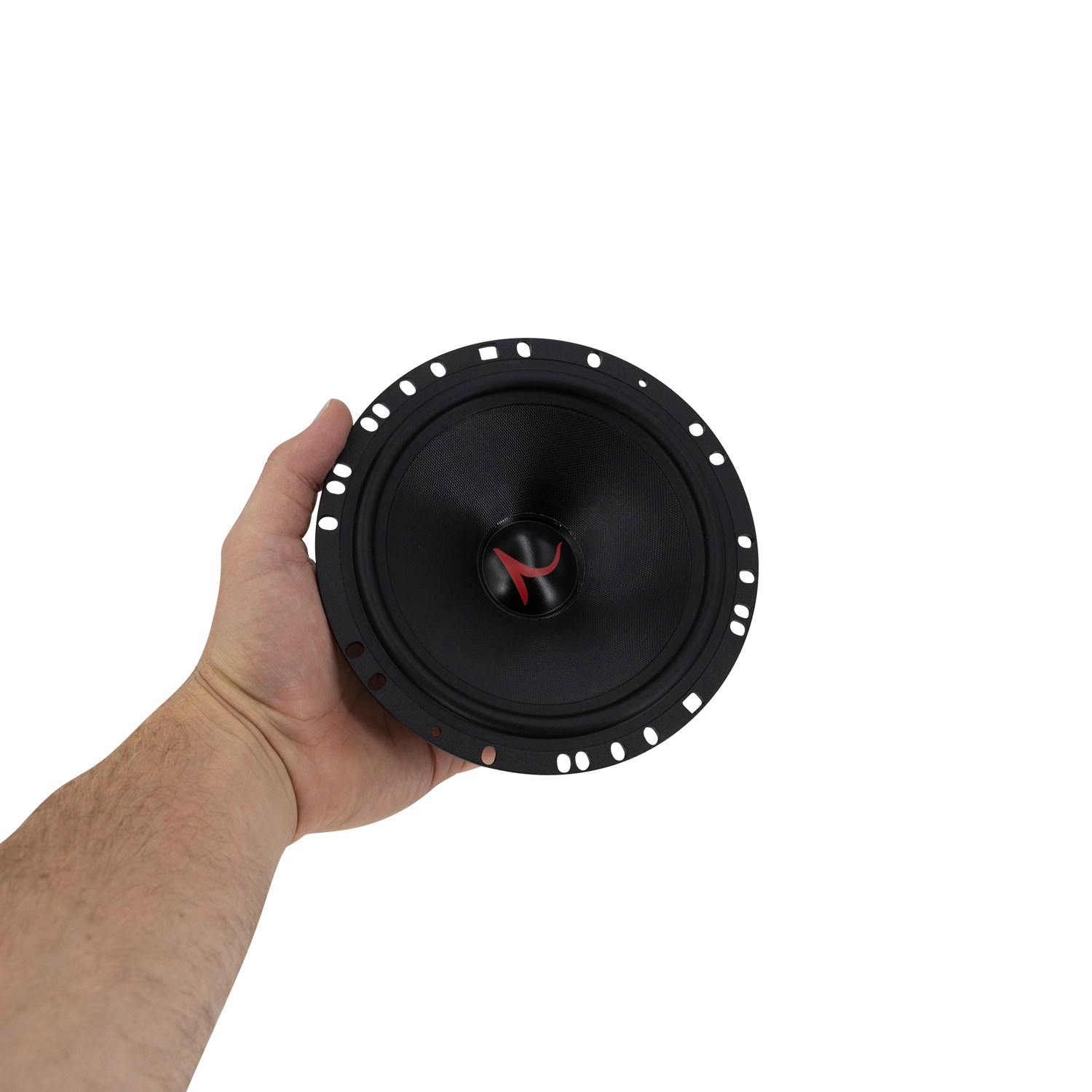

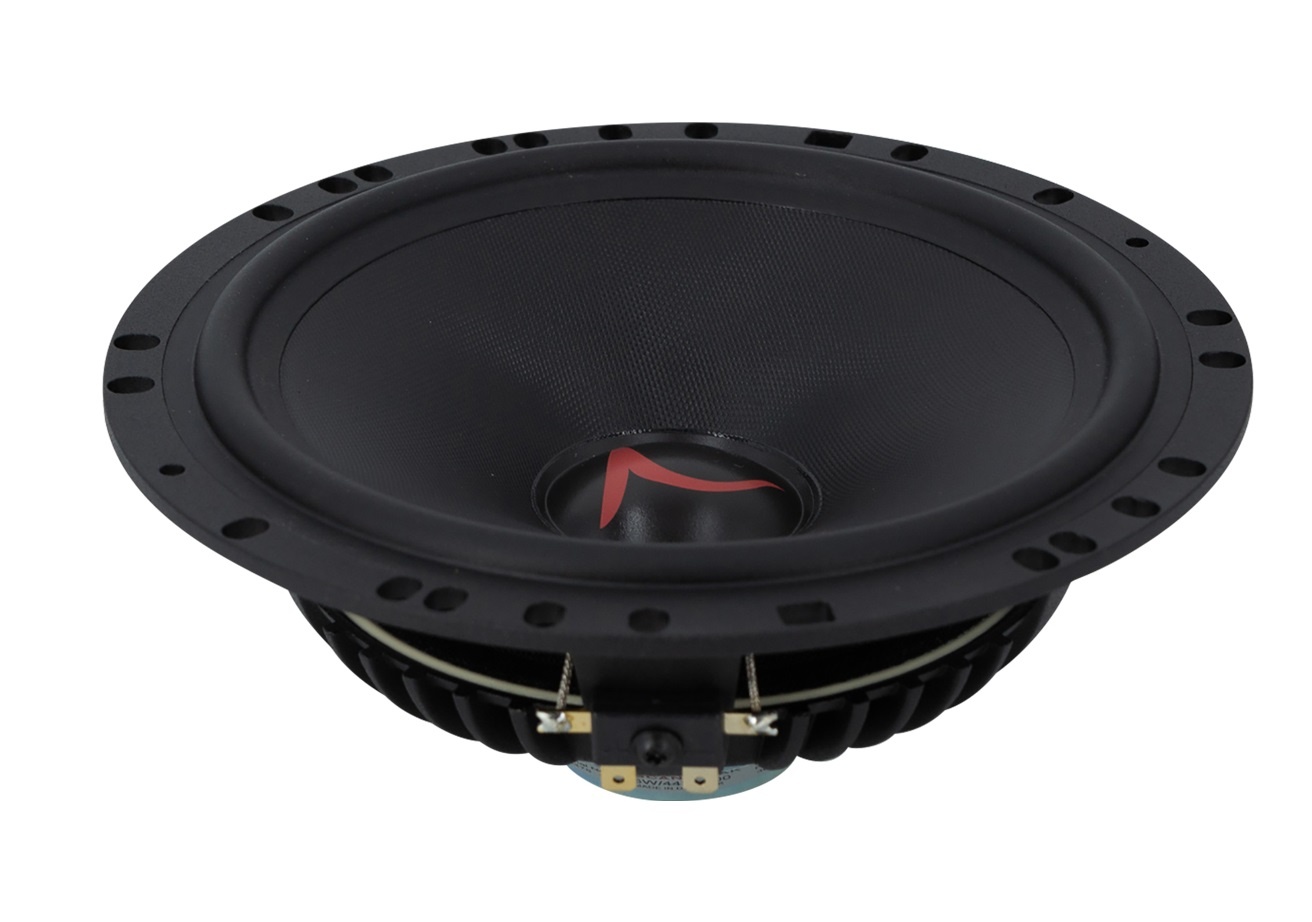

        16W/4434G00 Car Mid-range Woofer

        Scan-Speak 16W/4434G00 Car Mid-range Woofer

        €159,95

        5 In stock

        Scan-Speak 16W/4434G00 Car Mid-range Woofer

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Scan-Speak
        € 132,19€ 159,95 5 In stock
        • -5% Purchase 4 for only € 151,95 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description Scan-Speak Discovery 16W/4434G00 Mid-range Woofer

        The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements – plus a wealth of technical features and finesses – it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point!



        Highlights

        • Optimized for Car Use
        • Aluminium Die cast Basket
        • Black Coated NRSC Fibre Glass Cone
        • EURO-DIN mounting flange
        • Shallow mounting dimention
        • Low Loss Suspension, with Rubber Surround



        Product details

        Scan-Speak Discovery 16W/4434G00 Mid-range Woofer



        The Scan-Speak Discovery 16W/4434G00 is a 6.5-inch mid-range woofer designed for car audio applications. It features a treated NRSC glass fiber cone, low loss rubber surround, diecast aluminum basket, and compact neodymium magnet. The woofer has a frequency response of 55-2000 Hz, a sensitivity of 90.5 dB, and an impedance of 4 ohms.

        Show more

        Specifications

        Article number
        16W/4434G00
        EAN
        8785256848201
        Woofer Type
        Discovery
        Nominal Diameter
        6.5 Inch
        Power Handling (RMS)
        40 Watt
        Impedance (Z)
        4 Ohm
        Sensitivity (SPL at 1m / 2.83V)
        90.5 dB
        Frequency Response
        55-4000 Hz
        Voice Coil Diameter
        32 mm
        DC Resistance (Re)
        3 Ohm
        Voice Coil Inductance (Le)
        0.35 mH
        Resonant Frequency (Fs)
        55 Hz
        Mechanical Q (Qms)
        3.06
        Electromagnetic Q (Qes)
        0.56
        Total Q (Qts)
        0.48
        Diaphragm Mass Inc. Airload (Mms)
        12.5 g
        Mechanical Compliance of Suspension (Cms)
        0.67 mm/N
        Surface Area of Cone (Sd)
        138 cm2
        Compliance Equivalent Volume (Vas)
        17.9 Litres
        Maximum Linear Excursion (Xmax)
        4 mm, max 8 mm
        Driver's Mechanical Losses (Rms)
        1.41 kg/s
        Overall Outside Diameter
        165.5 mm
        Overall Depth
        62.7 mm
        Baffle Cutout Diameter
        141 mm
        # Mounting Holes
        25
        Vented Volume
        44 Litres

        Show more
