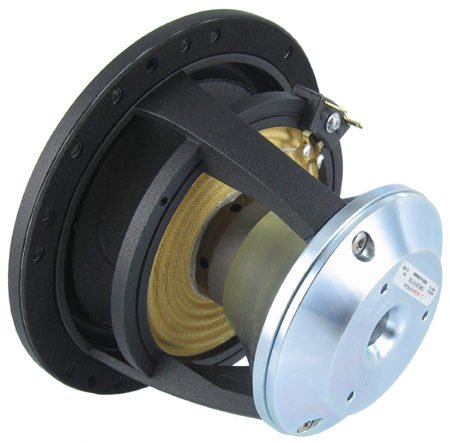

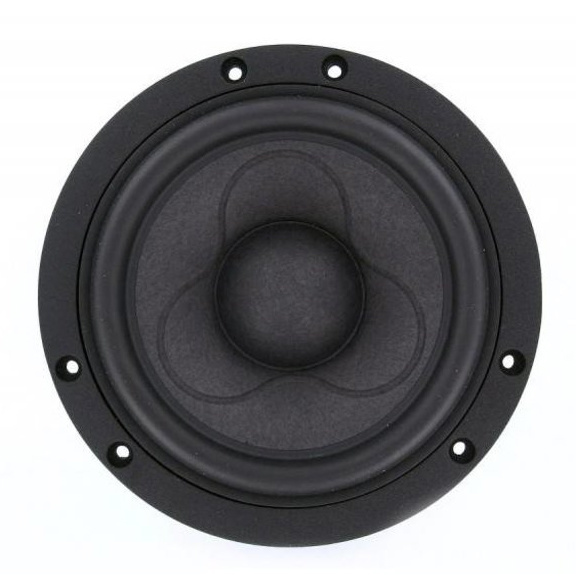

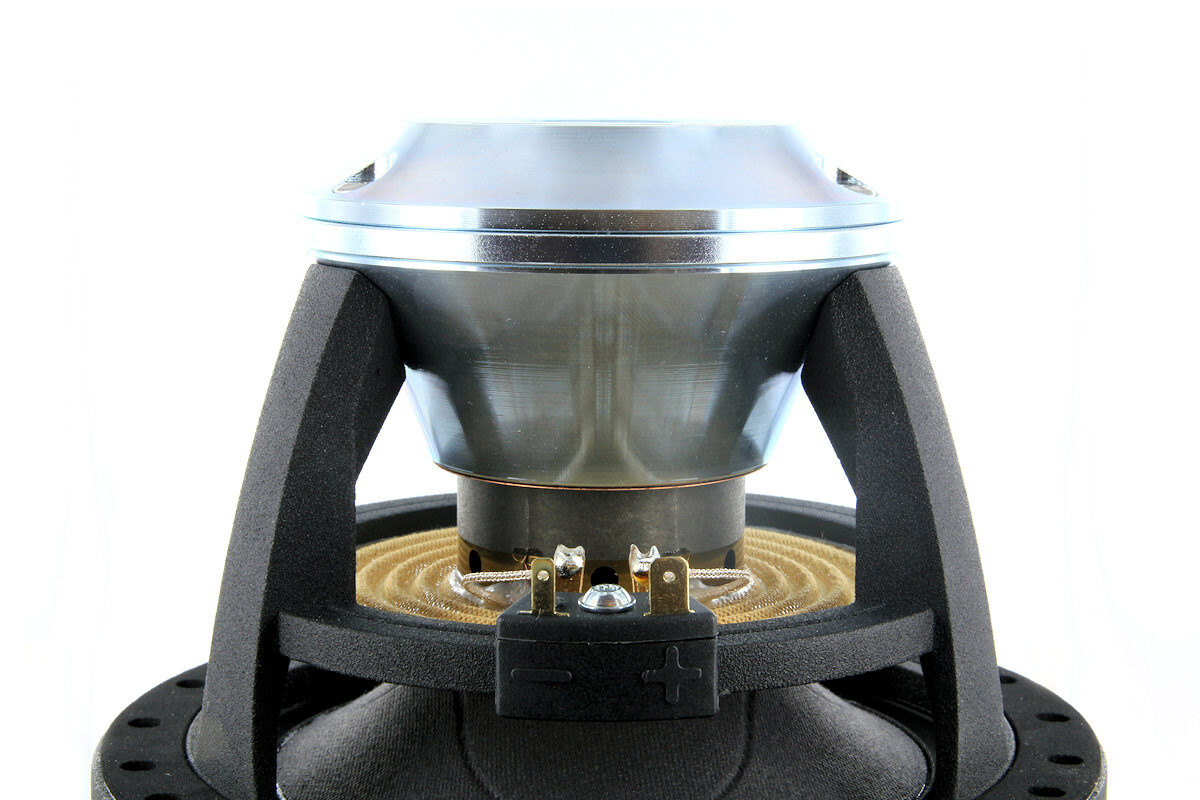

    Scan-Speak Illuminator 15WU/8741T00 5,5" Woofer

    € 280,95€ 339,95 2 In stock: delivery time 1-4 business days
    The Illuminator woofers are based on compact under-hung motor systems with large neodymium ring magnets. The patent pending motor offers a very long linear excursion together with a very high force factor. The top plate is shaped to “guide” the backside a... Show more
    Bulk discount Enjoy these awesome discount deals
    • -5% Order 4 for only €322,95 per piece
    • Shipping always fully insured and with track & trace
    • Low international shipping rates
    • Same day shipping*
    • In-house technical support

    Product description

    Highlights

    • Under-Hung Neodymium Motor Design
    • Patented Sandwich Paper Cone
    • Low-loss linear suspension
    • Patented Symmetrical Drive (SD-3)
    • Exceptionally Long Linear Excursion



    Product details

    Scan-Speak Illuminator 15WU/8741T00 5,5" Woofer



    The Illuminator woofers are based on compact under-hung motor systems with large neodymium ring magnets. The patent pending motor offers a very long linear excursion together with a very high force factor. The top plate is shaped to “guide” the backside airflow around the motor and with the very open cast aluminum chassis design the driver is virtually free from compression.

    Specifications

    Article number
    15WU/8741T00
    Woofer Series
    Illuminator
    Woofer Type
    Midwoofer
    Power Handling (RMS)
    80 Watts
    Power Handling (max)
    150 Watts
    Impedance
    8 ohms
    Sensitivity
    83.4 dB 2.83V/1m
    Voice Coil Diameter
    1.65"
    DC Resistance (Re)
    5.9 ohms
    Voice Coil Inductance (Le)
    0.41 mH
    Resonant Frequency (Fs)
    35 Hz
    Mechanical Q (Qms)
    3.37
    Electromagnetic Q (Qes)
    0.28
    Total Q (Qts)
    0.26
    Diaphragm Mass Inc. Airload (Mms)
    12.3g
    Mechanical Compliance of Suspension (Cms)
    1.68 mm/N
    Surface Area of Cone (Sd)
    92 cm2
    BL Product (BL)
    7.5 Tm
    Compliance Equivalent Volume (Vas)
    0.70 ft.³
    Maximum Linear Excursion (Xmax)
    9 mm
