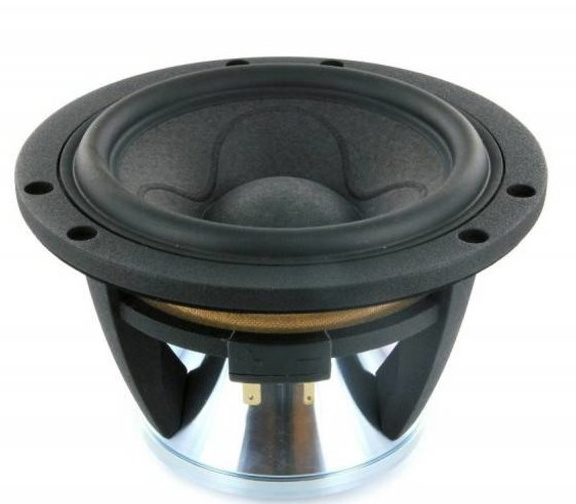

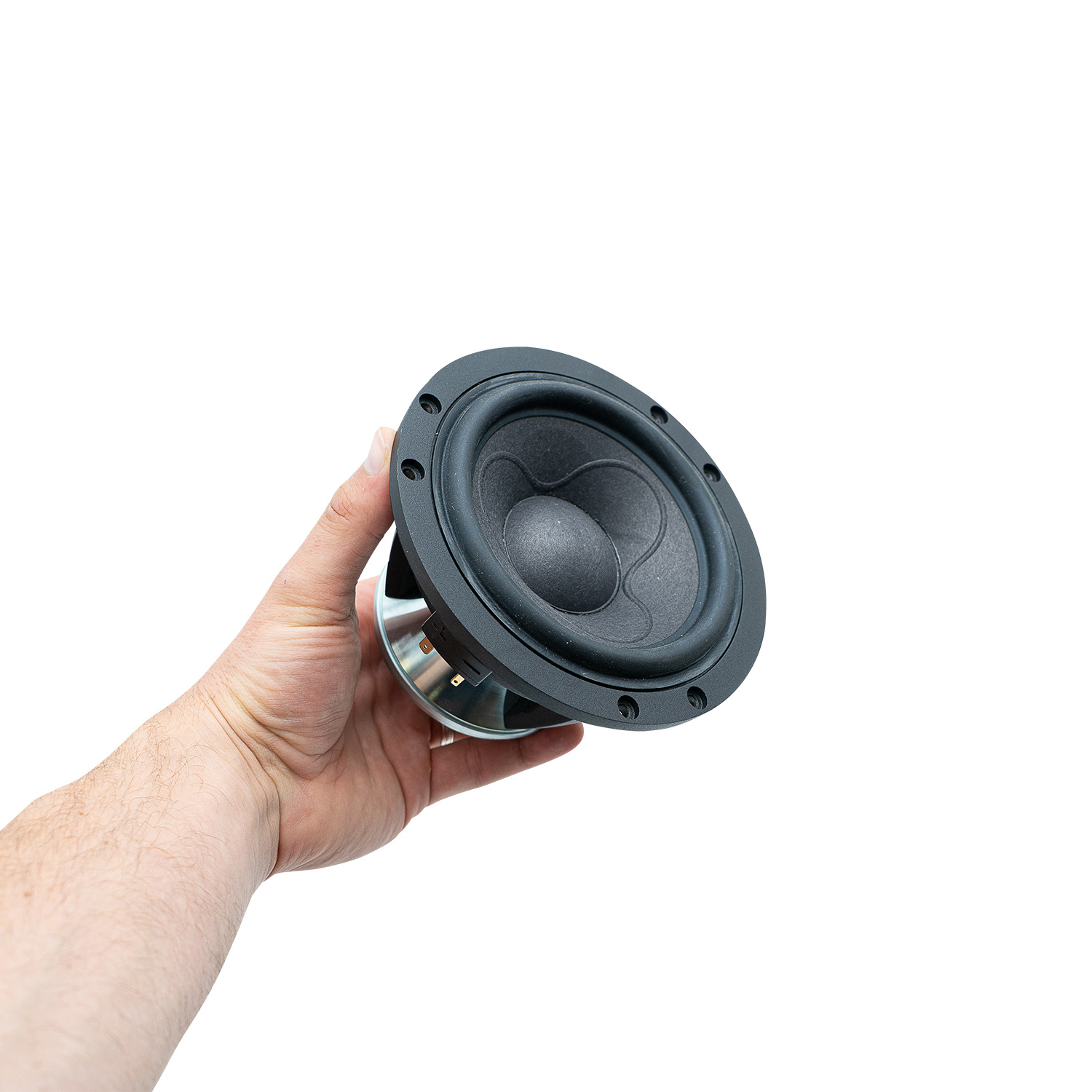

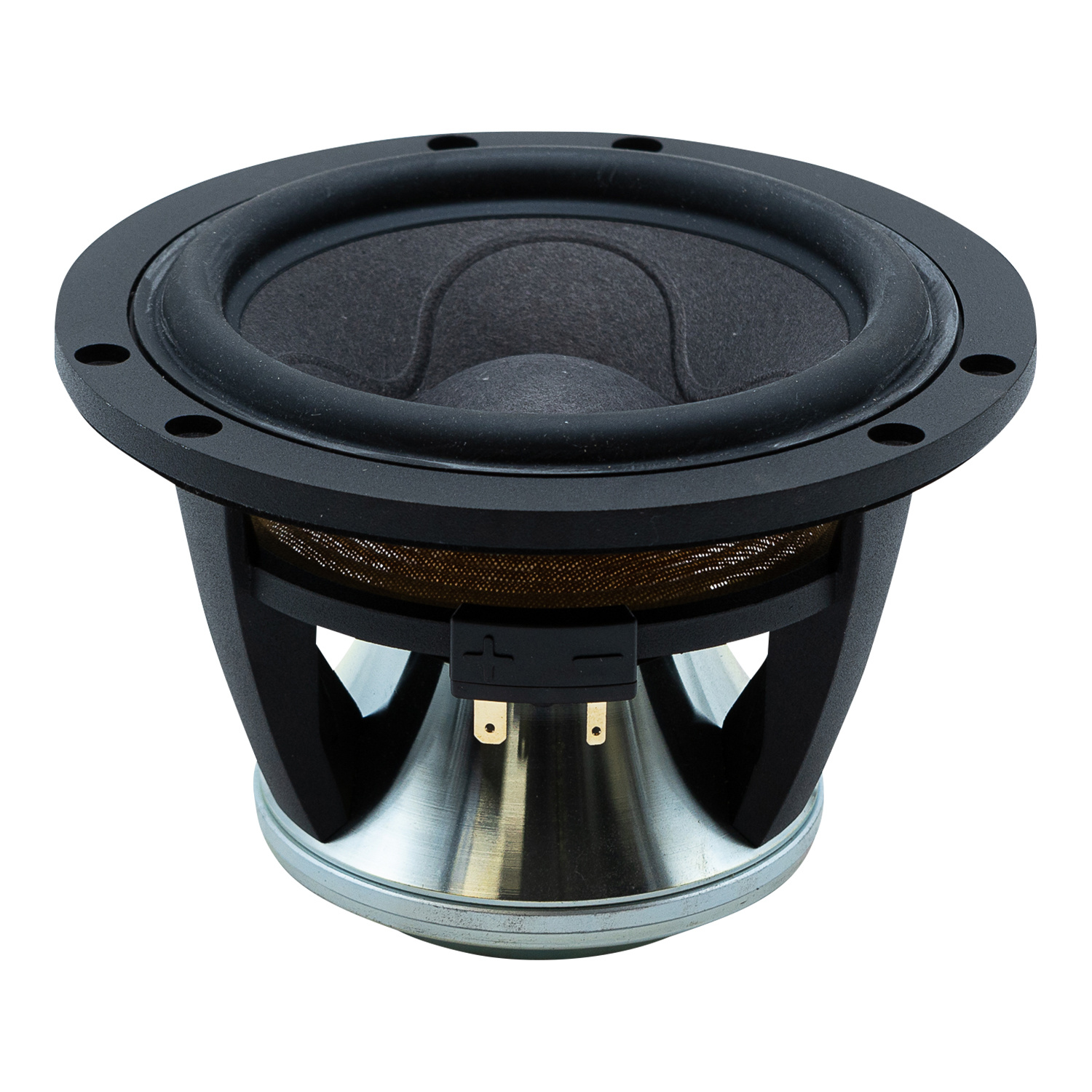

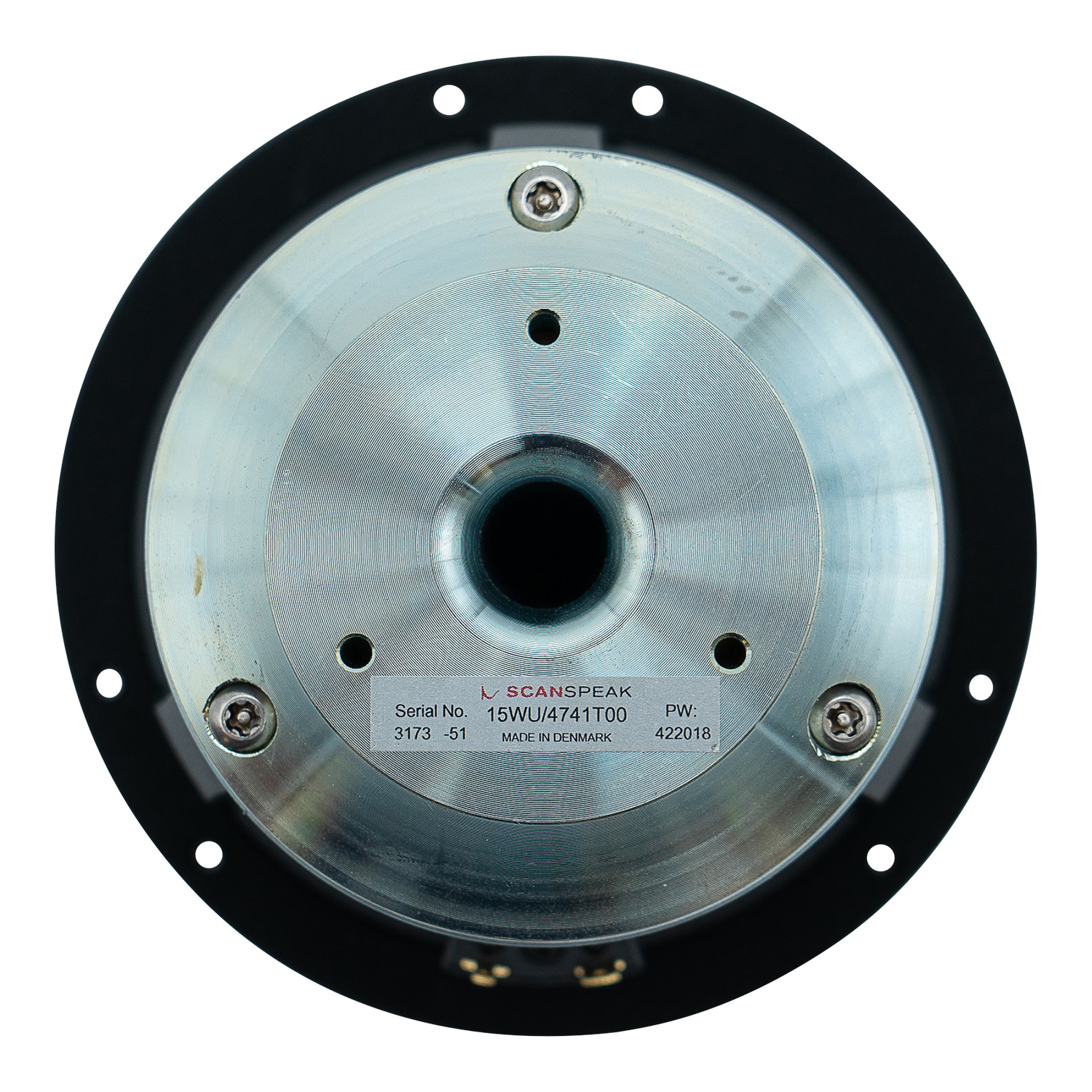

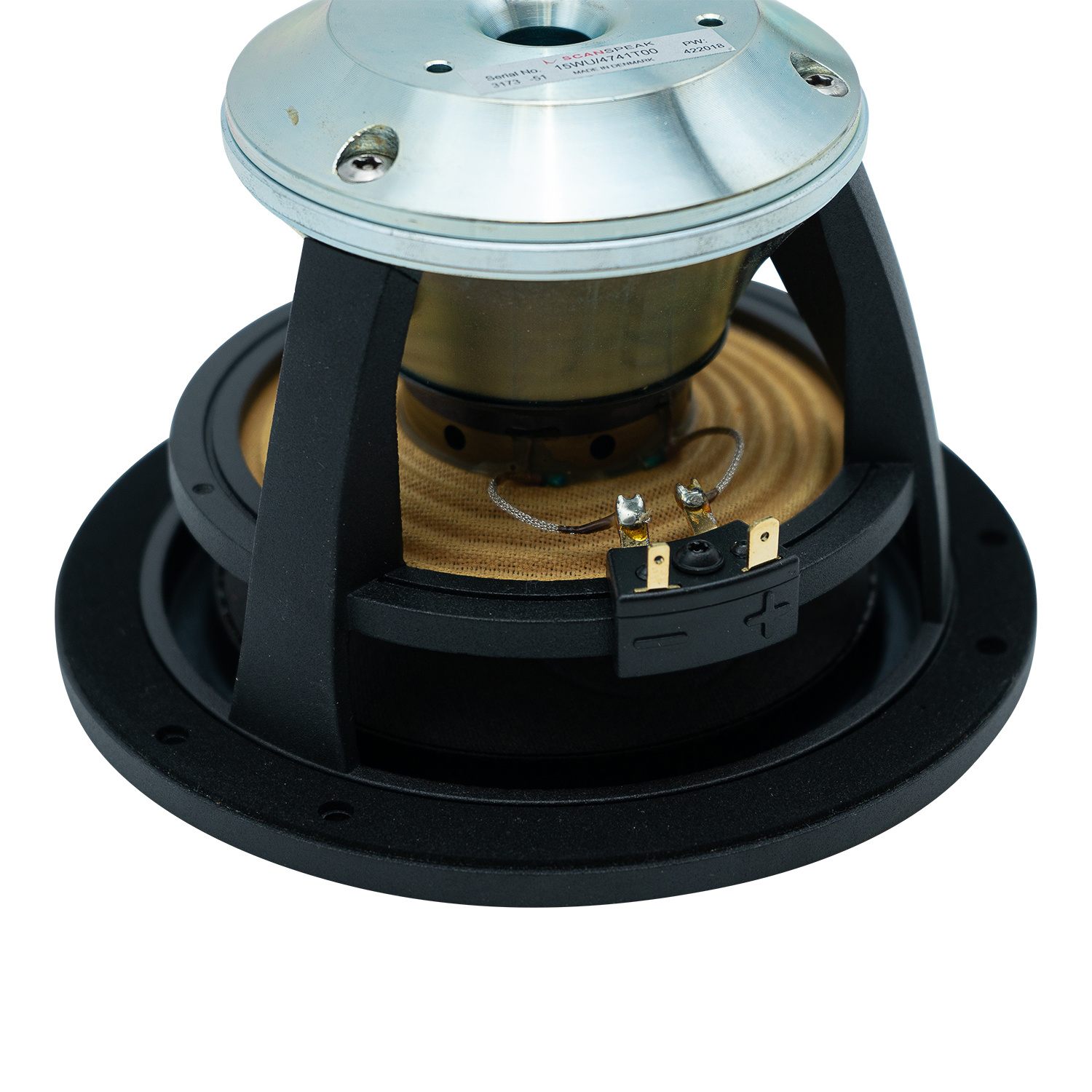

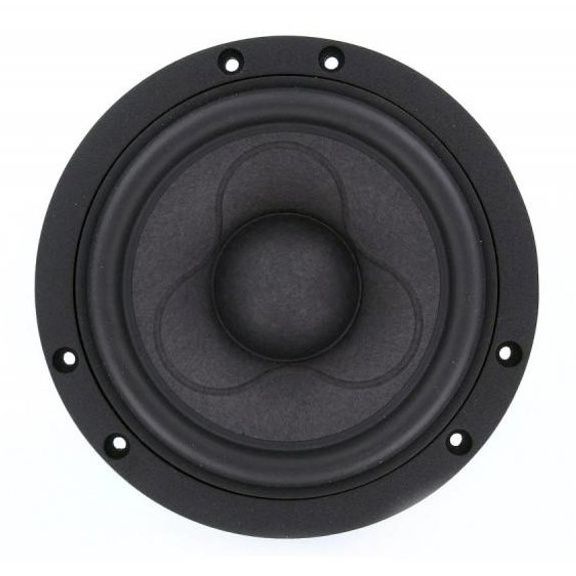

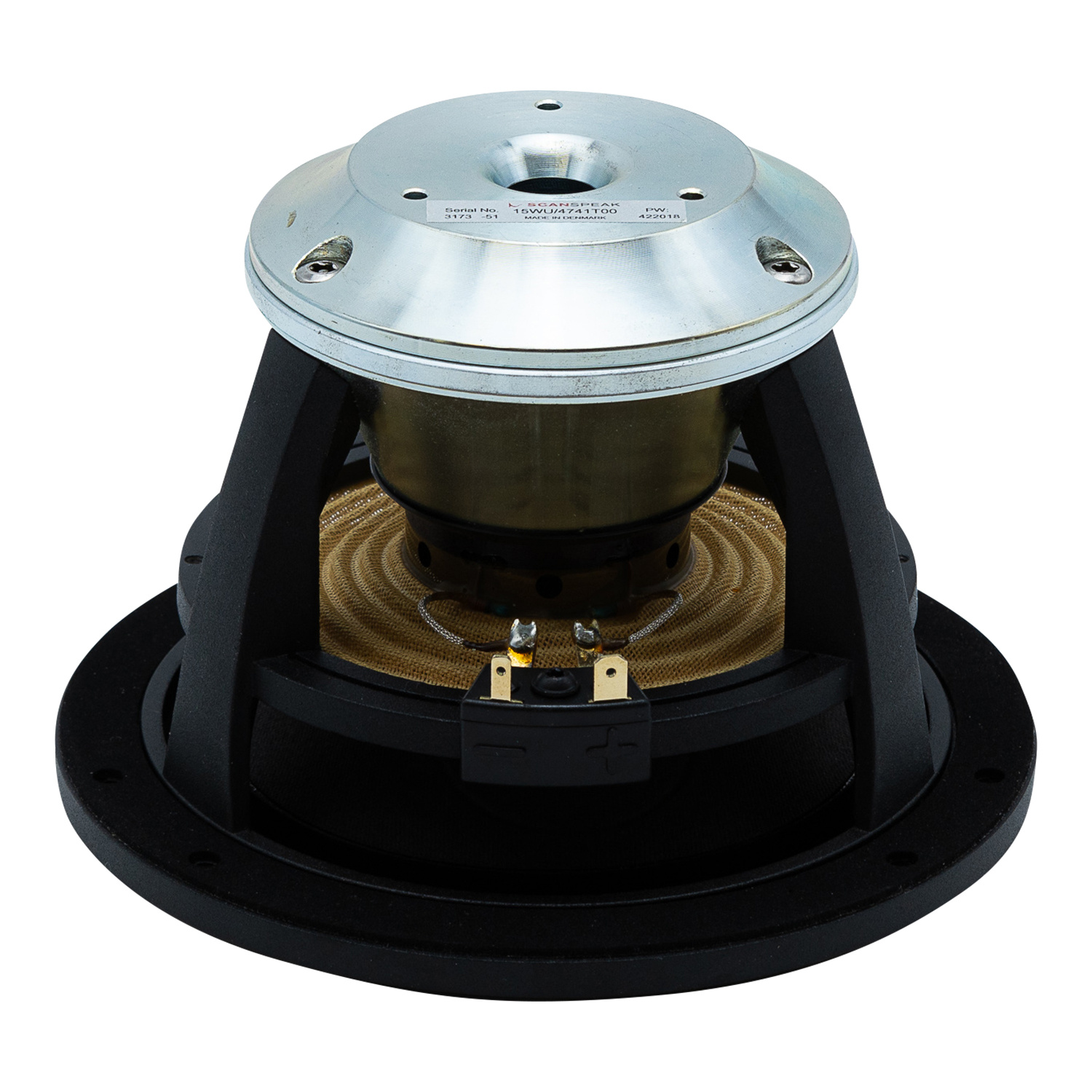

Scan-Speak Illuminator 15WU/4741T00 5,5" Woofer

Specifications for: Illuminator 15WU/4741T00 5,5" Woofer

• Woofer SeriesSpecific woofer production line of the manufacturer. Illuminator Series
• Woofer TypeThe driver type for example subwoofer, mid-woofer, full range or coaxial woofer. Midwoofer
• Nominal DiameterThe approximate diameter of the driver, measured in inches. 5,5"
• Power Handling (RMS)The average power handling capability of a driver (coil) in electric power (watts) for a long period of time without damaging the driver. RMS stands for Root Mean Square 80 Watts
• Power Handling (max)The maximum electrical power that a woofer (coil) can handle for a short period of time before it is damaged. 150 Watts
• View all specifications
• Continuous Program Power
• Impedance 4 ohms
• Sensitivity 85.9 dB 2.83V/1m
• Frequency Response
• Voice Coil Diameter 1.65"
• Magnet Weight
• DC Resistance (Re) 3.2 ohms
• Voice Coil Inductance (Le) 0.5 mH
• Resonant Frequency (Fs) 34 Hz
• Mechanical Q (Qms) 3.47
• Electromagnetic Q (Qes) 0.25
• Total Q (Qts) 0.23
• Diaphragm Mass Inc. Airload (Mms) 13g
• Moving Mass Of Diaphragm (Mmd)
• Mechanical Compliance of Suspension (Cms) 1.69 mm/N
• Surface Area of Cone (Sd) 92 cm2
• Volume of Displacement (Vd)
• BL Product (BL) 6 Tm
• Compliance Equivalent Volume (Vas) 0.70 ft.³
• Maximum Linear Excursion (Xmax) 9 mm
• Driver's Mechanical Losses (Rms)
• Cone / Diaphragm Material
• Surround Material
• Voice Coil Wire Material
• Voice Coil Former
• Dual Voice Coil
• Basket / Frame Material
• Magnet Material
• Shielded
• Overall Outside Diameter
• Overall Depth
• Baffle Cutout Diameter
• Bolt Circle Diameter
• # Mounting Holes
• Mounting Hole Diameter
• Sealed Volume
• Sealed F3
• Vented Volume
• Vented F3
