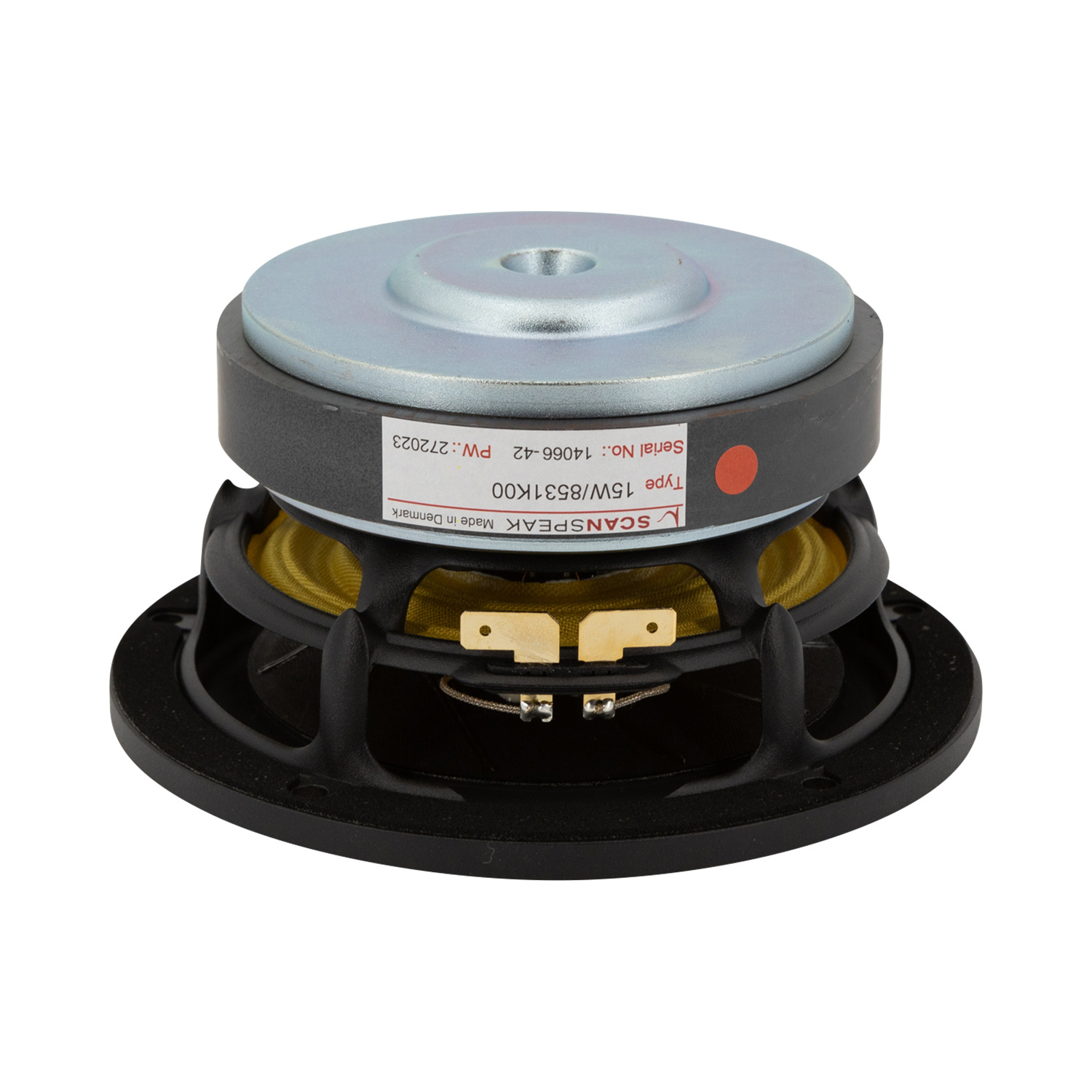

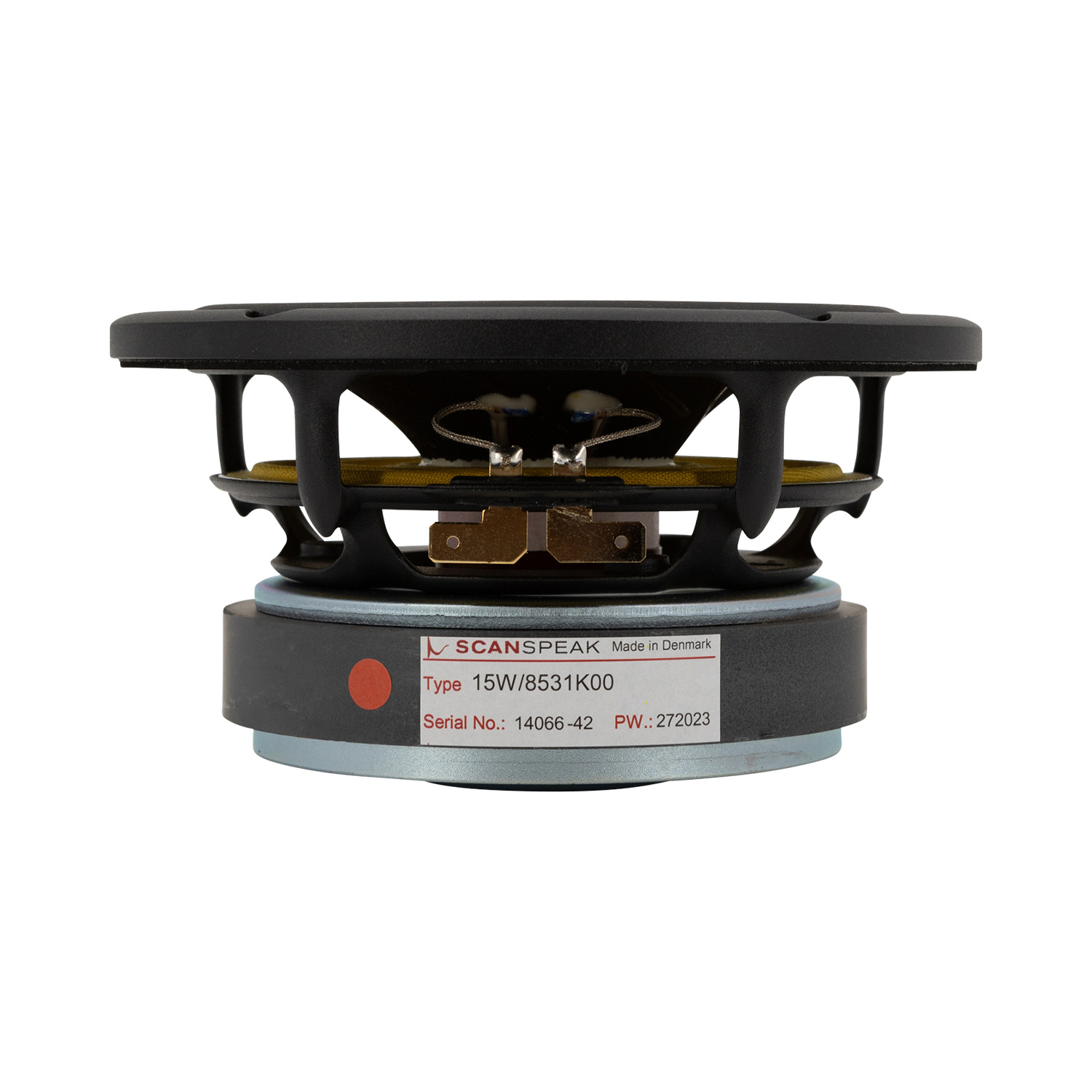

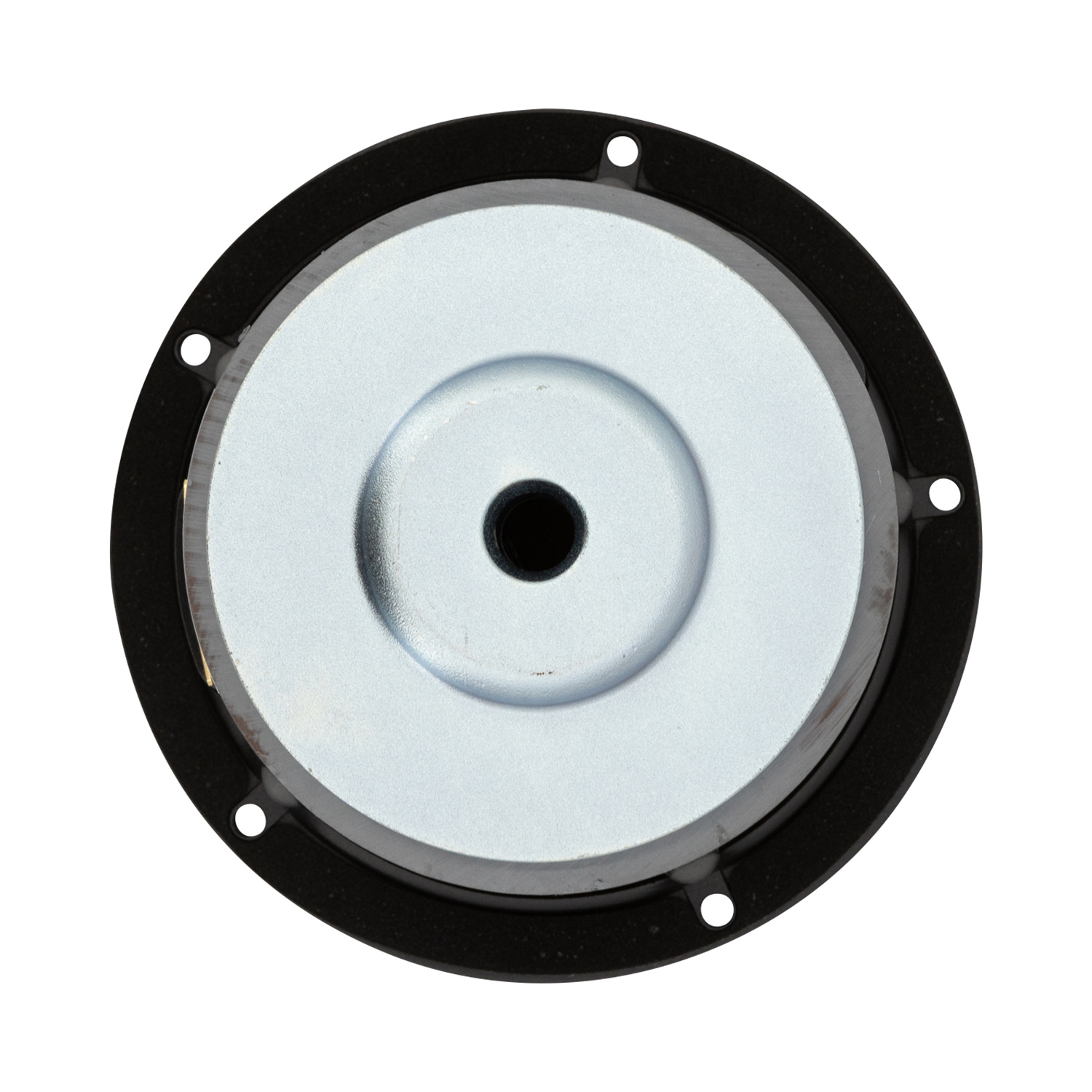

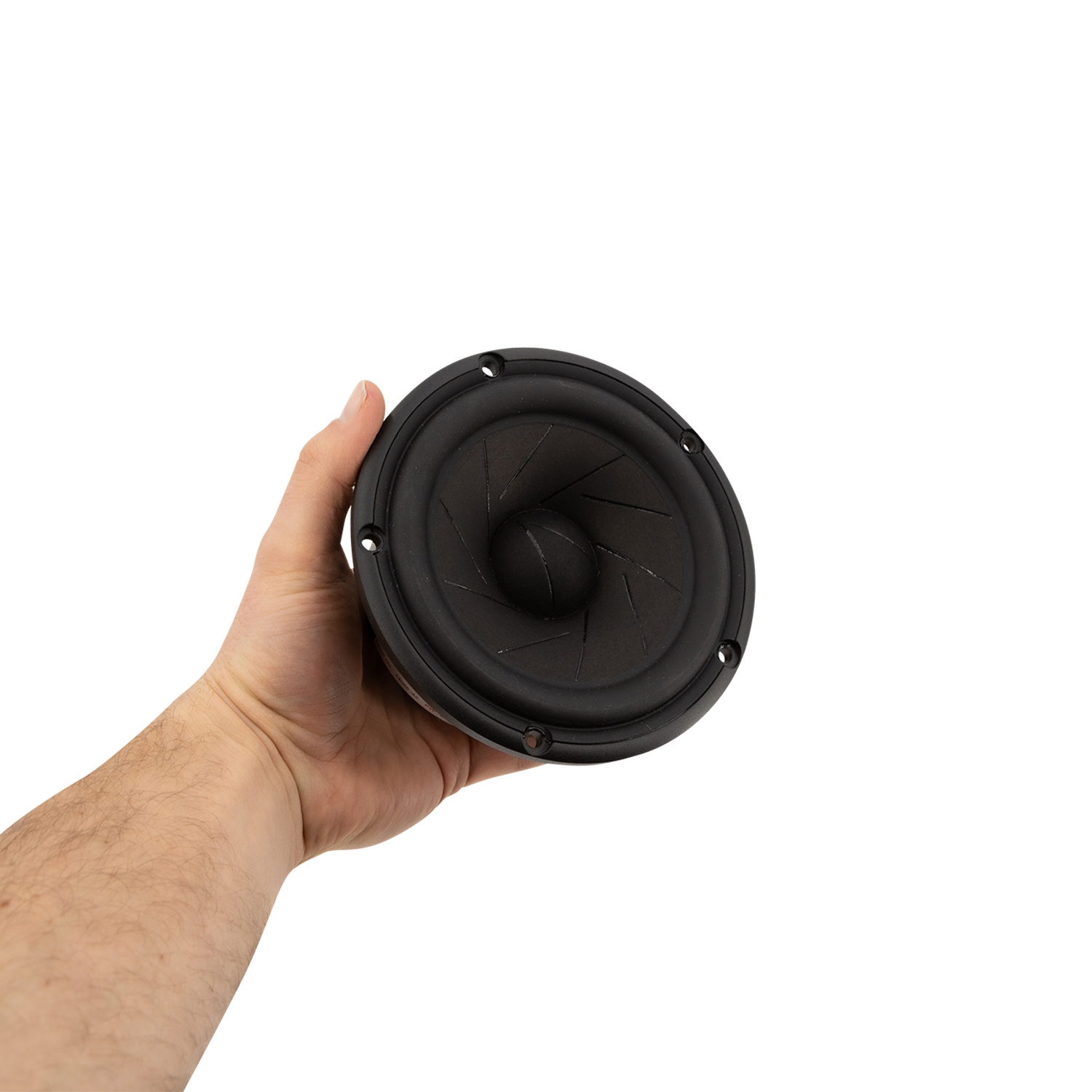

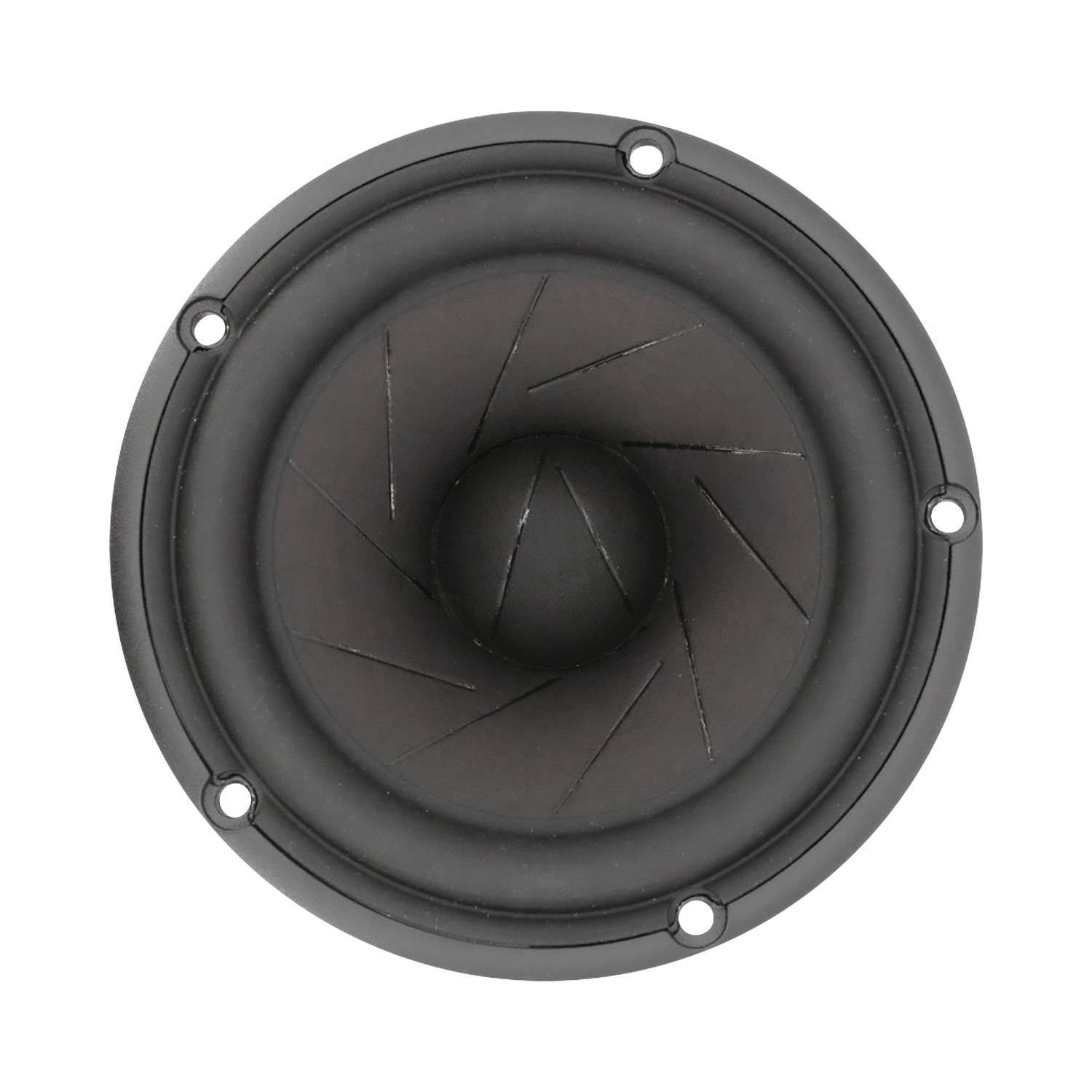

    Scan-Speak Revelator 15W/8531K00 5.5" Woofer

    € 199,95 8 In stock: delivery time 1-4 business days
    The 15W/8530K is a 5.5" Revelator mid/woofer. It features a non-resonant cone and dust cap structure, dynamic linear suspension, SD-1 magnet system, "Grasshopper" cast chassis with maximized air flow and resonance terminating mounting system.... Show more
    Bulk discount Enjoy these awesome discount deals
    • -5% Order 4 for only €189,95 per piece
    • Low international shipping rates
    • Same day shipping*
    • Pay with PayPal, Creditcard, and more
    • In-house technical support

    Product description

    Highlights

    • Patented Symmetrical Drive Motor Design
    • Low-Loss linear suspension
    • Die cast Alu Chassis vented below spider
    • Sliced Cone (Controls Cone Breakups)
    • Low Damping SBR Rubber Surround
    • Large Ferrite Magnet System

    Product details

    Scan-Speak Revelator 15W/8531K00 5.5" Woofer



    The 15W/8530K is a 5.5" Revelator mid/woofer. It features a non-resonant cone and dust cap structure, dynamic linear suspension, SD-1 magnet system, "Grasshopper" cast chassis with maximized air flow and resonance terminating mounting system.



    Less resonance in all structures, lower compression and higher linearity, faster termination of excess energy and higher sound pressure capability make the 15W have more musical and dynamic capability than any other 5 ½" we know of. Wonderful bass in a small box!

    Specifications

    Article number
    15W/8531K00
    Woofer Series
    Revelator Series
    Woofer Type
    Midwoofer
    Nominal Diameter
    5.5"
    Power Handling (RMS)
    60 Watts
    Impedance
    8 ohms
    Sensitivity
    85.5 dB 2.83V/1m
    Voice Coil Diameter
    1.49"
    DC Resistance (Re)
    5.8 ohms
    Voice Coil Inductance (Le)
    0.35 mH
    Resonant Frequency (Fs)
    30 Hz
    Mechanical Q (Qms)
    4.90
    Electromagnetic Q (Qes)
    0.29
    Total Q (Qts)
    0.27
    Diaphragm Mass Inc. Airload (Mms)
    13g
    Mechanical Compliance of Suspension (Cms)
    2.16 mm/N
    Surface Area of Cone (Sd)
    95 cm2
    BL Product (BL)
    7 Tm
    Compliance Equivalent Volume (Vas)
    0.96 ft.³
    Maximum Linear Excursion (Xmax)
    6.5 mm
