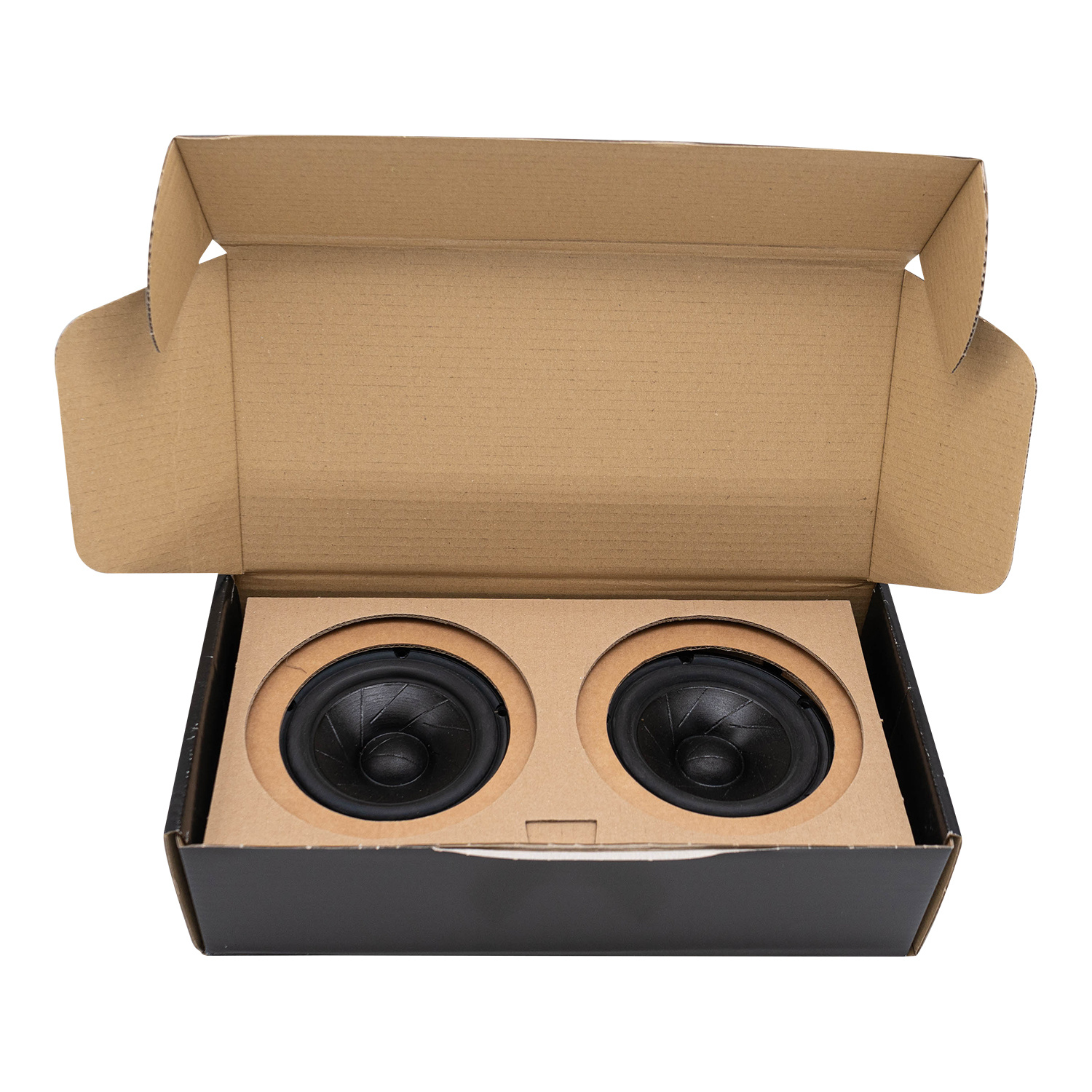

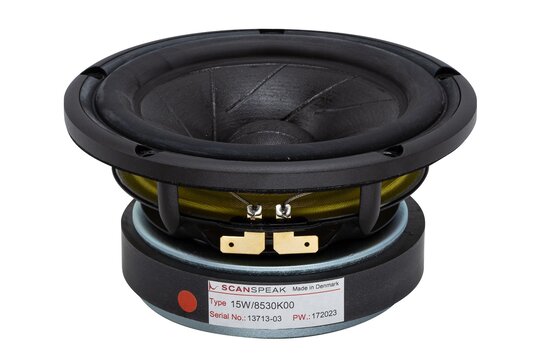

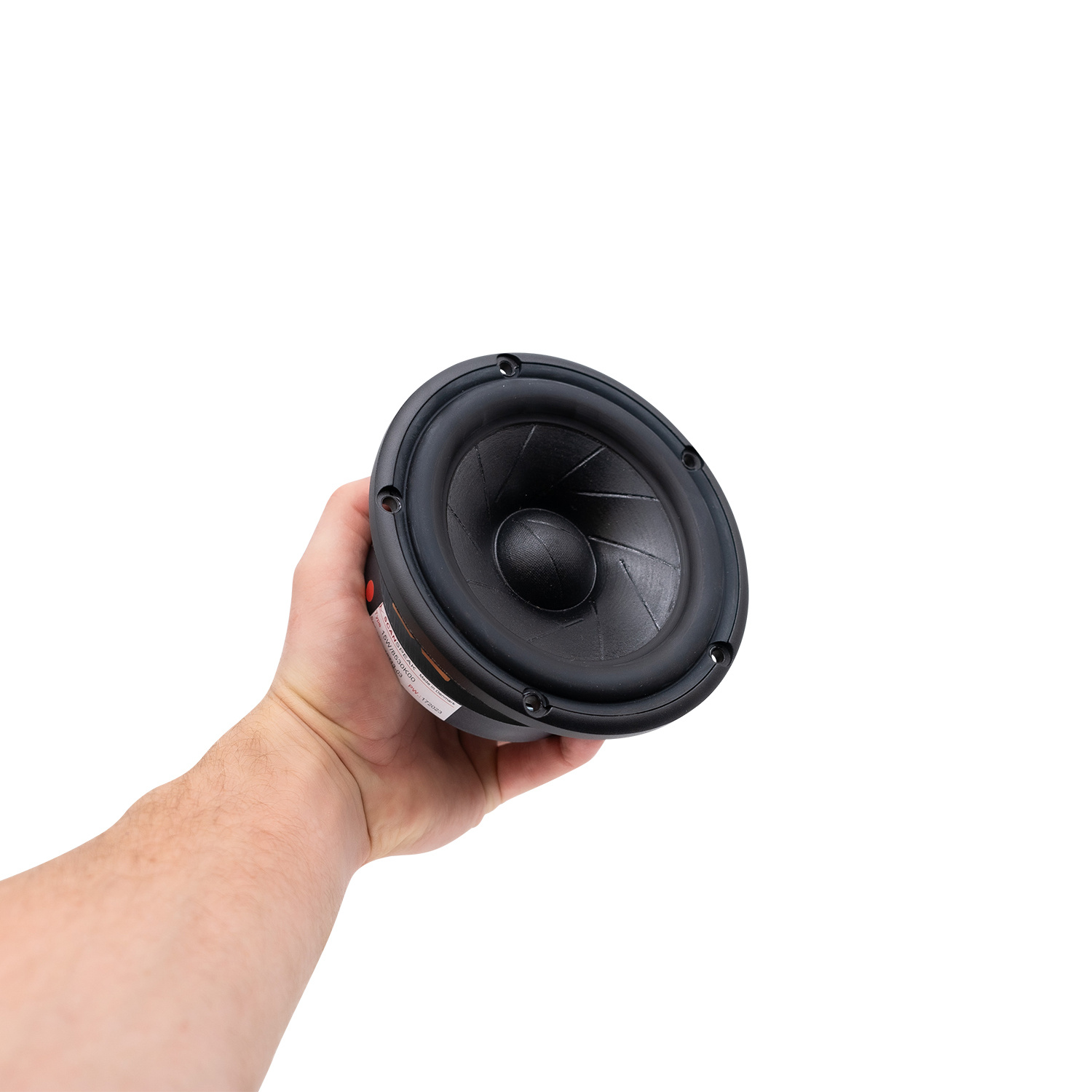

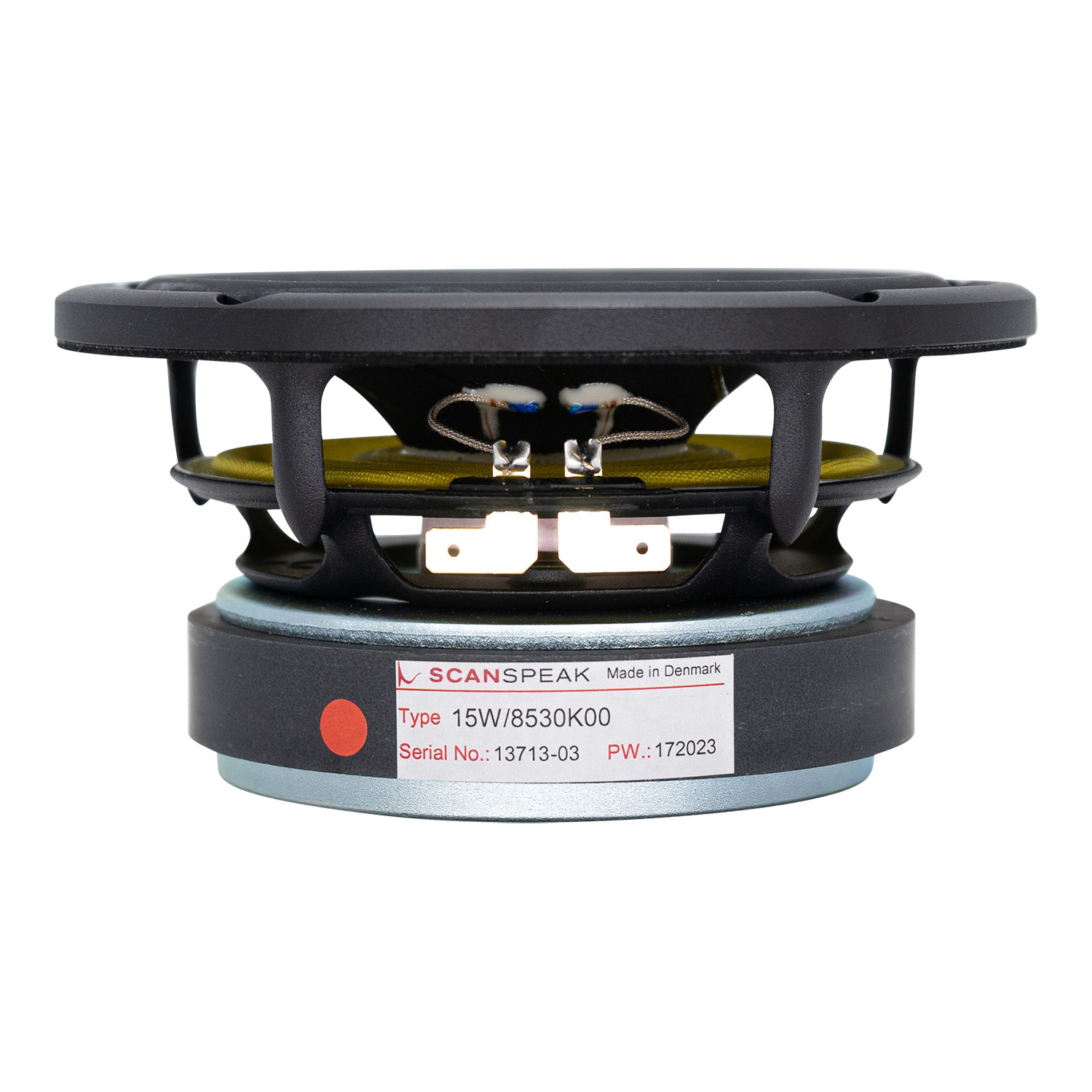

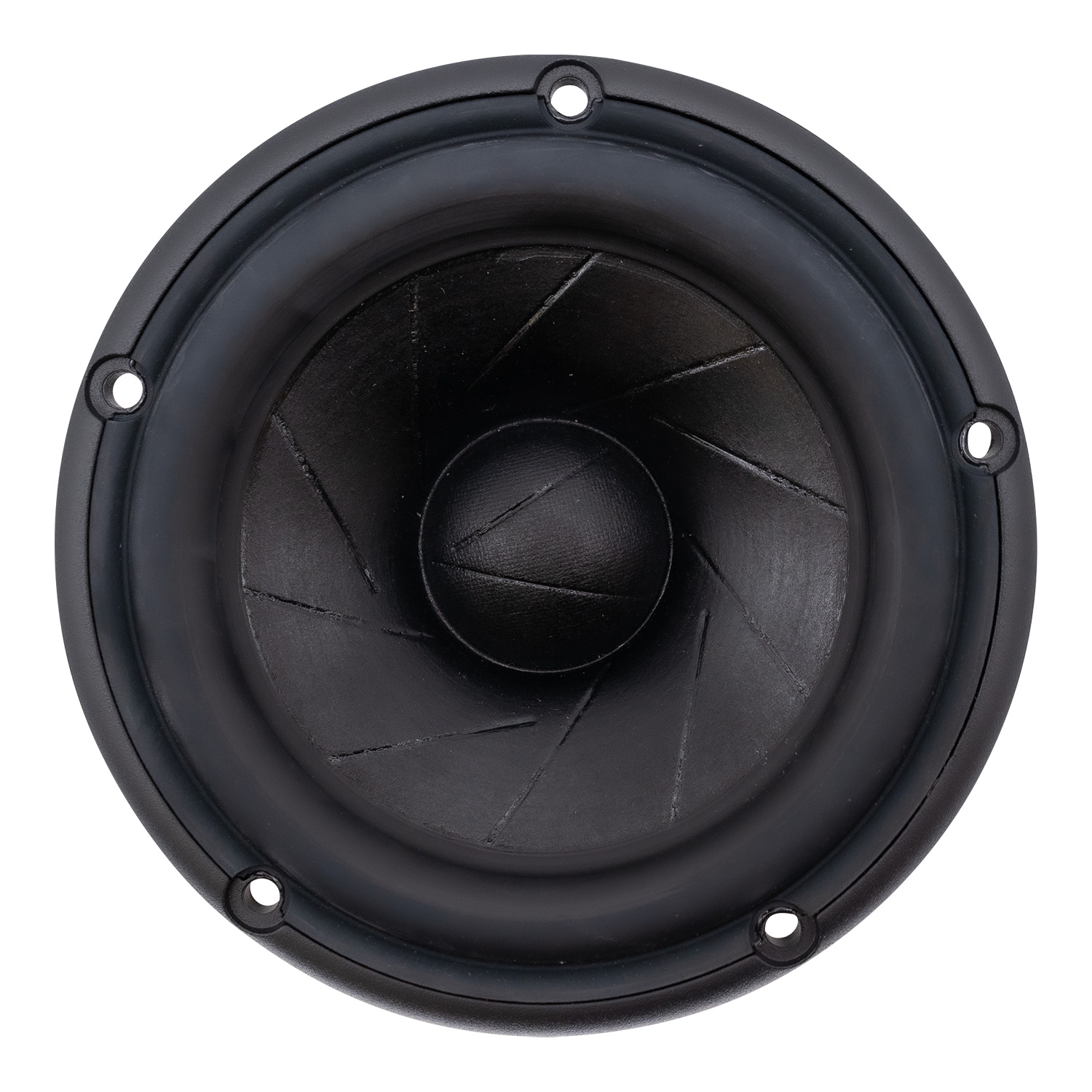

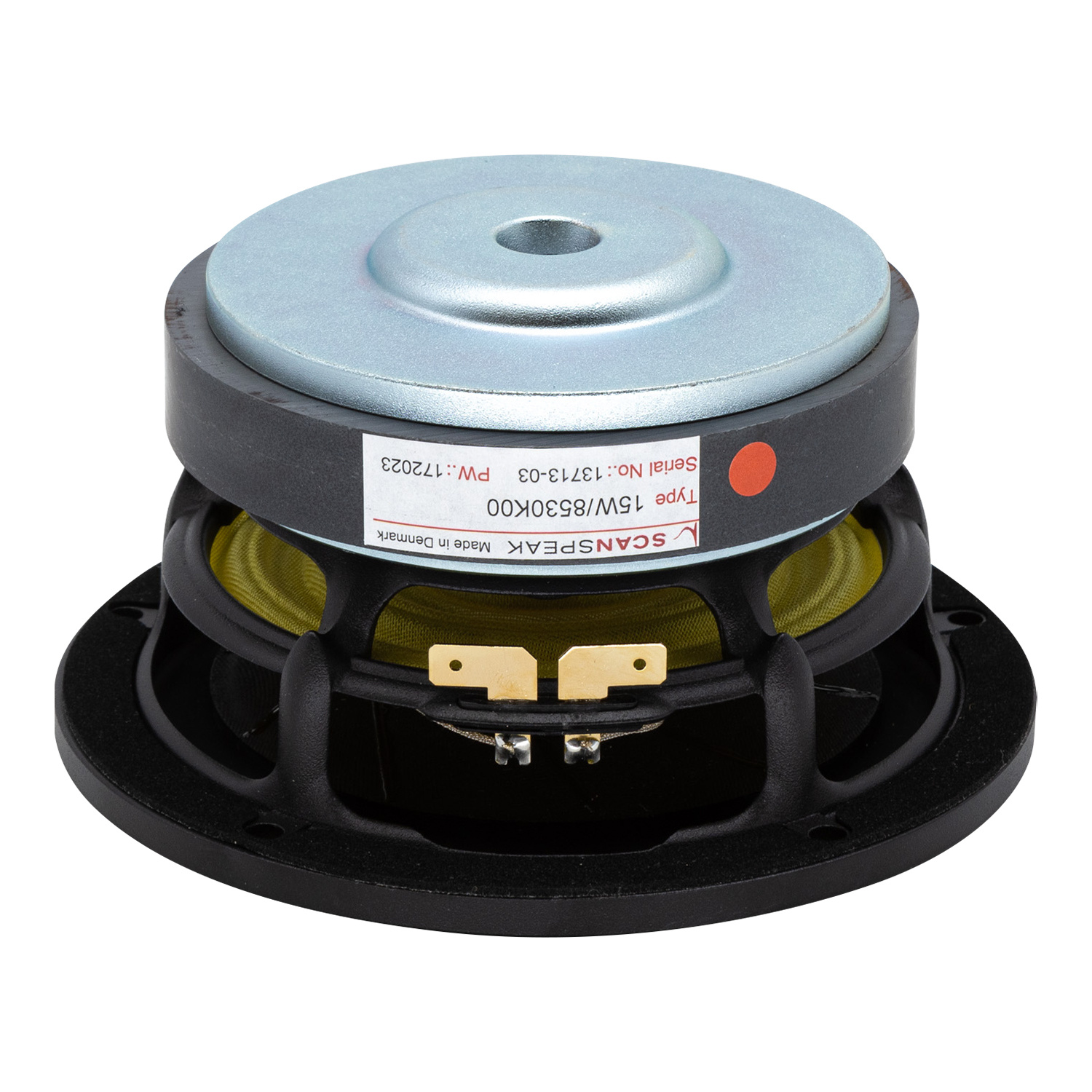

        Revelator 15W/8530K00 5.5'' Midwoofer

        Scan-Speak Revelator 15W/8530K00 5.5'' Midwoofer

        €199,95

        10+ In stock

        Add to cart

        Scan-Speak Revelator 15W/8530K00 5.5'' Midwoofer

        3 reviews
        5 from 5
        3 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Scan-Speak
        Show all Scan-Speak woofers
        5.5" | 8 Ω
        Revelator 15W/8530K00 5.5'' Midwoofer
        Revelator 15W/8530K00 5.5'' Midwoofer
        Revelator 15W/8530K00 5.5'' Midwoofer
        Revelator 15W/8530K00 5.5'' Midwoofer
        Revelator 15W/8530K00 5.5'' Midwoofer
        Revelator 15W/8530K00 5.5'' Midwoofer
        Revelator 15W/8530K00 5.5'' Midwoofer
        Revelator 15W/8530K00 5.5'' Midwoofer
        Revelator 15W/8530K00 5.5'' Midwoofer
        Revelator 15W/8530K00 5.5'' Midwoofer
        Revelator 15W/8530K00 5.5'' Midwoofer
        Revelator 15W/8530K00 5.5'' Midwoofer
        Revelator 15W/8530K00 5.5'' Midwoofer
        € 165,25€ 199,95 10+ In stock
        • -5% Purchase 4 for only € 189,95 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Same day shipping
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Revelator 15W/8530K00 5.5'' Midwoofer
        Revelator 15W/8530K00 5.5'' Midwoofer
        Revelator 15W/8530K00 5.5'' Midwoofer
        Revelator 15W/8530K00 5.5'' Midwoofer
        Revelator 15W/8530K00 5.5'' Midwoofer
        Revelator 15W/8530K00 5.5'' Midwoofer
        Revelator 15W/8530K00 5.5'' Midwoofer
        Revelator 15W/8530K00 5.5'' Midwoofer
        Revelator 15W/8530K00 5.5'' Midwoofer
        Revelator 15W/8530K00 5.5'' Midwoofer
        Revelator 15W/8530K00 5.5'' Midwoofer
        Revelator 15W/8530K00 5.5'' Midwoofer
        Revelator 15W/8530K00 5.5'' Midwoofer
        Revelator 15W/8530K00 5.5'' Midwoofer

        Pros and cons

        According to our specialists
        • Patended symmetrical drive motor design

        Product description Scan-Speak Revelator 15W/8530K00 Midwoofer

        Highlights

        • Excellent Midrange Performance
        • Coated Sliced Paper Cone
        • Low loss linear suspension
        • SD-1 motor



        Product details

        Scan-Speak Discovery 15W/8530K00 5.5" Midwoofer



        The 15W/8530K is a 5 ½” Revelator mid/woofer. It features a non-resonant cone and dust cap structure, dynamic linear suspension, SD-1 magnet system, “Grasshopper” cast chassis with maximized airflow and resonance terminating mounting system. Less resonance in all structures, lower compression and higher linearity, faster termination of excess energy, and higher sound pressure capability make the 15W have more musical and dynamic capability than any other 5 ½” we know of. Wonderful bass in a small box!



        The Revelator midrange and midwoofers, both well known for their sliced paper cone technology. The slices are filled with damping glue, which dramatically reduces break-up modes in the diaphragm. In combination with Scan-Speaks low-loss linear suspension and the patented Symmetrical Drive (SD-1) it represented a breakthrough in midrange clarity and overall smooth frequency response characteristics.

        Show more

        Specifications

        Article number
        15W/8530K00
        EAN
        0691046949530
        Woofer Series
        Scan-Speak Revelator series
        Woofer Type
        Midwoofer
        Nominal Diameter
        5.5''
        Power Handling (RMS)
        60 Watts
        Power Handling (max)
        110 Watts
        Impedance (Z)
         8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        86 dB
        Frequency Response
        39-6.000 Hz
        Voice Coil Diameter
        38 mm
        DC Resistance (Re)
         5.85 Ω
        Voice Coil Inductance (Le)
        0.3 mH
        Resonant Frequency (Fs)
        39 Hz
        Mechanical Q (Qms)
        5
        Electromagnetic Q (Qes)
        0.43
        Total Q (Qts)
        0.39
        Diaphragm Mass Inc. Airload (Mms)
        13 g
        Mechanical Compliance of Suspension (Cms)
        1.27 mn/N
        Surface Area of Cone (Sd)
        90 cm²
        BL Product (BL)
        6.6 Tm
        Compliance Equivalent Volume (Vas)
        16 Liters
        Maximum Linear Excursion (Xmax)
        +/- 6.5 mm
        Driver's Mechanical Losses (Rms)
        0.64 kg/s
        Surround Material
        Low damping SBR Rubber
        Magnet Material
        Ferrite
        Overall Outside Diameter
        148 mm
        Overall Depth
        77 mm
        Baffle Cutout Diameter
        125 mm
        # Mounting Holes
        5
        Mounting Hole Diameter
        5.3 mm

        Show more
