        Discovery 12W/4524G00 4.5" Woofer

        Discovery 12W/4524G00 4.5" Woofer

        €69,95

        Scan-Speak Discovery 12W/4524G00 4.5" Woofer

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Scan-Speak
        € 57,81€ 69,95 10+ In stock
        • -5% Purchase 4 for only € 66,45 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        Highlights

        • Wide Operating Frequency Range
        • Coated NRSC Fiber Glass Cone (patent)
        • Die Cast Alu Chassis vented below spider
        • Suitable for 2-way or 3-way (as midrange)
        • Low Damping SBR Rubber Surround



        Product details

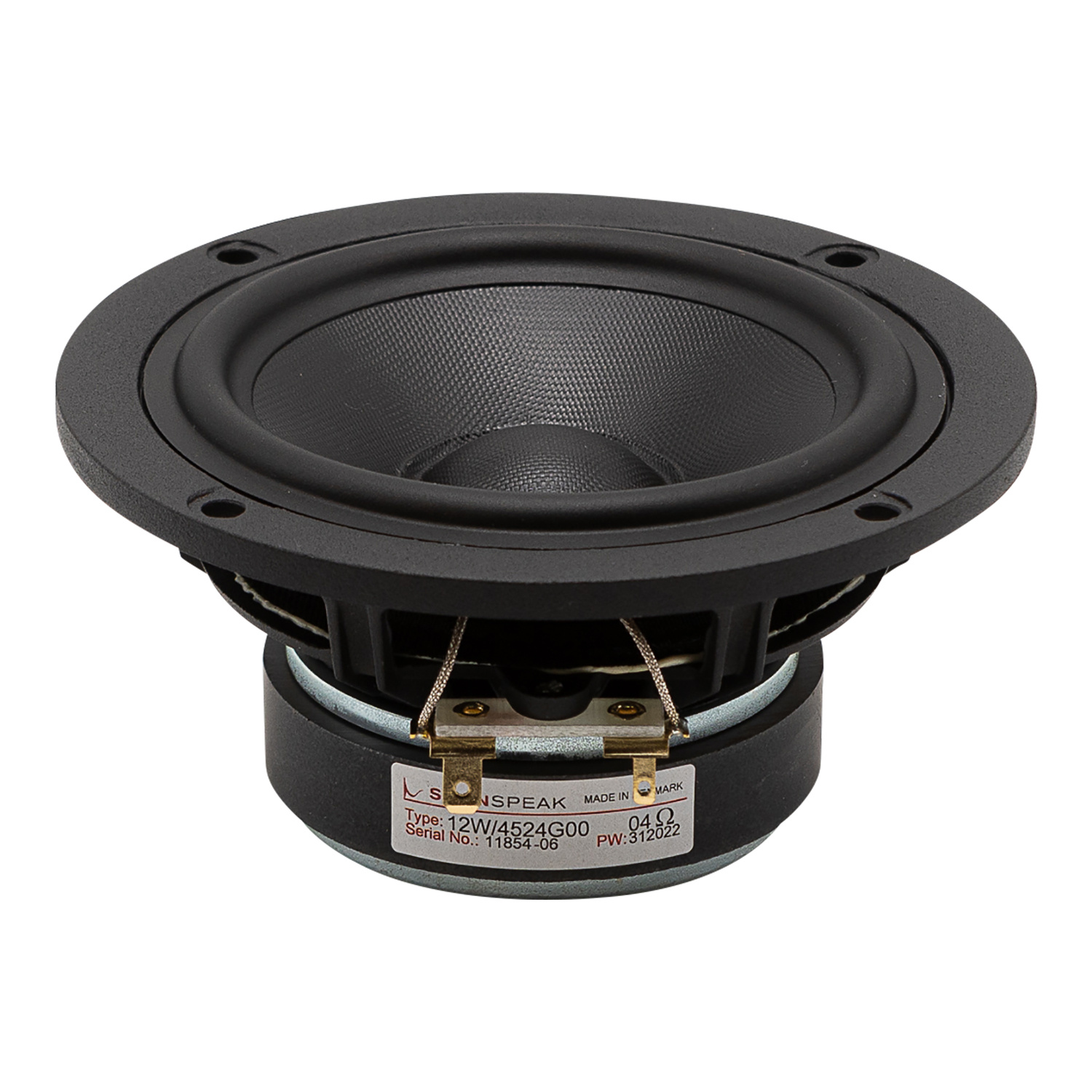

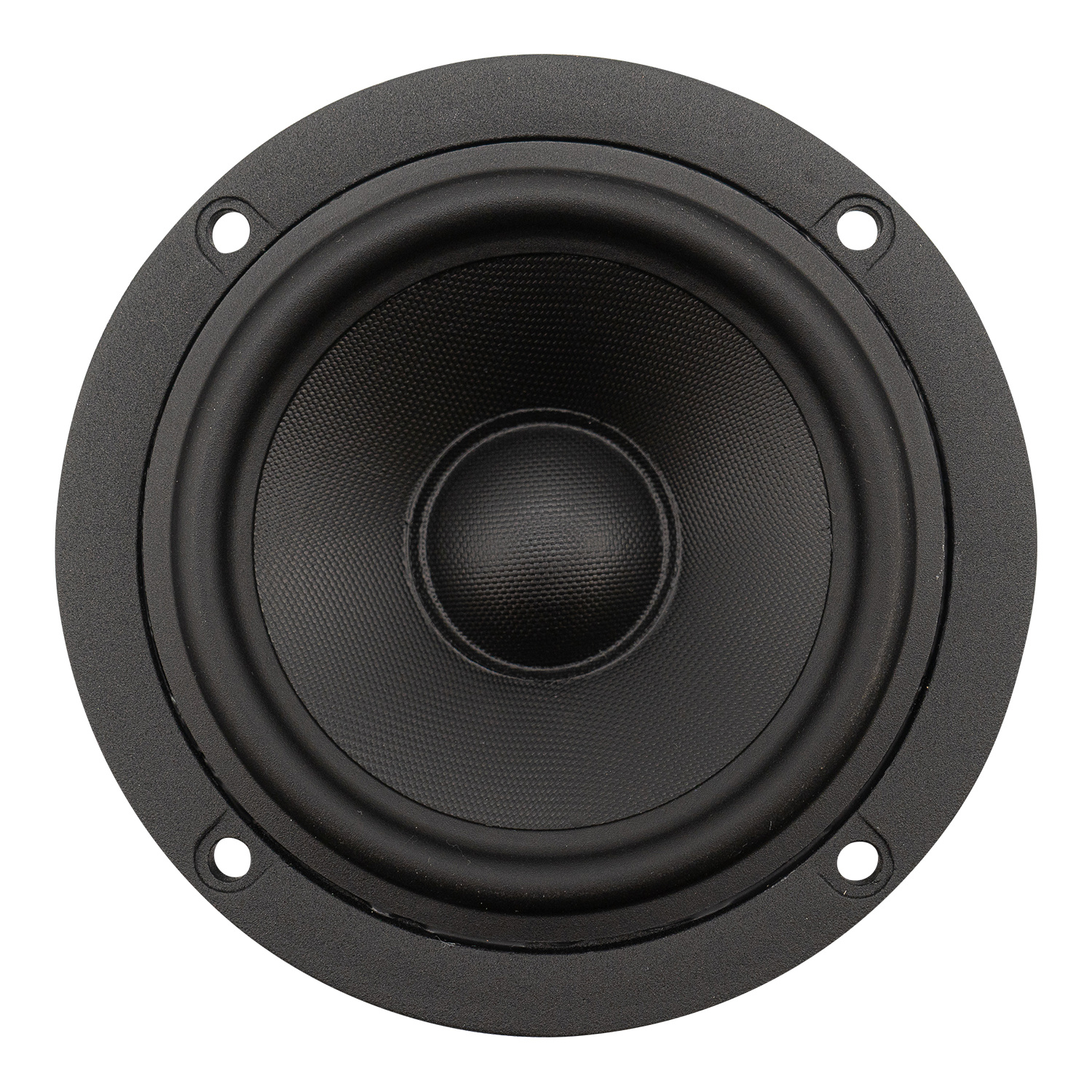

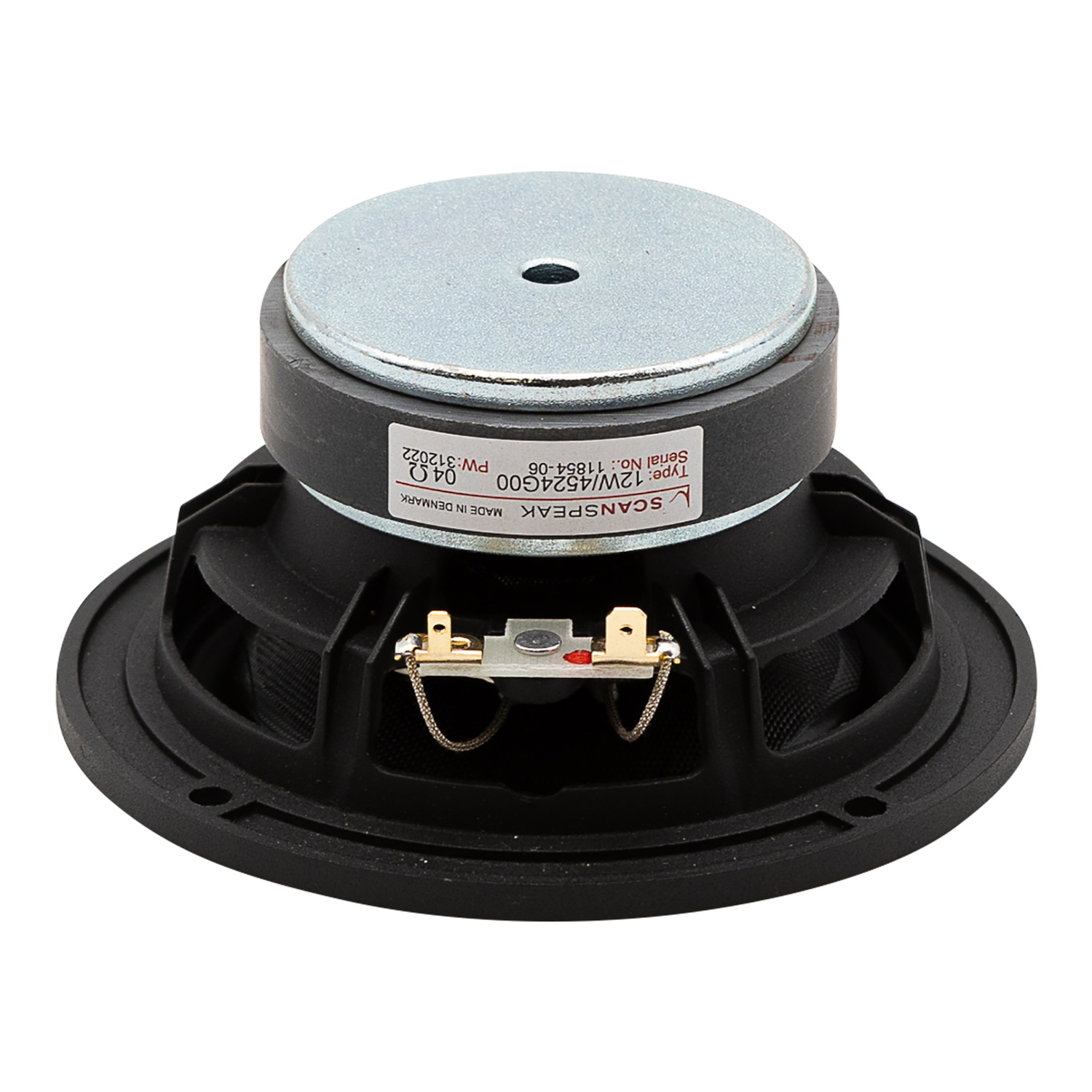

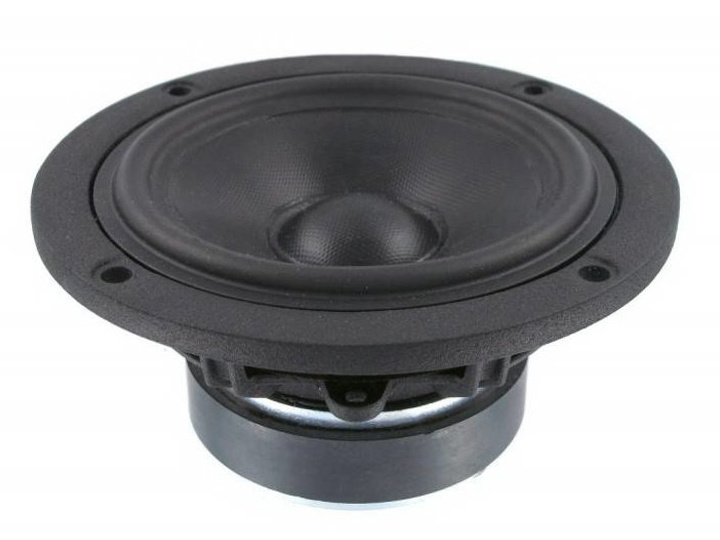

        Scan-Speak Discovery 12W/4524G00 4.5" Woofer



        The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements - plus a wealth of technical features and finesses - it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point!



        The 12W/4524G has the same frame size and should be considered as a good replacement for the PL11WH09-04, PL11WG09-04, P11MH01-04, M11WH09-04, M11WG19-04.



        The 12W/4524G is a good replacement for the midrange in the Thiel Audio CS3.6. Original speaker is Scan-speak P11MH01-04. Drop in replacement.

        Show more

        Specifications

        Article number
        12W/4524G00
        Woofer Series
        Discovery Series
        Woofer Type
        Midwoofer
        Nominal Diameter
        4.5"
        Power Handling (RMS)
        40 Watts
        Power Handling (max)
        70 Watts
        Impedance (Z)
        4 ohms
        Sensitivity (SPL at 1m / 2.83V)
        88.8 dB
        Voice Coil Diameter
        0.98"
        DC Resistance (Re)
        3.1 ohms
        Voice Coil Inductance (Le)
        0.4 mH
        Resonant Frequency (Fs)
        50 Hz
        Mechanical Q (Qms)
        3.35
        Electromagnetic Q (Qes)
        0.30
        Total Q (Qts)
        0.27
        Diaphragm Mass Inc. Airload (Mms)
        6.1g
        Mechanical Compliance of Suspension (Cms)
        1.67 mm/N
        Surface Area of Cone (Sd)
        59 cm2
        BL Product (BL)
        4.4 Tm
        Compliance Equivalent Volume (Vas)
        0.28 ft.³
        Maximum Linear Excursion (Xmax)
        3 mm

        Show more
