      Scan-Speak Illuminator 12MU/8731T00 4" Woofer

      € 256,16€ 309,95 2 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only € 294,45 per piece
      • 24h express shipping available
      • Same day shipping
      • In-house techniscal support
      • 45 days worry-free returns
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Highlights

      • Neodymium magnet
      • Under hung motor system
      • One piece cone and dust cap, full cone technology
      • Very Wide Frequency Response 100-10KHz
      • Patented Symmetrical Drive (SD-3)
      • Low-loss Linear Suspension
      • Foam surround
      • High Output 87dB @ 2,83V



      Product details

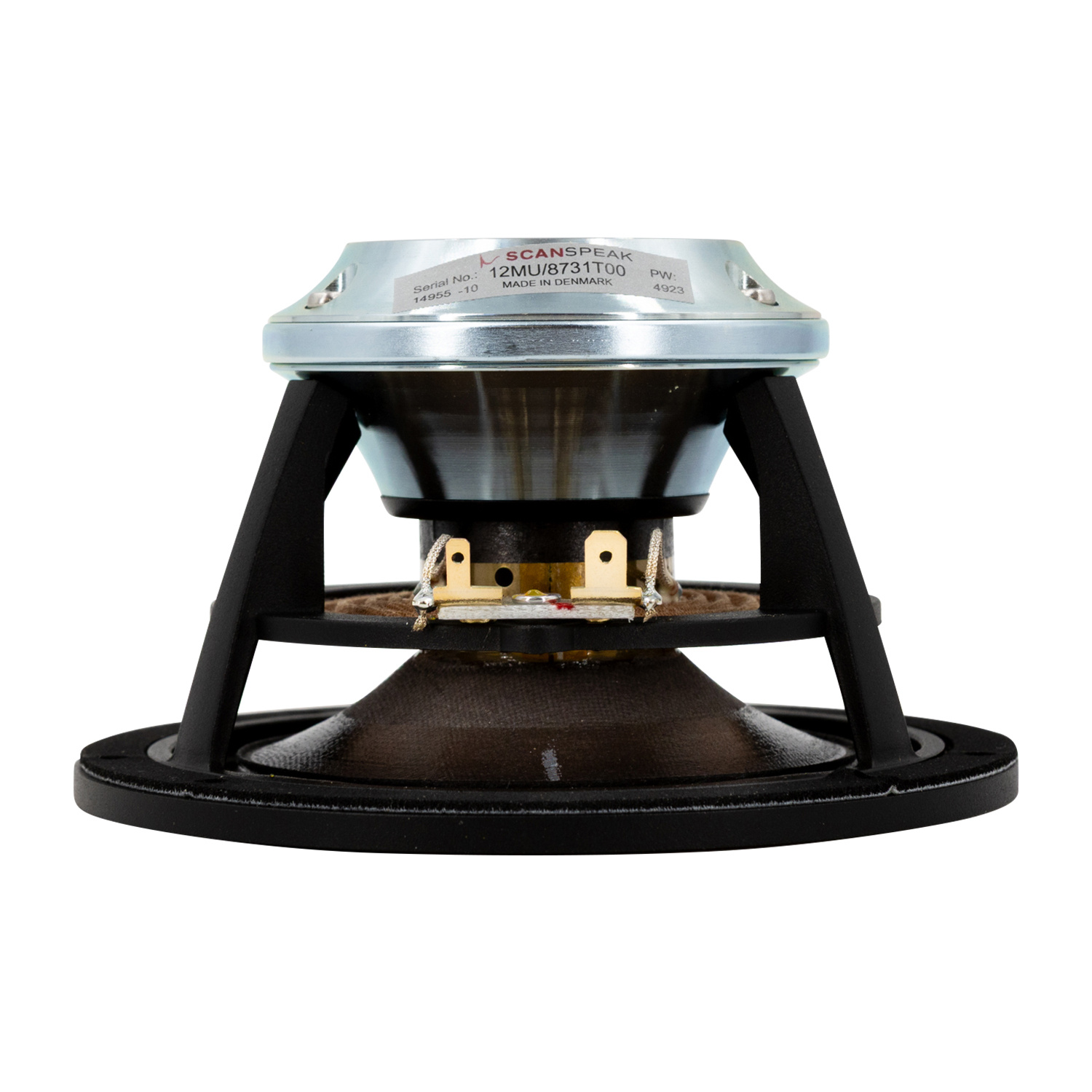

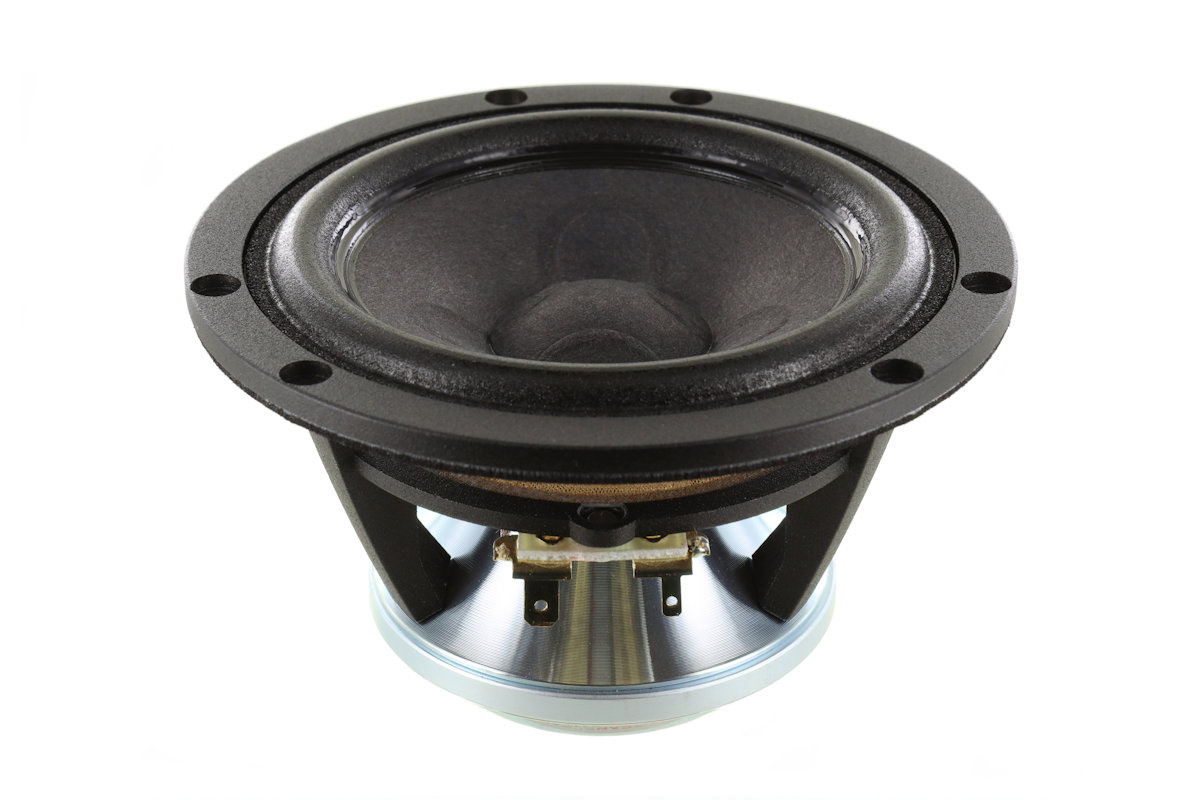

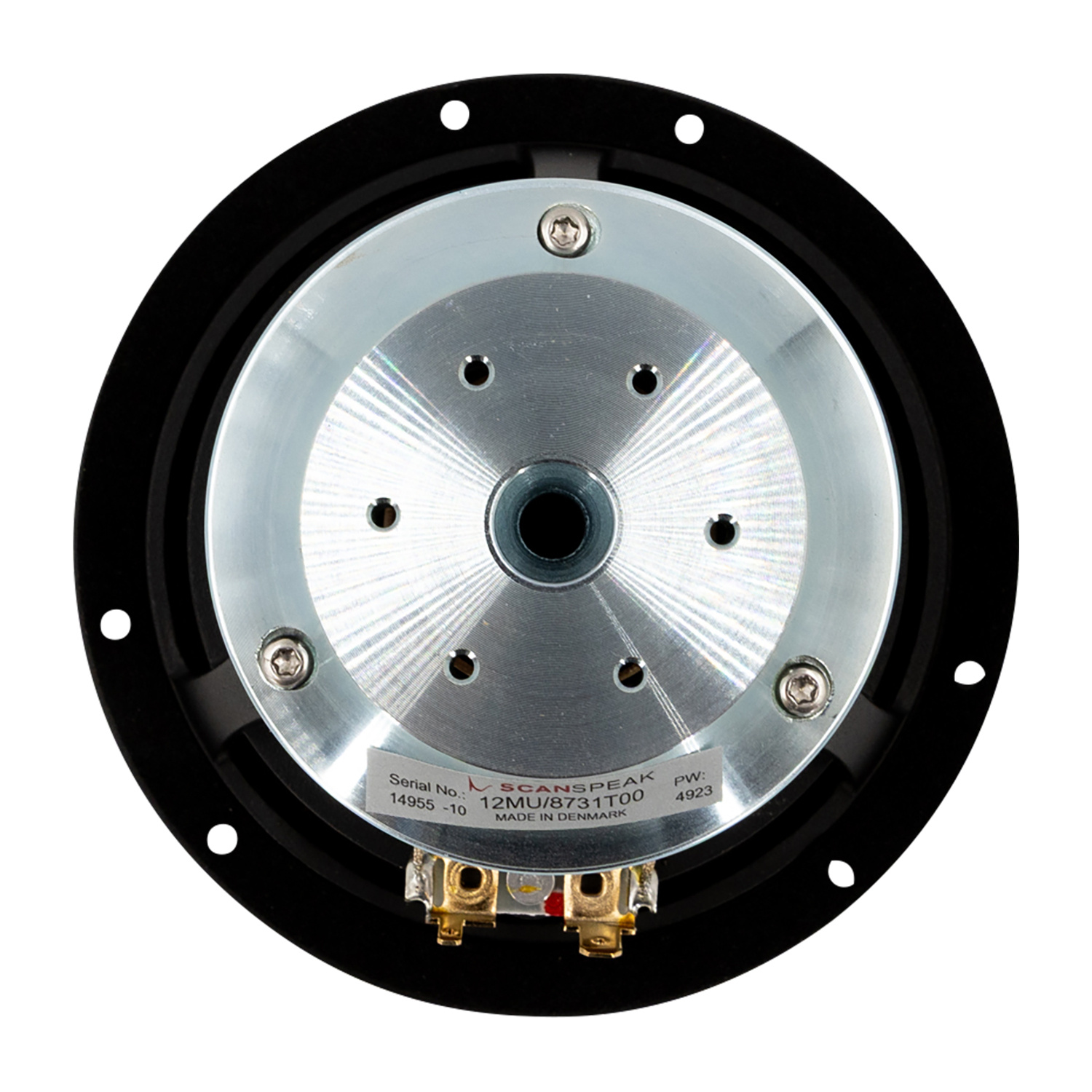

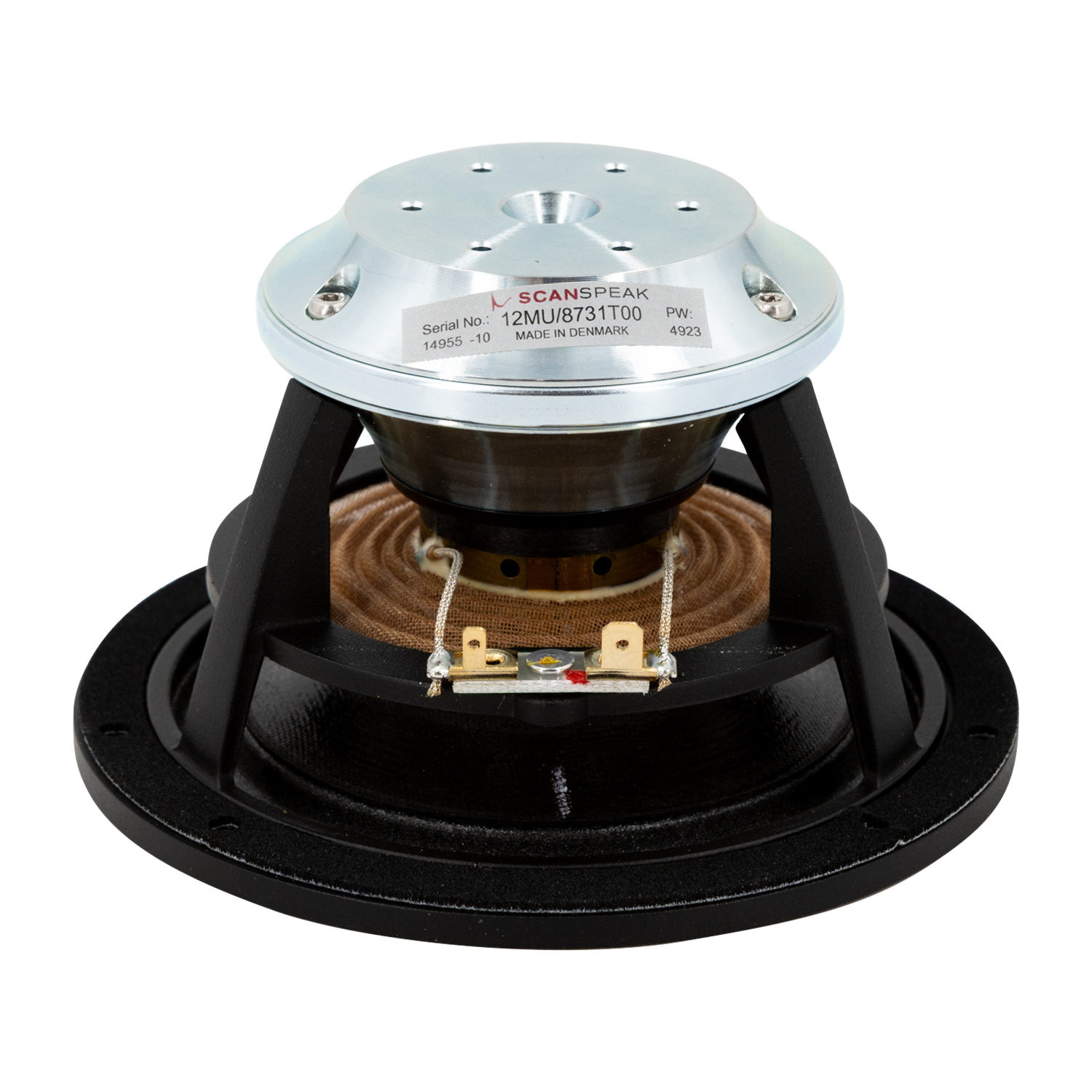

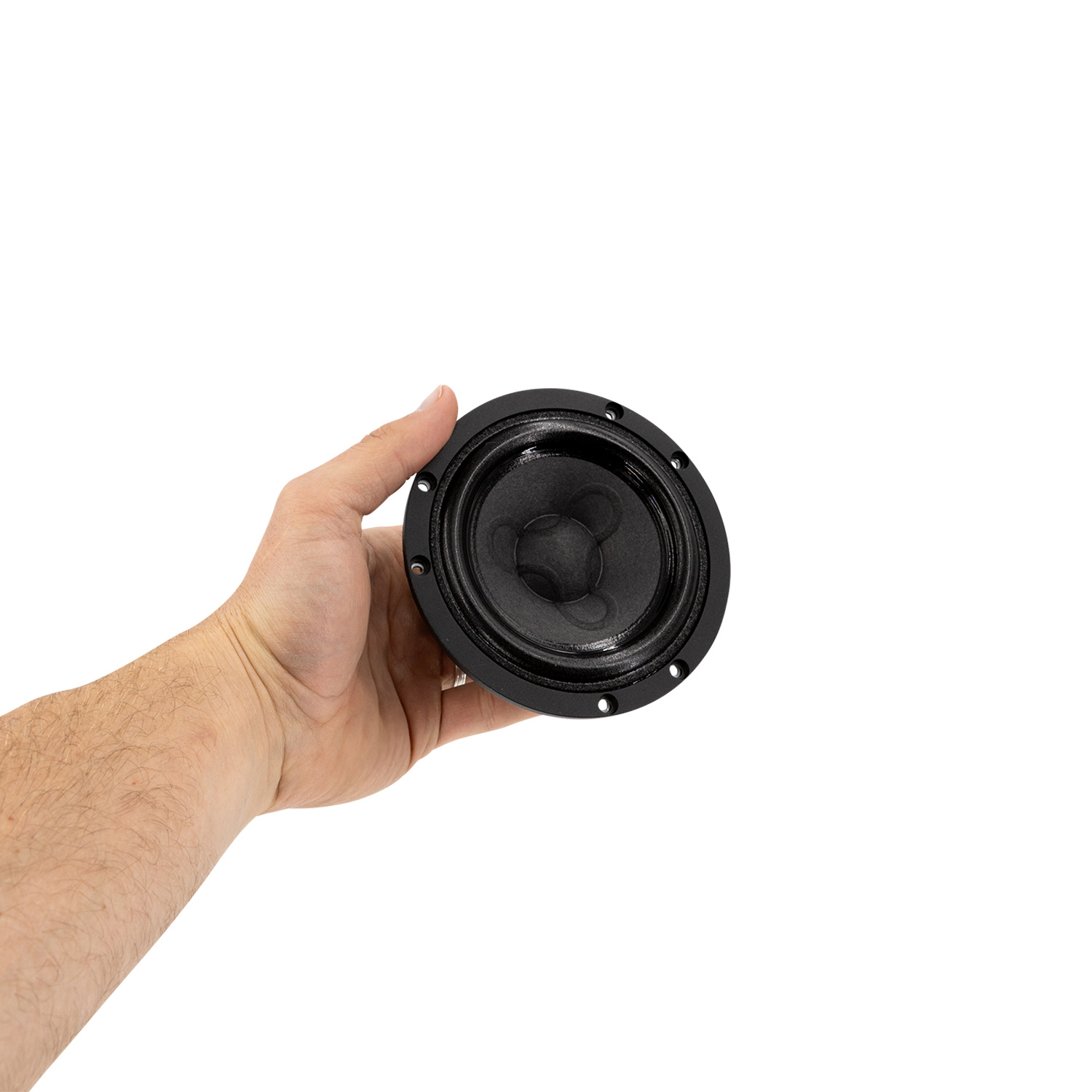

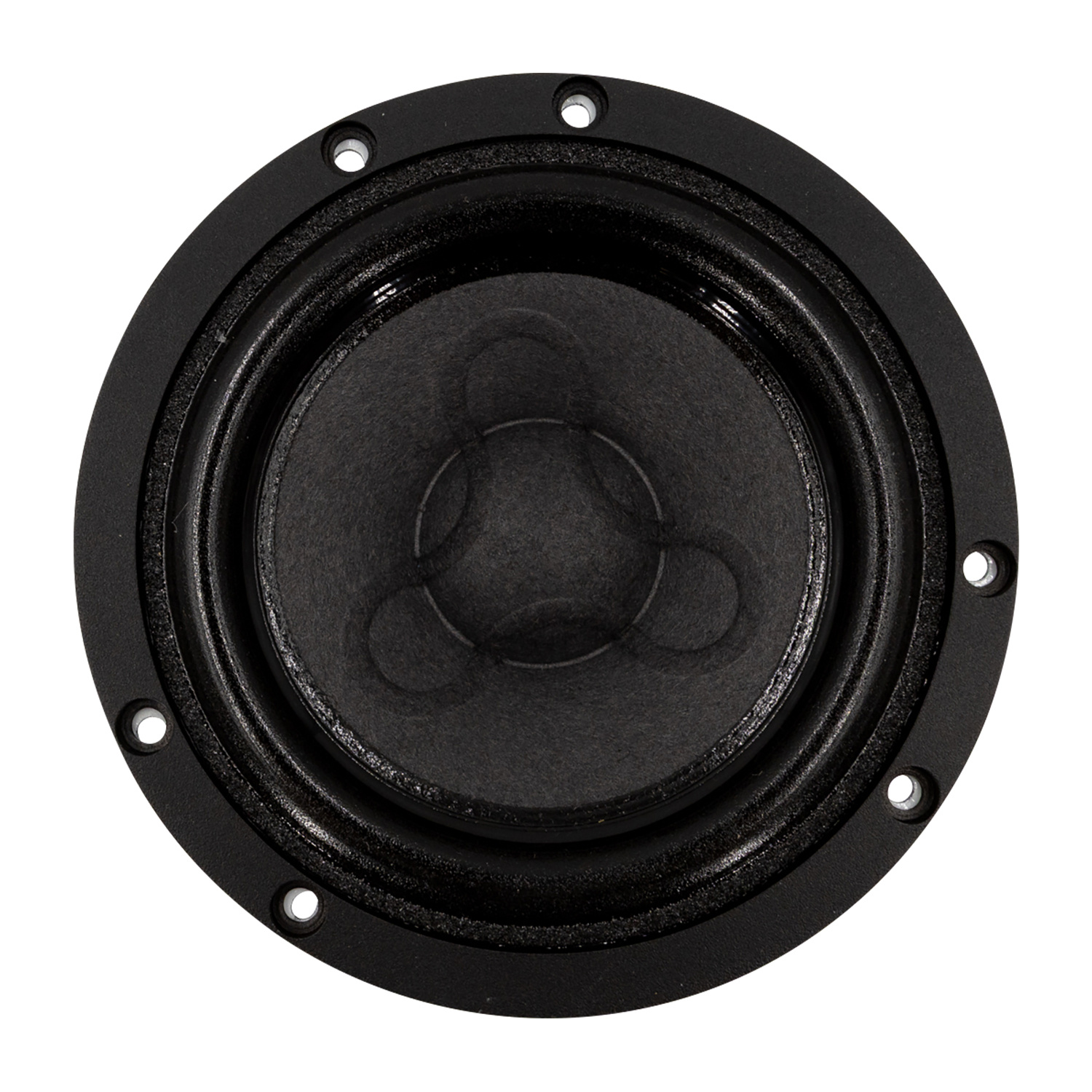

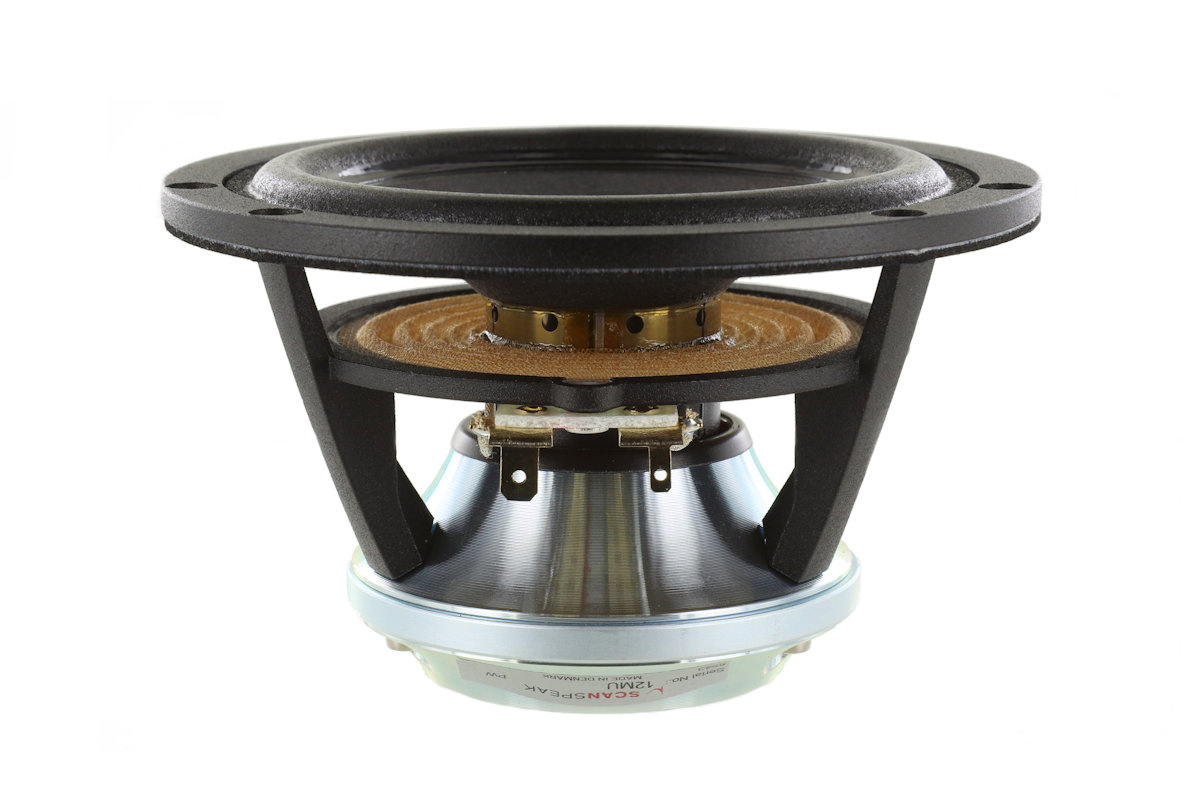

      Scan-Speak Illuminator 12MU/8731T00 4" Woofer



      The Illuminator woofers are based on compact under-hung motor systems with large neodymium ring magnets. The patent pending motor offers a very long linear excursion together with a very high force factor. The top plate is shaped to “guide” the backside airflow around the motor and with the very open cast aluminum chassis design the driver is virtually free from compression.



      The under-hung voice coil is precision wound with CCAW ribbon wire on a titanium bobbin for a low loss yet high power handling design. The vented pole piece has contoured openings to eliminate any hint of turbulence noise. The uniquely shaped top plate and open air frame ensure there is virtually no dynamic compression caused by restriction of the diaphragm back wave.

      Specifications

      Article number
      12MU/8731T00
      Woofer Series
      Illuminator Series
      Woofer Type
      Midwoofer
      Power Handling (RMS)
      80 Watts
      Power Handling (max)
      150 Watts
      Impedance (Z)
      8 ohms
      Sensitivity
      87.2 dB 2.83V/1m
      Voice Coil Diameter
      1.25"
      DC Resistance (Re)
      5.9 ohms
      Voice Coil Inductance (Le)
      1.25"
      Resonant Frequency (Fs)
      66 Hz
      Mechanical Q (Qms)
      3.63
      Electromagnetic Q (Qes)
      0.31
      Total Q (Qts)
      0.29
      Diaphragm Mass Inc. Airload (Mms)
      4.7g
      Mechanical Compliance of Suspension (Cms)
      1.24 mm/N
      Surface Area of Cone (Sd)
      58 cm2
      BL Product (BL)
      6.1 Tm
      Compliance Equivalent Volume (Vas)
      0.20 ft.³
      Maximum Linear Excursion (Xmax)
      3.4 mm

      Show more

      Reviews

      5 from 5Based on 2 reviews
      Review this product
      5 of 5
      Design sehr schön und schlank, kleiner Rand mit entsprechender Verschraubung. Klanglich top.
      By Silvan B. on 30 April 2021
      5 of 5
      Sehr guter Frequenzgang und minimale Verzerrungen. Ich bin begeistert. Einziger Wermutstropfen: man bekommt von Scan Speak außer dem Datenblatt keine Daten für die Simulation der Frequenzweiche. Das muss man selbst messen.
      By Wolfgang E. on 7 May 2020
