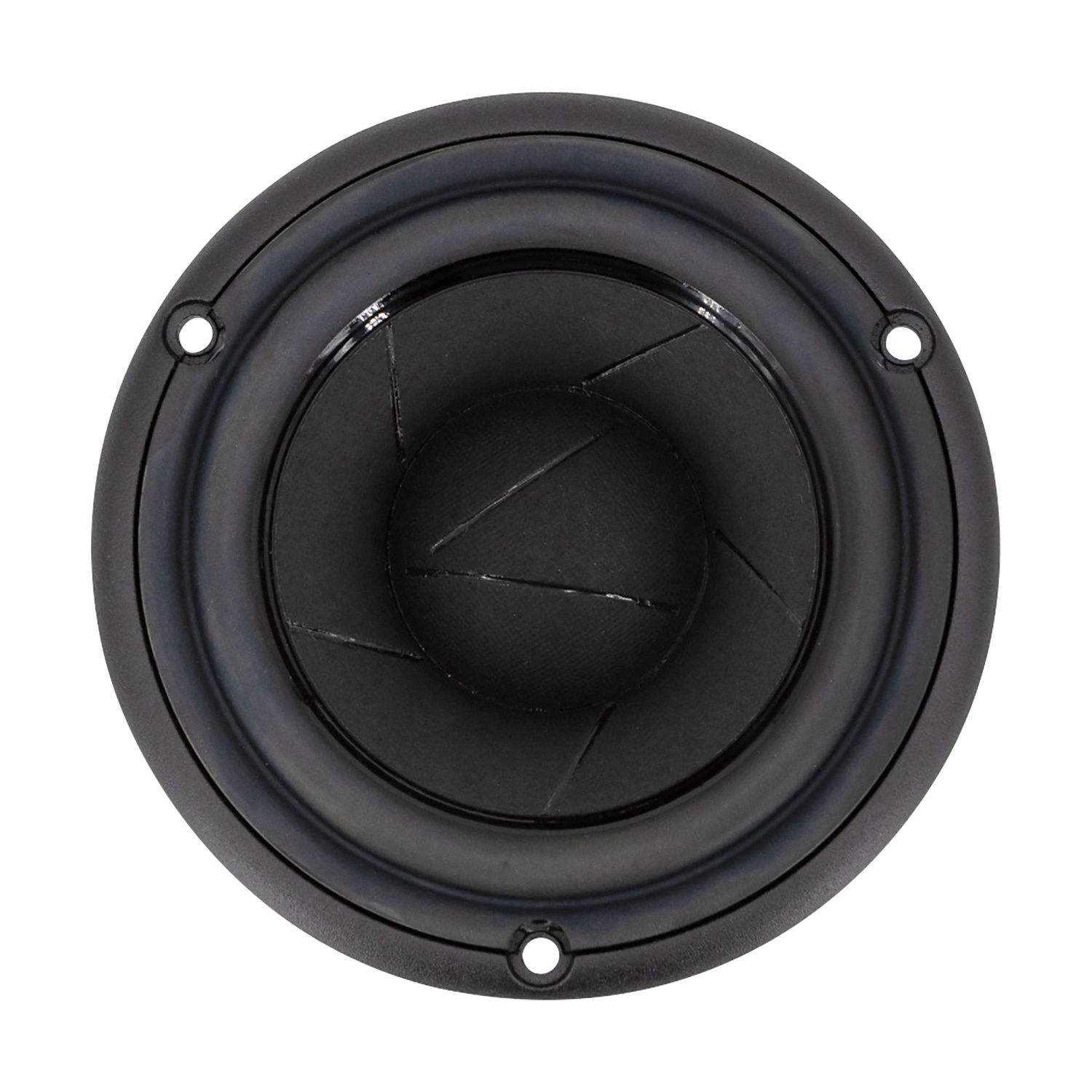

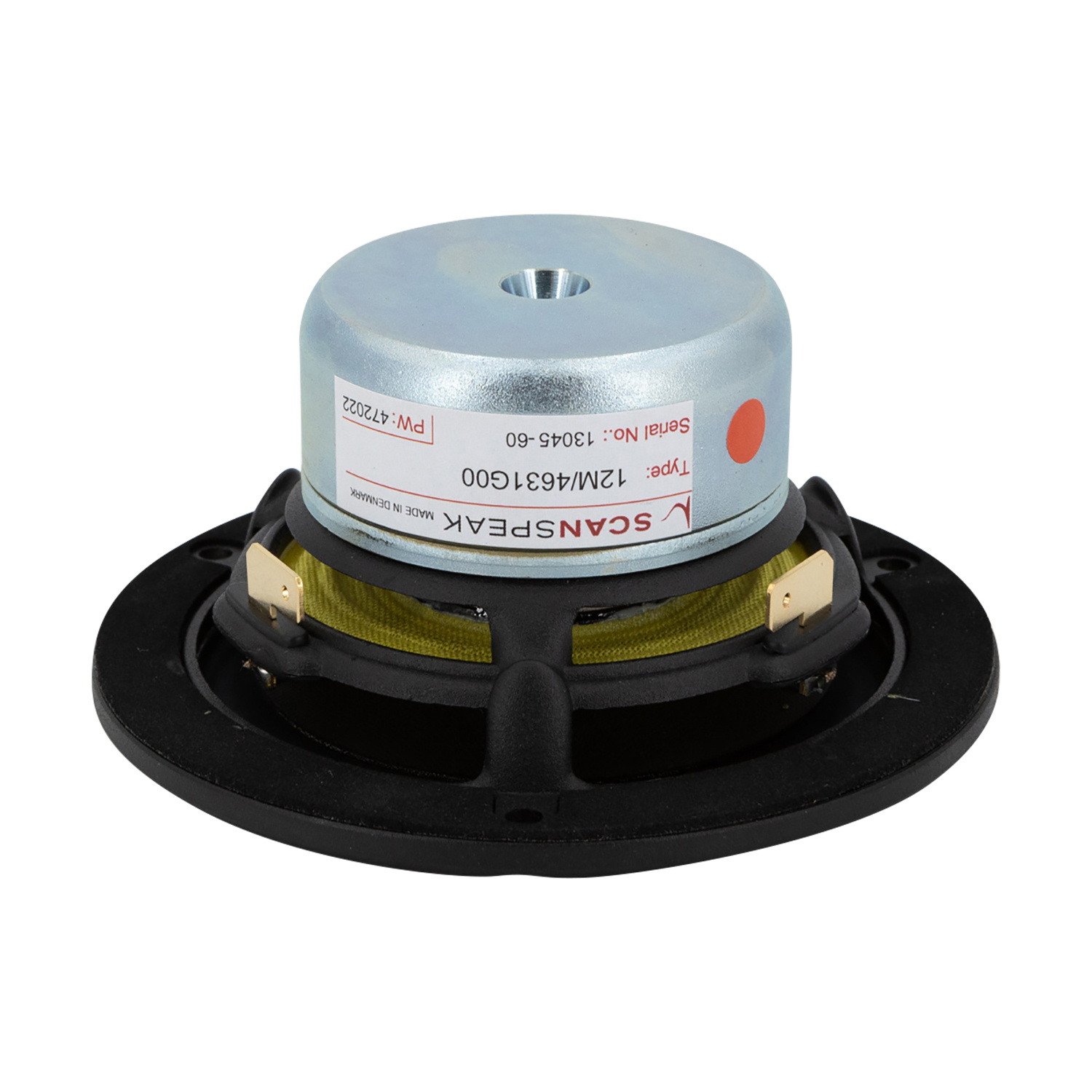

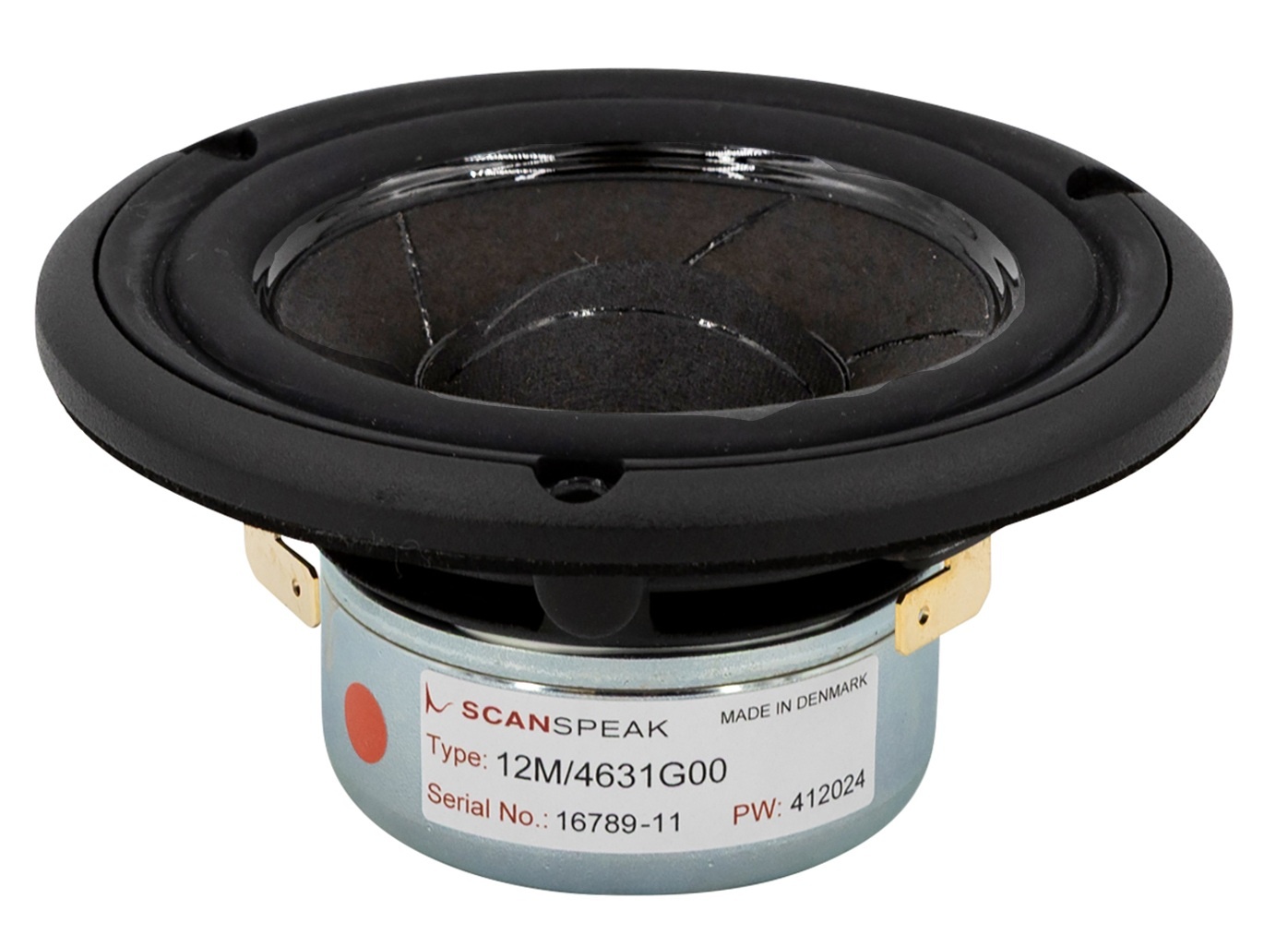

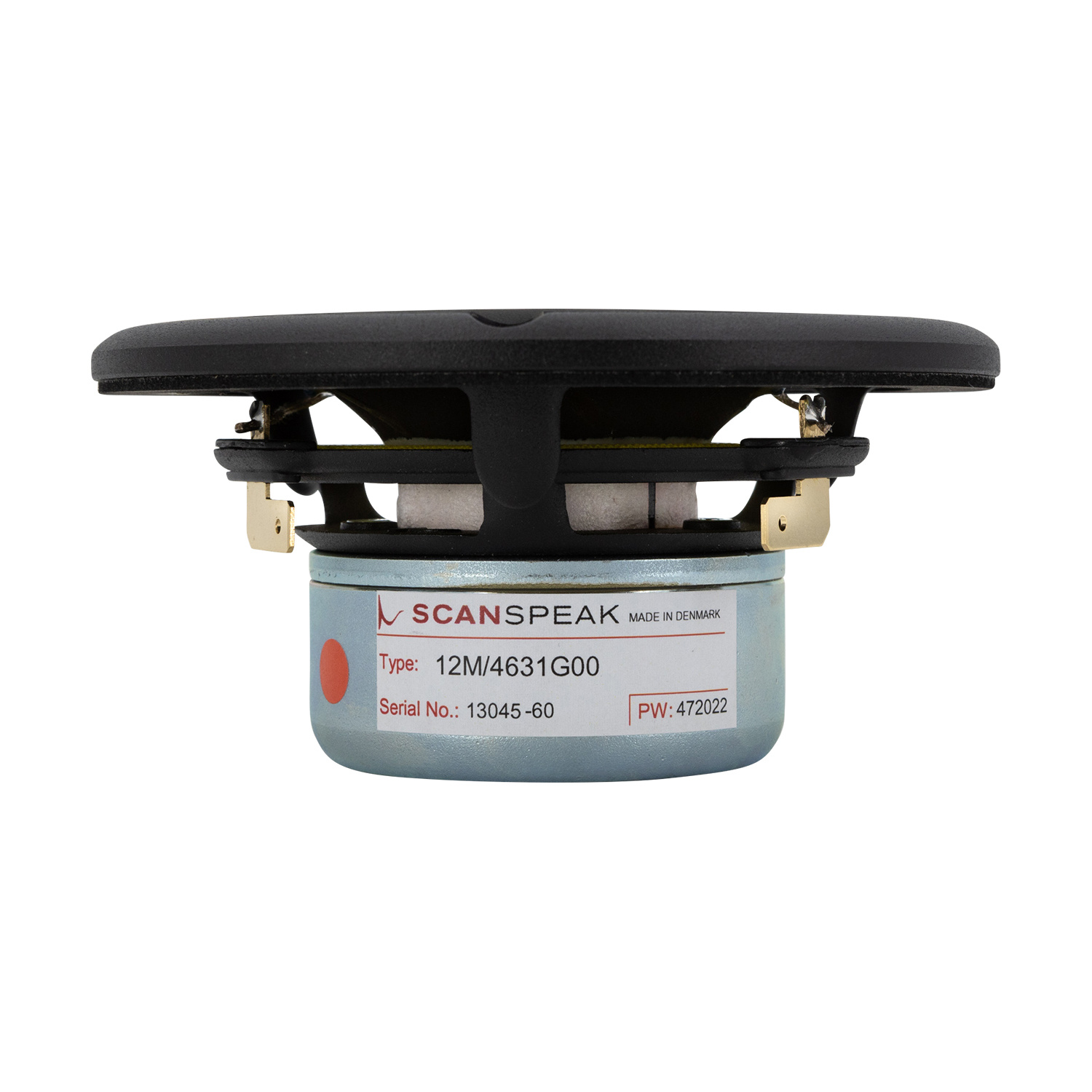

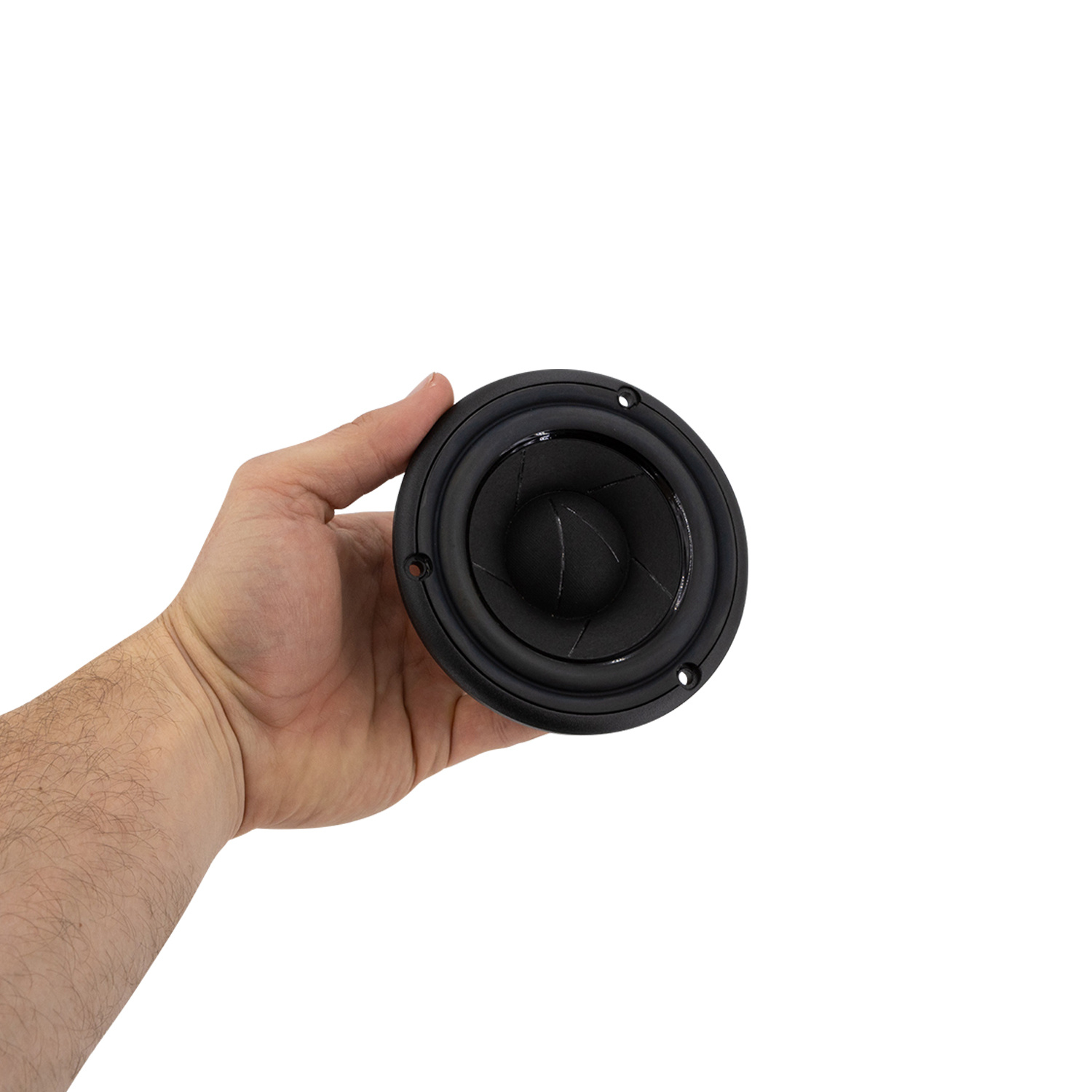

      Scan-Speak Revelator 12M/4631G00 4" Woofer

      € 239,63€ 289,95 2 In stock
      • -5% Order 4 for only € 275,45 per piece

      Buy now, pay later

      • 24h express shipping available
      • Same day shipping
      • In-house techniscal support
      • 45 days worry-free returns
      Request quotation
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description


      • Excellent Midrange reproduction
      • Low-Loss Linear Suspension
      • Compact Neodymium Magnet System
      • Sliced Cone (Controls Cone Breakups)
      • High Output 89dB @ 2,83V


      Product details

      Scan-Speak Revelator 12M/4631G00 4" Woofer


      The Revelator 12M-4631G00 midrange is well known for its sliced paper cone technology. The slices are filled with damping glue, which dramatically reduces break-up modes in the diaphragm. In combination with Scan-Speaks low-loss linear suspension it represented a breakthrough in midrange clarity and overall smooth frequency response characteristics.  A neodymium magnet has been chosen to reduce the depth yet increase the magnetic energy. The short field length of a neodymium magnet also allows this driver to by used for A/V.

      Show more


      Article number
      Woofer Series
      Revelator Series
      Nominal Diameter
      Power Handling (RMS)
      40 Watts
      Impedance (Z)
      4 ohms
      89 dB 2.83V/1m
      Voice Coil Diameter
      DC Resistance (Re)
      3.2 ohms
      Voice Coil Inductance (Le)
      0.22 mH
      Resonant Frequency (Fs)
      75 Hz
      Mechanical Q (Qms)
      Electromagnetic Q (Qes)
      Total Q (Qts)
      Diaphragm Mass Inc. Airload (Mms)
      Mechanical Compliance of Suspension (Cms)
      0.69 mm/N
      Surface Area of Cone (Sd)
      49 cm2
      BL Product (BL)
      5.3 Tm
      Compliance Equivalent Volume (Vas)
      0.08 ft.³
      Maximum Linear Excursion (Xmax)
      3 mm

      Show more
