      SB Acoustics SB17MFC35-8 6" Poly Cone Woofer 8 ohm

      € 53,68€ 64,95 4 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only €61,70 per piece
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Highlights

      • Vented cast aluminum chassis for optimum strength and low compression
      • Mineral filled PP-cone made in-house
      • Soft low damping rubber surround for improved transient response
      • Non-conducting fibre glass voice coil former for minimum damping
      • Extended copper sleeve on pole piece for low inductance and low distortion
      • CCAW voice coil for reduced moving mass
      • Long life silver lead wires
      • Vented pole piece for reduced compression



      Product details

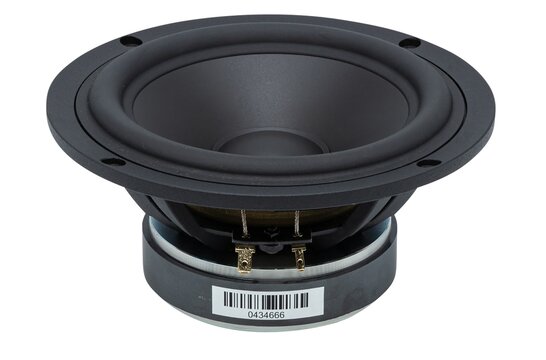

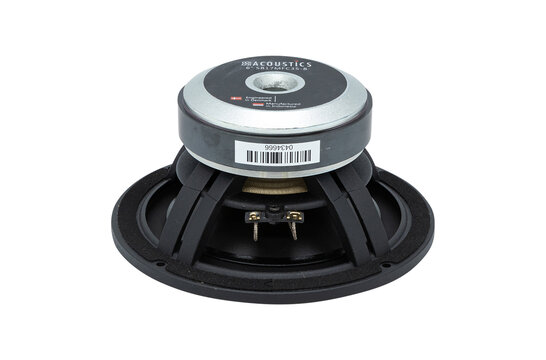

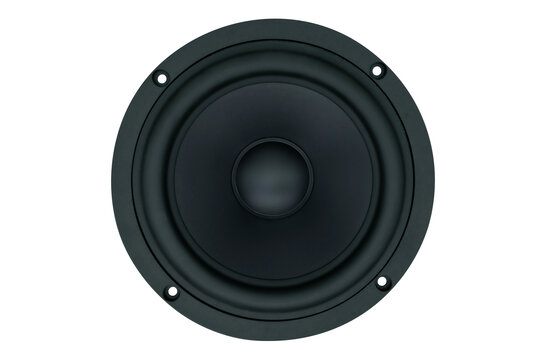

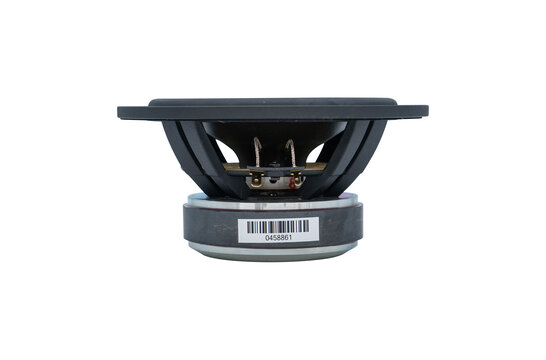

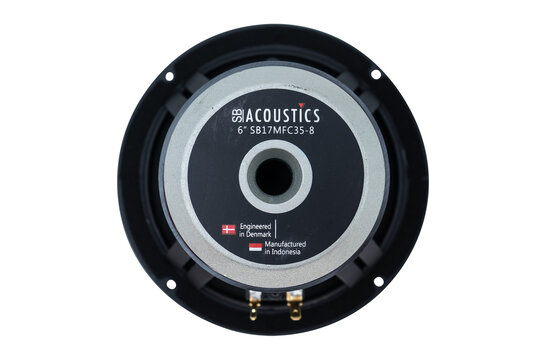

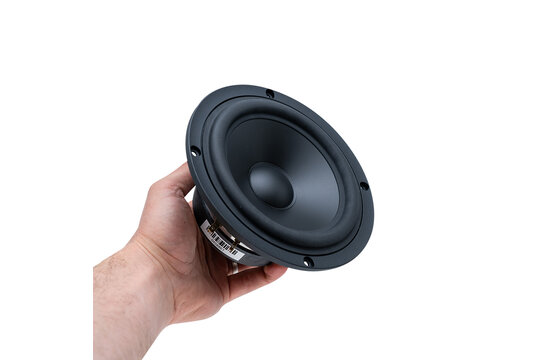

      SB Acoustics SB17MFC35-8 6" Poly Cone Woofer



      In-house made mineral filled PP-cone. Low damping rubber surround for improved transient response. Open structure cast frame for reduced reflections and compression. Aluminum alloy for light weight, non-magnetic and extra rigidity. Shorting copper cap on pole piece. Non-inductive 35.5mm coil former.

      Specifications

      Article number
      SB17MFC35-8
      Woofer Series
      MFC Series
      Woofer Type
      Midwoofer
      Nominal Diameter
      6"
      Power Handling (RMS)
      60 Watts
      Impedance (Z)
      8 ohms
      Sensitivity
      88 dB @ 2.83V/1m
      Voice Coil Diameter
      35.5 mm
      Magnet Weight
      0.54 kg
      DC Resistance (Re)
      5.7 ohms
      Voice Coil Inductance (Le)
      0.15 mH
      Resonant Frequency (Fs)
      33 Hz
      Mechanical Q (Qms)
      4.9
      Electromagnetic Q (Qes)
      0.40
      Total Q (Qts)
      0.37
      Diaphragm Mass Inc. Airload (Mms)
      11.8g
      Mechanical Compliance of Suspension (Cms)
      1.97 mm/N
      Surface Area of Cone (Sd)
      118 cm2
      BL Product (BL)
      5.9 Tm
      Compliance Equivalent Volume (Vas)
      39 liters
      Maximum Linear Excursion (Xmax)
      5.5 mm
      Driver's Mechanical Losses (Rms)
      0.5 kg/s
      Cone / Diaphragm Material
      Polypropylene
      Surround Material
      Rubber
      Voice Coil Wire Material
      Copper-clad aluminum
      Voice Coil Former
      Fiberglass
      Basket / Frame Material
      Cast aluminum
      Overall Outside Diameter
      171 mm
      Overall Depth
      86 mm
      Baffle Cutout Diameter
      146 mm
      Bolt Circle Diameter
      159 mm
      # Mounting Holes
      4
      Mounting Hole Diameter
      4.3 mm
