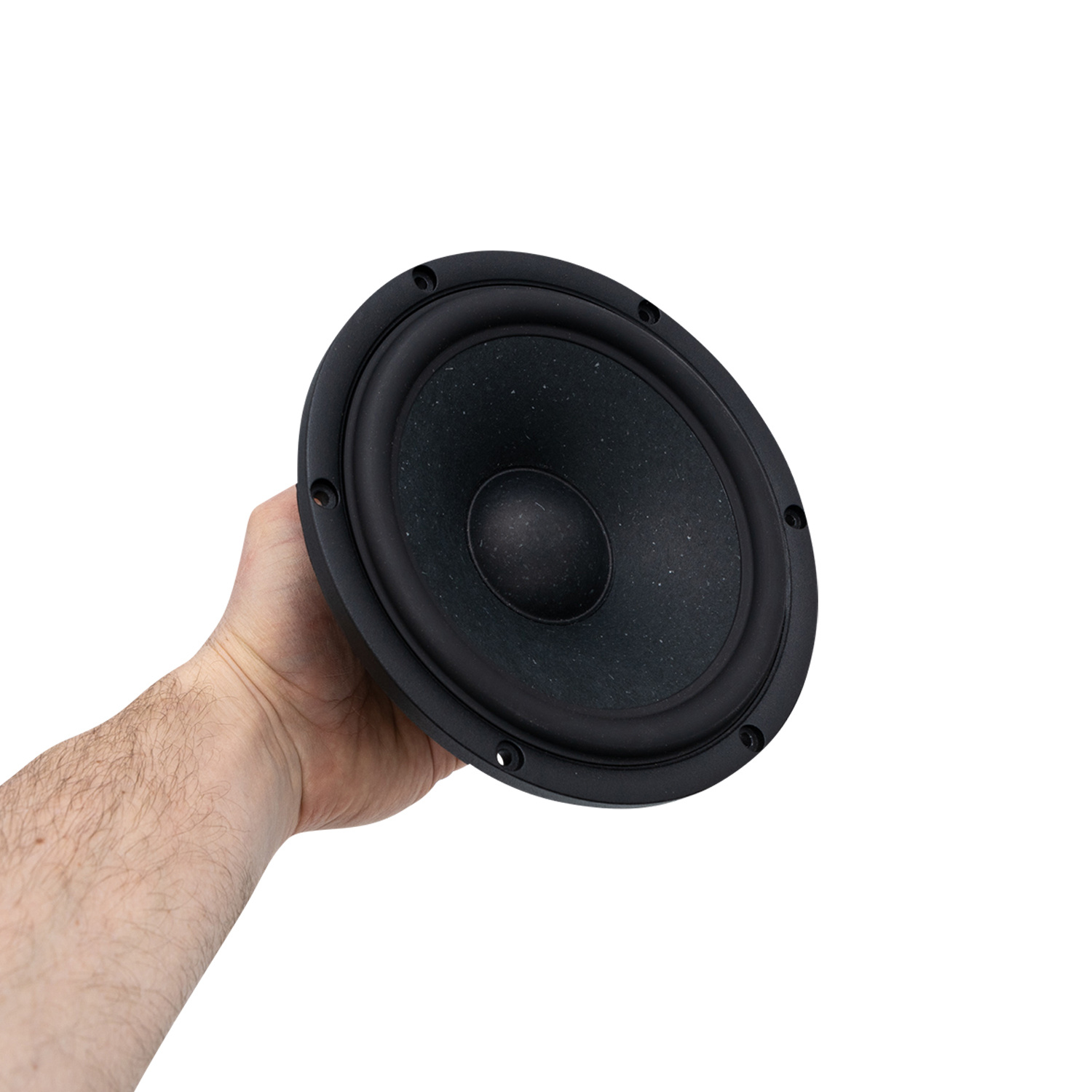

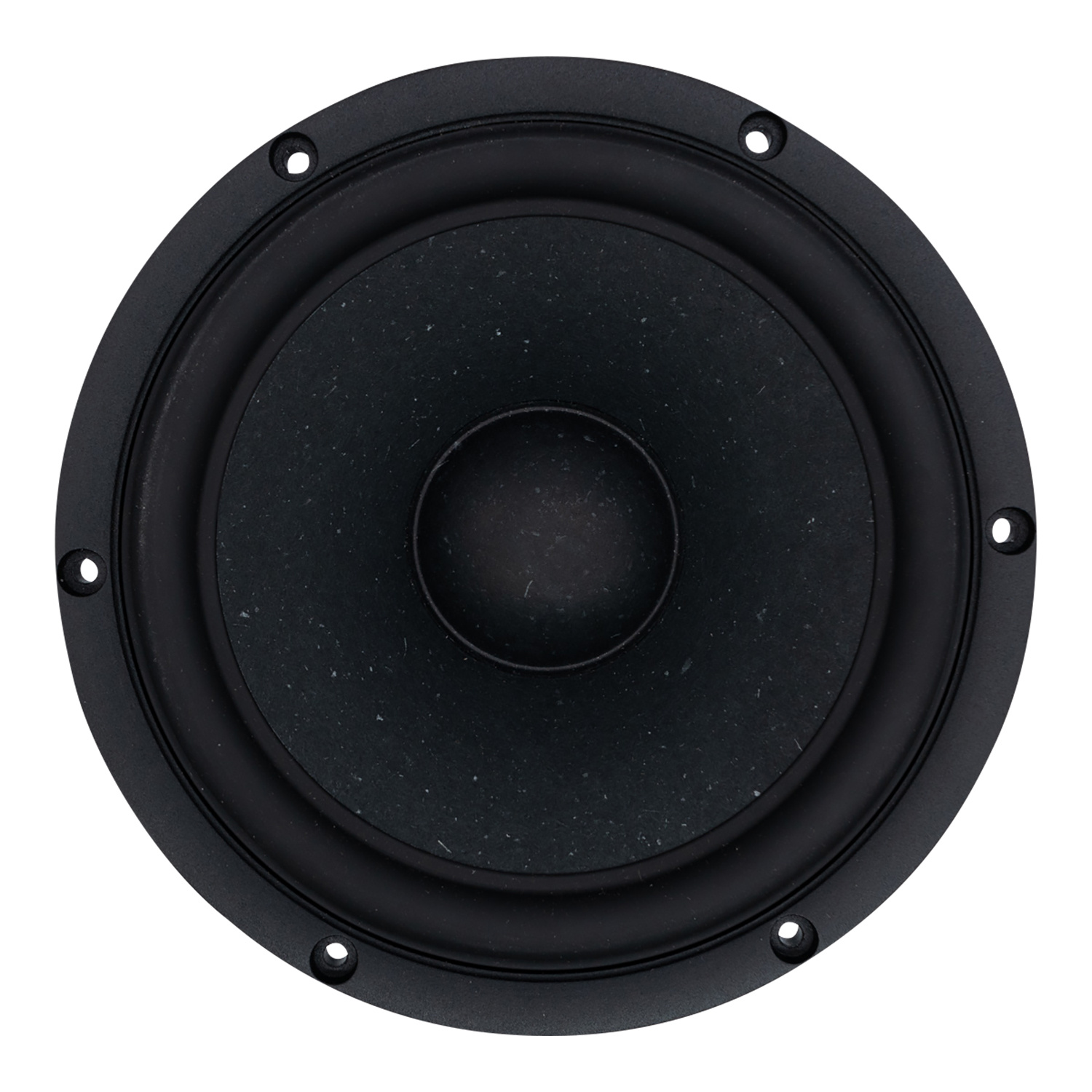

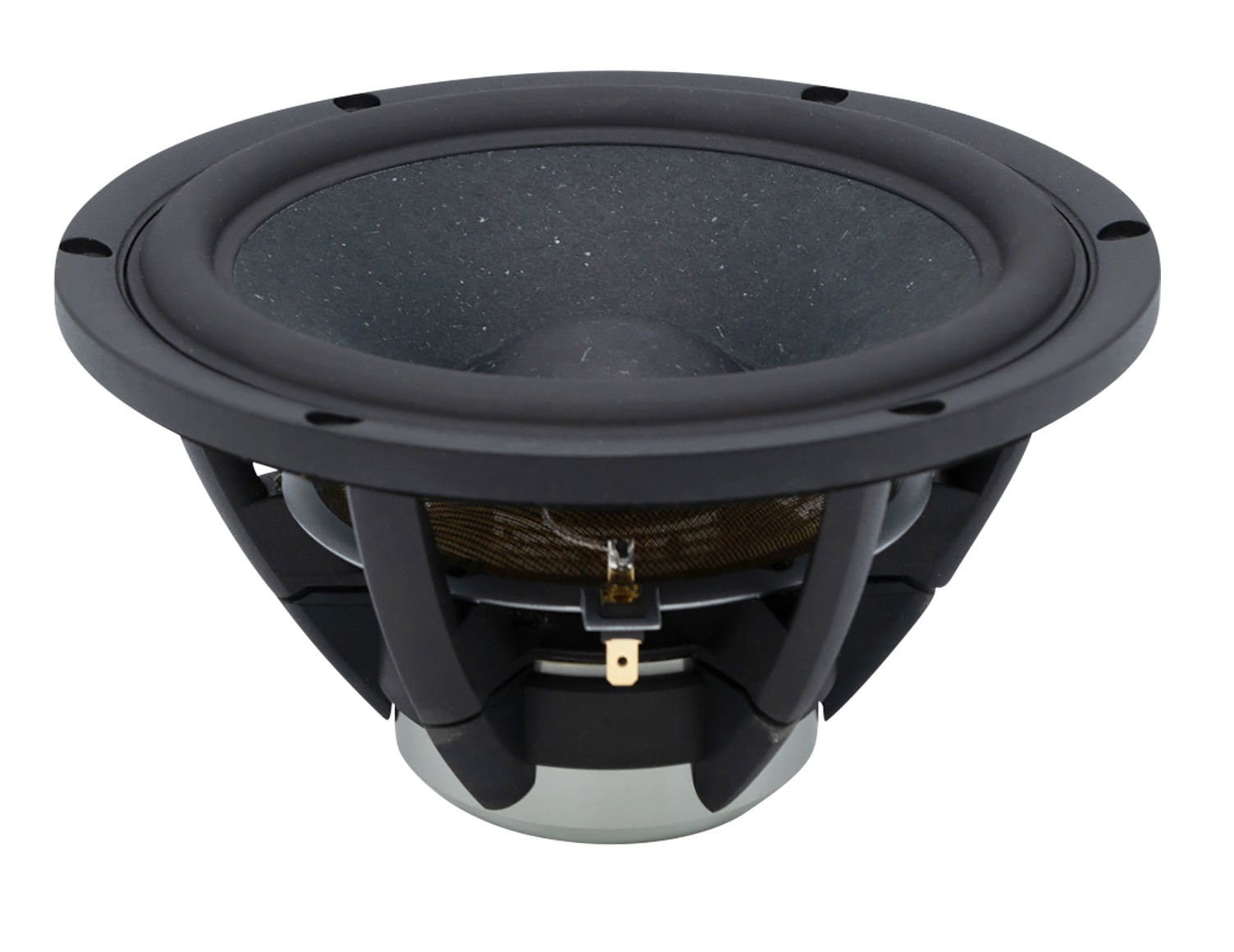

      SB Acoustics Satori MW19P-4 7.5" Egyptian Papyrus Cone Woofer

      € 165,25€ 199,95 2 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only €189,95 per piece
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Highlights

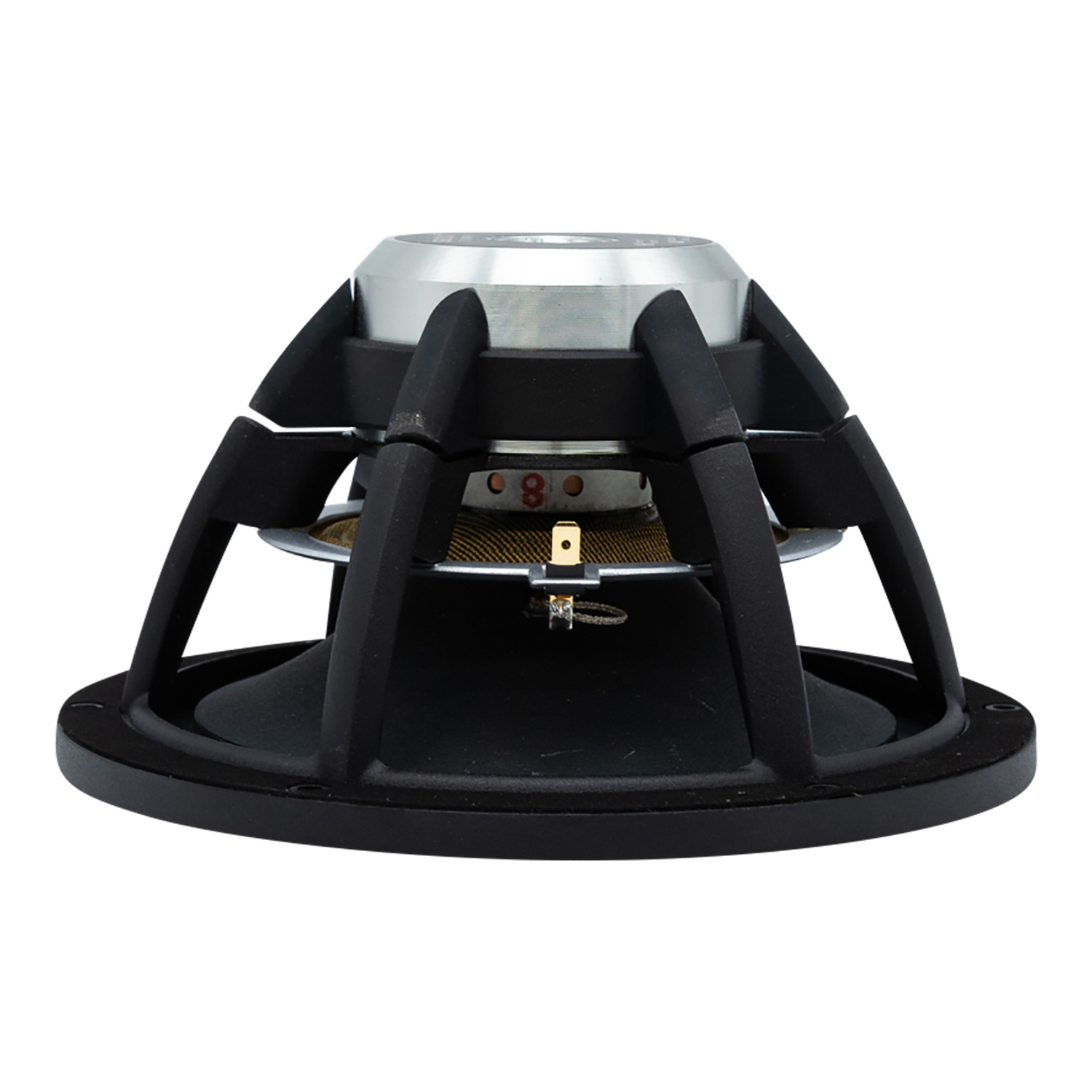

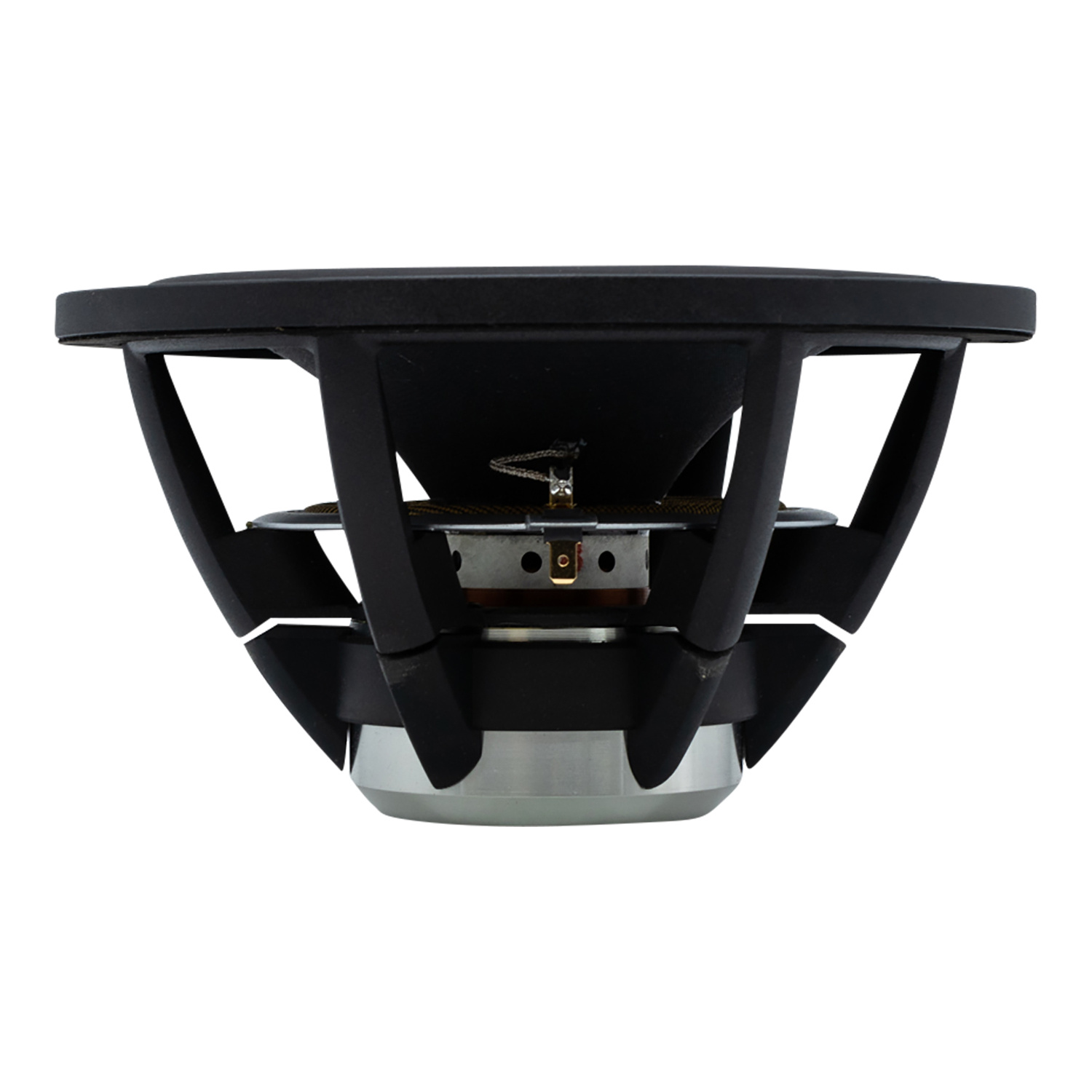

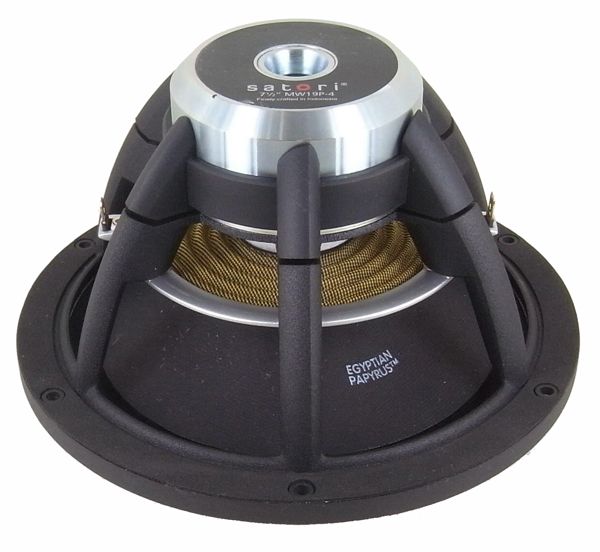

      • Vented aerodynamic cast aluminum chassis for optimum strength and low compression
      • Proprietary cone material with EGYPTIAN PAPYRUS™ fibers made in-house
      • Soft low damping rubber surround for optimum transient response
      • Advanced BIMAX spider for improved linearity
      • Powerful optimized low distortion neodymium motor system
      • Non-conducting fiber glass voice coil former for minimum damping
      • Extended copper sleeve on pole piece for low inductance and reduced distortion
      • CCAW voice coil for reduced moving mass
      • Long life silver lead wires attached 180° apart for improved stability
      • Vented pole piece for reduced compression
      • High piston to chassis diameter ratio
      • Gasket and bolt hole protrusions for reduced coupling to speaker cabinet



      Product details

      SB Acoustics Satori MW19P-4 7.5" Egyptian Papyrus Cone Woofer



      The SB Acoustics Satori MW19P-4 Midwoofer is a State of The Art Neodymium magnet 7.5" 4 ohm midwoofer, featuring a proprietary Papyrus Paper cone, a high efficiency soft low damping optimum response rubber surround, BiMax spider, and a glass fiber former with copper sleeve pole piece.



      Fitted with a 39mm voice coil. Very open cast frame for minimal reflections. Extended copper clad pole piece for lower distortion. Fs 28Hz, and a fabulous level wide response curve, this is a very flexible unit.

      Specifications

      Article number
      MW19P-4
      Woofer Series
      Satori Series
      Woofer Type
      Midwoofer
      Nominal Diameter
      7.5"
      Power Handling (RMS)
      70 Watts
      Impedance (Z)
      4 ohms
      Sensitivity
      91.5 dB 2.83V/1m
      Voice Coil Diameter
      1.53"
      DC Resistance (Re)
      3.4 ohms
      Voice Coil Inductance (Le)
      0.14 mH
      Resonant Frequency (Fs)
      32 Hz
      Mechanical Q (Qms)
      4.11
      Electromagnetic Q (Qes)
      0.3
      Total Q (Qts)
      0.28
      Diaphragm Mass Inc. Airload (Mms)
      18.4 g
      Mechanical Compliance of Suspension (Cms)
      1.35 mm/N
      Surface Area of Cone (Sd)
      158 cm2
      BL Product (BL)
      6.5 Tm
      Compliance Equivalent Volume (Vas)
      1.69 ft.³
      Maximum Linear Excursion (Xmax)
      6.8 mm

      Show more
