        AUGWL0016-JN03 Woofer

        AUGWL0016-JN03 Woofer

        €101,95

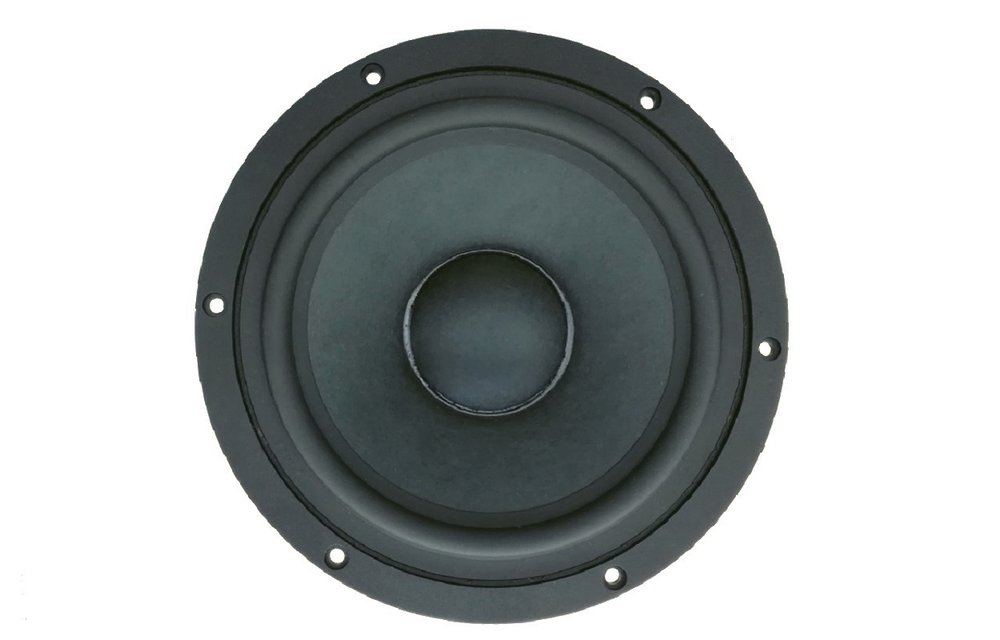

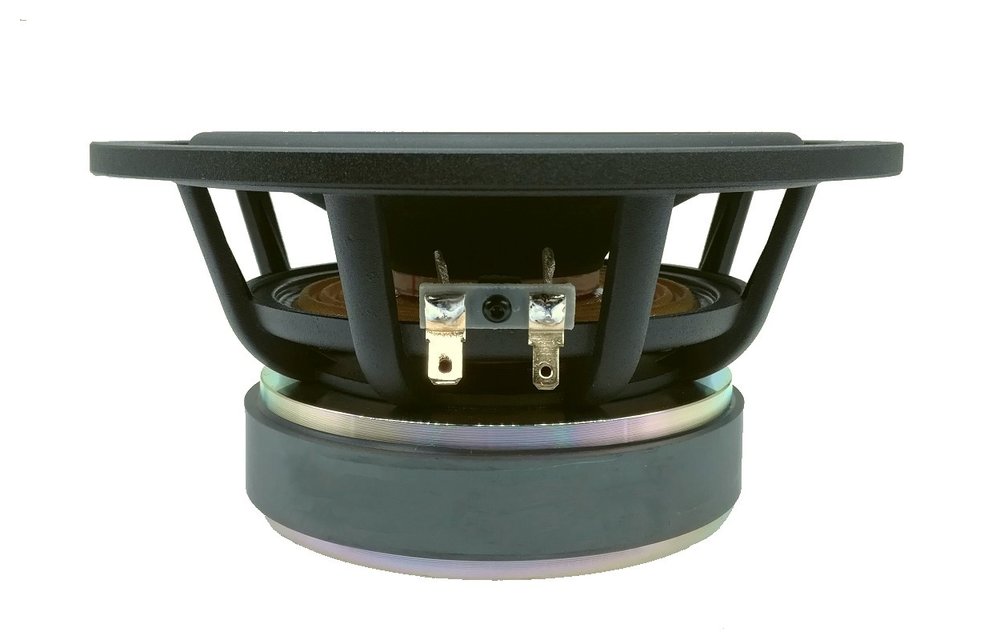

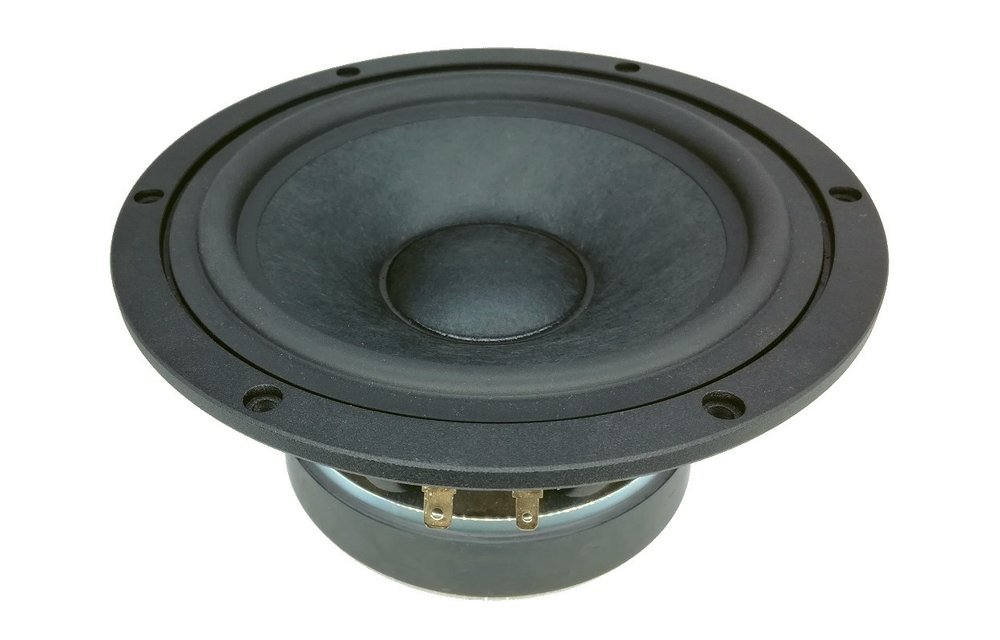

        Punktkilde AUGWL0016-JN03 Woofer

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Punktkilde
        € 84,26€ 101,95 1 In stock

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        Highlights

        • 6.5”, Aluminum Die-cast Frame
        • 2” CCAW Voice Coil, Aluminum Former
        • Pulp and Carbon Fiber Cone, Rubber Surround
        • Ferrite Magnet Motor System
        • Conex Spider



        Product details

        Punktkilde AUGWL0016-JN03 6,5'' Woofer



        This 6.5 inch Woofer, features 2 inch voice coil, pulp with carbon fiber cone, and ferrite magnet motor system. As for the selection of material, this series of driver uses a new mixed material with pulp and 60% carbon fiber, it can greatly enhance the stiffness of the cone body and control range of the internal damping.



        Show more

        Specifications

        Article number
        AUGWL0016-JN03
        Nominal Diameter
        6,5"
        Power Handling (RMS)
        80 watts
        Impedance (Z)
        4 Ω
        Sensitivity (SPL at 1m / 2.83V)
        89 dB
        Voice Coil Diameter
        49.55 mm
        DC Resistance (Re)
        3.39 Ω
        Voice Coil Inductance (Le)
        0.156 mH
        Resonant Frequency (Fs)
        40.2 Hz
        Mechanical Q (Qms)
        2.3
        Electromagnetic Q (Qes)
        0.364
        Total Q (Qts)
        0.31
        Diaphragm Mass Inc. Airload (Mms)
        19.265 g
        Mechanical Compliance of Suspension (Cms)
        0.815 mm/N
        Surface Area of Cone (Sd)
        141.03 cm²
        Volume of Displacement (Vd)
        70.53 cm³
        BL Product (BL)
        6.726 Tm
        Compliance Equivalent Volume (Vas)
        22.93 liters
        Maximum Linear Excursion (Xmax)
        5 mm
        Driver's Mechanical Losses (Rms)
        2.116 kg/s
        Cone / Diaphragm Material
        Carbon Pulp
        Surround Material
        Rubber
        Voice Coil Wire Material
        CCAW
        Voice Coil Former
        Aluminum
        Basket / Frame Material
        Aluminum diecast
        Magnet Material
        Ferrite
        Overall Outside Diameter
        181.5 mm
        Overall Depth
        93.3 mm
        Bolt Circle Diameter
        169.5 mm
        Mounting Hole Diameter
        40.2 Hz

        Show more
