        Punktkilde AUGWL0013-JN05 Woofer

        0 reviews
        Brand: Punktkilde
        Show all Woofer
        € 89,95
        € 75,95
        AUGWL0013-JN05 Woofer
        AUGWL0013-JN05 Woofer
        AUGWL0013-JN05 Woofer
        AUGWL0013-JN05 Woofer
        AUGWL0013-JN05 Woofer
        AUGWL0013-JN05 Woofer
        € 74,34
        € 89,95
        € 62,77€ 75,95 10+ In stock
        • -10% Order 4 for only € 68,36 per piece
        +-
        Add to cart

        Buy now, pay later

        • 24h express shipping available
        • Ordered now, shipped today
        • In-house technical support
        • 45 days worry-free returns
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        AUGWL0013-JN05 Woofer
        AUGWL0013-JN05 Woofer
        AUGWL0013-JN05 Woofer
        AUGWL0013-JN05 Woofer
        AUGWL0013-JN05 Woofer
        AUGWL0013-JN05 Woofer

        Product description

        Highlights

        • 5.25”, Aluminum Die-cast Frame
        • 1.5” CCAW Voice Coil, Aluminum Former
        • Pulp and Carbon Fiber Cone, Rubber Surround
        • Ferrite Magnet Motor System
        • Conex Spider



        Product details

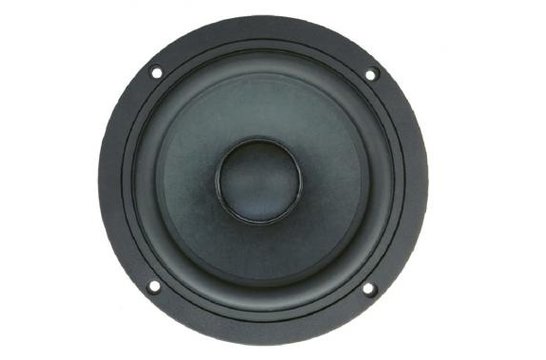

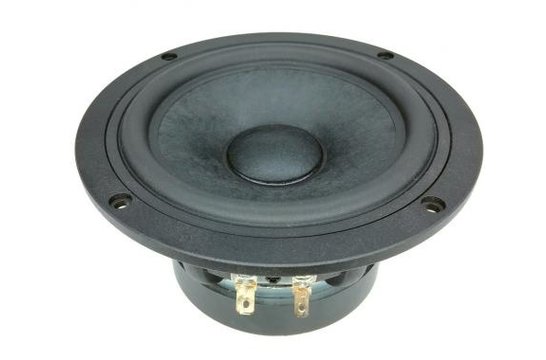

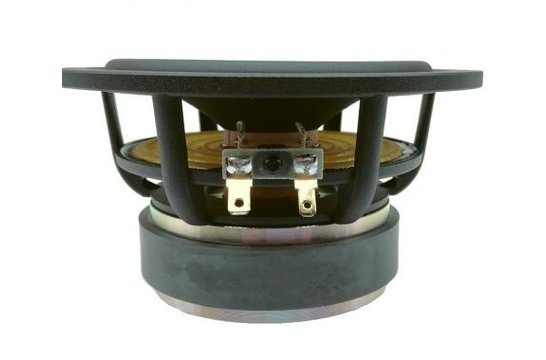

        Punktkilde AUGWL0013-JN05 5,25'' Carbon Pulp Woofer



        This 5.25 inch Woofer, features 1.5 inch voice coil, pulp with carbon fiber cone, and ferrite magnet motor system. As for the selection of material, this series of driver uses a new mixed material with pulp and 60% carbon fiber, it can greatly enhance the stiffness of the cone body and control range of the internal damping.ferrite magnet motor system. It has good process ability and high yield for mass production. Because of this special raw material structure and unique processing technology, the attributes of Aluminum offer high strength, good rigidity, good heat resistance, low density and so on.

        Show more

        Specifications

        Article number
        AUGWL0013-JN05
        Nominal Diameter
        5.25"
        Power Handling (RMS)
        50 watts
        Impedance (Z)
        4 Ω
        Sensitivity
        88 dB (2.83V/1m)
        Voice Coil Diameter
        35.5 mm
        DC Resistance (Re)
        3.52 Ω
        Voice Coil Inductance (Le)
        0.129 mH
        Resonant Frequency (Fs)
        48.6 Hz
        Mechanical Q (Qms)
        2.08
        Electromagnetic Q (Qes)
        0.409
        Total Q (Qts)
        0.34
        Diaphragm Mass Inc. Airload (Mms)
        12.41 g
        Mechanical Compliance of Suspension (Cms)
        0.865 mm/N
        Surface Area of Cone (Sd)
        95.03 cm²
        Volume of Displacement (Vd)
        42.76 cm³
        BL Product (BL)
        5.714 Tm
        Compliance Equivalent Volume (Vas)
        11.05 liters
        Maximum Linear Excursion (Xmax)
        4.5 mm
        Driver's Mechanical Losses (Rms)
        1.825 kg/s
        Cone / Diaphragm Material
        Carbon Pulp
        Surround Material
        Rubber
        Voice Coil Wire Material
        CCAW
        Voice Coil Former
        Aluminum
        Basket / Frame Material
        Aluminum diecast
        Magnet Material
        Ferrite
        Overall Outside Diameter
        152.5 mm
        Overall Depth
        88.8 mm
        Bolt Circle Diameter
        140 mm
        Mounting Hole Diameter
        4.5 mm

        Show more

        Reviews

        0 reviews
        0 from 5Based on 0 reviews
        Review this product

        There are no reviews written yet about this product..
