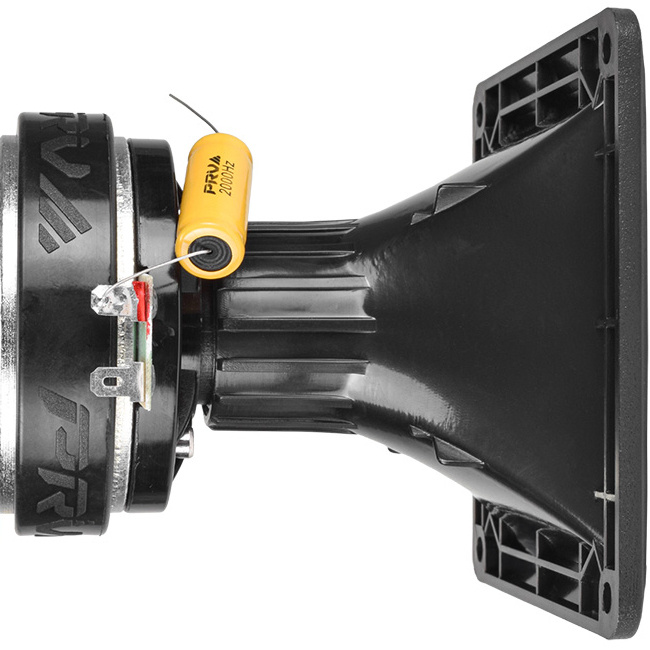

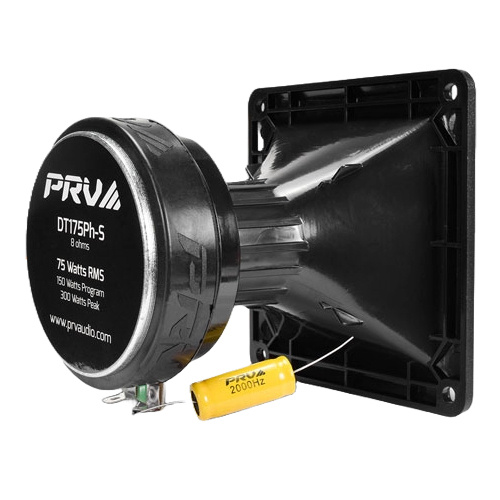

        WG175Ph Horn Super Tweeter

        PRV Audio WG175Ph Horn Super Tweeter

        €33,95

        10+ In stock

        Add to cart

        PRV Audio WG175Ph Horn Super Tweeter

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: PRV Audio
        Show all New products
        WG175Ph Horn Super Tweeter
        WG175Ph Horn Super Tweeter
        WG175Ph Horn Super Tweeter
        WG175Ph Horn Super Tweeter
        WG175Ph Horn Super Tweeter
        WG175Ph Horn Super Tweeter
        WG175Ph Horn Super Tweeter
        WG175Ph Horn Super Tweeter
        WG175Ph Horn Super Tweeter
        WG175Ph Horn Super Tweeter
        WG175Ph Horn Super Tweeter
        WG175Ph Horn Super Tweeter
        € 28,06€ 33,95 10+ In stock
        • -5% Purchase 4 for only € 32,25 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        WG175Ph Horn Super Tweeter
        WG175Ph Horn Super Tweeter
        WG175Ph Horn Super Tweeter
        WG175Ph Horn Super Tweeter
        WG175Ph Horn Super Tweeter
        WG175Ph Horn Super Tweeter
        WG175Ph Horn Super Tweeter
        WG175Ph Horn Super Tweeter
        WG175Ph Horn Super Tweeter
        WG175Ph Horn Super Tweeter
        WG175Ph Horn Super Tweeter
        WG175Ph Horn Super Tweeter

        Pros and cons

        According to our specialists
        • Phenolic diaphragm provides natural and accurate response
        • Includes both compression driver and waveguide in one unit, simplifying installation
        • Optimized for the WG11-25 waveguide; performance may vary with other horns

        Product description PRV Audio WG175Ph Horn Super Tweeter

        The PRV Audio WG175Ph is a high-sensitivity professional compression driver with integrated waveguide, designed for clear and controlled high-frequency reproduction in PA systems and DIY loudspeaker projects.



        Highlights of the PRV Audio WG175Ph

        • 1 inch exit compression driver with 1 inch voice coil for efficient high-frequency output.
        • High sensitivity of 108 dB at 2.83 V and 1 meter for strong output with low amplifier power.
        • Phenolic resin diaphragm for smooth response and reliable performance in demanding applications.
        • Wide frequency response from 1,300 Hz to 16,000 Hz when used with the recommended crossover.



        Product details PRV Audio WG175Ph

        PRV Audio WG175Ph Professional Compression Driver

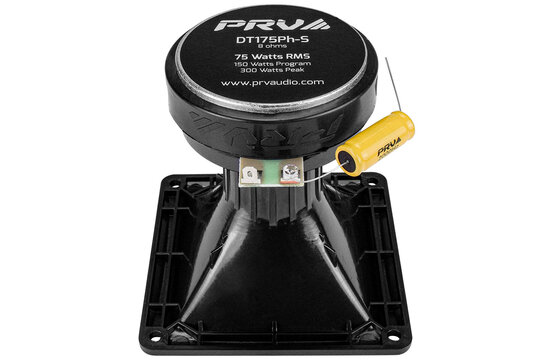

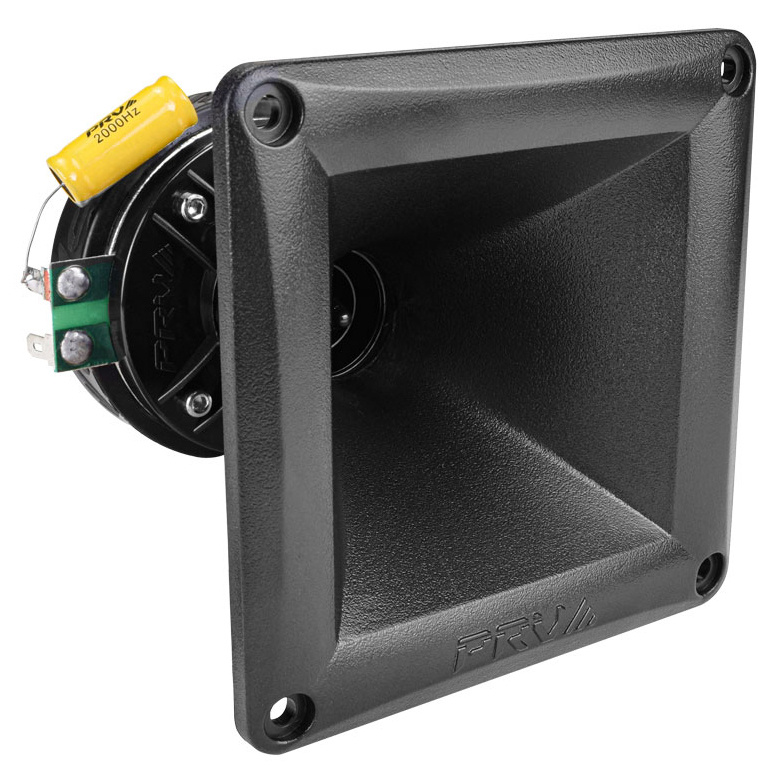

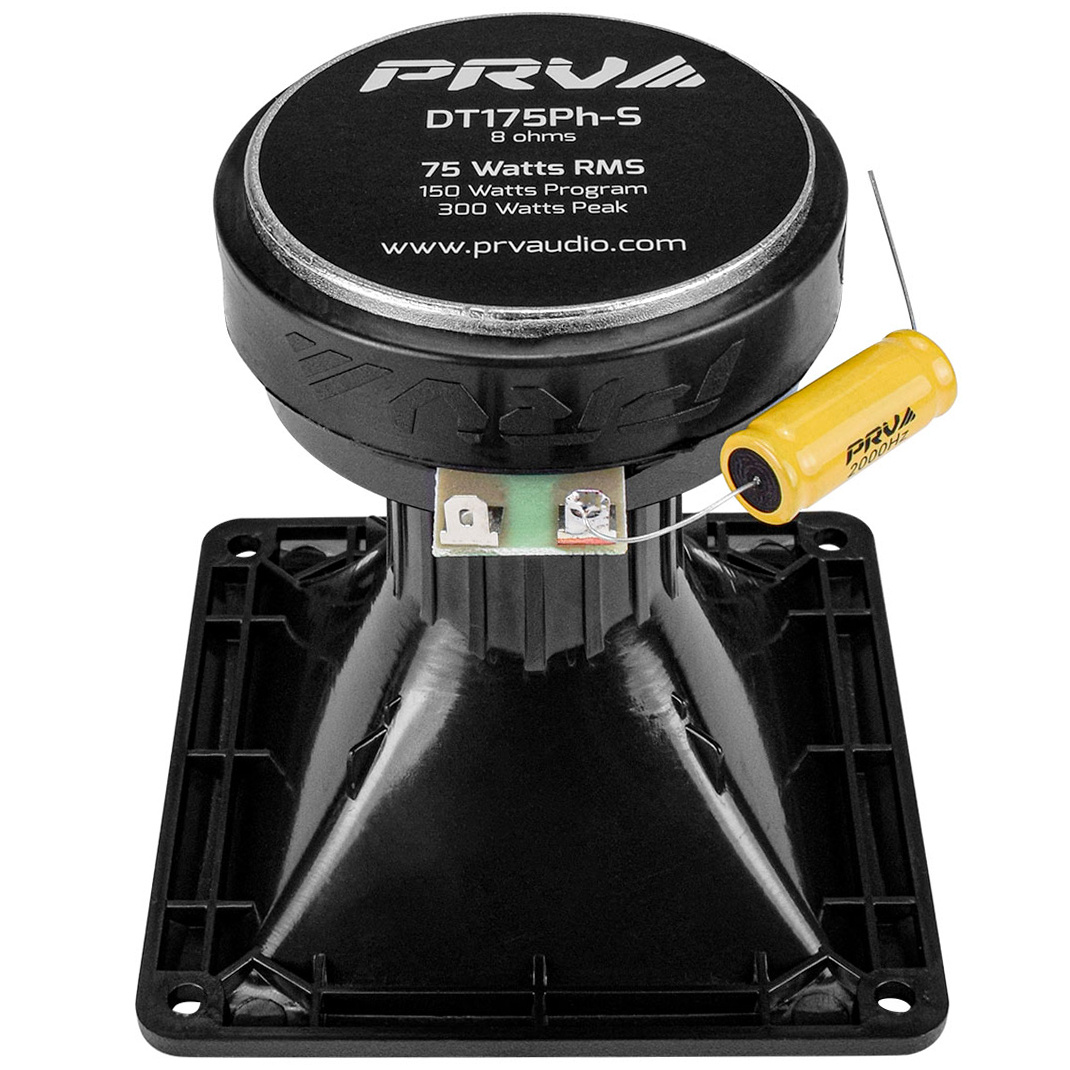

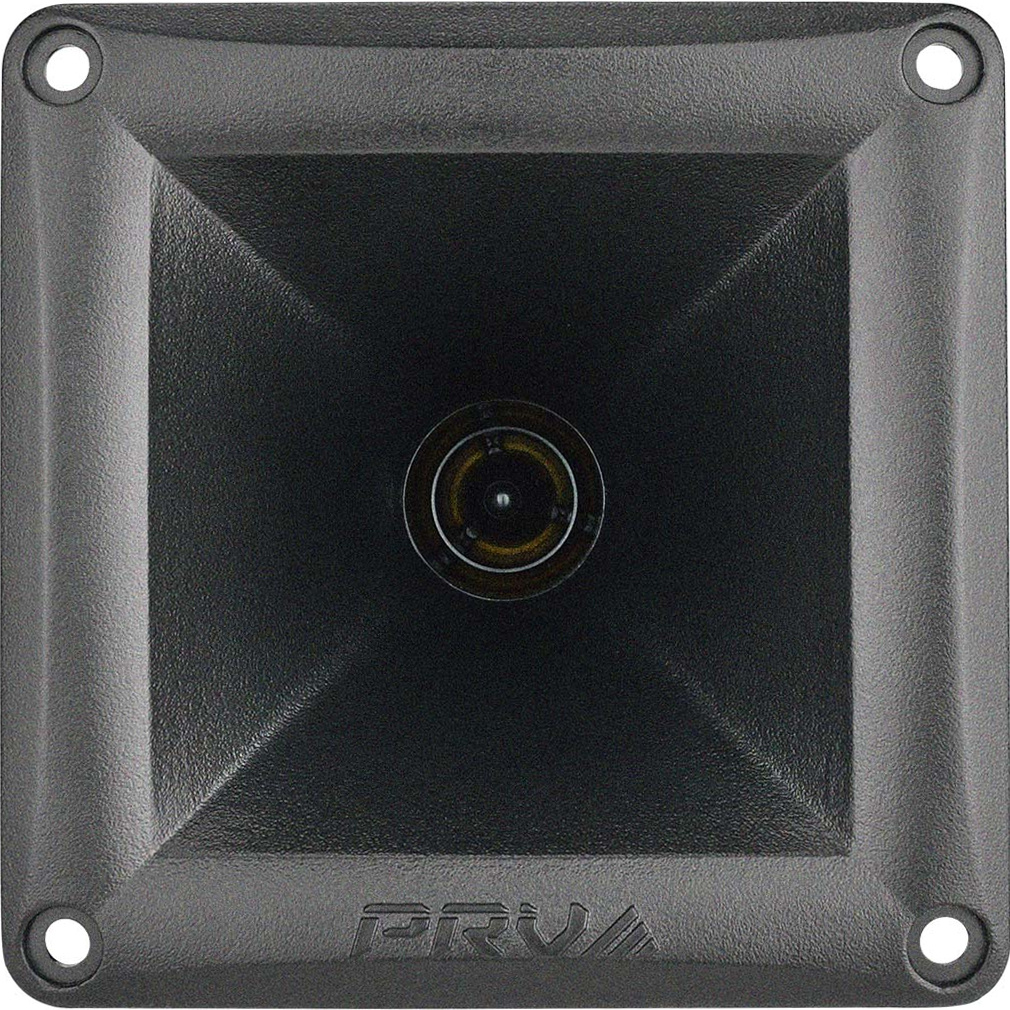

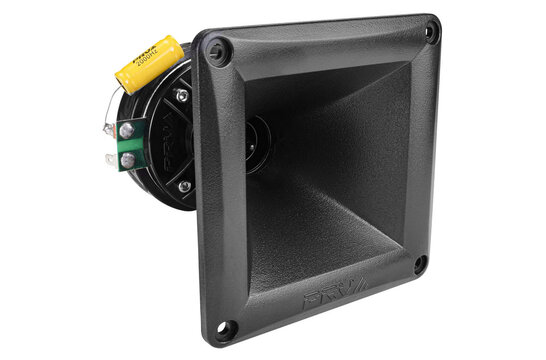

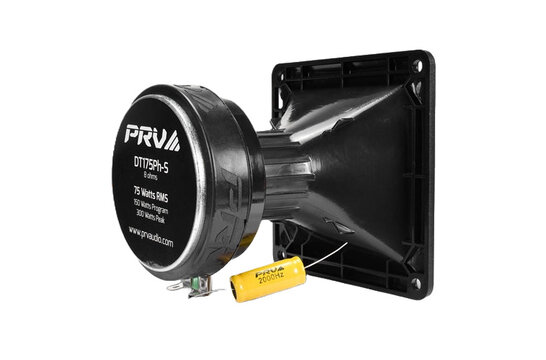

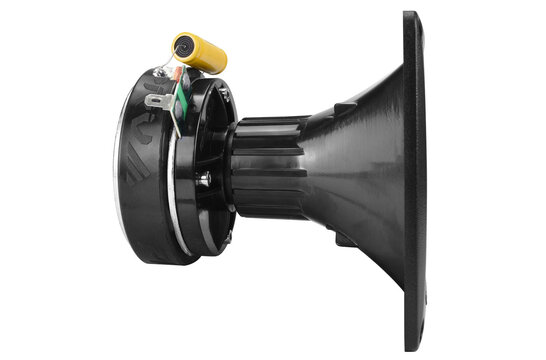

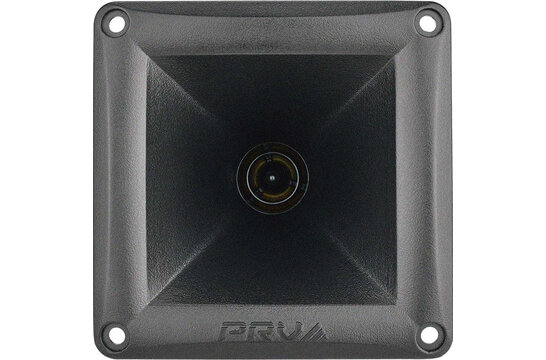

        The PRV Audio WG175Ph is an 8 ohm professional compression driver developed for high-output sound reinforcement and custom loudspeaker designs. It features a 1 inch exit throat and a 25.4 mm voice coil, allowing efficient coupling to the integrated square waveguide for controlled dispersion and consistent sound coverage.



        With a nominal power handling of 75 watts, 150 watts continuous program power, and a peak power capability of 300 watts, the WG175Ph is suitable for demanding mid-high frequency duties. The phenolic diaphragm combined with a Kapton voice coil former and CCAW voice coil wire provides a balance of durability and smooth tonal character, particularly well suited for vocal and midrange clarity.



        The driver delivers a sensitivity of 108 dB and is optimized for use with a high-pass crossover at 3,000 Hz using a 12 dB per octave slope to achieve full power handling. Its ferrite magnet structure produces a flux density of 1.02 T, contributing to strong motor control and stable performance. Compact dimensions, including an overall width and height of 115.5 mm and an overall depth of 117.0 mm, make the WG175Ph easy to integrate into compact enclosures and professional speaker cabinets.

        Show more

        Specifications

        Article number
        WG175Ph
        EAN
        810075520019
