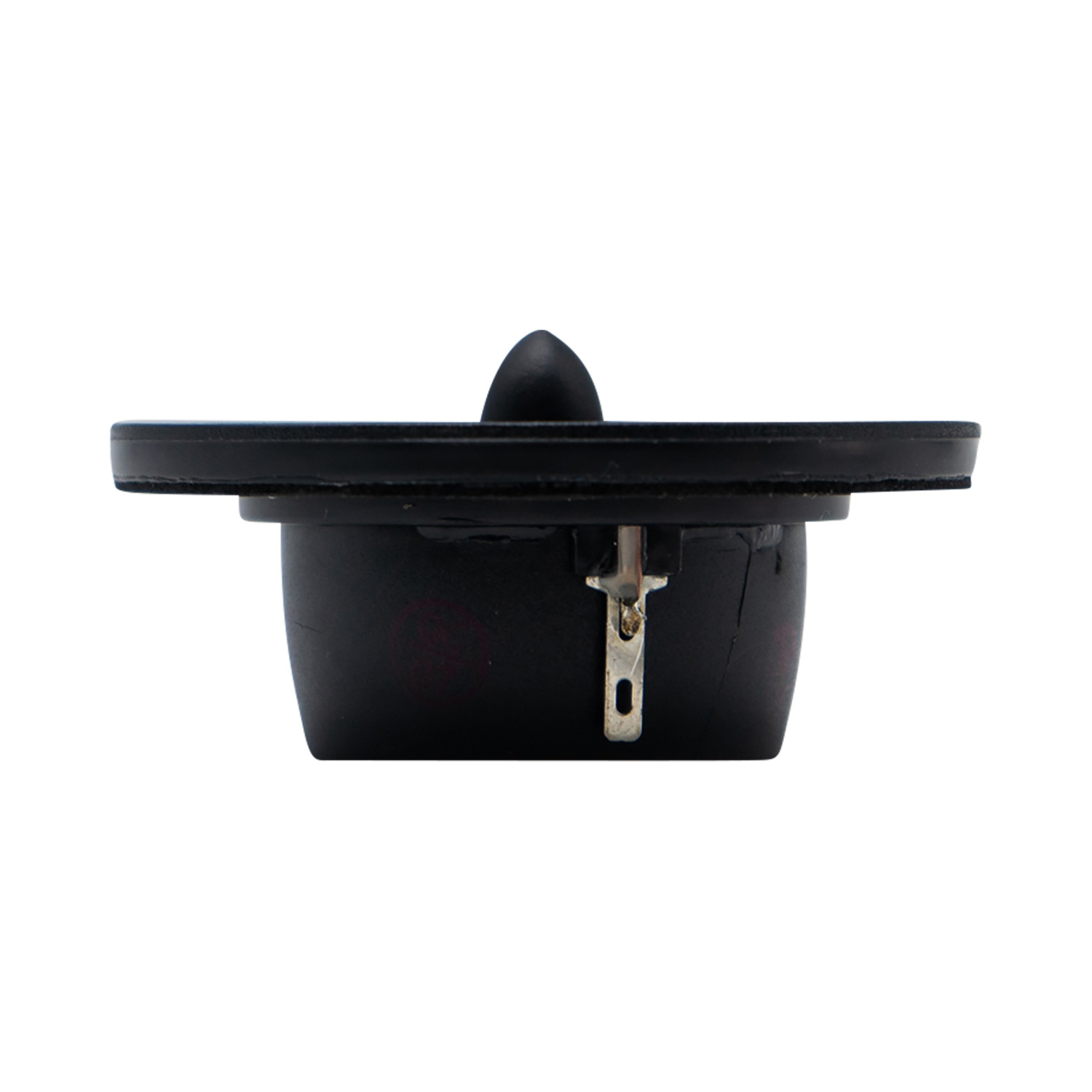

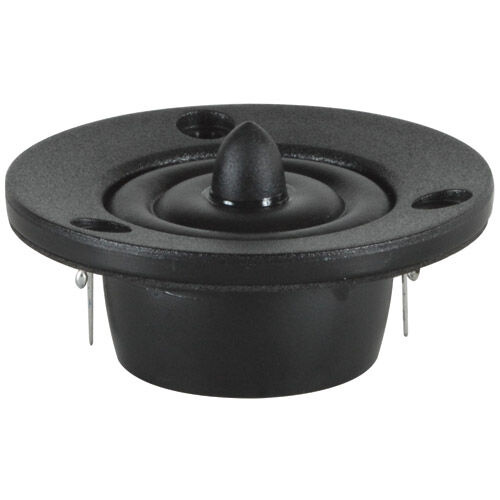

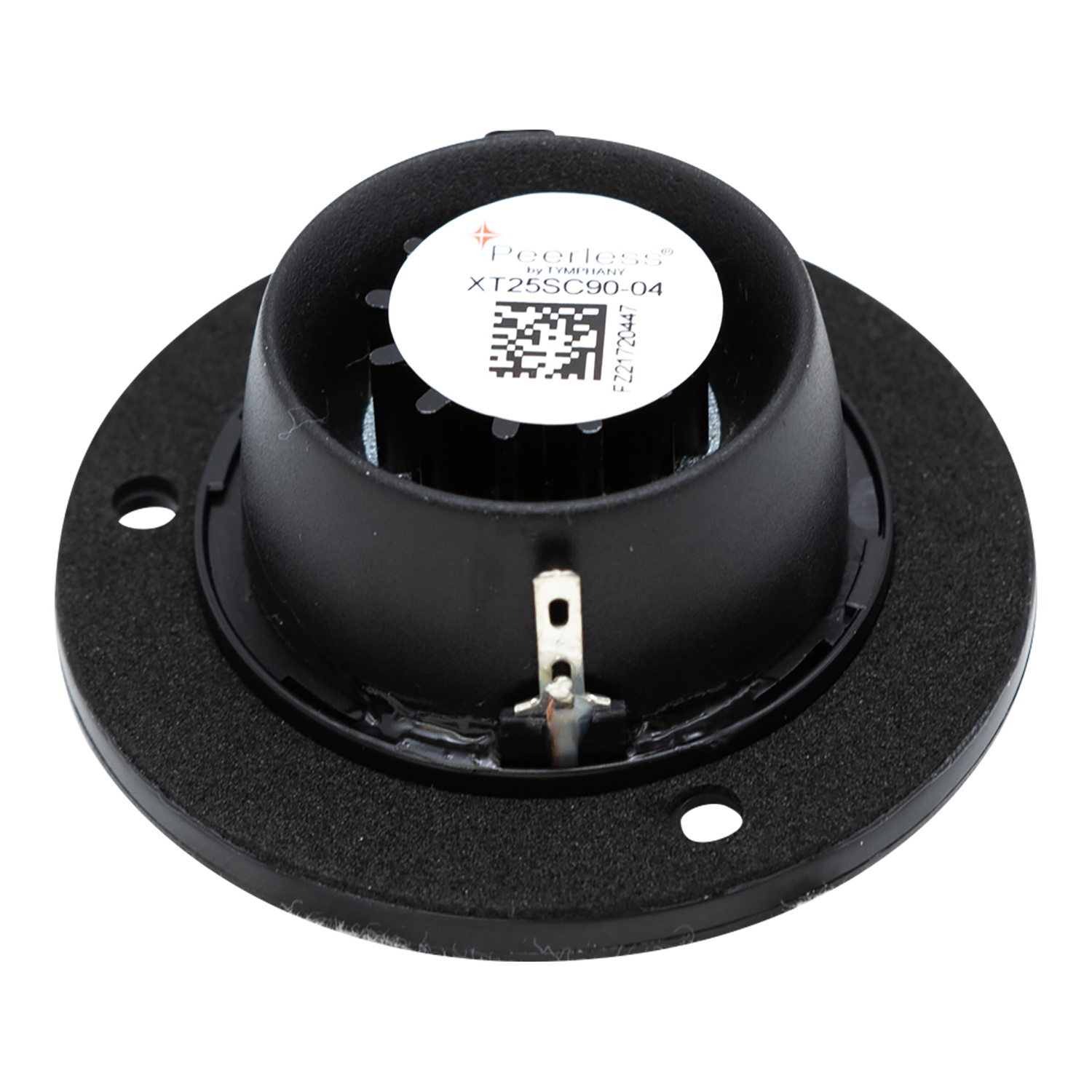

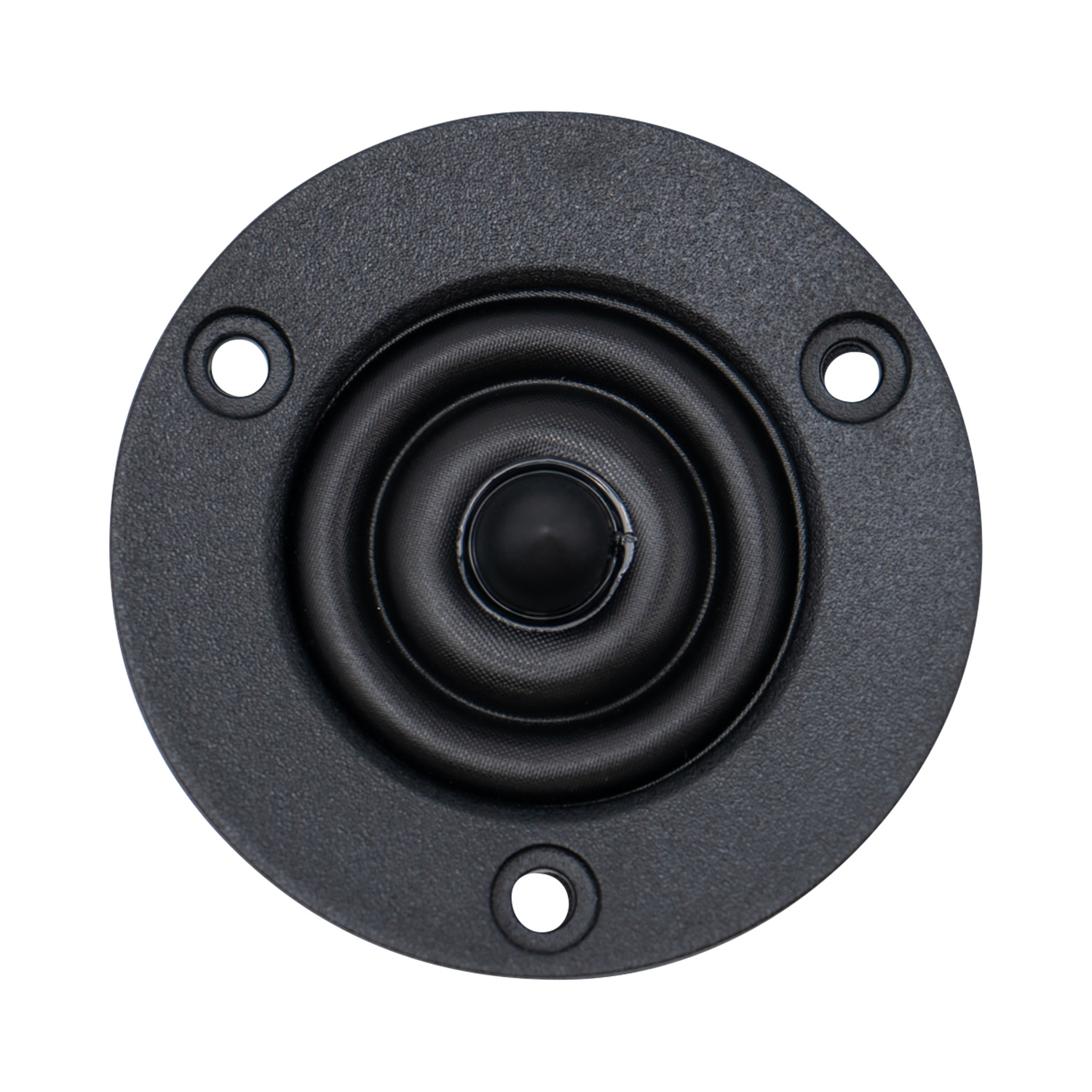

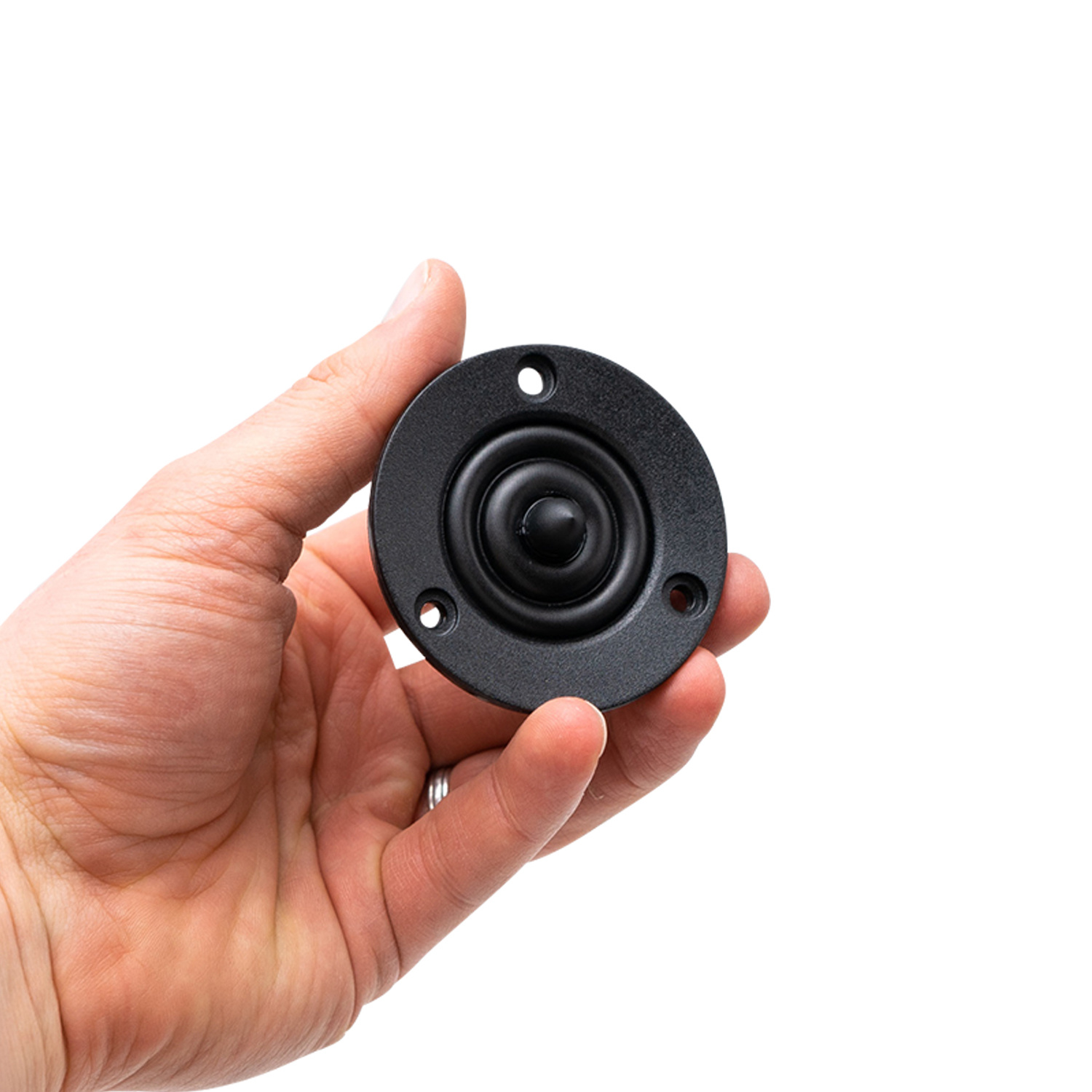

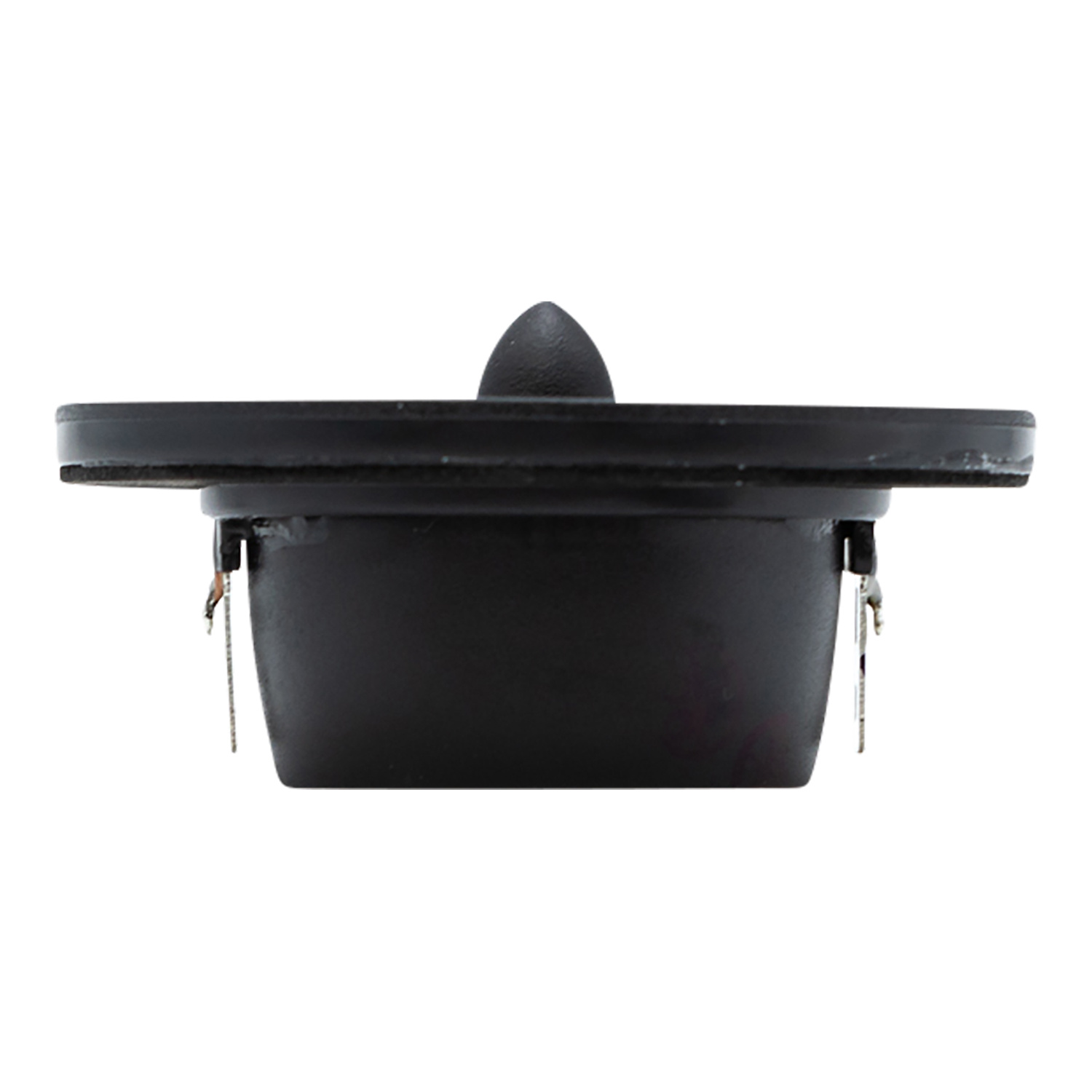

        XT25SC90-04 Ring Radiator Tweeter

        XT25SC90-04 Ring Radiator Tweeter

        €26,45

        Peerless by Tymphany XT25SC90-04 Ring Radiator Tweeter

        5 reviews
        5 from 5
        5 reviews
        5 stars
        80%
        4 stars
        20%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        € 21,86€ 26,45 10+ In stock
        • -5% Purchase 4 for only € 25,13 per piece

        Buy now, pay later

        • We ship to
        • Same day shipping
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        The smaller-sized Tymphany XT25SC90-04 features a patented dual concentric diaphragm and a unique waveguide center plug that provide an excellent on- and off-axis response.



        Highlights

        • Patented dual ring radiator diaphragm with waveguide center plug
        • Neodymium magnet, low distortion motor
        • Flat response to 40 kHz



        Product details

        Peerless by Tymphany XT25SC90-04 1" Dual Ring Radiator Tweeter



        This member of the XT tweeter family utilizes two Tymphany technologies to deliver exceptional sound quality: the ring radiator patent, and the central waveguide patent. This model features a 4 ohm 25 mm voice coil, mounted in a neodymium magnet motor. The tweeter also features a rear chamber to create extended low frequency response. The faceplate features recessed mounting holes which minimizes reflections off of mounting screws.

        Show more

        Specifications

        Article number
        XT25SC90-04
        Tweeter Type
        Ring Radiator
        Tweeter Series
        XT Series
        Cone / Dome Diameter
        25 mm | 1"
        Power Handling (RMS)
        100 Watts
        Impedance (Z)
        4 Ω
        Sensitivity (SPL at 1m / 2.83V)
        93.14 dB
        Frequency Response
        1600 to 20,000 Hz
        Resonant Frequency (Fs)
        824 Hz
        DC Resistance (Re)
        3.13 ohms
        Voice Coil Inductance (Le)
        0.01 mH
        Mechanical Q (Qms)
        7.17
        Electromagnetic Q (Qes)
        1.07
        Total Q (Qts)
        0.93
        Overall Outside Diameter
        2.55”
        Cutout Diameter
        1.85”
        Depth
        1.00"

        Show more

        4 of 5
        Sehr räumlich. Die Anschlussbelegung wirft leider Fragen auf, da die Anschlussfahnen nicht nach dem üblichen Verfahren (roter Punkt oder eingeprägtes Pluszeichen = Pluspol) bezeichnet sind. Bei gehobenem Pegel klingt er manchmal etwas angestrengt (falsettohafte Stimmen oder S-Laute)
        By Peter on 22 January 2023
        5 of 5
        Its a great tweeter. The tweeter is placed to a car with a custom pillar. The cut off frequency is at 2800hz and its sounds amazing. Great value for money. I recommend.
        By GOULIELMOS S. on 29 October 2020
