        XT19TD00-04 3/4" Dual Radiator Tweeter

        Peerless by Tymphany XT19TD00-04 3/4" Dual Radiator Tweeter

        €34,95

        10+ In stock

        Add to cart

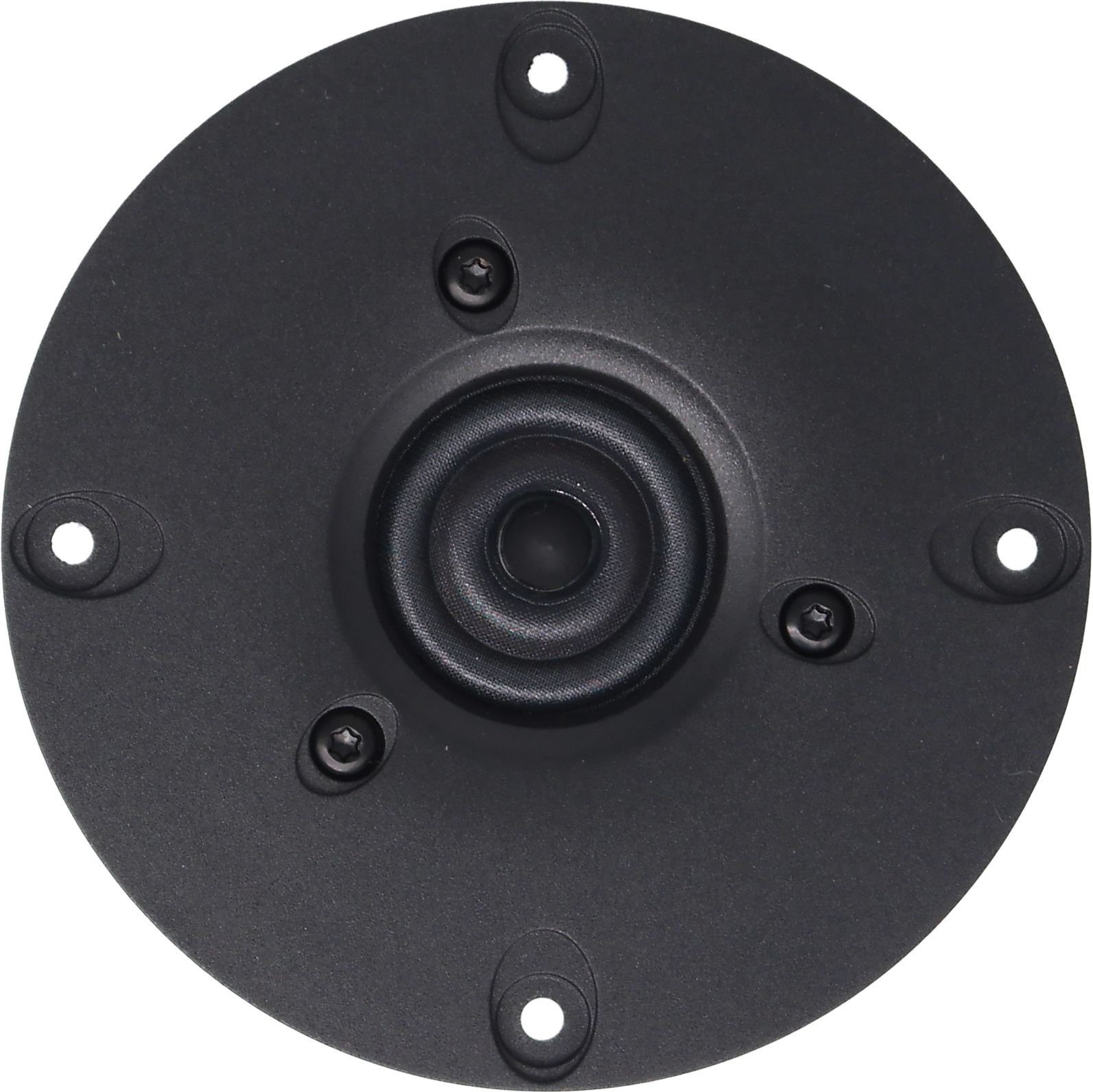

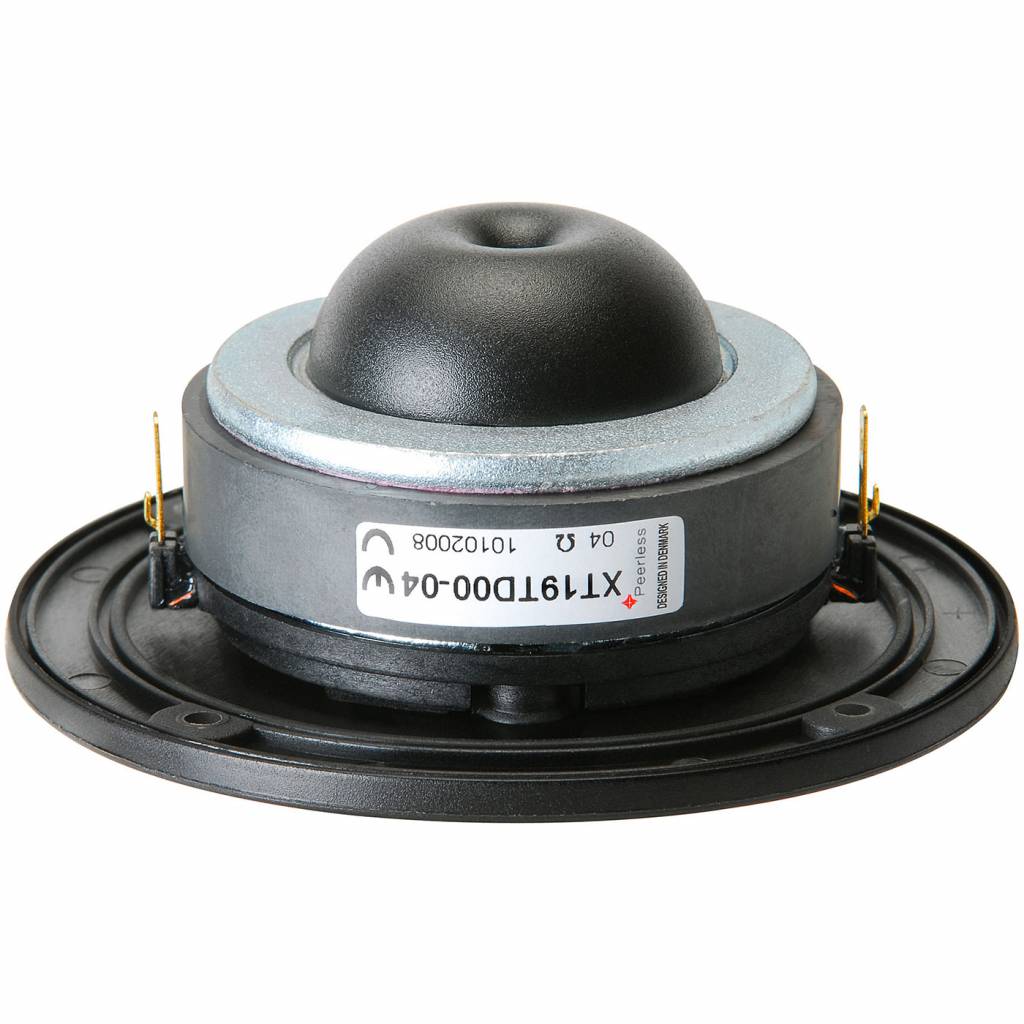

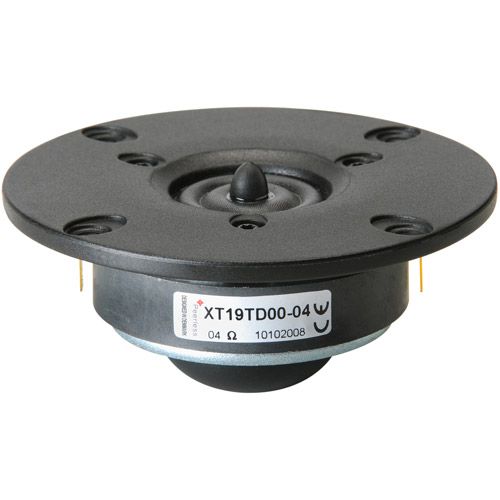

        Peerless by Tymphany XT19TD00-04 3/4" Dual Radiator Tweeter

        5 reviews
        5 from 5
        5 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Peerless by Tymphany
        3/4" | 4 Ω
        XT19TD00-04 3/4" Dual Radiator Tweeter
        XT19TD00-04 3/4" Dual Radiator Tweeter
        XT19TD00-04 3/4" Dual Radiator Tweeter
        XT19TD00-04 3/4" Dual Radiator Tweeter
        XT19TD00-04 3/4" Dual Radiator Tweeter
        XT19TD00-04 3/4" Dual Radiator Tweeter
        € 28,88€ 34,95 10+ In stock
        • -5% Purchase 4 for only € 33,20 per piece
        € 34,95
        +-
        Add to cart
        🔒 Secure payment
        MastercardVisaBank TransferCarte BancaireApple PayGoogle Paypaypal

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        XT19TD00-04 3/4" Dual Radiator Tweeter
        XT19TD00-04 3/4" Dual Radiator Tweeter
        XT19TD00-04 3/4" Dual Radiator Tweeter
        XT19TD00-04 3/4" Dual Radiator Tweeter
        XT19TD00-04 3/4" Dual Radiator Tweeter
        XT19TD00-04 3/4" Dual Radiator Tweeter

        Pros and cons

        According to our specialists
        • Outstanding performance in 2-way systems

        Product description Peerless by Tymphany XT19TD00-04 Ring Radiator Tweeter

        The Tymphany XT19TD00-04 features a patented dual concentric diaphragm and a unique waveguide center plug that provide an excellent on-and off-axis response.



        Highlights

        • Outstanding performance in 2-way systems
        • Dual ring radiator diaphragm (patented)
        • Waveguide center plug (patented)
        • Copper-clad aluminum VC wire
        • Flat response well beyond 20 kHz
        • Low distortion



        Product details

        Peerless by Tymphany XT19TD00-04 3/4" Dual Radiator Tweeter



        This member of the XT tweeter family utilizes two Tymphany technologies to deliver exceptional sound quality: the ring radiator patent, and the central waveguide patent. This model features a 4 ohm 19 mm voice coil, mounted in a ferrite magnet motor. The tweeter also features a rear chamber to create extended low frequency response. The faceplate features recessed mounting holes which minimizes reflections off of mounting screws.

        Show more

        Specifications

        Article number
        XT19TD00-04
        EAN
        0844632083600
        Tweeter Type
        Ring Radiator
        Tweeter Series
        XT Series
        Cone / Dome Diameter
        19 mm | 3/4"
        Power Handling (RMS)
        20 Watts
        Impedance (Z)
        4 Ω
        Sensitivity (SPL at 1m / 2.83V)
        88.9 dB
        Frequency Response
        800 - 20.000 Hz
        Resonant Frequency (Fs)
        730 Hz
        DC Resistance (Re)
        2.9 Ω
        Voice Coil Inductance (Le)
        0.014 mH
        Mechanical Q (Qms)
        3.1
        Electromagnetic Q (Qes)
        0.888
        Total Q (Qts)
        0.69
        Overall Outside Diameter
        94 mm
        Cutout Diameter
        67 mm
        Depth
        44 mm
        Mounting Type
        Holes (3.6 x 7 mm)
        Diaphragm Material
        Fabric

        Show more

        Reviews

        5 reviews
        Review this product
        5 of 5
        Same quality Vifa tweeter like 20 years ago, same performance, measure very close, probably from the same production batch. Very quick and accurate international shipping.
        By Serge on 14 October 2026
        5 of 5
        -
        By Daniel on 25 February 2026
