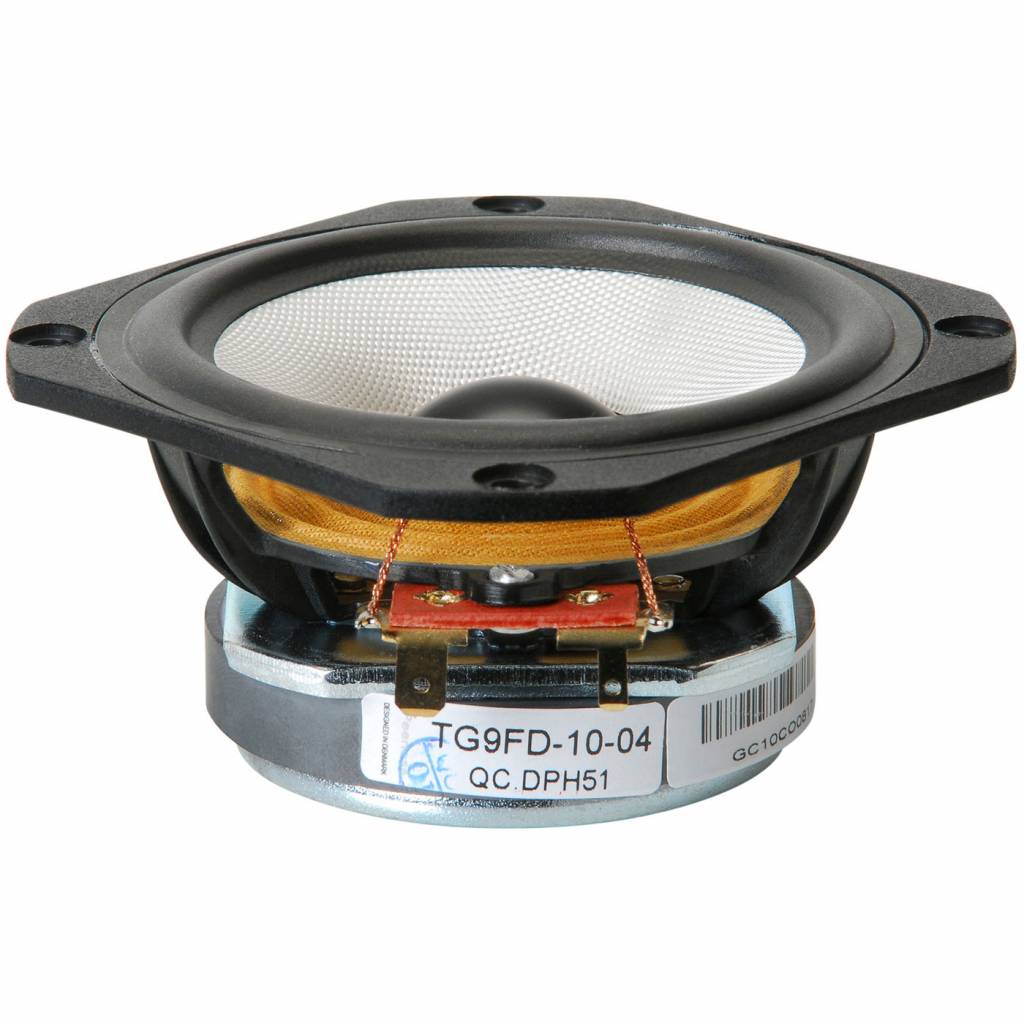

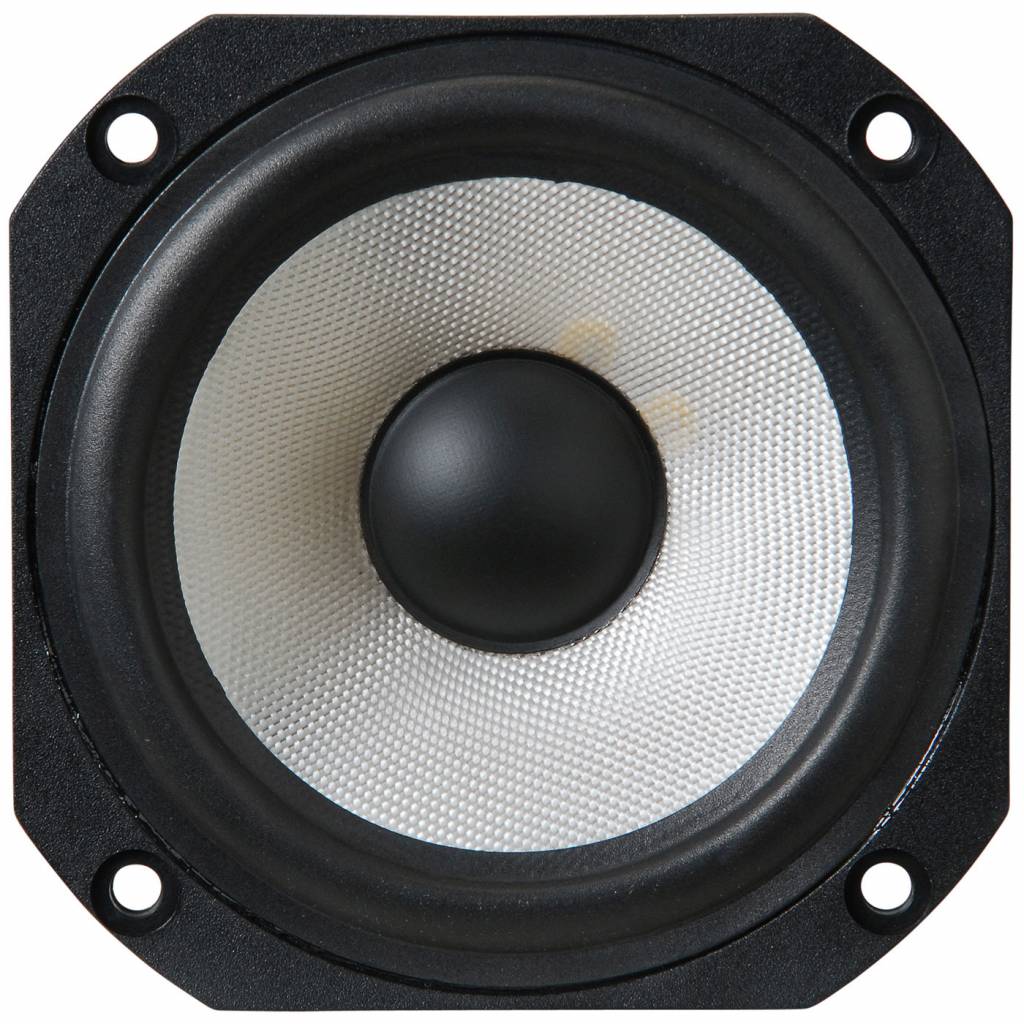

    Peerless by Tymphany TG9FD-10-04 3-1/2" Glass Fiber Cone Full Range

    € 20,62€ 24,95 Out of stock: please contact us for accurate delivery times

    Bulk discount Enjoy these awesome discount deals
    • -5% Order 4 for only €23,70 per piece
    • 24h express shipping available
    • Low international shipping rates
    • Same day shipping*
    • In-house technical support

    Product description

    The TC/TG Series from Tymphany offers a high performance full range and mid-bass solution for TV products and other compact applications.



    Highlights

    • Polymer chassis
    • Patented NRSC fiberglass cone
    • 3/4" voice coil
    • Copper pole piece cap controls impedance
    • Frequency response extends past 15 kHz



    Product details

    Peerless by Tymphany TG9FD-10-04 3-1/2" Glass Fiber Cone Full Range



    This TG family 3.5 inch 4 ohm full-range driver,with ferrite magnet, glass fiber cone, rubber surround, and plastic basket, is designed to be a cost-effective high performance full range driver. The motor contains a copper cap to lower inductance and distortion. The product was designed with portable and compact applications in mind.

    Specifications

    Article number
    TG9FD-10-04
    Woofer Type
    Full Range
    Nominal Diameter
    3-1/2"
    Power Handling (RMS)
    10 Watts
    Power Handling (max)
    20 Watts
    Impedance (Z)
    4 ohms
    Sensitivity
    84 dB 2.83V/1m
    Frequency Response
    110 to 15,000Hz
    Voice Coil Diameter
    0.75"
    DC Resistance (Re)
    3.2 ohms
    Voice Coil Inductance (Le)
    0.07 mH
    Resonant Frequency (Fs)
    113 Hz
    Mechanical Q (Qms)
    3
    Electromagnetic Q (Qes)
    1.14
    Total Q (Qts)
    0.83
    Diaphragm Mass Inc. Airload (Mms)
    2.83g
    Mechanical Compliance of Suspension (Cms)
    0.7 mm/N
    Surface Area of Cone (Sd)
    36.3 cm²
    BL Product (BL)
    2.4 Tm
    Compliance Equivalent Volume (Vas)
    0.05 ft.³
    Maximum Linear Excursion (Xmax)
    2.6 mm
    Cone / Diaphragm Material
    Fiberglass
    Surround Material
    Rubber
    Basket / Frame Material
    Polymer
    Magnet Material
    Ferrite
    Overall Outside Diameter
    3.52"
    Overall Depth
    1.7"
    Baffle Cutout Diameter
    3.31"
    # Mounting Holes
    4
    Sealed Volume
    0.143 ft.³
    Sealed F3
    114 Hz
    Vented Volume
    0.21 ft.³
    Vented F3
    66 Hz

    Reviews

    5 from 5Based on 1 reviews
    Review this product
    5 of 5
    An excellent replacement
    By gary t. on 16 June 2020
