        SLS-135F32CP01-04 Bass-midwoofer

        Peerless by Tymphany SLS-135F32CP01-04 Bass-midwoofer

        €29,95 €49,95

        10+ In stock

        Add to cart

        Peerless by Tymphany SLS-135F32CP01-04 Bass-midwoofer

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Peerless by Tymphany
        5.25" | 4 Ω
        SLS-135F32CP01-04 Bass-midwoofer
        SLS-135F32CP01-04 Bass-midwoofer
        SLS-135F32CP01-04 Bass-midwoofer
        SLS-135F32CP01-04 Bass-midwoofer
        SLS-135F32CP01-04 Bass-midwoofer
        SLS-135F32CP01-04 Bass-midwoofer
        SLS-135F32CP01-04 Bass-midwoofer
        SLS-135F32CP01-04 Bass-midwoofer
        SLS-135F32CP01-04 Bass-midwoofer
        SLS-135F32CP01-04 Bass-midwoofer
        € 41,28
        € 49,95
        € 24,75€ 29,95 10+ In stock
        • -5% Purchase 4 for only € 28,45 per piece
        € 29,95
        +-
        Add to cart
        🔒 Secure payment
        MastercardVisaBank TransferCarte BancaireApple PayGoogle Paypaypal

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        SLS-135F32CP01-04 Bass-midwoofer
        SLS-135F32CP01-04 Bass-midwoofer
        SLS-135F32CP01-04 Bass-midwoofer
        SLS-135F32CP01-04 Bass-midwoofer
        SLS-135F32CP01-04 Bass-midwoofer
        SLS-135F32CP01-04 Bass-midwoofer
        SLS-135F32CP01-04 Bass-midwoofer
        SLS-135F32CP01-04 Bass-midwoofer
        SLS-135F32CP01-04 Bass-midwoofer
        SLS-135F32CP01-04 Bass-midwoofer

        Pros and cons

        According to our specialists
        • Serious Bass from a Compact 5.25-Inch Driver
        • Robust Engineering at an Accessible Price

        Product description Peerless by Tymphany SLS-135F32CP01-04 Bass-midwoofer

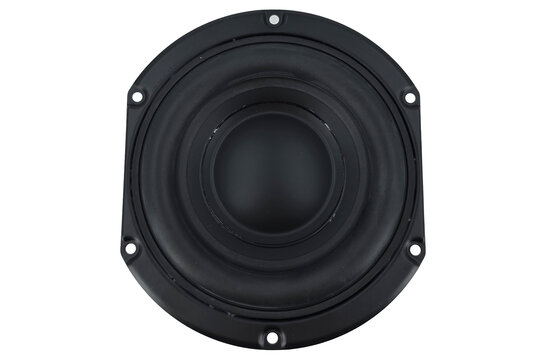

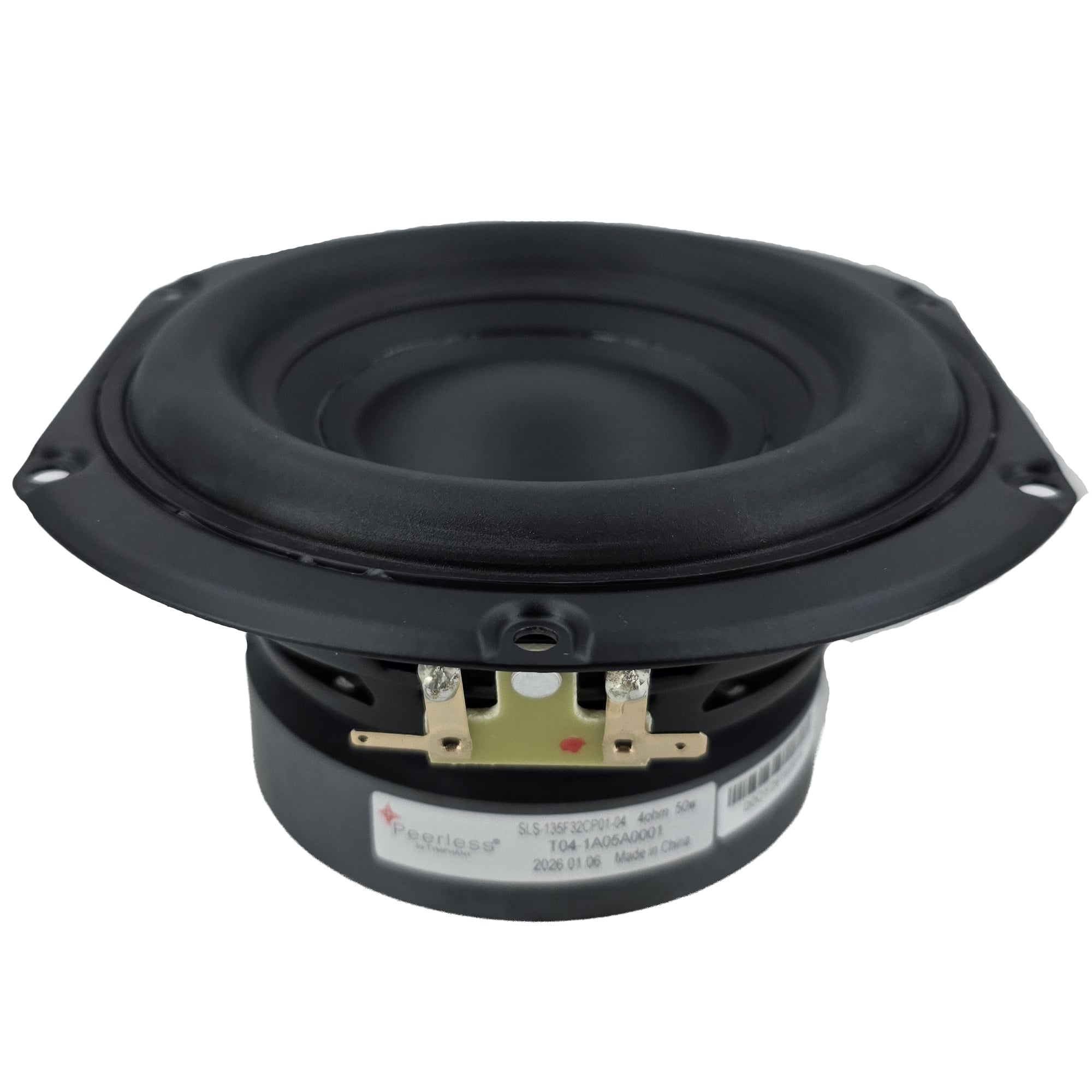

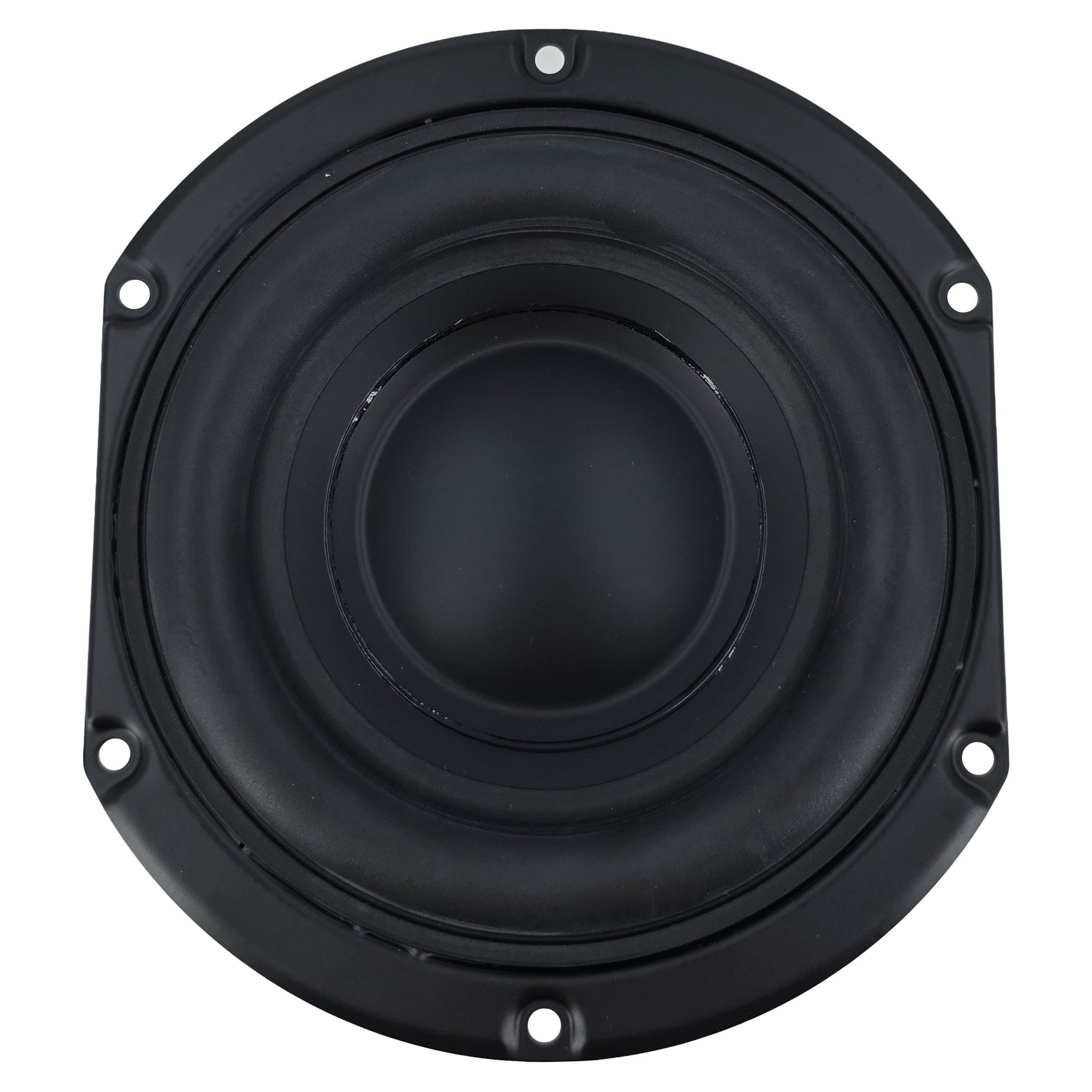

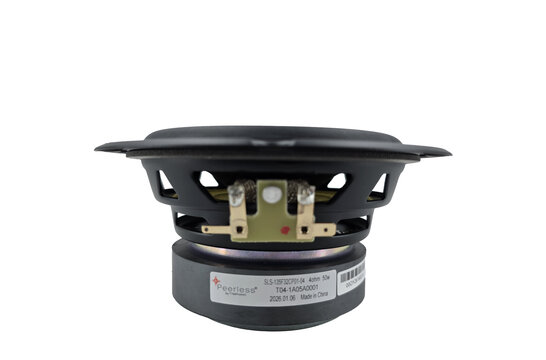

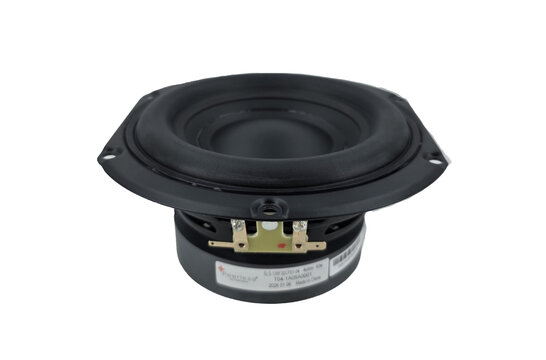

        The Peerless by Tymphany SLS-135F32CP01-04 is a compact 133 mm bass-midwoofer with a coated paper cone, rubber surround, ferrite motor and 4 Ohm impedance, designed for controlled low-frequency and midbass reproduction in small to medium speaker designs.


        Highlights of the Peerless by Tymphany SLS-135F32CP01-04

        • 133 mm woofer with coated paper cone for natural tonal balance
        • 4 Ohm impedance with 50 W IEC 268-5 power rating
        • Frequency range of 50 to 3000 Hz for bass and midbass applications
        • 32.4 mm voice coil with ferrite magnet motor and aluminum shorting ring
        • 7 mm linear excursion and 13.8 mm maximum mechanical excursion

        Product details Peerless by Tymphany SLS-135F32CP01-04

        Peerless by Tymphany SLS-135F32CP01-04 133 mm Bass-midwoofer 4 Ohm

        The Peerless by Tymphany SLS-135F32CP01-04 is built as a versatile bass-mid woofer for compact loudspeaker systems. Its coated paper cone, rubber surround and steel basket provide a practical balance of damping, durability and clean acoustic output, making it suitable for DIY speaker projects and refined multi-driver designs.


        With a resonance frequency of 55 Hz, a frequency range of 50 to 3000 Hz and a sensitivity of 86.2 dB at 2.83 V/1 m, this driver is well suited for low-frequency and midbass duties in small to medium enclosures. The 4 Ohm impedance and 50 W power rating make it easy to integrate into many audio components builds.


        The motor system uses a ferrite magnet, aluminum shorting ring and 32.4 mm voice coil. Key parameters include a DC resistance of 2.8 Ohm, 0.353 mH inductance, Qts of 0.54, Vas of 5.65 liters and a BL factor of 5.18 Tm, giving designers a clear foundation for sealed or ported enclosure development.


        For compact woofers, excursion capability is an important part of bass performance. The SLS-135F32CP01-04 offers 7 mm linear excursion and 13.8 mm maximum mechanical excursion, supported by a compliant suspension with Cms of 490 µm/N and a moving mass of 16.9 g.

        Show more

        Specifications

        Article number
        SLS-135F32CP01-04
        EAN
        0848864045726
        Woofer Series
        Peerless by Tymphany SLS series
        Woofer Type
        Midwoofer
        Nominal Diameter
        5.25 " | Ø 152 x 134 mm
        Power Handling (RMS)
        50 Watts
        Impedance (Z)
        4 Ω
        Sensitivity (SPL at 1m / 2.83V)
        86.2 dB
        Frequency Response
        50 - 3000 Hz
        Voice Coil Diameter
        32.4 mm
        DC Resistance (Re)
        2.8 Ω
        Voice Coil Inductance (Le)
        0.353 mH
        Resonant Frequency (Fs)
        55 Hz
        Mechanical Q (Qms)
        5.47
        Electromagnetic Q (Qes)
        0.601
        Total Q (Qts)
        0.5
        Diaphragm Mass Inc. Airload (Mms)
        16.9 g
        Mechanical Compliance of Suspension (Cms)
        490 μm/N
        Surface Area of Cone (Sd)
        89.9 cm²
        BL Product (BL)
        5.18 Tm
        Compliance Equivalent Volume (Vas)
        5.65 L
        Maximum Linear Excursion (Xmax)
        13.8 mm
        Cone / Diaphragm Material
        Coated paper
        Surround Material
        Rubber
        Basket / Frame Material
        Steel
        Magnet Material
        Ferrite
        Overall Outside Diameter
        Ø 152 x 134 mm
        Overall Depth
        77 mm
        Baffle Cutout Diameter
        119 mm
        Bolt Circle Diameter
        142 mm
        # Mounting Holes
        6
        Mounting Hole Diameter
        4.5 mm

        Show more
