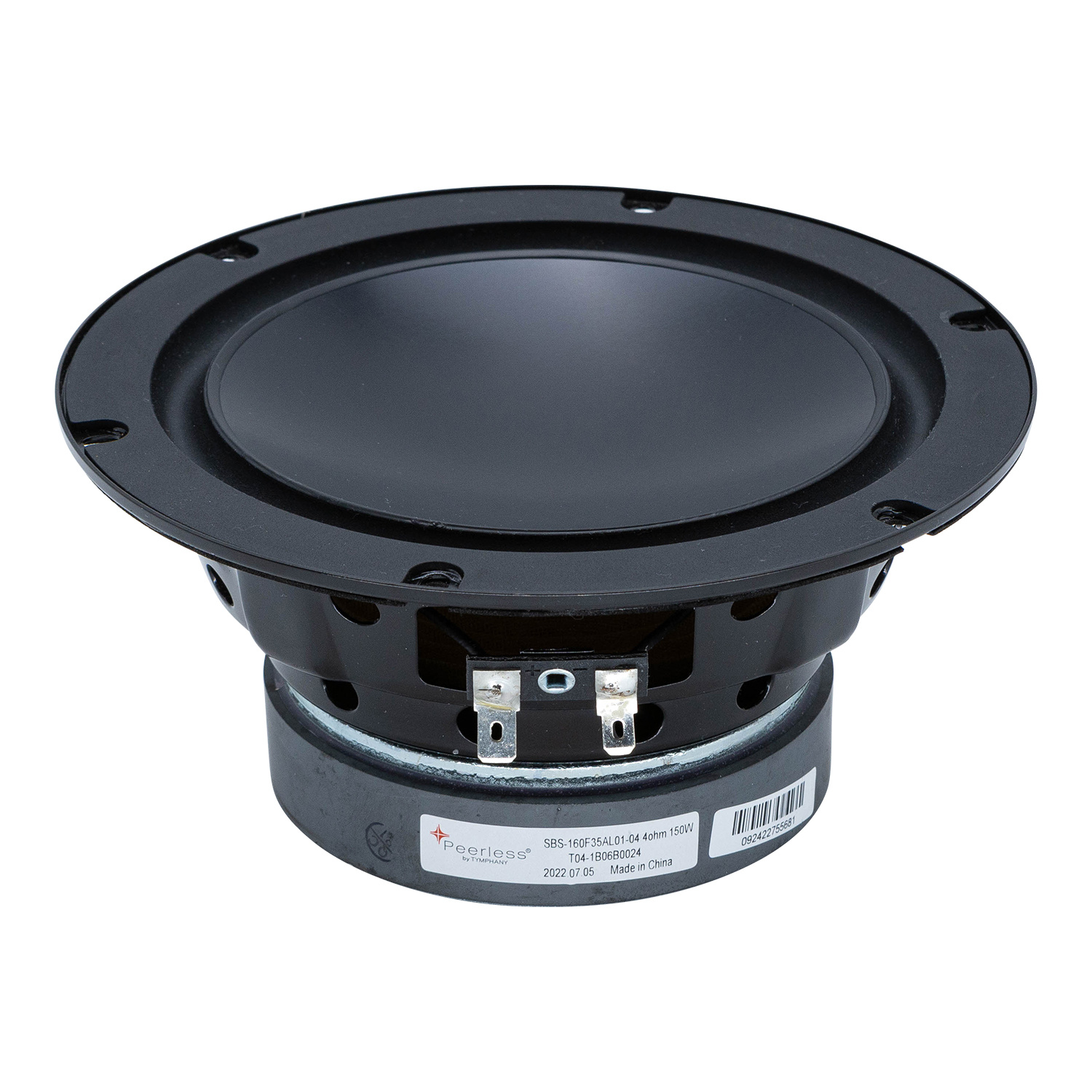

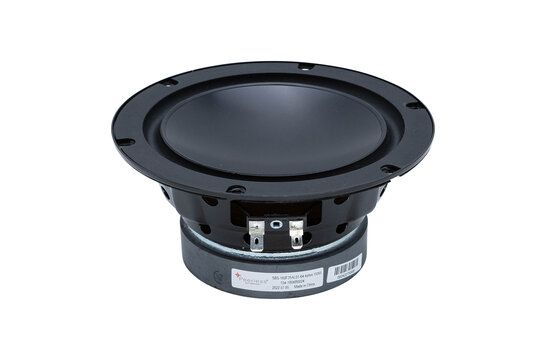

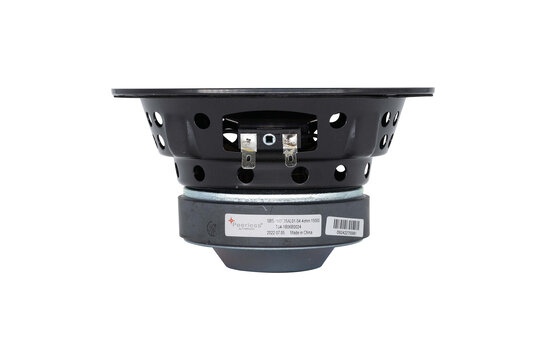

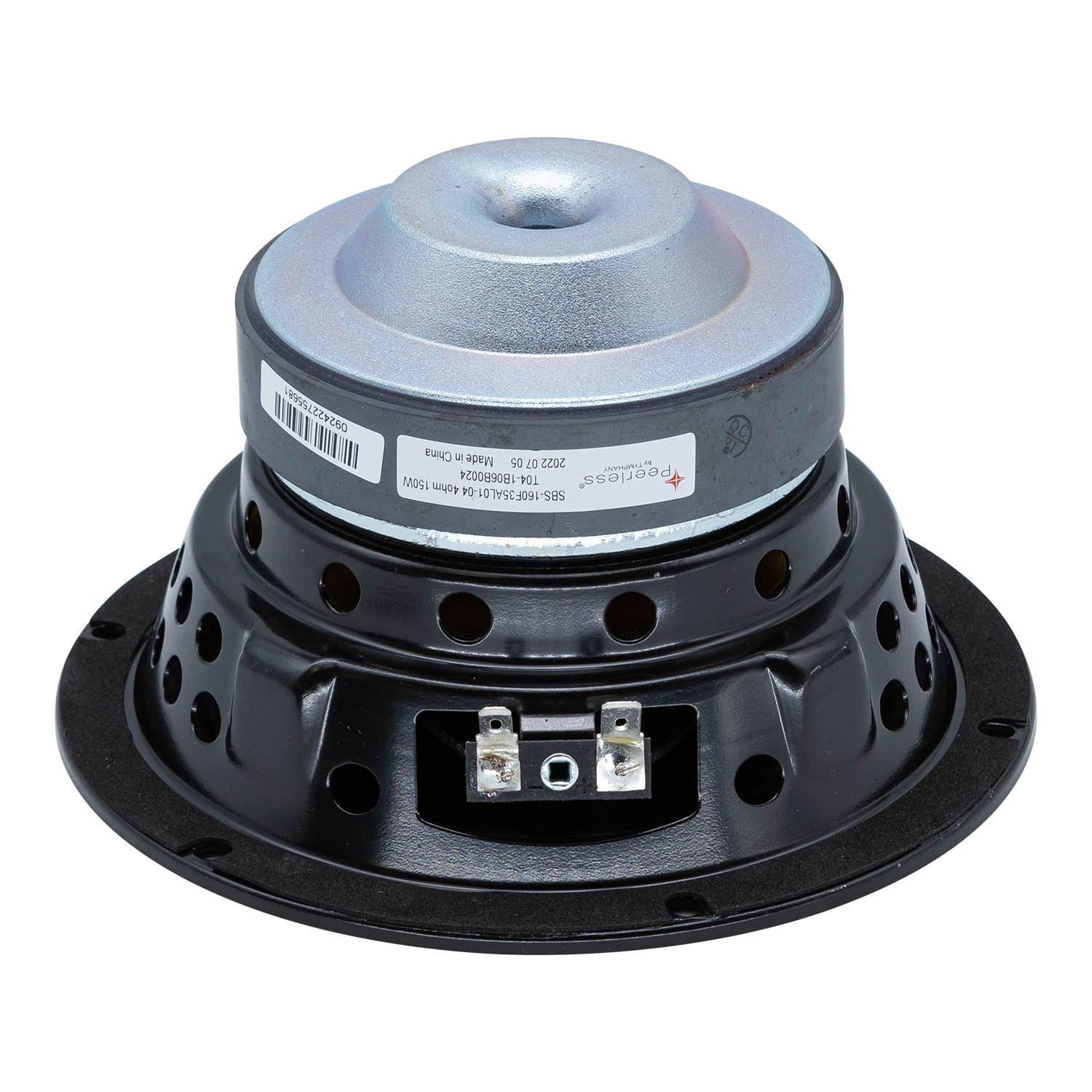

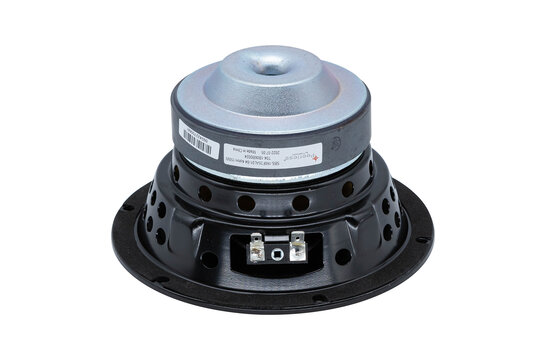

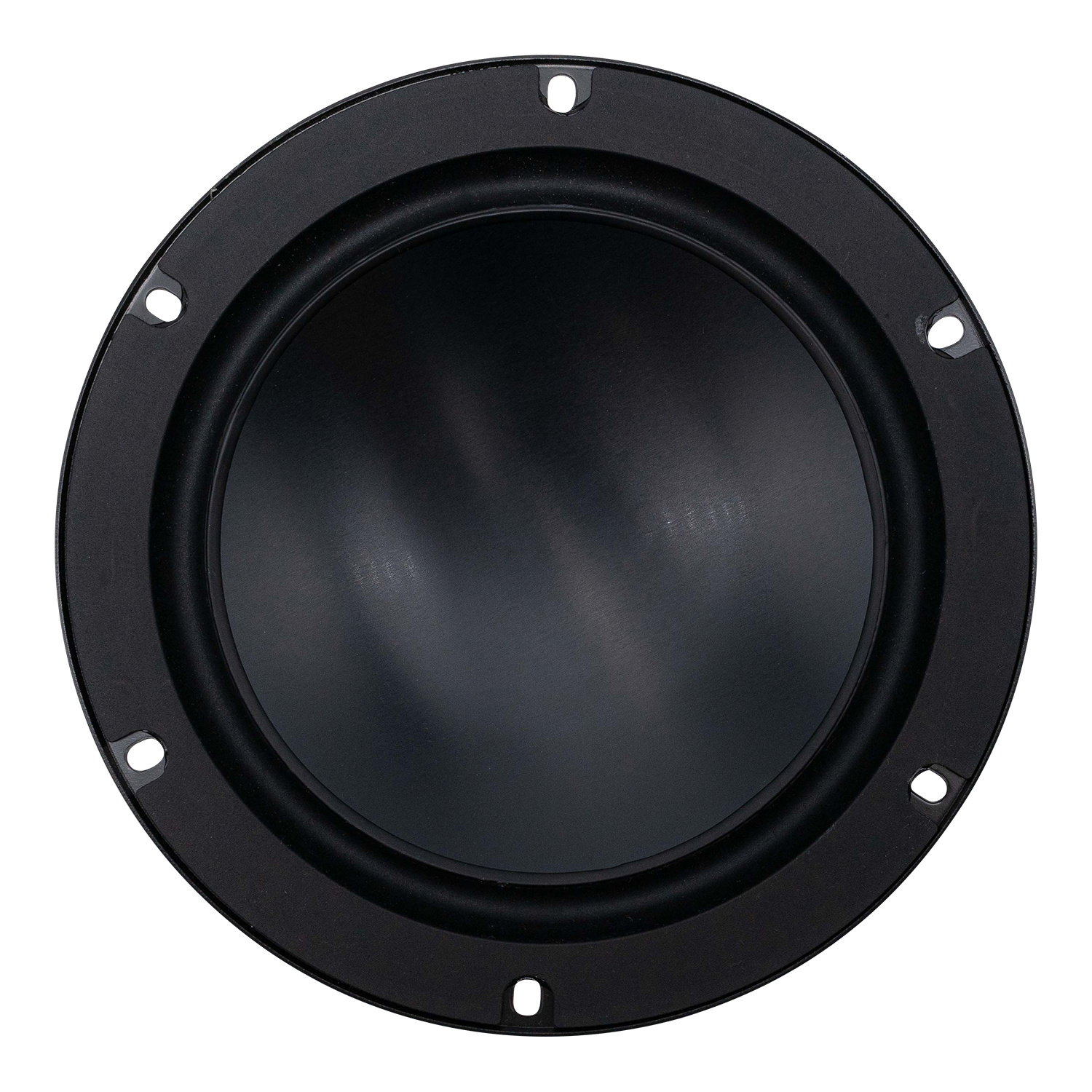

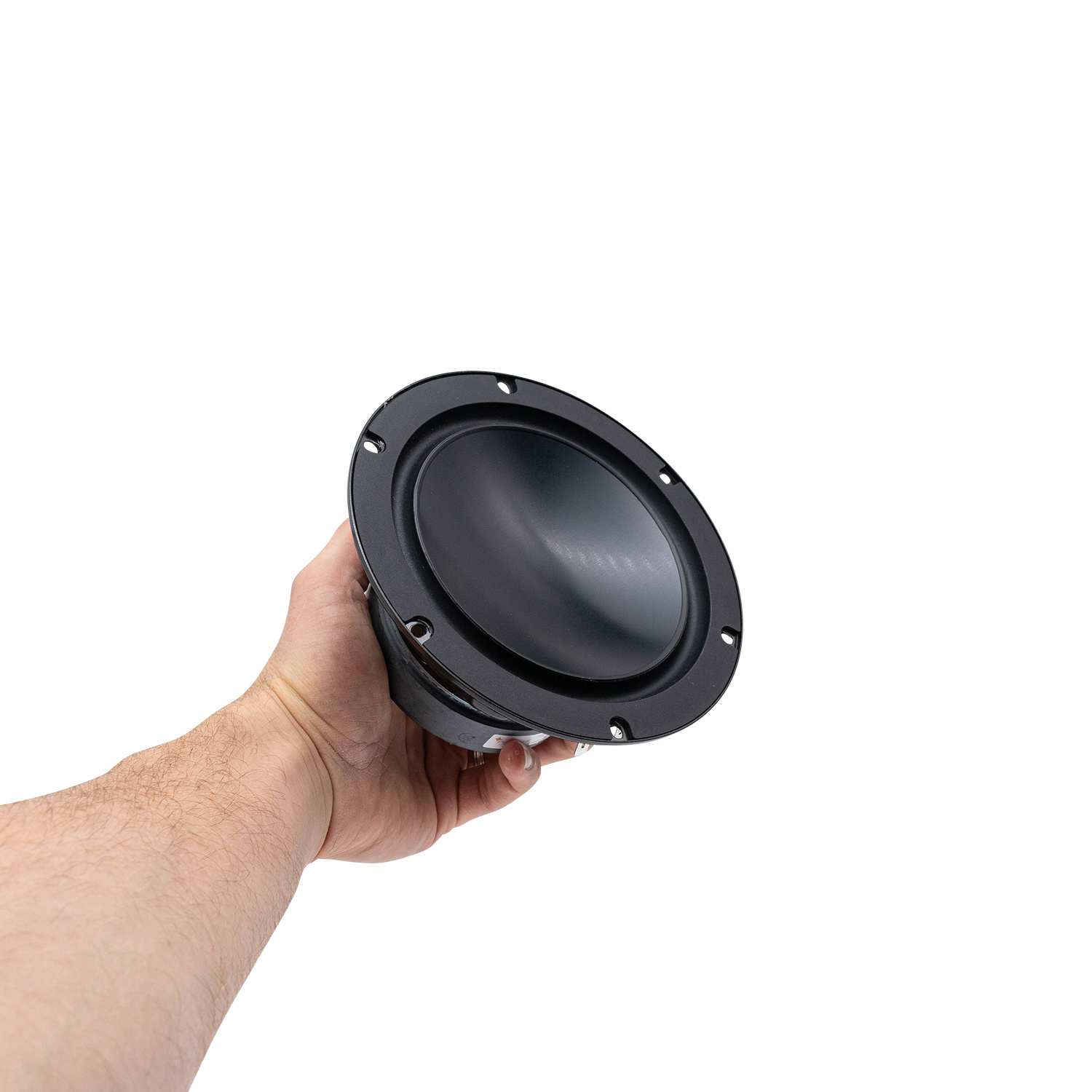

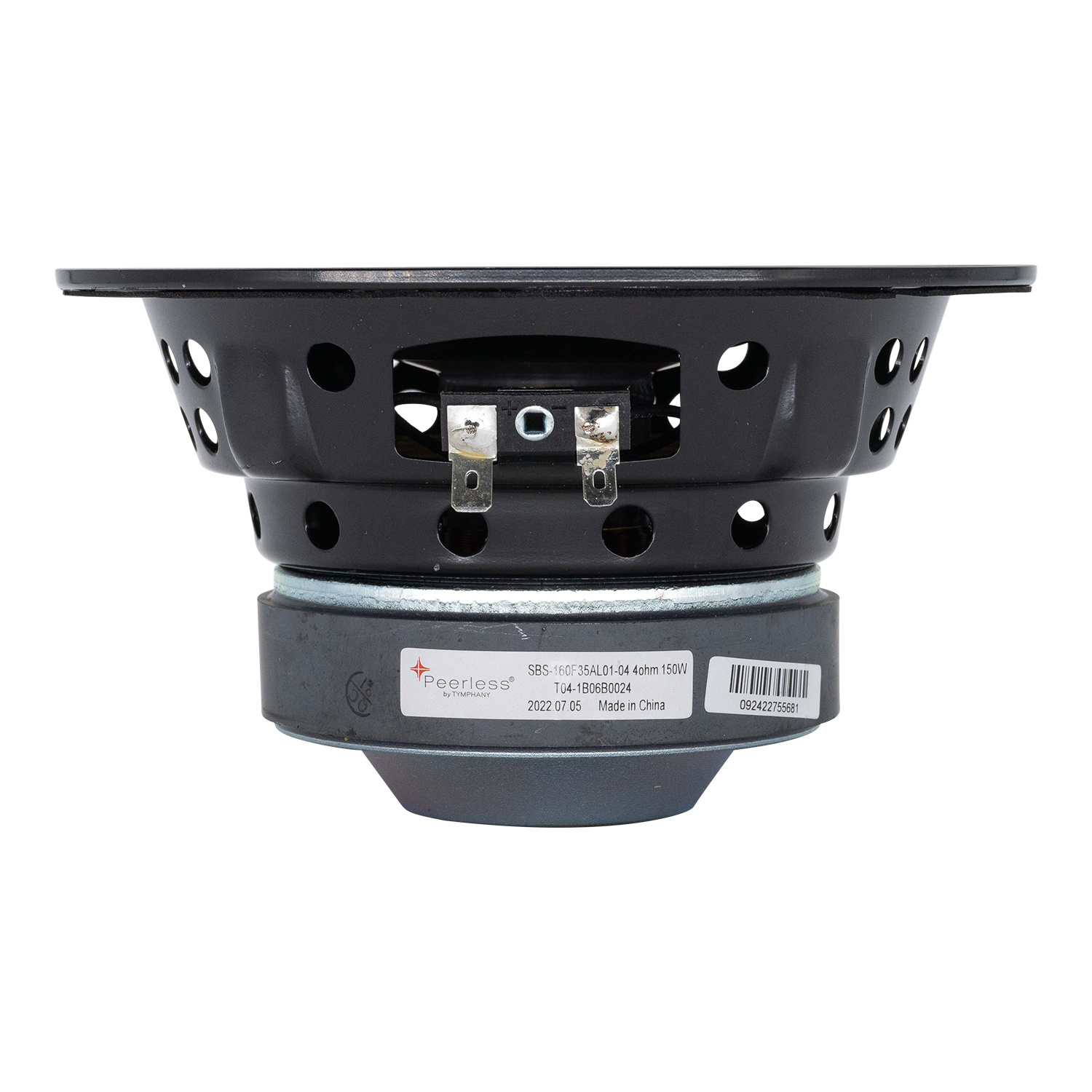

        SBS-160F35AL01-04 6-1/2" Aluminum Cone Woofer 4 Ohm

        Peerless by Tymphany SBS-160F35AL01-04 6-1/2" Aluminum Cone Woofer 4 Ohm

        €59,95

        10+ In stock

        Add to cart

        Peerless by Tymphany SBS-160F35AL01-04 6-1/2" Aluminum Cone Woofer 4 Ohm

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Peerless by Tymphany
        Show all Bass-mid woofer
        6.5" | 4 Ω
        SBS-160F35AL01-04 6-1/2" Aluminum Cone Woofer 4 Ohm
        SBS-160F35AL01-04 6-1/2" Aluminum Cone Woofer 4 Ohm
        SBS-160F35AL01-04 6-1/2" Aluminum Cone Woofer 4 Ohm
        SBS-160F35AL01-04 6-1/2" Aluminum Cone Woofer 4 Ohm
        SBS-160F35AL01-04 6-1/2" Aluminum Cone Woofer 4 Ohm
        SBS-160F35AL01-04 6-1/2" Aluminum Cone Woofer 4 Ohm
        SBS-160F35AL01-04 6-1/2" Aluminum Cone Woofer 4 Ohm
        SBS-160F35AL01-04 6-1/2" Aluminum Cone Woofer 4 Ohm
        SBS-160F35AL01-04 6-1/2" Aluminum Cone Woofer 4 Ohm
        SBS-160F35AL01-04 6-1/2" Aluminum Cone Woofer 4 Ohm
        € 49,55€ 59,95 10+ In stock
        • -5% Purchase 4 for only € 56,95 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        SBS-160F35AL01-04 6-1/2" Aluminum Cone Woofer 4 Ohm
        SBS-160F35AL01-04 6-1/2" Aluminum Cone Woofer 4 Ohm
        SBS-160F35AL01-04 6-1/2" Aluminum Cone Woofer 4 Ohm
        SBS-160F35AL01-04 6-1/2" Aluminum Cone Woofer 4 Ohm
        SBS-160F35AL01-04 6-1/2" Aluminum Cone Woofer 4 Ohm
        SBS-160F35AL01-04 6-1/2" Aluminum Cone Woofer 4 Ohm
        SBS-160F35AL01-04 6-1/2" Aluminum Cone Woofer 4 Ohm
        SBS-160F35AL01-04 6-1/2" Aluminum Cone Woofer 4 Ohm
        SBS-160F35AL01-04 6-1/2" Aluminum Cone Woofer 4 Ohm
        SBS-160F35AL01-04 6-1/2" Aluminum Cone Woofer 4 Ohm

        Product description Peerless by Tymphany SBS-160F35AL01-04 Woofer

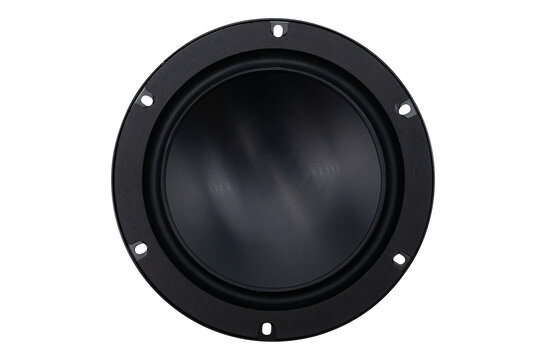

        The SBS-160F35AL01-04 is a 6.5-inch 4-ohm woofer that is a member of the new SBS product family from Peerless by Tymphany. It features a black anodized aluminum cone, inverted rubber surround, ferrite magnet, and steel basket. It is designed for high excursion applications.



        Highlights

        • 6.1 Ohms Woofer Speaker
        • Power rating of 150 W - 300 W max
        • Frequency range of 40 Hz ~ 500 Hz
        • Top round shape



        Product details

        Peerless by Tymphany SBS-160F35AL01-04 Woofer



        The woofer has a resonant frequency of 46.15 Hz, a sensitivity of 82.36 dB, and a maximum linear excursion of 8.5 mm. It has a power handling capacity of 150 watts RMS and 300 watts peak. This woofer is designed for high excursion applications, and can be used in a variety of speaker systems, including home audio, car audio, and professional audio. It is a good choice for applications where a high level of bass output is required.



        This woofer is designed for high excursion applications, and can be used in a variety of speaker systems, including home audio, car audio, and professional audio. It is a good choice for applications where a high level of bass output is required. If you are looking for a high-performance woofer for your speaker system, the SBS-160F35AL01-04 is a good option to consider. It is a well-designed and versatile woofer that can be used in a variety of applications.

        Show more

        Specifications

        Article number
        SBS-160F35AL01-04
        EAN
        0848864045559
        Woofer Series
        Peerless by Tymphany SBS series
        Woofer Type
        Woofer
        Nominal Diameter
        165 mm (6.5 Inch)
        Power Handling (RMS)
        150 watt
        Power Handling (max)
        300 Watt
        Impedance (Z)
        4 Ohm
        Sensitivity (SPL at 1m / 2.83V)
        80.7 dB
        Frequency Response
        40-500 Hz
        Voice Coil Diameter
        36 mm
        DC Resistance (Re)
        4.1 Ohm
        Voice Coil Inductance (Le)
        1.91 mH
        Resonant Frequency (Fs)
        46.15 Hz
        Mechanical Q (Qms)
        5.84
        Electromagnetic Q (Qes)
        0.69
        Total Q (Qts)
        0.62
        Diaphragm Mass Inc. Airload (Mms)
        58.2 g
        Moving Mass Of Diaphragm (Mmd)
        57.2 g
        Mechanical Compliance of Suspension (Cms)
        180 um/N
        Surface Area of Cone (Sd)
        123 cm2
        BL Product (BL)
        10.3 N/A
        Compliance Equivalent Volume (Vas)
        3.91 L
        Maximum Linear Excursion (Xmax)
        10.5 mm
        Driver's Mechanical Losses (Rms)
        3.07 N-s/m
        Magnet Material
        Ferrite
        Overall Outside Diameter
        168 mm (6.614 Inch)
        Overall Depth
        93.7 mm
        Baffle Cutout Diameter
        140 mm
        # Mounting Holes
        6
        Mounting Hole Diameter
        4.5 mm

        Show more

        Reviews

        1 reviews
        Review this product
        5 of 5
        Finally this awesome driver (used by Kii audio BTW!) hit the market. I have been admiring their specs for some time but could never get them.... I look forward to finishing several build with these :)
        By Chris R. on 30 June 2026
