      Peerless by Tymphany PLS-P830987 3" Full Range Woofer

      € 24,34€ 29,45 Out of stock: please contact us for accurate delivery times

      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only €27,98 per piece
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Tymphany/Peerless full range drivers set the standard for quality audio in products including flat panel televisions and sound bars, MP3 and cell phone docking stations, and multimedia PCs.



      Highlights

      • Neodymium magnet
      • Double-vented motor
      • Anodized aluminum center dome
      • Distortion-reducing semi-progressive surround
      • Inverted half-roll rubber surround
      • Copper pole piece cap controls impedance



      Product details

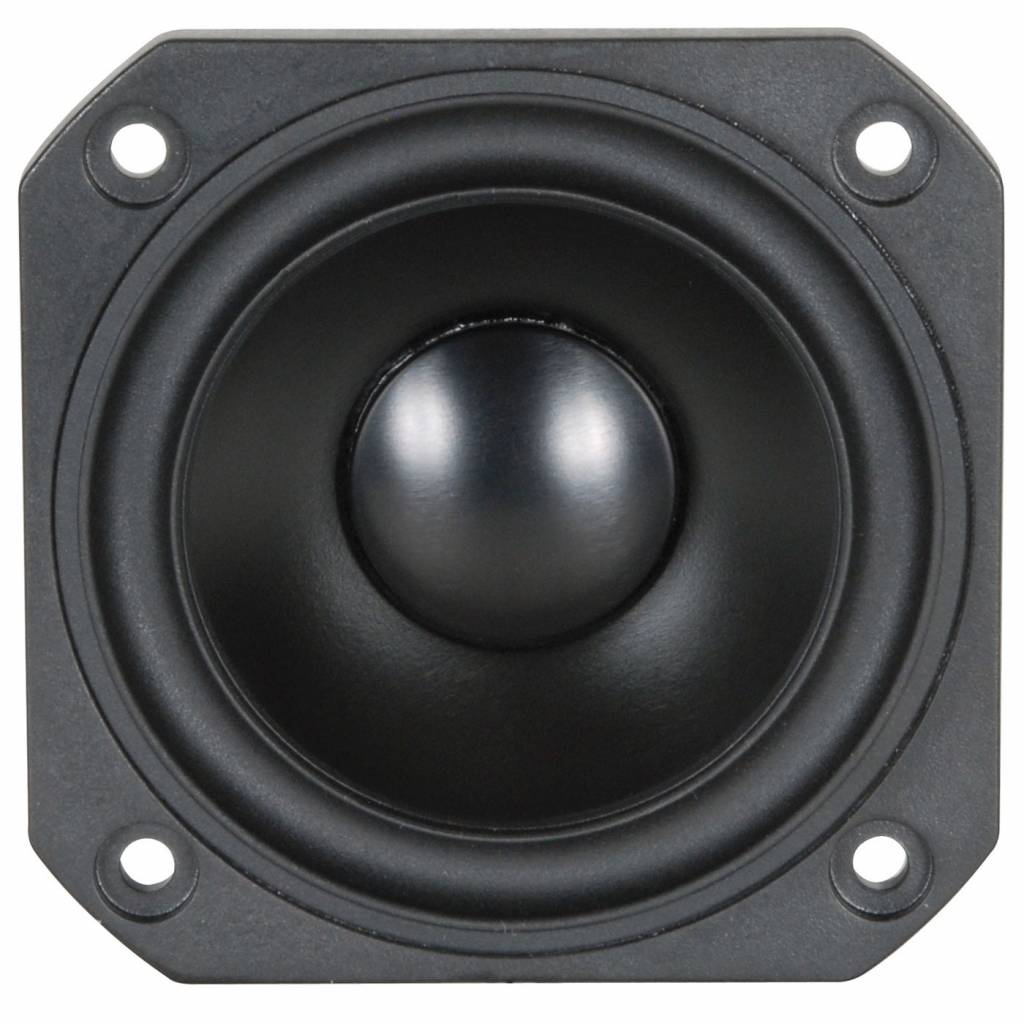

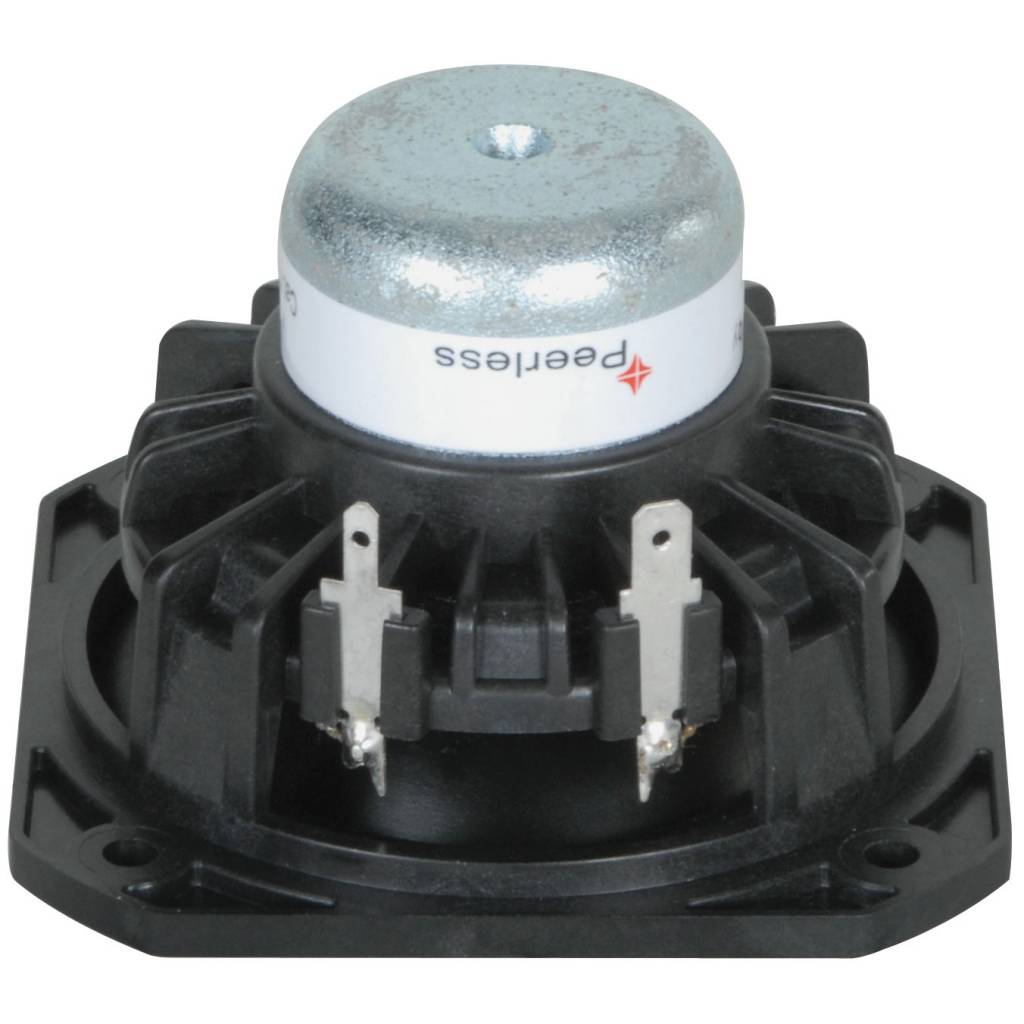

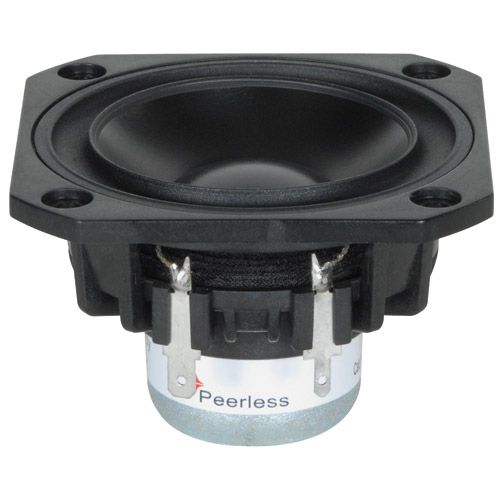

      Peerless by Tymphany PLS-P830987 3" Full Range Woofer



      This 3 inch 8 ohm member of the PLS family sets a high standard, for compact full range drivers intended for applications such as television soundbars and compact music systems. Design features in this family include a damped plastic basket with venting under the spider to aid cooling of the motor, a neodymium magnet motor with copper cap to lower coil inductance, providing low distortion at low frequencies and extended high frequency response. A black anodized aluminium cone is employed on the driver, along with a black anodized aluminium dust cap coupled directly to the voice coil. Additionally, the cones come equipped with special-designed large roll rubber surrounds, which allow for a dynamic linear response to high excursion input signals.

      Specifications

      Article number
      PLS-P830987
      Woofer Series
      PLS Series
      Woofer Type
      Full Range
      Nominal Diameter
      3"
      Power Handling (RMS)
      25 Watts
      Power Handling (max)
      50 Watts
      Impedance (Z)
      8 ohms
      Sensitivity
      82.6 dB 2.83V/1m
      Frequency Response
      100 to 15,000Hz
      Voice Coil Diameter
      1"
      DC Resistance (Re)
      6.2 ohms
      Voice Coil Inductance (Le)
      0.05 mH
      Resonant Frequency (Fs)
      103 Hz
      Mechanical Q (Qms)
      6.1
      Electromagnetic Q (Qes)
      1.11
      Total Q (Qts)
      0.94
      Diaphragm Mass Inc. Airload (Mms)
      2.52g
      Mechanical Compliance of Suspension (Cms)
      1 mm/N
      Surface Area of Cone (Sd)
      27.3 cm²
      BL Product (BL)
      2.98 Tm
      Compliance Equivalent Volume (Vas)
      0.04 ft.³
      Maximum Linear Excursion (Xmax)
      2.05 mm
      Cone / Diaphragm Material
      Aluminum
      Surround Material
      Rubber
      Basket / Frame Material
      Polymer
      Magnet Material
      Neodymium
      Overall Outside Diameter
      3.07"
      Overall Depth
      2"
      Baffle Cutout Diameter
      2.84"
      # Mounting Holes
      4
      Sealed Volume
      0.1 ft.³
      Sealed F3
      98 Hz
      Vented Volume
      0.22 ft.³
      Vented F3
      59 Hz
