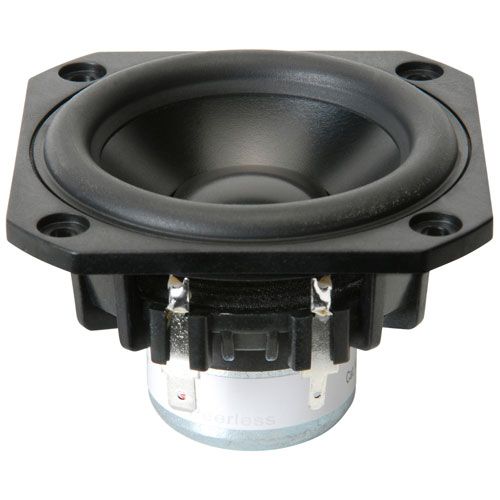

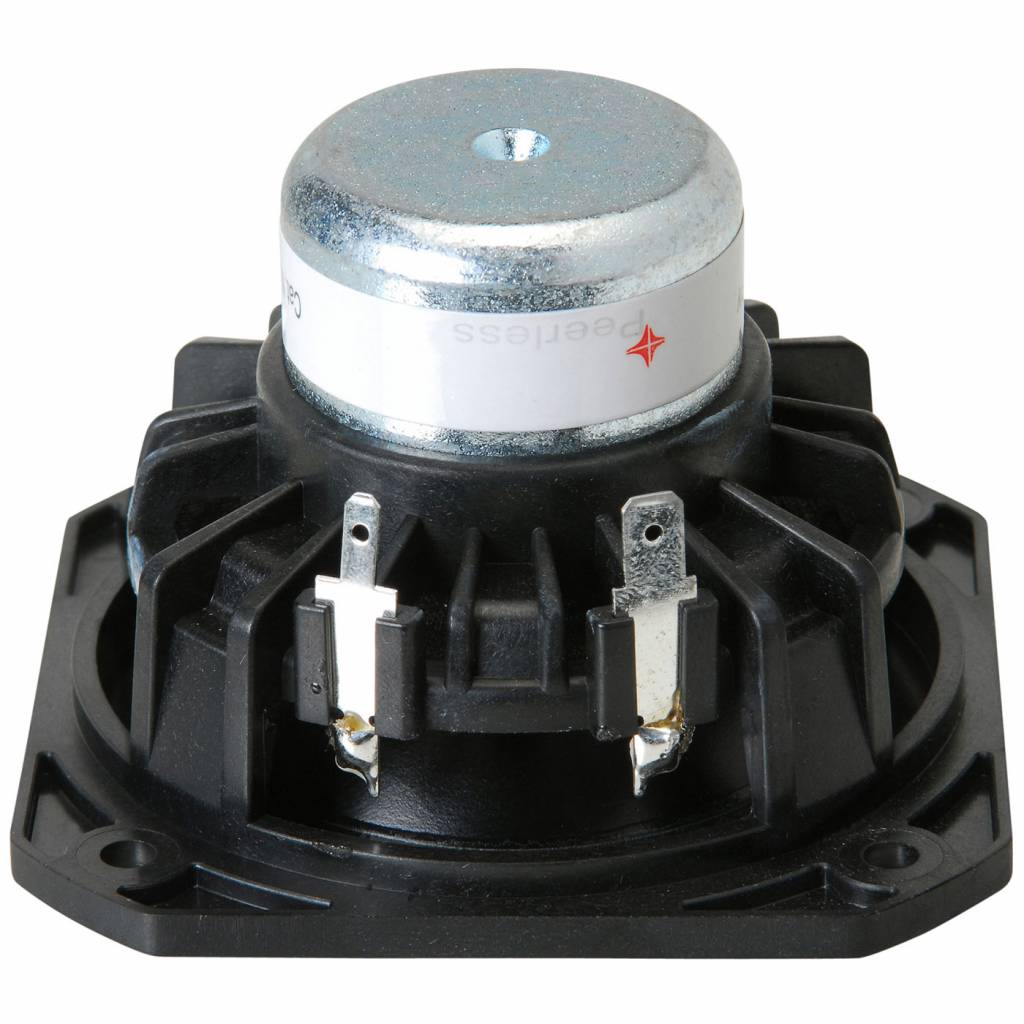

      Peerless by Tymphany PLS-P830986 3" Full Range Woofer

      € 38,80€ 46,95 4 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only € 44,60 per piece
      • 24h express shipping available
      • Same day shipping
      • In-house techniscal support
      • 45 days worry-free returns
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Tymphany/Peerless full range drivers set the standard for quality audio in products including flat panel televisions and sound bars, MP3 and cell phone docking stations, and multimedia PCs.



      Highlights

      • Neodymium magnet
      • Double-vented motor
      • Anodized aluminum center dome
      • Distortion-reducing semi-progressive surround
      • Copper pole piece cap controls impedance



      Product details

      Peerless by Tymphany PLS-P830986 3" Full Range Woofer



      This 3 inch 8 ohm member of the PLS family sets a high standard for compact full range drivers intended for applications such as television soundbars and compact music systems. Design features in this family include a damped plastic basket with venting under the spider to aid cooling of the motor, a neodymium magnet motor with copper cap to lower coil inductance, providing low distortion at low frequencies and extended high frequency response. A black anodized aluminium cone is employed on the driver, along with a black anodized aluminium dust cap coupled directly to the voice coil. Additionally, the cones come equipped with special-designed large roll rubber surrounds, which allow for a dynamic linear response to high excursion input signals.

      Specifications

      Article number
      PLS-P830986
      Woofer Series
      PLS Series
      Woofer Type
      Full Range
      Nominal Diameter
      3"
      Power Handling (RMS)
      12 Watts
      Power Handling (max)
      24 Watts
      Impedance (Z)
      8 ohms
      Sensitivity
      83.6 dB 2.83V/1m
      Frequency Response
      100 to 15,000Hz
      Voice Coil Diameter
      1"
      DC Resistance (Re)
      6.2 ohms
      Voice Coil Inductance (Le)
      0.05 mH
      Resonant Frequency (Fs)
      102 Hz
      Mechanical Q (Qms)
      5.1
      Electromagnetic Q (Qes)
      0.89
      Total Q (Qts)
      0.76
      Diaphragm Mass Inc. Airload (Mms)
      2.56g
      Mechanical Compliance of Suspension (Cms)
      0.9 mm/N
      Surface Area of Cone (Sd)
      27.3 cm²
      BL Product (BL)
      3.43 Tm
      Compliance Equivalent Volume (Vas)
      0.03 ft.³
      Maximum Linear Excursion (Xmax)
      2.05 mm
      Cone / Diaphragm Material
      Aluminum
      Surround Material
      Rubber
      Basket / Frame Material
      Polymer
      Magnet Material
      Neodymium
      Overall Outside Diameter
      3.07"
      Overall Depth
      2.138"
      Baffle Cutout Diameter
      2.83"
      # Mounting Holes
      4
      Sealed Volume
      0.1 ft.³
      Sealed F3
      109 Hz
      Vented Volume
      0.11 ft.³
      Vented F3
      61 Hz
